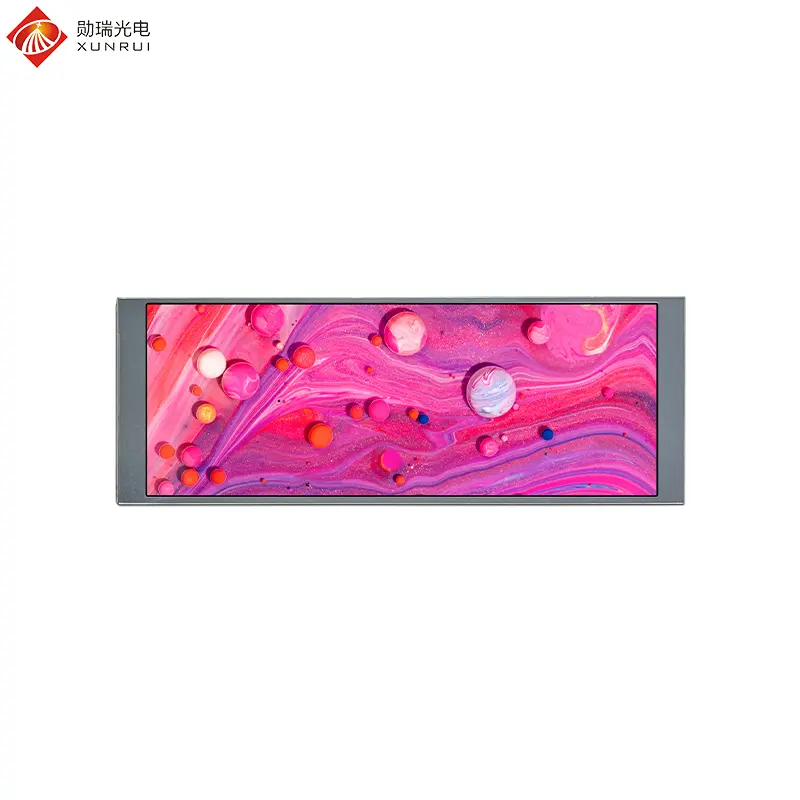

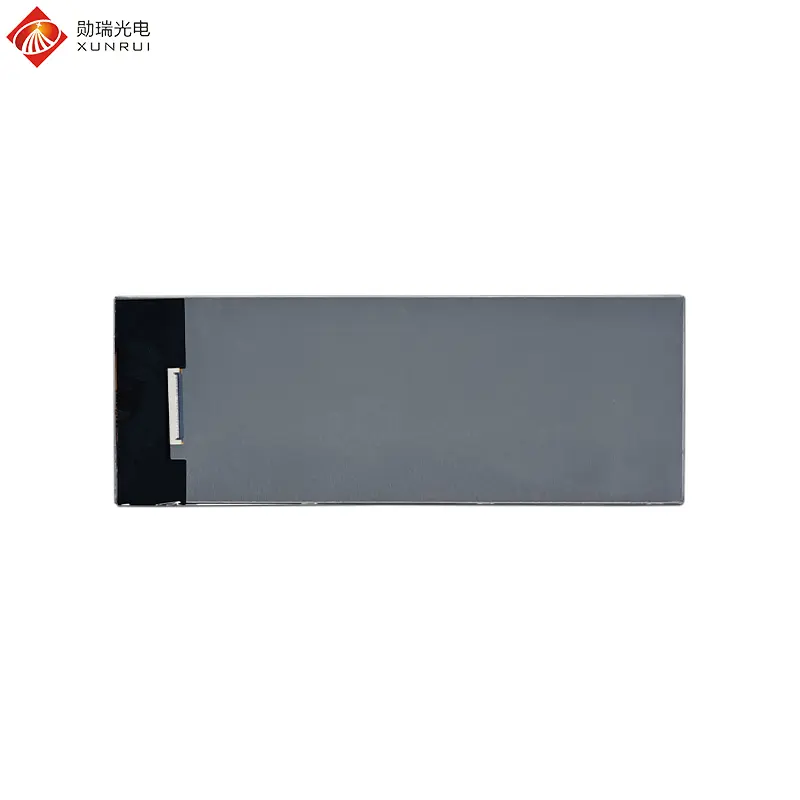

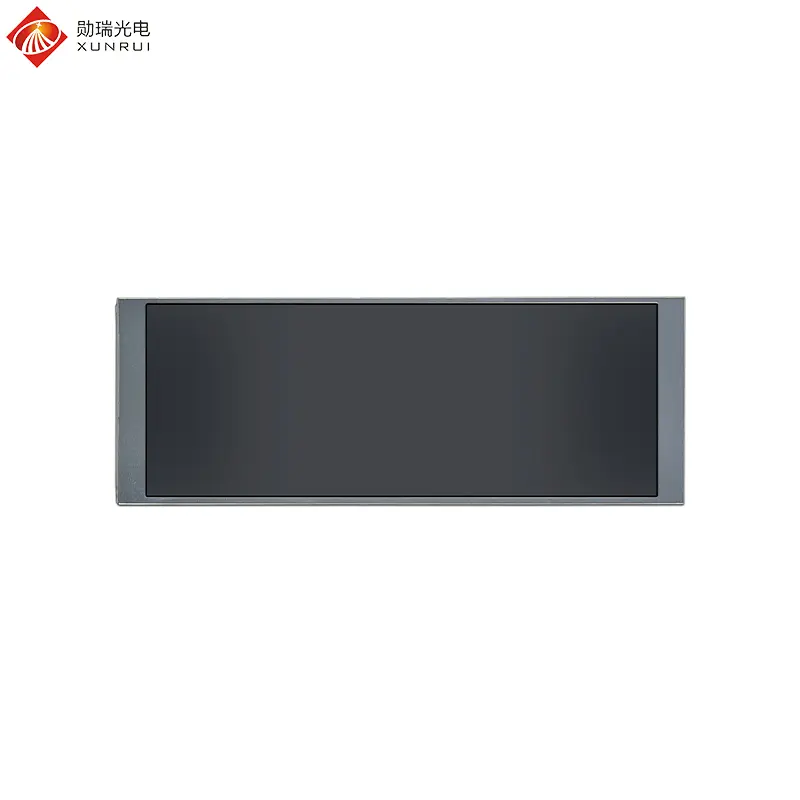

H069KHD40I7003 is a 6.86-inch TFT LCD module with a bar design, featuring a resolution of 480×1280 and an IPS panel. It supports full-view viewing angles and a MIPI 40-pin interface. Options include capacitive touchscreen integration (multi-touch, glove touch), protective glass lamination, anti-reflection treatment, driver board packages, and HDMI adapter solutions.
This 6.86-inch TFT LCD display is widely used in various sectors:
| Feature | Spec |
|---|---|
| Model Name | H069KHD40I7003 |
| LCD Size | 6.86 inch |
| Display Format | 480×1280 |
| Interface | MIPI 40pin |
| Luminance | 700 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |
| Driver IC | FL7705N |
| LCM (W x H x D) (mm) | 66.3*174*4.5 |
| Active Area(mm) | 60.25*160.81 |
| Operating Temperature | -20℃ ~ +85℃ |
| Storage Temperature | -30℃ ~ +85℃ |
| Operating Voltage | 9.0V |
| Pin No. | Symbol | Functional |
|---|---|---|
| 1 | GND | Ground |
| 2-3 | D0P/D0N | MIPI data input |
| 4 | GND | Ground |
| 5-6 | D1P/D1N | MIPI data input |
| 7 | GND | Ground |
| 8-9 | CLKP/CLKN | MIPI clock input |
| 10 | GND | Ground |
| 11-12 | D2P/D2N | MIPI data input |
| 13 | GND | Ground |
| 14-15 | D3P/D3N | MIPI data input |
| 16-17 | GND | Ground |
| 18-19 | IOVCC | Power supply (1.8V) |
| 24 | RSTB | Global reset pin |
| 25 | STBYB | Standby mode |
| 28-29 | BL-K | Backlight Cathode |
| 35-36 | BL-A | Backlight Anode |
| 38-39 | VDD | Digital circuits power (+3.3V) |
