Product Description

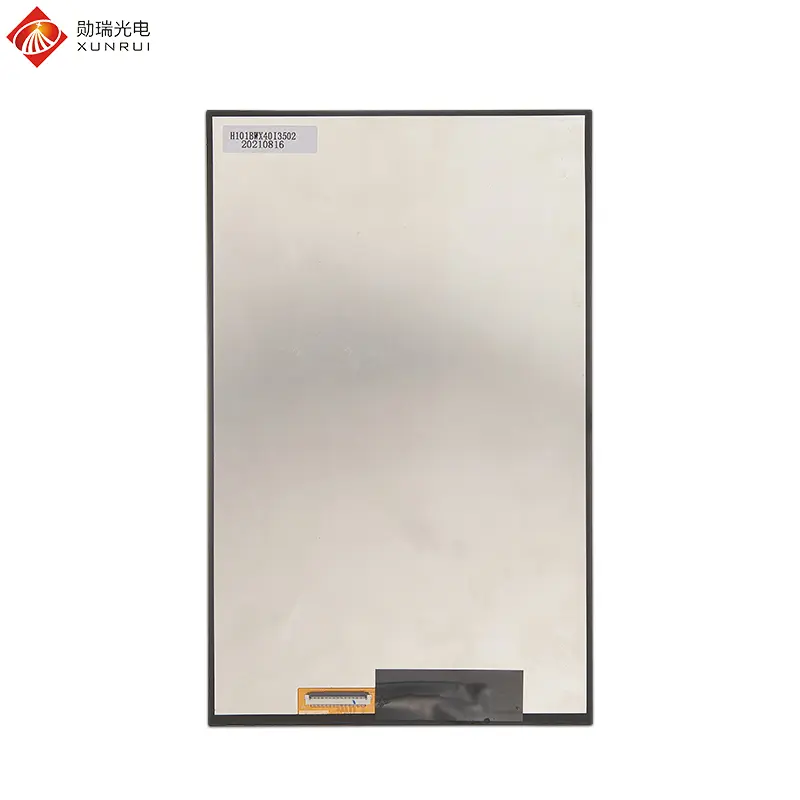

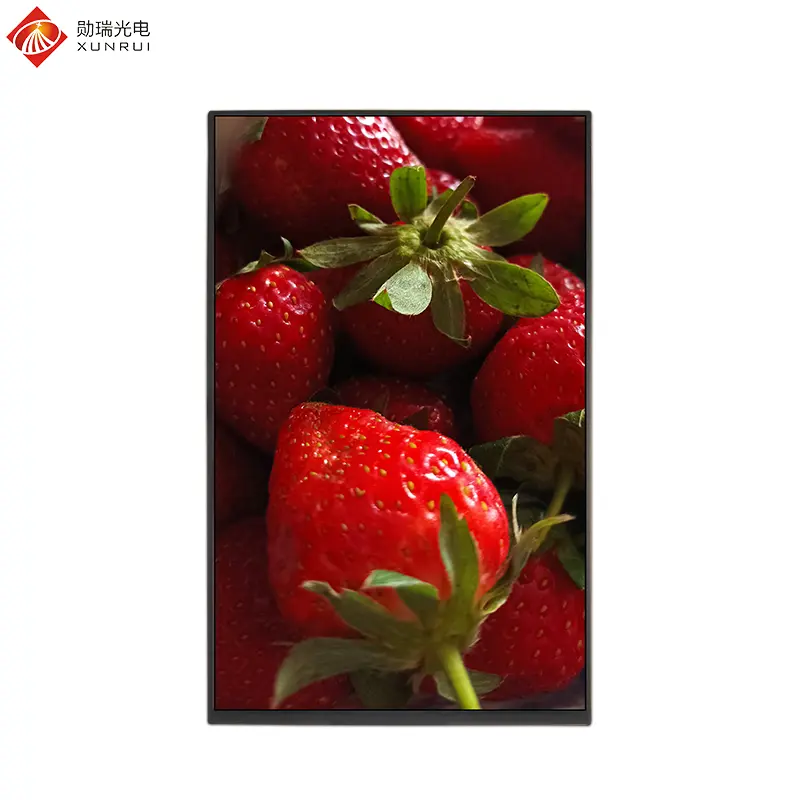

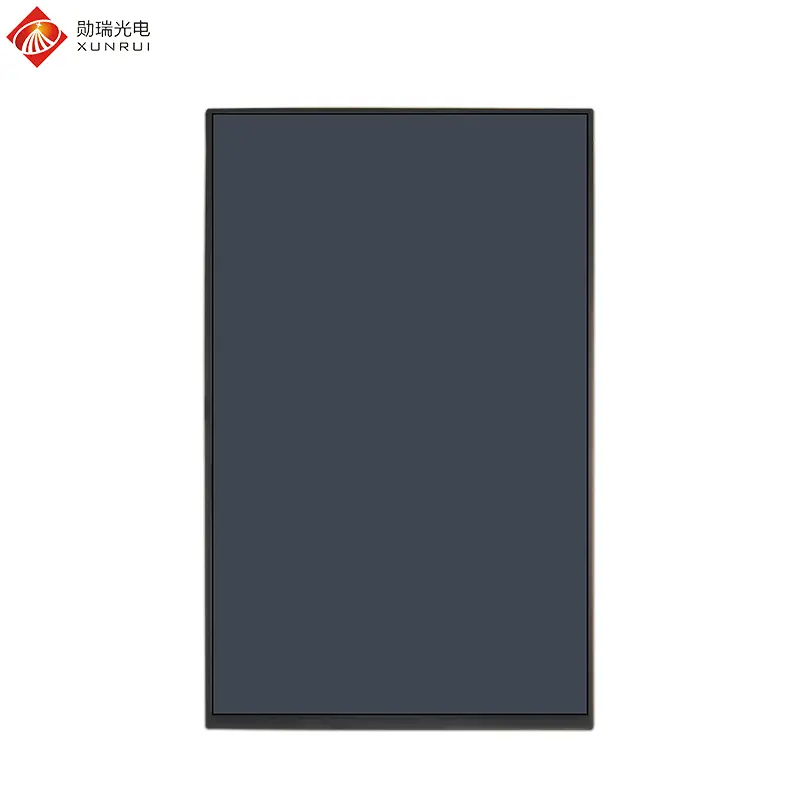

The H101BWX40I3502 is a premium 10.1-inch TFT LCD module featuring IPS full-view technology. With a vertical resolution of 800×1280 (8:13 aspect ratio) and a pixel density of approximately 149 PPI, it provides exceptional clarity for long documents, medical imaging, and data flow displays.

This module integrates a MIPI 40-pin interface and 350 nit brightness. Key applications include:

  • Medical Equipment: Ultrasound machines, patient monitors, and endoscope systems with antibacterial AF coating compatibility.
  • Industrial Automation: HMI panels, PLC terminals, and production monitoring in harsh environments (dust-proof and waterproof designs supported).
  • Smart Retail: Self-service kiosks, vending machines, and digital signage where vertical layouts optimize menu displays.

Featured Display Solutions

2 inch TFT LCD

2 inch RGB 40pin

2.4 inch TFT LCD

2.4 inch MCU interface

2.8 inch TFT LCD

2.8 inch MCU 30pin

3.5 inch TFT LCD

3.5 inch RGB 54pin

4.3 inch TFT LCD

4.3 inch 800x480 IPS

5 inch TFT LCD

5 inch 1200nit High Brightness

7 inch TFT LCD

7 inch 1000nit IPS

8 inch TFT LCD

8 inch 800x1280 MIPI

10.1 inch TFT LCD

10.1 inch 1280x800 LVDS

Specification Parameters

Feature Specification
Model NameH101BWX40I3502
LCD Size10.1 inch
Display Format800×1280
InterfaceMIPI 40pin
Luminance350 cd/m2
Viewing DirectionALL (IPS)
Color Depth16.7M
LCM Dimensions (mm)228.6(W) X 143(H) X 2.68(D)
Active Area (mm)135.36(V) X 216.576(H)
Operating Temperature-20°C ~ +70°C
Storage Temperature-30°C ~ +80°C

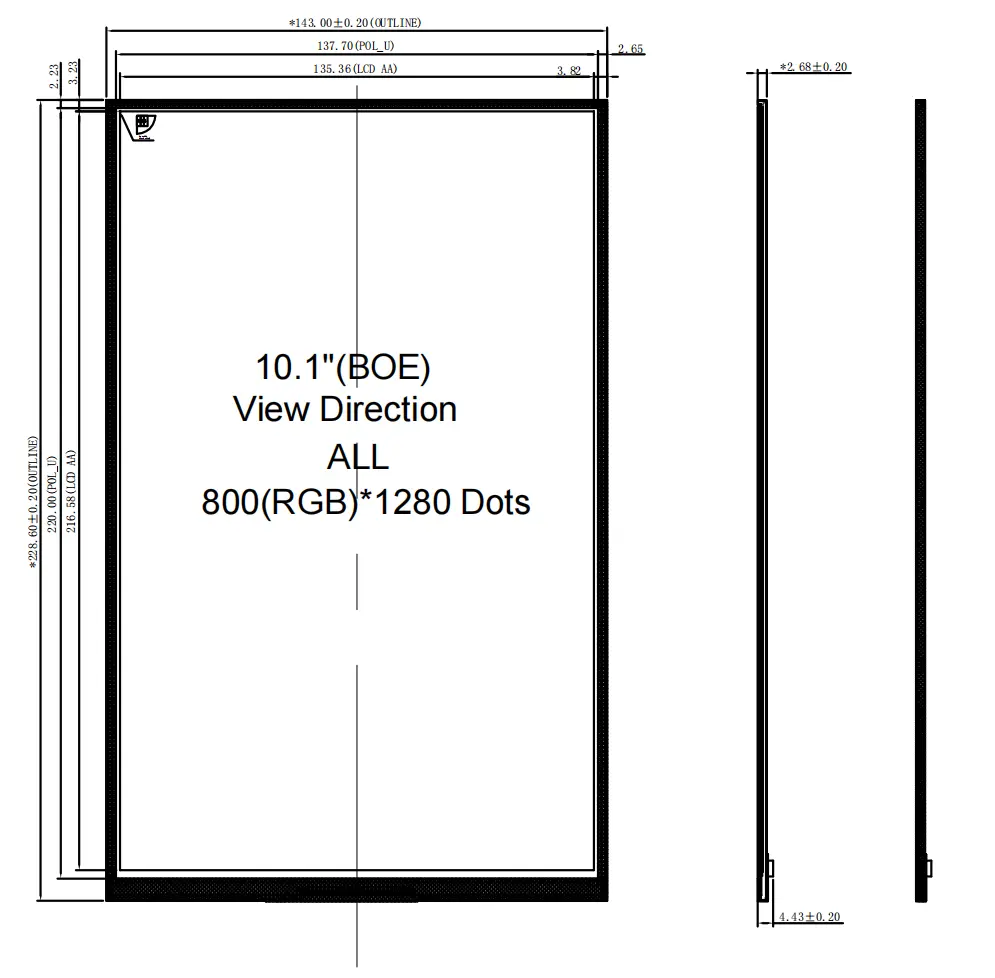

Mechanical Drawing

Mechanical Drawing 10.1 inch LCD

Interface Pin Definition

Pin No. Symbol Type Function
1NC-No connection
2-3VDDINPPower supply 3.3V
4, 7, 10...GNDPGround
5RESETIDevice reset signal
8-9MIPI-0N/0PIMIPI Data Lane 0
11-12MIPI-1N/1PIMIPI Data Lane 1
14-15MIPI-CLKN/PIMIPI Clock Lane
31-32LED-PBacklight Cathode
39-40LED+PBacklight Anode

Frequently Asked Questions

What is the display technology used in this 10.1-inch module?
This module utilizes IPS (In-Plane Switching) technology, which provides full viewing angles and consistent color reproduction from all directions.
Can this screen be used in outdoor environments?
With a brightness of 350 nits, it is primarily designed for indoor or semi-outdoor use. For direct sunlight applications, we recommend our High Brightness TFT LCD series.
Is the touch screen included?
The standard model (H101BWX40I3502) does not include a touch screen, but capacitive or resistive touch panels are optional and can be customized.
What is the interface type for this display?
It uses a MIPI 40-pin interface, which is ideal for high-speed data transmission in modern medical and industrial devices.
What are the operating temperature limits?
The module is designed for industrial use with an operating temperature range of -20°C to +70°C and a storage range of -30°C to +80°C.
Does the display support vertical orientation?
Yes, the 800×1280 resolution is natively vertical (8:13 aspect ratio), making it perfect for handheld medical devices and vertical kiosks.
