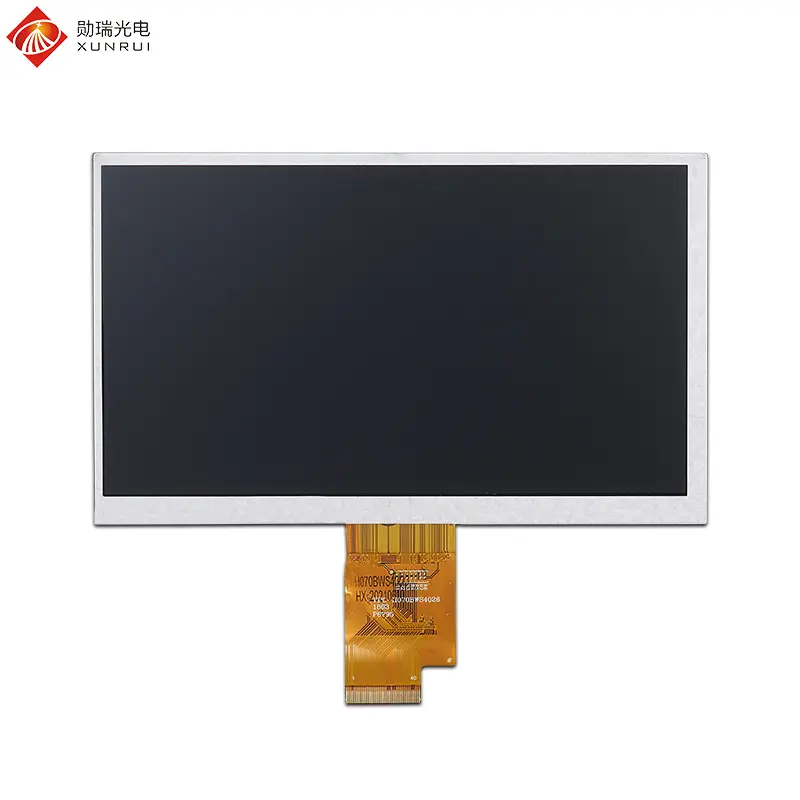

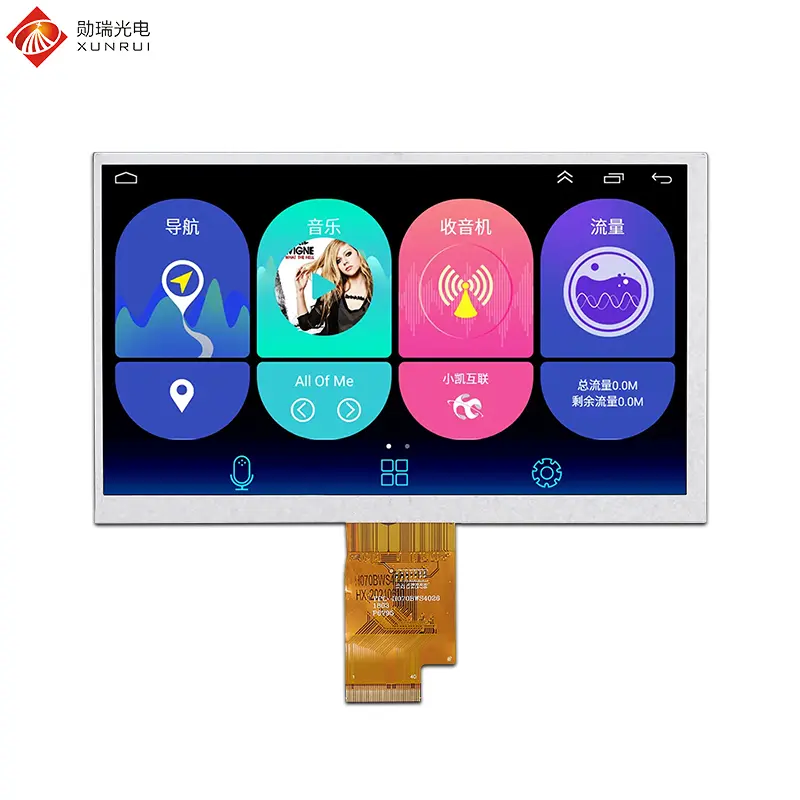

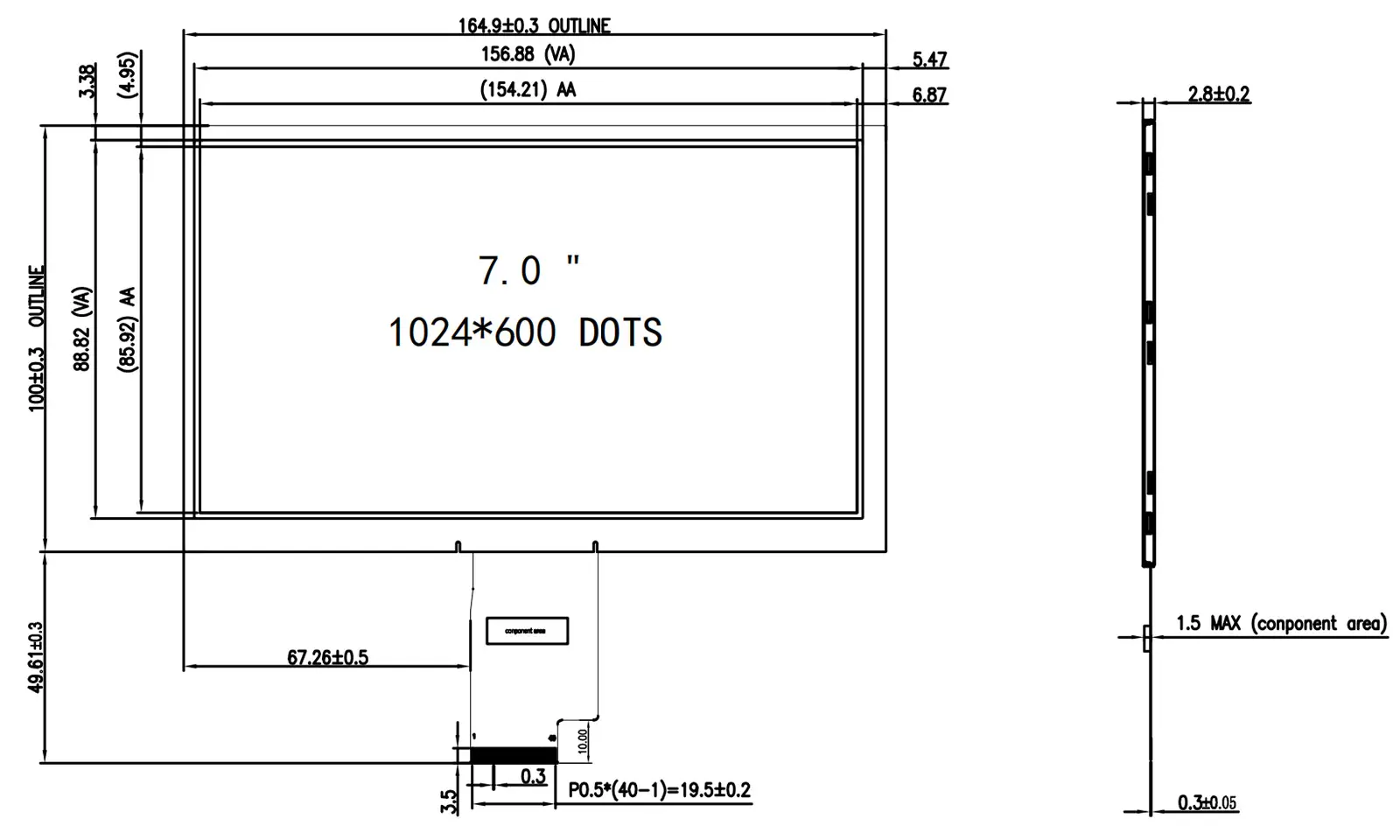

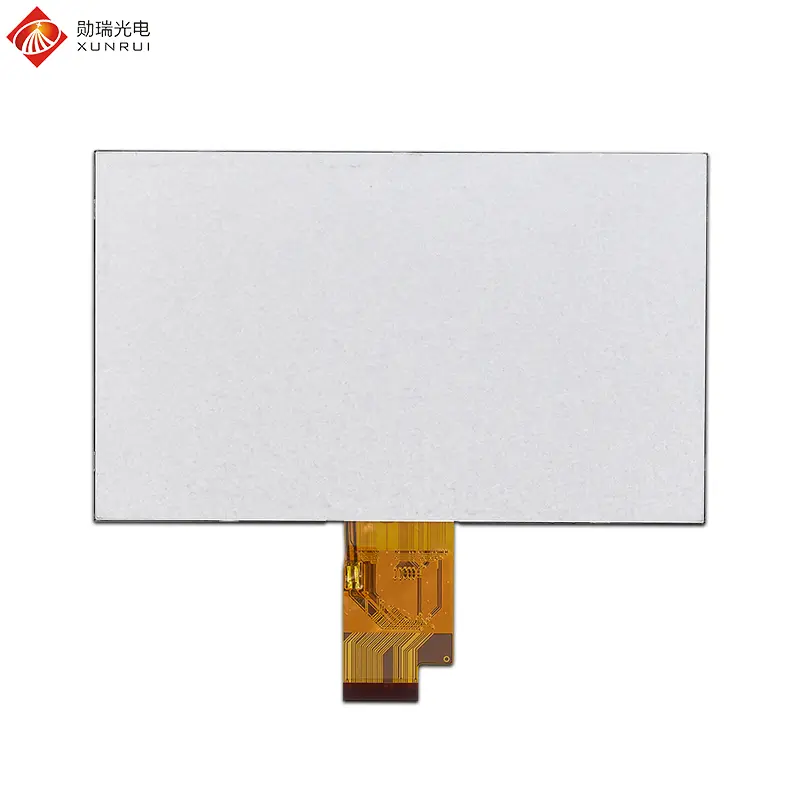

H070BWS40I3523 is a 7-inch TFT LCD module. This LCD screen adopts an IPS panel, offers a full viewing Angle, has a resolution of 1024×600, and features a 40-pin LVDS interface HX8282-A02+HX8696-A01 Driver IC, with a brightness of 350 nits, can withstand operating temperatures ranging from -20℃ to +70℃, and can be optionally equipped with resistive touch screens or capacitive touch screens.

This 7-inch TFT LCD screen is mainly applied in medical devices, such as portable ultrasound machines, monitors or handheld electrocardiogram machines, for clearly displaying medical images or vital sign data. The IPS technology can accurately restore the gray scale levels, facilitating diagnosis. Smart home products: such as smart central control panels, air conditioning panels or security systems, which centrally control lights, temperature and humidity, etc. through 7-inch LCD screens. IPS technology ensures no color cast when viewed from multiple angles. In the fields of industrial machinery and equipment, vehicle-mounted instruments, instruments and meters, etc.
