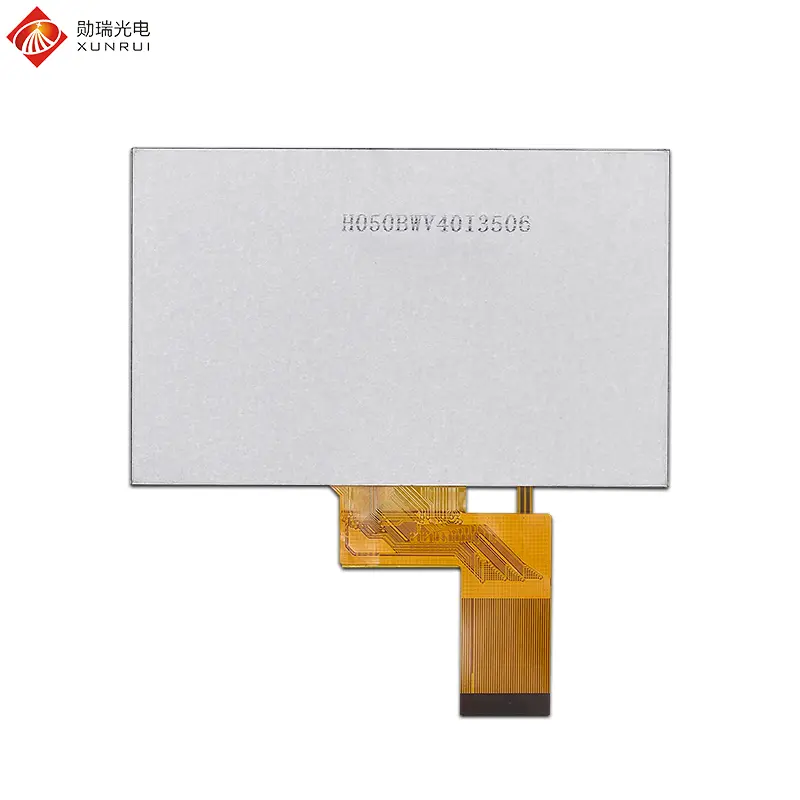

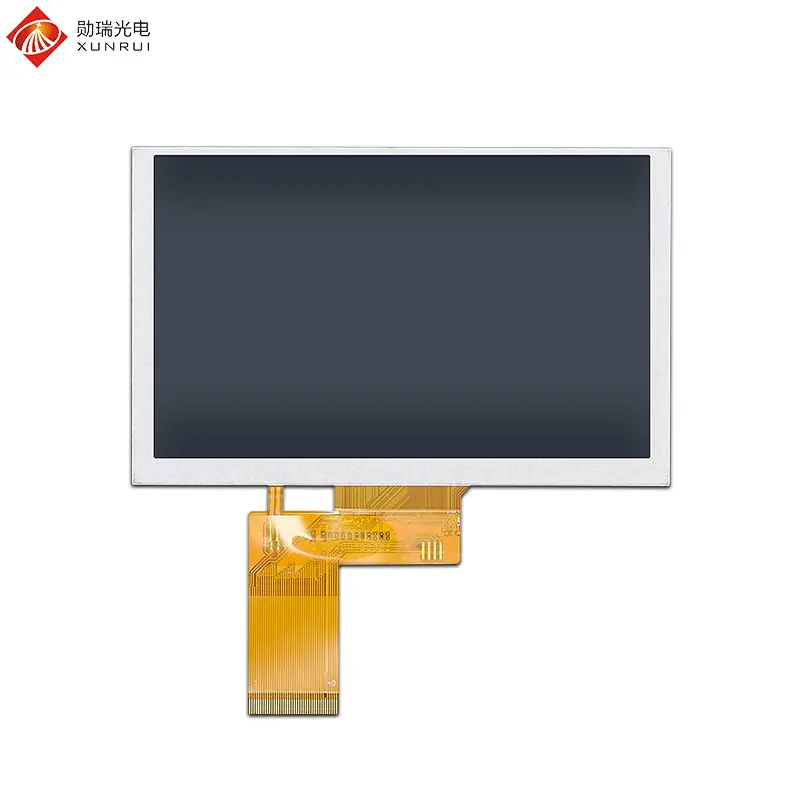

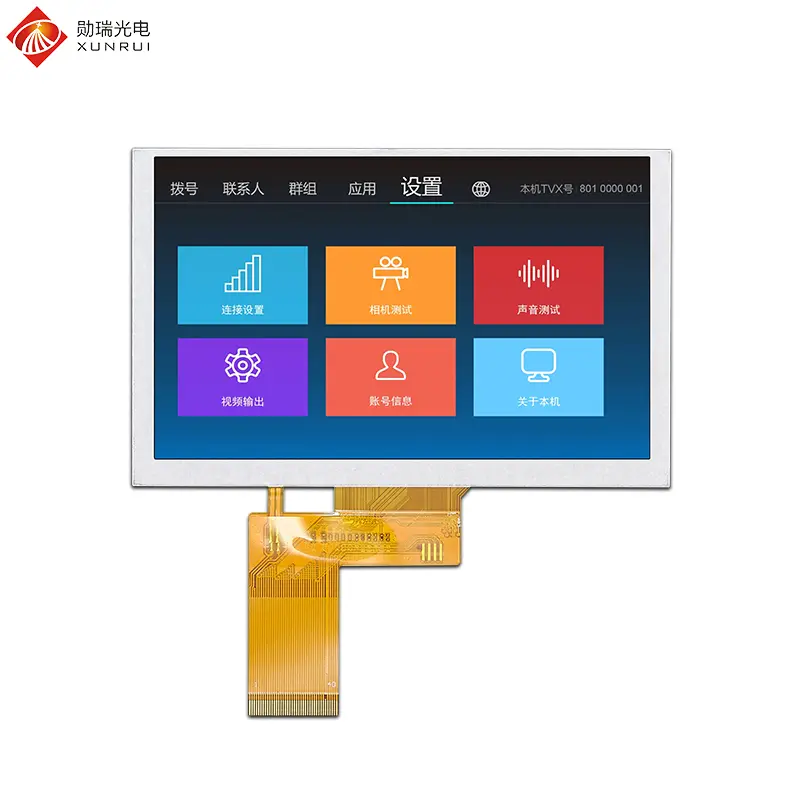

H050BWV40I3506 is a 5-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 800×480, a 24-bit RGB 40-pin interface, an ST7262 Driver IC, and a brightness of 350 nits. The operating temperature can withstand -20℃ to +70℃, and resistive touch screens or capacitive touch screens can be optionally equipped.

High brightness and contrast: The brightness range is typically between 300 and 1000 cd/m², with some high-end models reaching up to 1500 cd/m². The contrast ratio varies from 500:1 to 1500:1, ensuring clear visibility even in strong light. It is suitable for outdoor or industrial environments.

This 5-inch TFT LCD screen is mainly applied in medical equipment: as the display interface of portable diagnostic devices (such as ultrasound instruments, electrocardiogram machines), it clearly presents patient data and images, assisting doctors in making precise diagnoses. The Internet of Things: as the control interface for devices such as drone remote controls, it enables remote monitoring and data visualization. In the field of industrial control: applied to industrial automation equipment, monitoring terminals and human-machine interaction interfaces, it is used to display real-time data, operation instructions and alarm information, improving production efficiency and equipment controllability.
