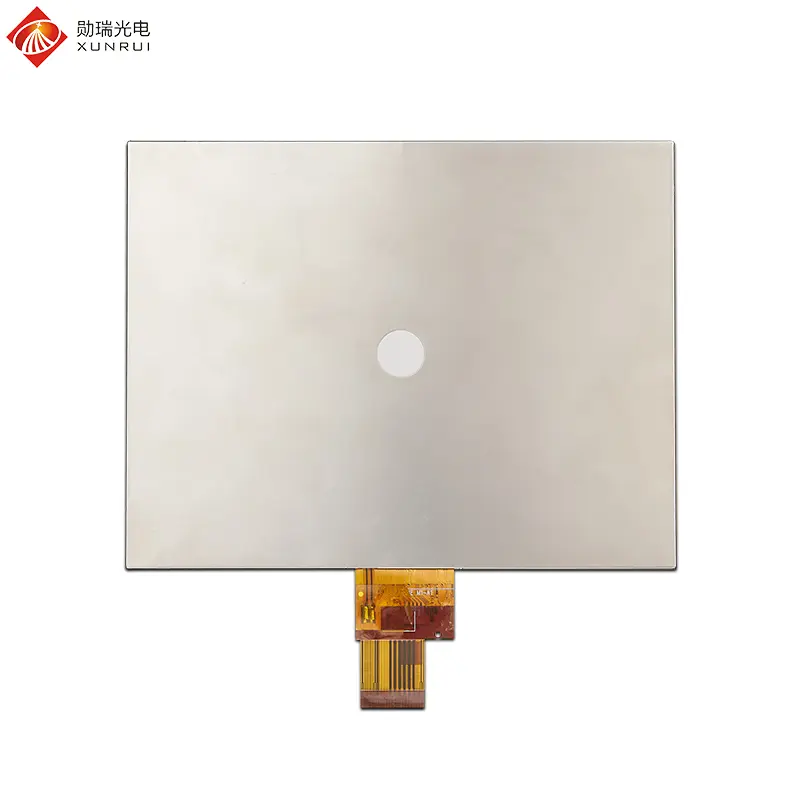

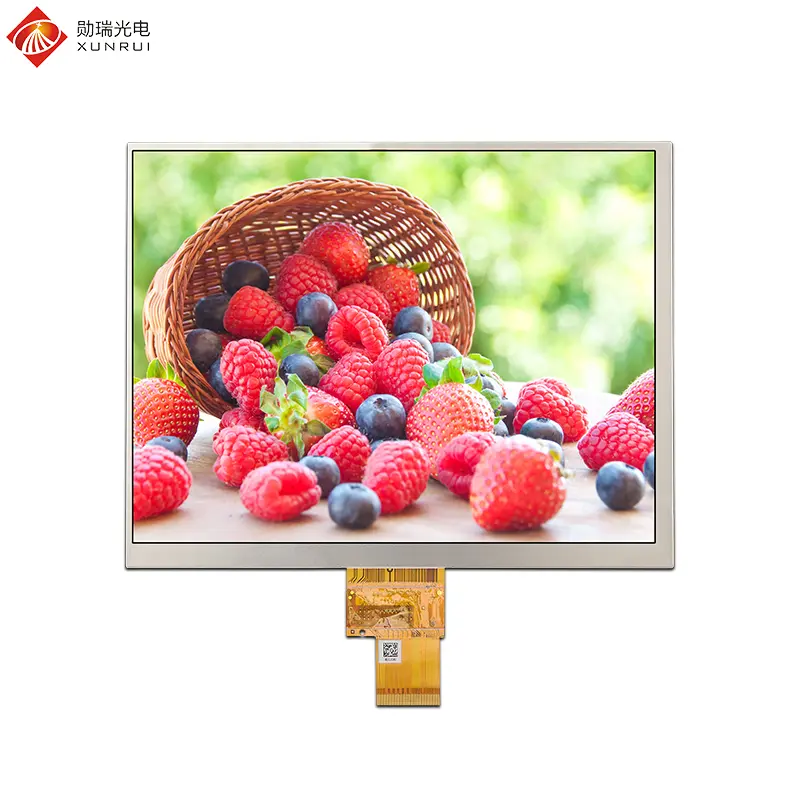

H080IWX40I3508 is a premium 8-inch TFT LCD module featuring an IPS panel for superior full viewing angles. With a crisp 1024x768 resolution and an LVDS 40-pin interface, it delivers a brightness of 300 nits. This industrial-grade display operates reliably within a temperature range of -20°C to +70°C. Customization options include resistive or capacitive touch screens to suit specific application needs.
| Feature | Specification |
|---|---|
| Model Name | H080IWX40I3508 |
| LCD Size | 8 inch |
| Display Format | 1024x768 |
| Interface | LVDS 40pin |
| Luminance | 300 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS Full View) |
| Color Depth | 16.7M |

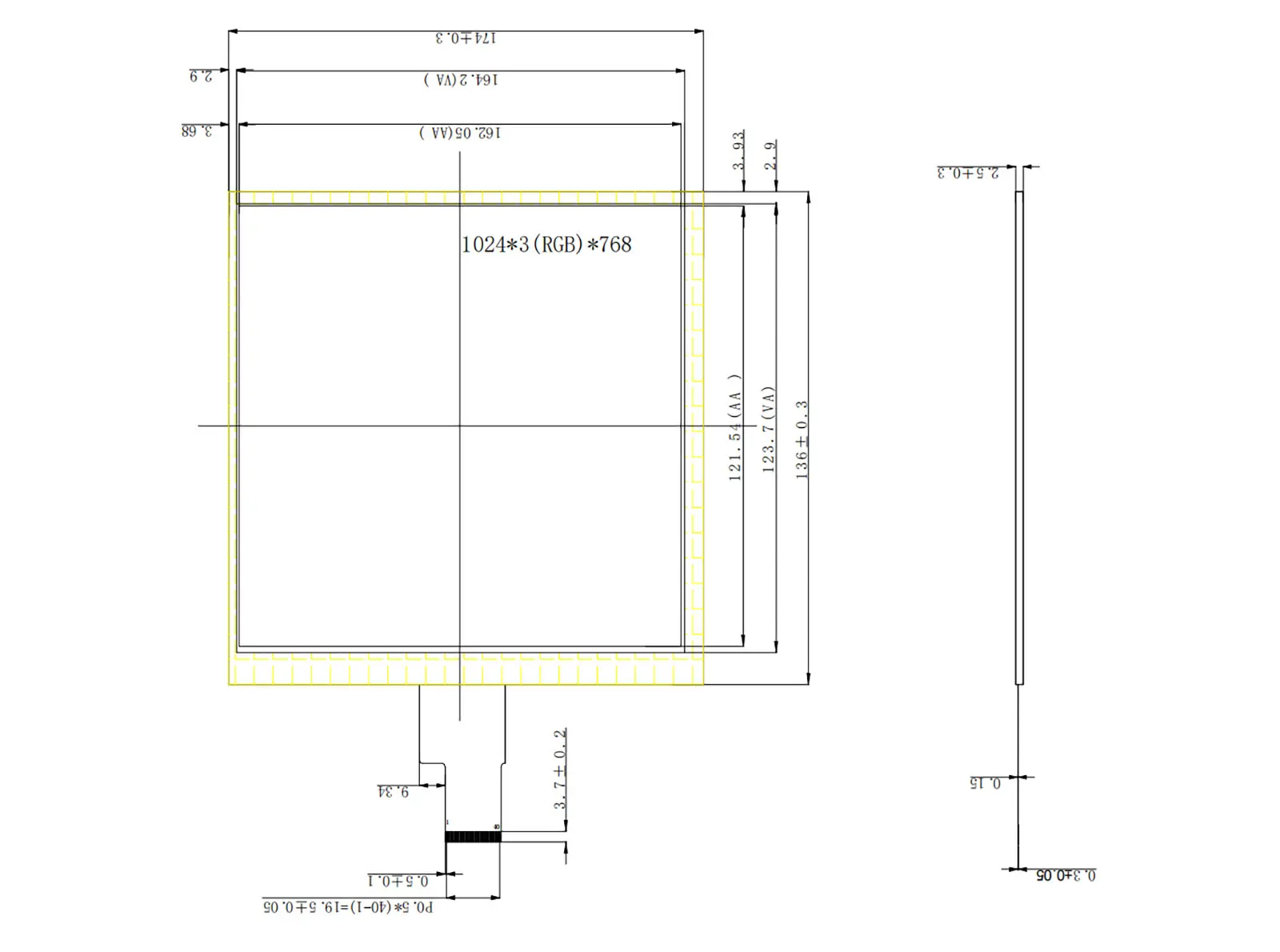

| LCM (W x H x D) (mm) | 174 * 136 * 2.5 |
| Active Area (mm) | 162.05 * 121.54 |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Operating Voltage | 12V |
| No. | Symbol | Description |
|---|---|---|
| 1 | VCOM | Common voltage |
| 2-3 | VDD | 3.3V Power |
| 5 | RESET | Global reset pin (Active low) |
| 6 | STBYB | Standby mode (Normal: High) |
| 7, 10, 13, 16 | GND | System Ground |
| 8-9 | RXIN0-/+ | Negative/Positive LVDS differential data input |
| 11-12 | RXIN1-/+ | Negative/Positive LVDS differential data input |
| 14-15 | RXIN2-/+ | Negative/Positive LVDS differential data input |
| 17-18 | RXCLK-/+ | Negative/Positive LVDS differential clock input |
| 20-21 | RXIN3-/+ | Negative/Positive LVDS differential data input |
| 28 | SELB | 6bit/8bit mode select (H:6bit / L:8bit) |
| 29 | AVDD | Power for Analog Circuit |
| 33 | L/R | Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35, 38 | VGL/VGH | Gate voltages for TFT |
| 39-40 | LED+ | Backlight Anode |
