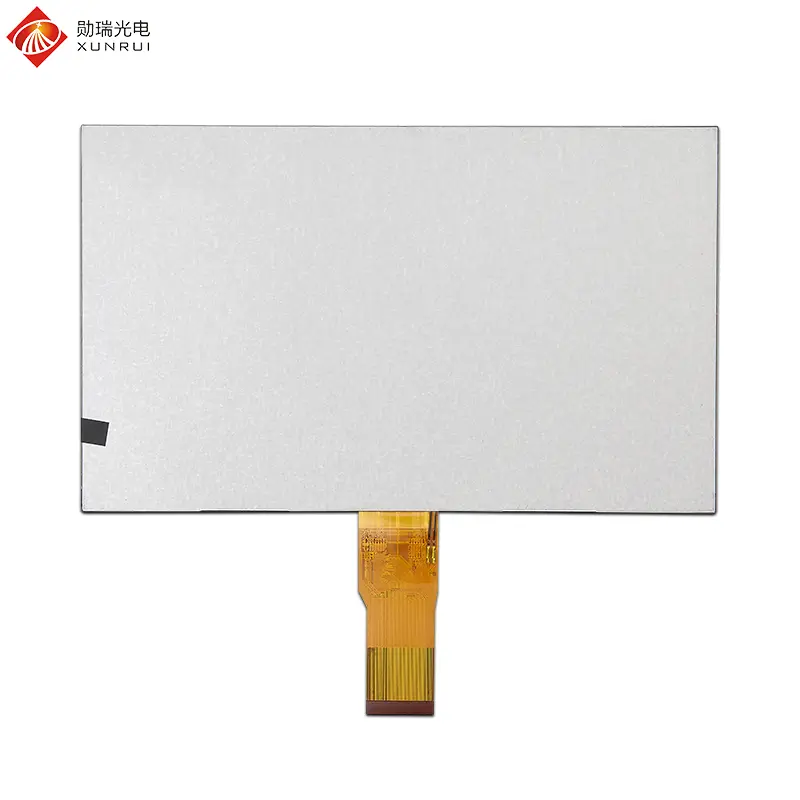

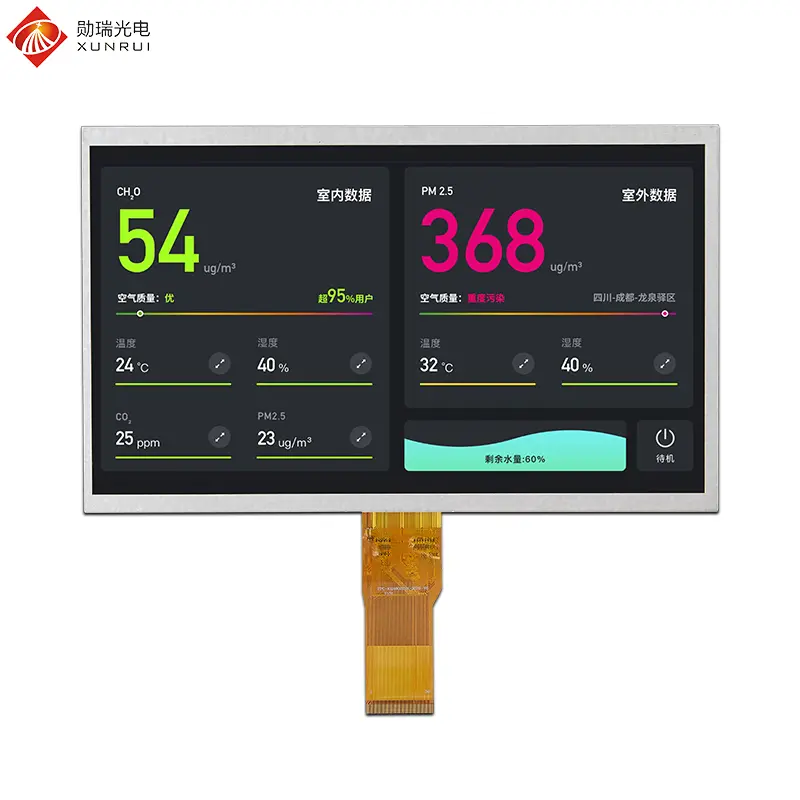

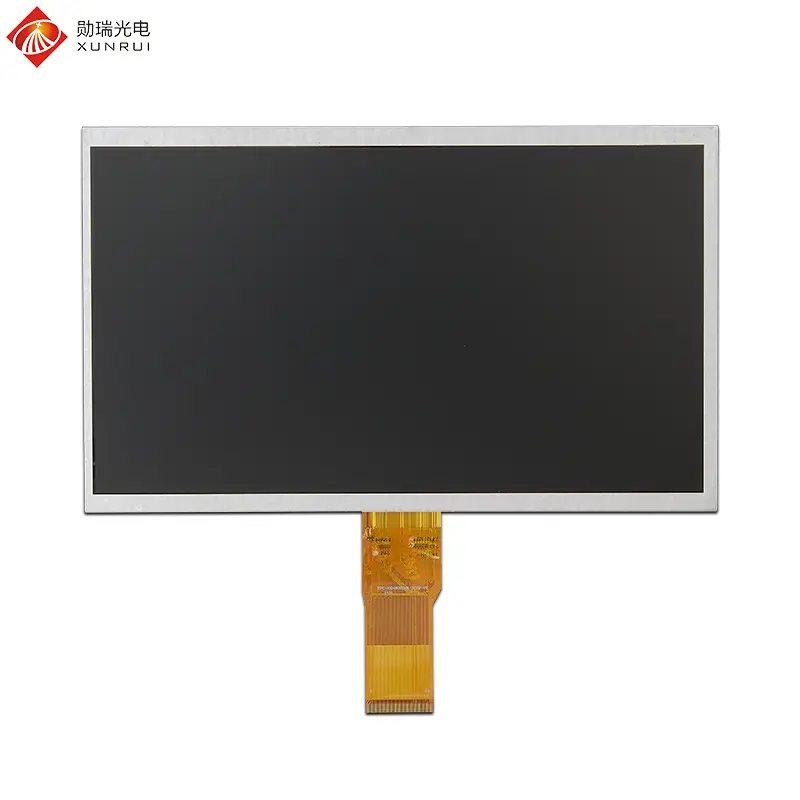

H101IWS50E3501 is a high-performance 10.1-inch TFT LCD module. This display features a TN panel with a crisp resolution of 1024×600, utilizing an RGB 50-pin interface and the reliable EK79001HM + EK73215BCGA Driver IC.
With a brightness of 350 nits and an industrial-grade operating temperature range from -20°C to +70°C, it is engineered for durability. Optional capacitive or resistive touch screens are available to meet specific project requirements.
This module is widely used in industrial control equipment, including embedded computers and automatic monitoring systems. It is also an ideal solution for on-board systems like navigators and dashcams, as well as medical diagnostic instruments and portable ultrasound devices.
| Feature | Spec |
| Model Name | H101IWS50E3501 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 6 O’ Clock |
| Color Depth | 16.7M |
| Driver IC | EK79001HM + EK73215BCGA |

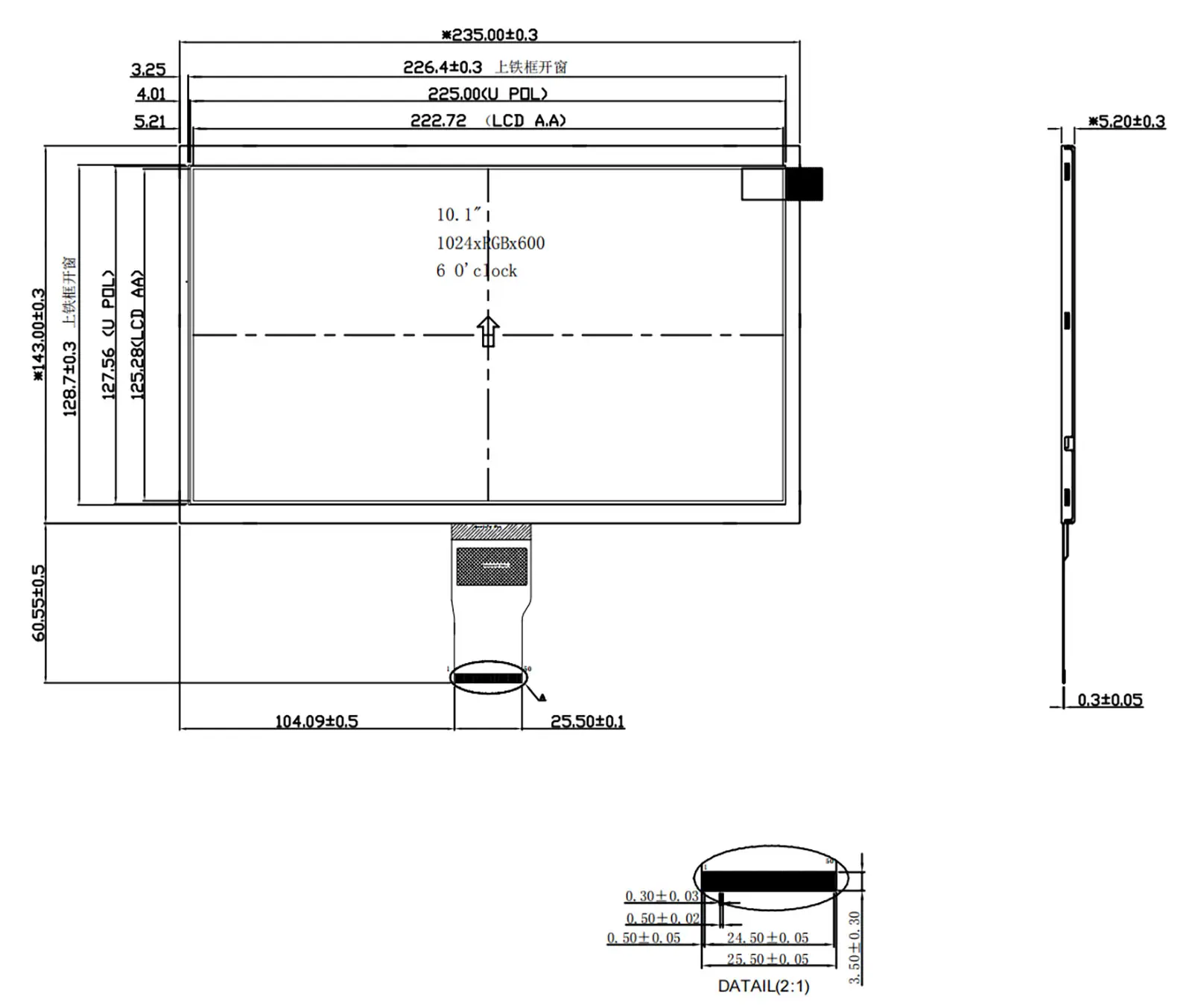

| LCM (W x H x D) (mm) | 235(W)×143(H)×5.2(T) |
| Active Area(mm) | 222.72(W)×125.28(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.6V |
| No. | Symbol | I/O | Function |
| 1~2 | LEDA | P | LED Anode |
| 3~4 | LEDK | P | LED Cathode |
| 5 | GND | P | Ground |
| 7 | DVDD | P | Digital power |
| 8 | MODE | I | DE/SYNC mode select (H:DE mode, L:HSD/VSD mode) |
| 9 | DE | I | Data enable signal |
| 10 | VS | I | Vertical sync input |
| 11 | HS | I | Horizontal sync input |
| 12~35 | B/G/R 7~0 | I | Data Inputs (Blue, Green, Red) |
| 37 | DCLK | I | Clock input |
| 41 | VGH | P | Positive power for TFT |
| 42 | VGL | P | Negative power for TFT |
| 44 | RESET | I | Global reset pin (Active low) |
