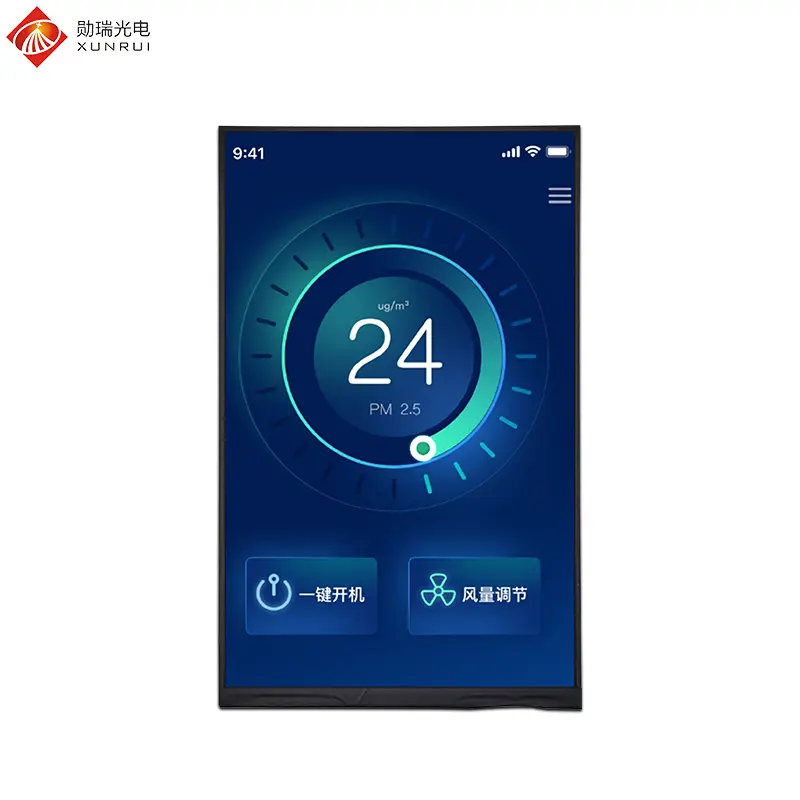

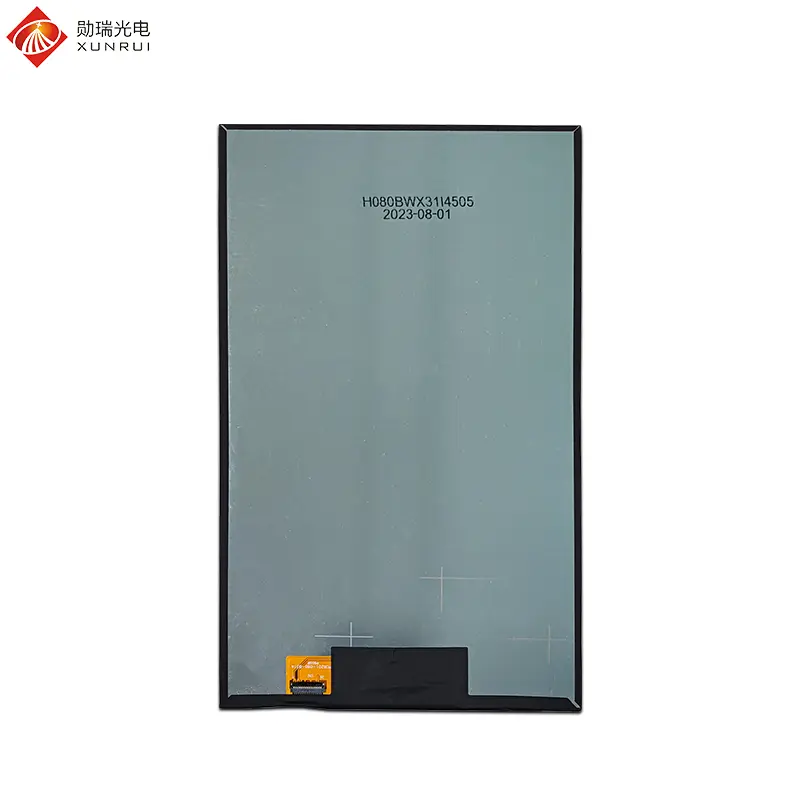

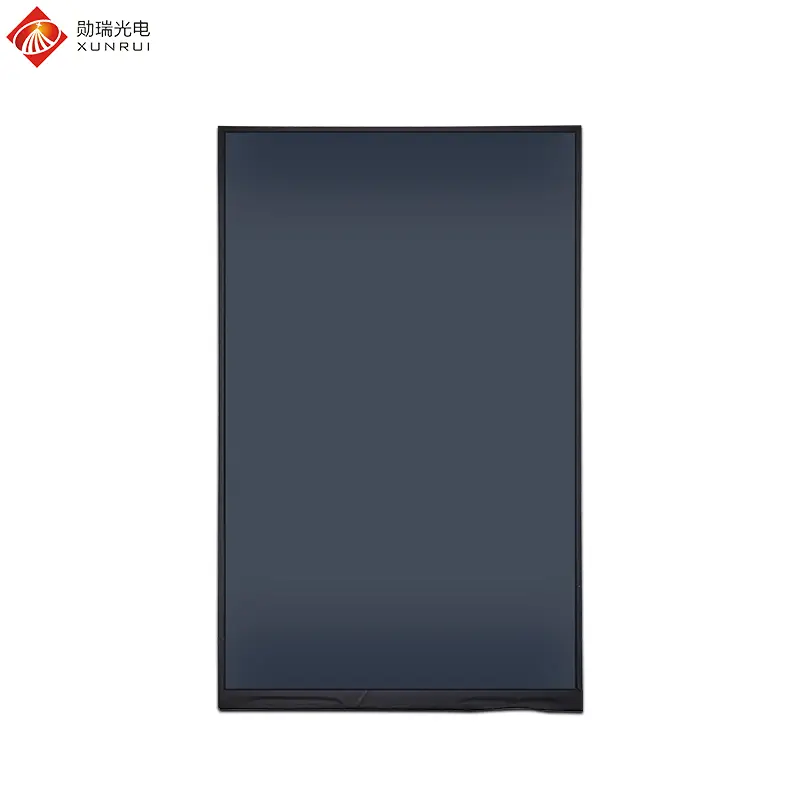

H080BWX31I4505 is an 8-inch TFT LCD module. This LCD screen adopts an IPS panel, offers a full viewing Angle, and has a resolution of 800×1280. It is a vertical screen with a MIPI 31-pin interface, JD9365 Driver IC, and a brightness of 480 nits. The working temperature can withstand -20℃ to +60℃, and a touch screen can be optionally equipped.
Key Applications:
• Industrial equipment: Such as industrial control panels, handheld terminals or test instruments.
• Security and access control: Facial recognition devices and access control controllers.
• Smart home: Central control screens, security monitoring display or home appliance panels.
• Medical equipment: Portable diagnostic instruments or monitoring devices.
2 inch 480×240 RGB 40pin
2.4 inch 240×320 MCU 40pin
2.8 inch 240×320 MCU 30pin
3.5 inch 320×240 RGB 54pin
4.3 inch 800×480 RGB 40pin
5 inch 800×480 1200nit High Brightness
| Feature | Spec |
| Model Name | H080BWX31I4505 |
| LCD Size | 8 inch |
| Display Format | 800×1280 |
| Interface | MIPI 31pin |
| Luminance | 480 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |
| Driver IC | JD9365 |

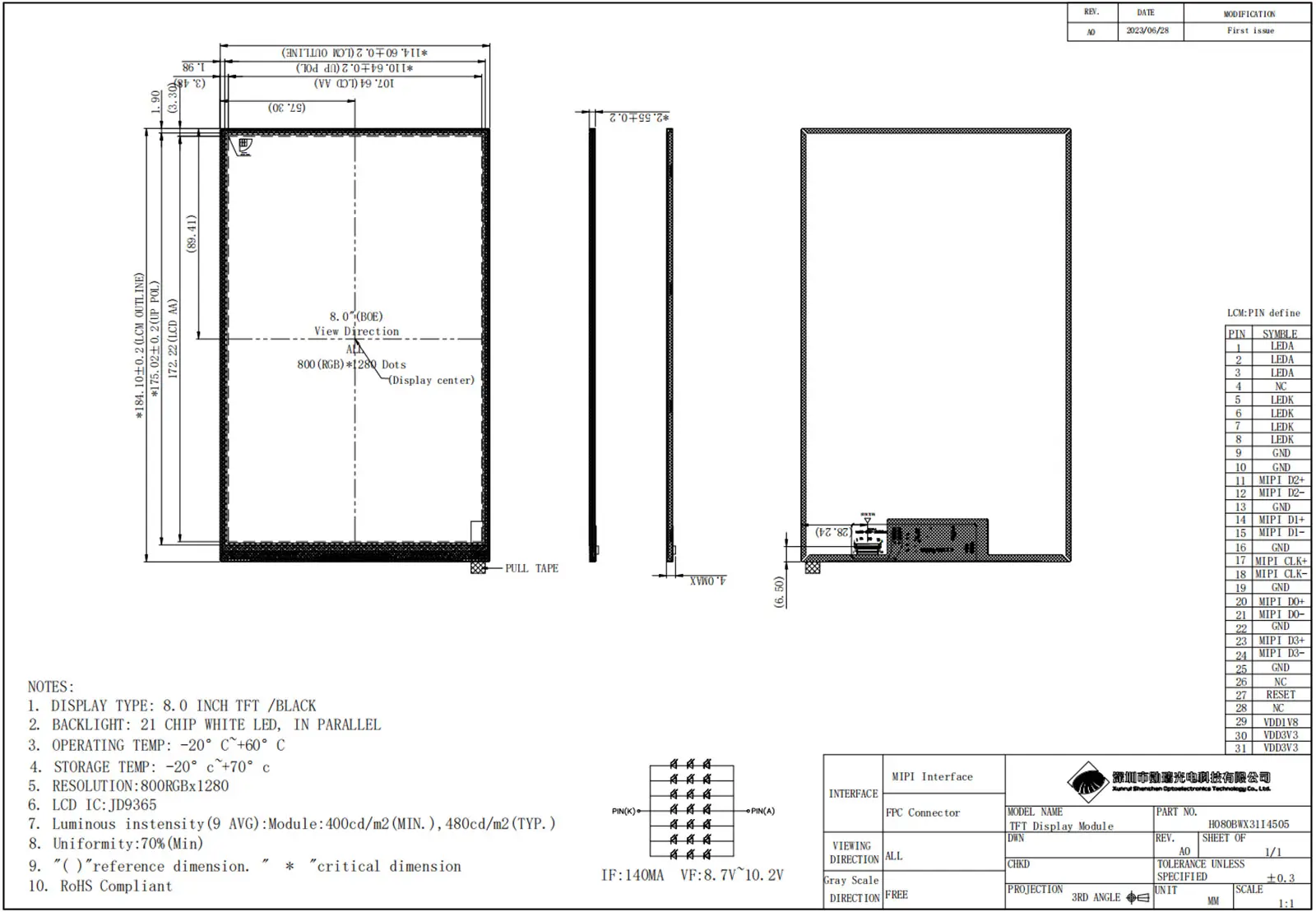

| LCM (W x H x D) (mm) | 114.6 x 184.1 x 2.55 |
| Active Area(mm) | 107.64 x 172.224 |
| Operating Temp | -20℃ ~ +60℃ |
| Storage Temp | -20℃ ~ +70℃ |
| Operating Voltage | 9.6V |
| PIN NO | SYMBOL | DESCRIPTION |
| 1-3 | LEDA | Power for LED backlight (Anode) |
| 5-8 | LEDK | Power for LED backlight (Cathode) |
| 9-10 | GND | Ground |
| 11-12 | MIPI_D2+/- | Differential small amplitude signals |
| 14-15 | MIPI_D1+/- | Differential small amplitude signals |
| 17-18 | MIPI_CLK+/- | Differential small amplitude signals |
| 20-21 | MIPI_D0+/- | Differential small amplitude signals |
| 23-24 | MIPI_D3+/- | Differential small amplitude signals |
| 27 | RESET | Reset signal |
| 29 | VDD1V8 | I/O power supply |
| 30-31 | VDD3V3 | Power supply 3.0-3.6V |
