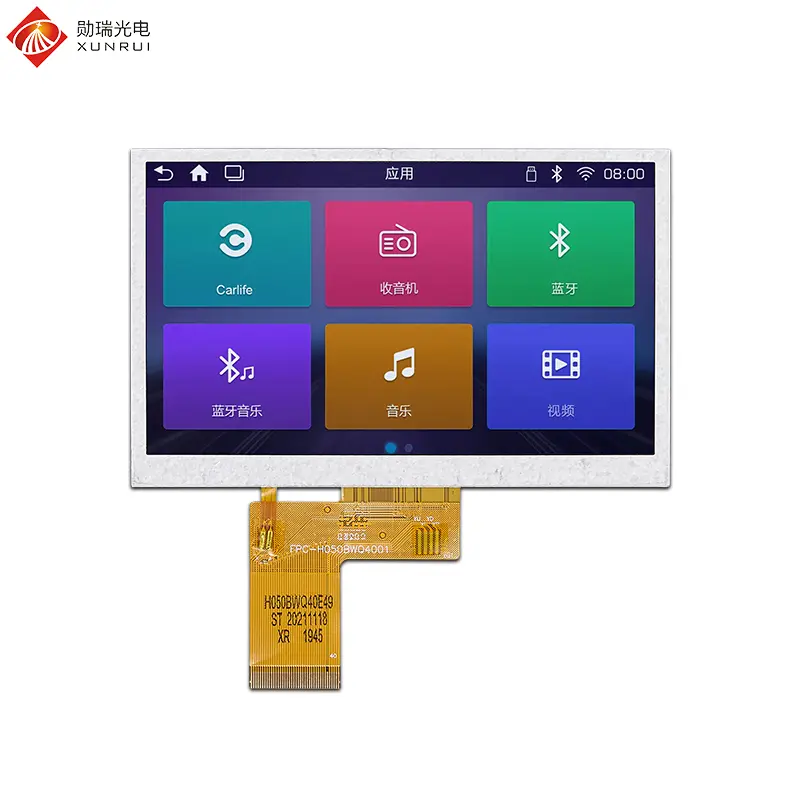

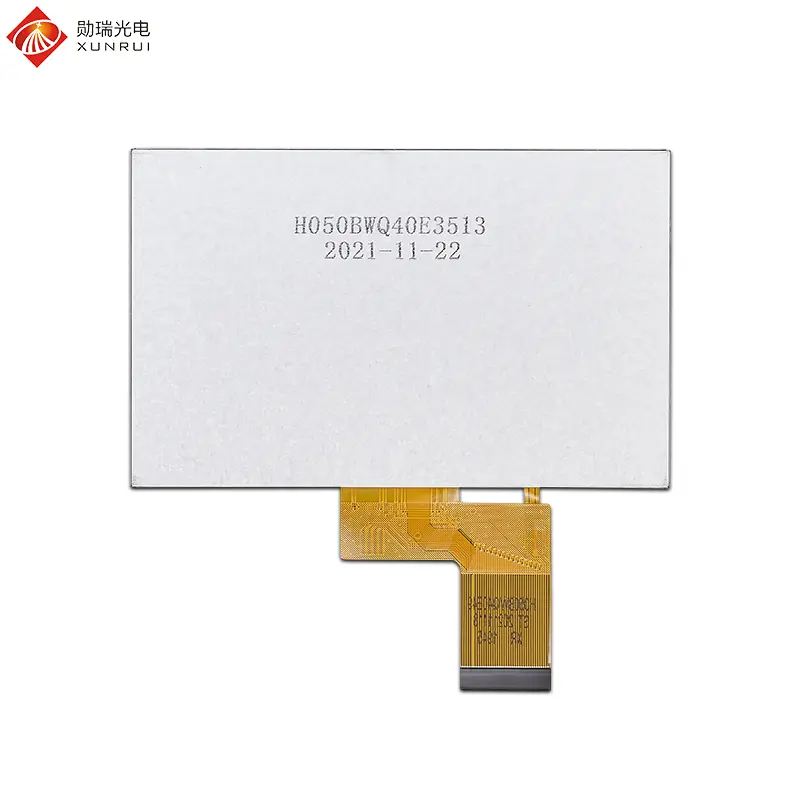

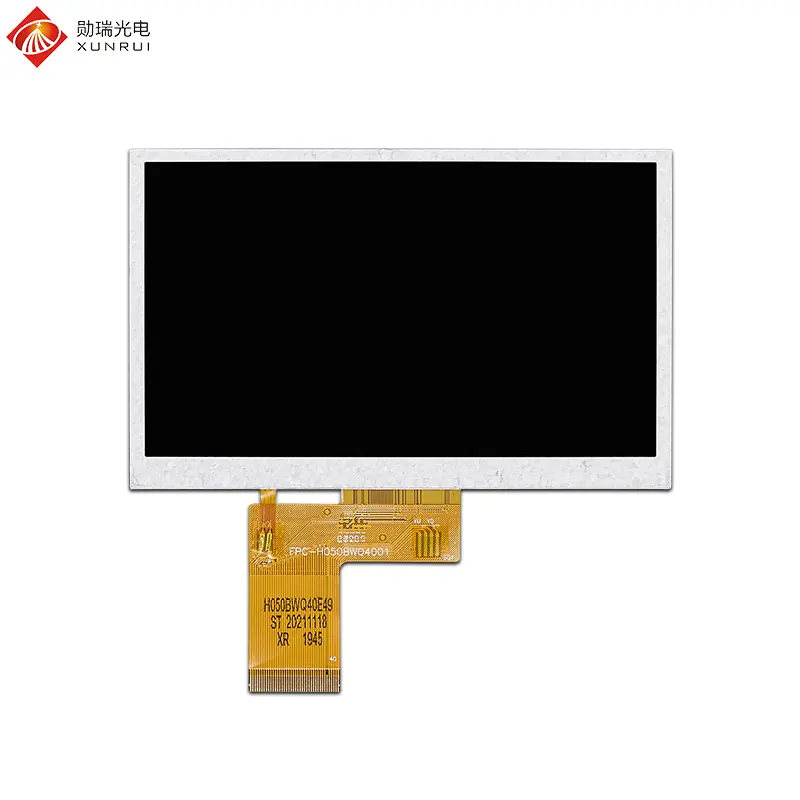

H050BWQ40E3513 is a high-performance 5-inch TFT LCD module. This LCD screen adopts a reliable TN panel with a resolution of 480×272, featuring a 24-bit RGB 40-pin interface and powered by the ST7257-G4-1E Driver IC. With a brightness of 350nit, it ensures clear visibility for various indoor and outdoor applications.
| Feature | Spec |
| Model Name | H050BWQ40E3513 |
| LCD Size | 5 inch |
| Display Format | 480×272 |
| Interface | 24-bit RGB 40pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7257-G4-1E |

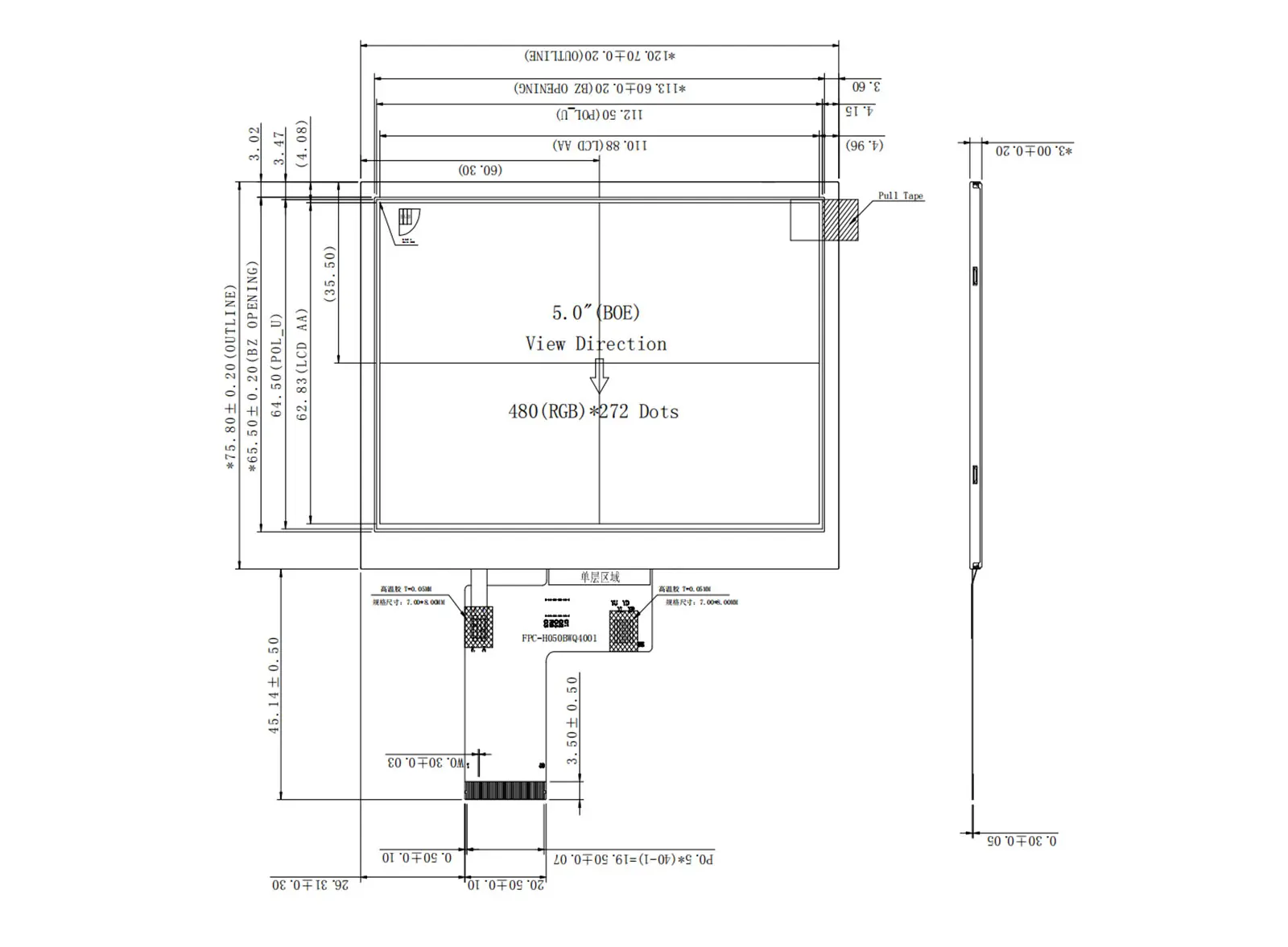

| LCM (W x H x D) (mm) | 120.7*75.8*3 |
| Active Area(mm) | 110.88 x 62.83 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| No. | Symbol | Description |
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | Ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Red Data bus |
| 13~20 | G0~G7 | Green Data bus |
| 21~28 | B0~B7 | Blue Data bus |
| 30 | DCLK | Dot clock signal input |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal sync input |
| 33 | VSYNC | Vertical sync input |
| 34 | DE | Data enable input |
