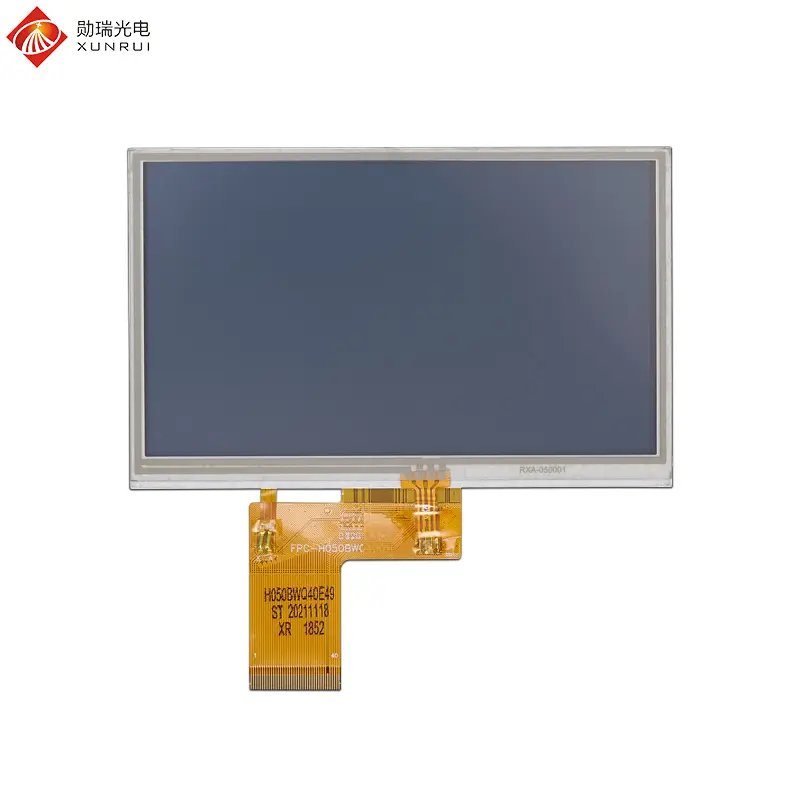

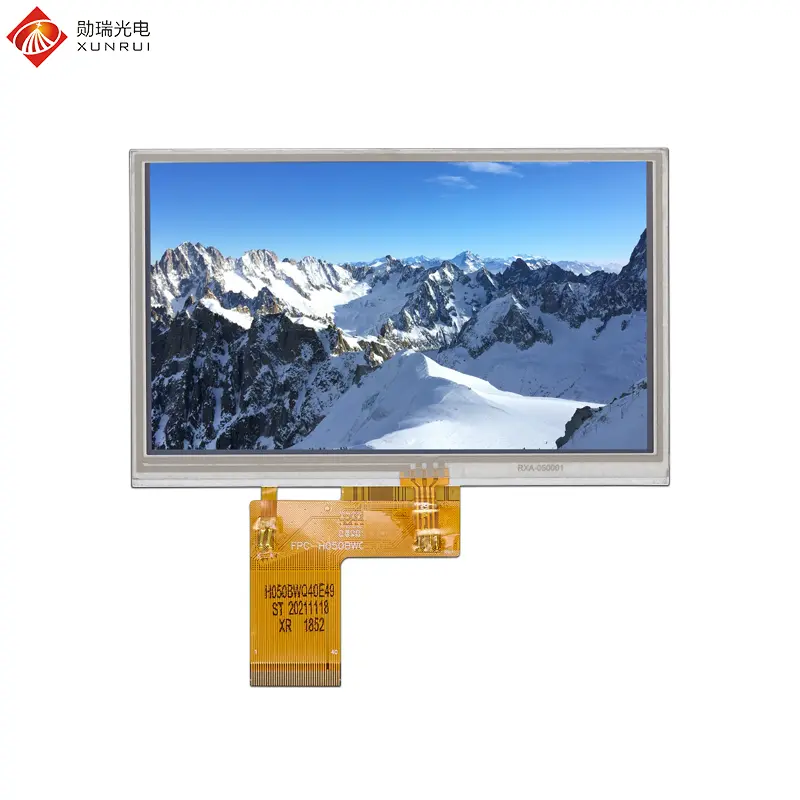

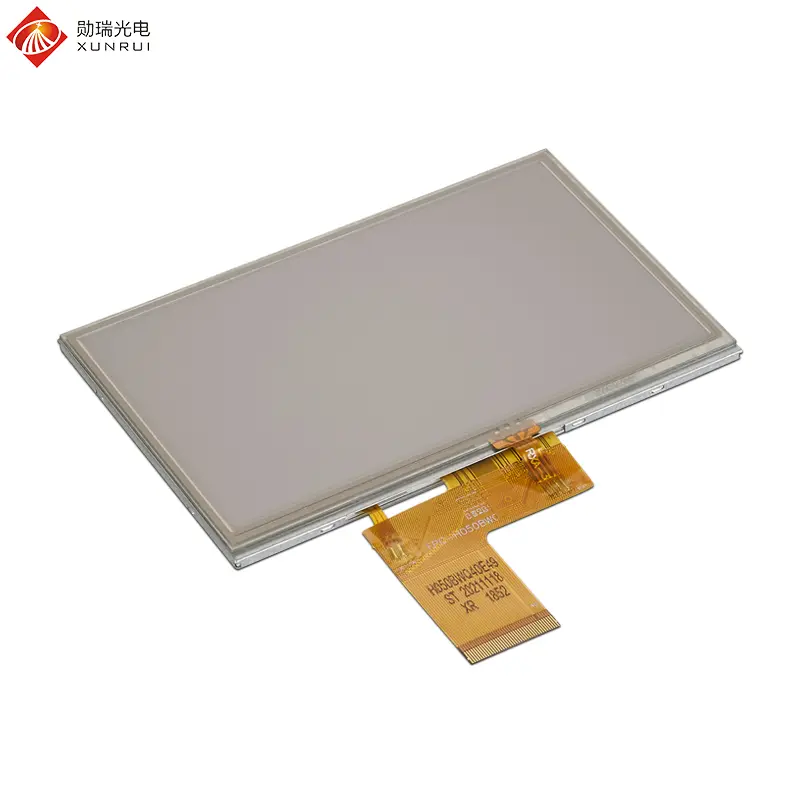

H050BWQ40E3513-T is a 5 inch TFT LCD module with resistive touch function. The resistive touch screen adopts a four-wire or five-wire structure and realizes touch control through pressure sensing, and has strong tolerance to external environments (such as dust, moisture, and oil stains). This LCD panel uses a TN panel, with a resolution of 480x272, ST7257 Driver IC, 24-bit RGB 40-pin interface, which is convenient for direct connection with STM32 and other MCUs. It has a brightness of 260 nit and can work within a temperature range of -20°C to +70°C.
This 5 inch TFT LCD display is mainly used in:
| Feature | Spec |
|---|---|
| Model Name | H050BWQ40E3513-T |
| LCD Size | 5 inch |
| Display Format | 480x272 |
| Interface | 24-bit RGB 40pin |
| Luminance | 260 cd/m2 |
| Touch Screen | Resistive touch |
| Viewing Direction | 6 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7257 |

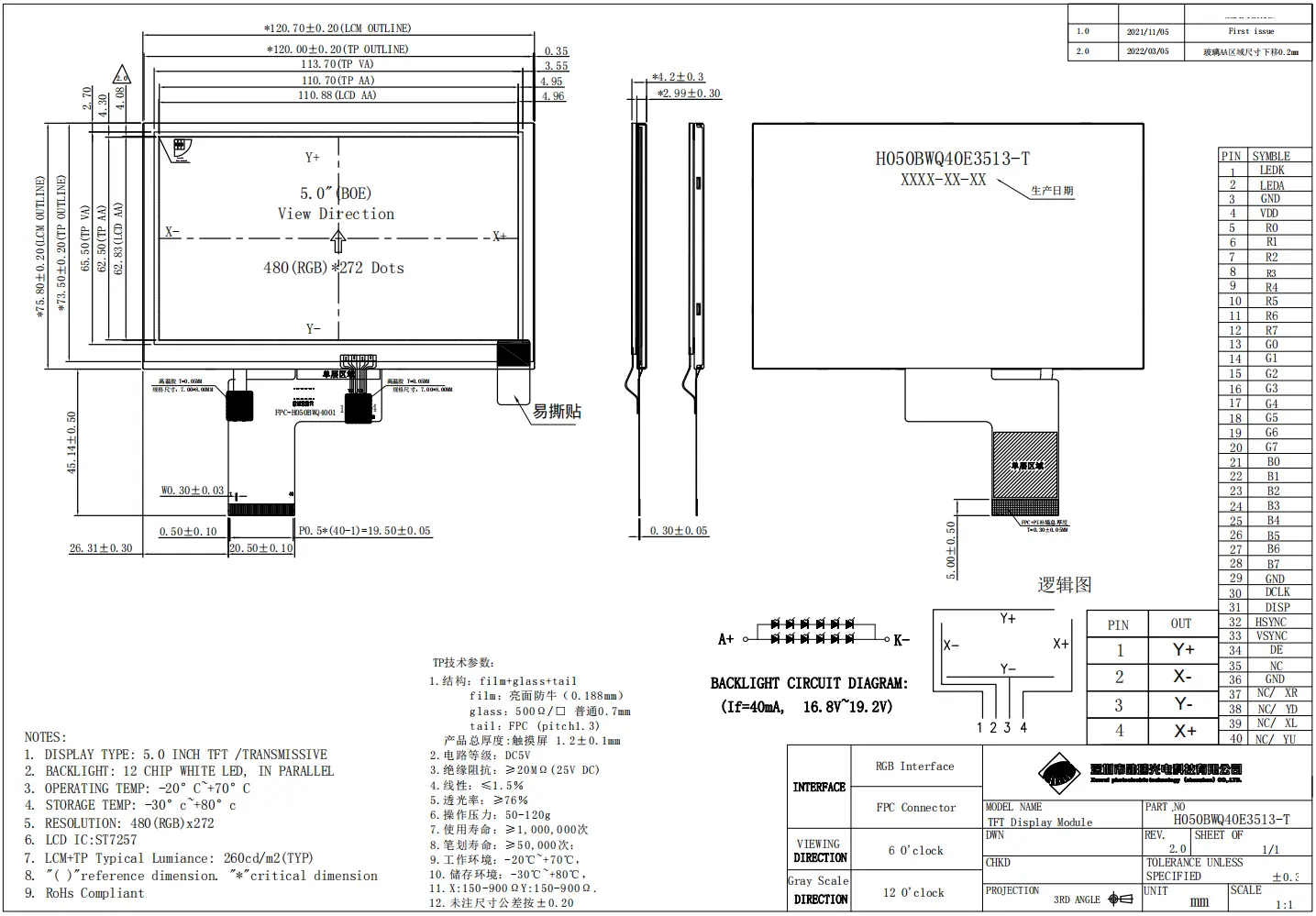

| LCM (W x H x D) (mm) | 120.7 * 75.8 * 4.2 |
| Active Area(mm) | 110.88 x 62.83 |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Operating Voltage | 18V |
| No. | Symbol | Description |
|---|---|---|
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | Ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Data bus (Red) |
| 13~20 | G0~G7 | Data bus (Green) |
| 21~28 | B0~B7 | Data bus (Blue) |
| 29 | GND | Ground |
| 30 | DCLK | Dot clock signal input |
| 31 | DISP | Standby mode (High: Normal, Low: Off) |
| 32 | HSYNC | Horizontal sync input |
| 33 | VSYNC | Vertical sync input |
| 34 | DE | Data enable input |
| 35 | NC | No connected |
| 36 | GND | Ground |
| 37 | XR | The right side signal of TP |
| 38 | YD | The down side signal of TP |
| 39 | XL | The left side signal of TP |
| 40 | YU | The up side signal of TP |
