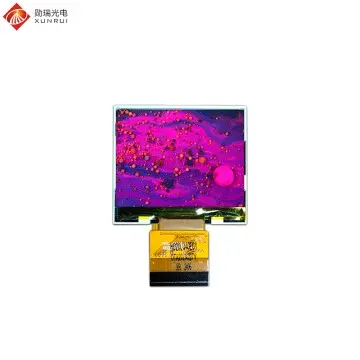

2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display

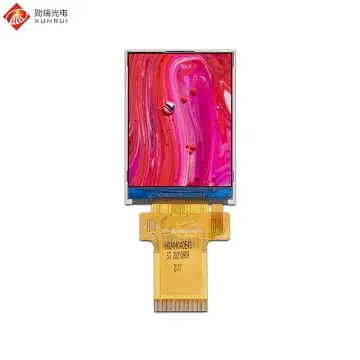

2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module

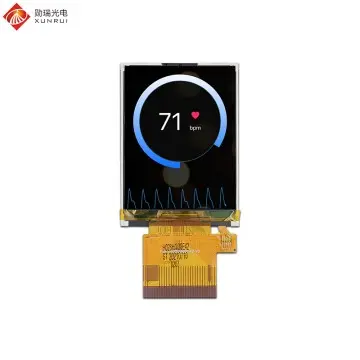

2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display

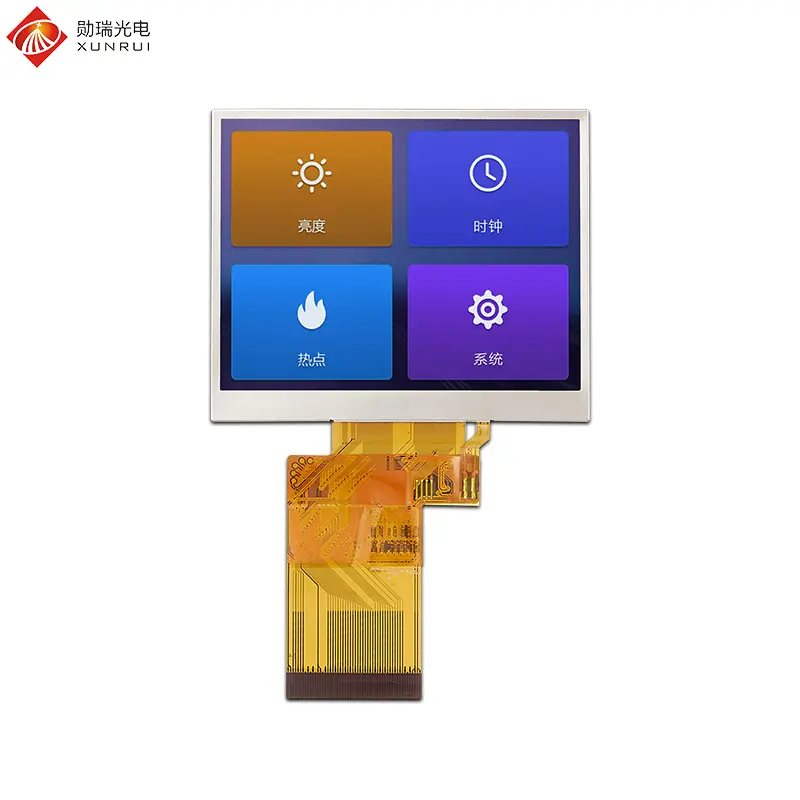

3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module

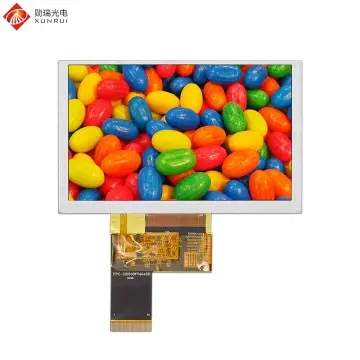

5 inch 800×480 1200nit High brightness TN TFT LCD module

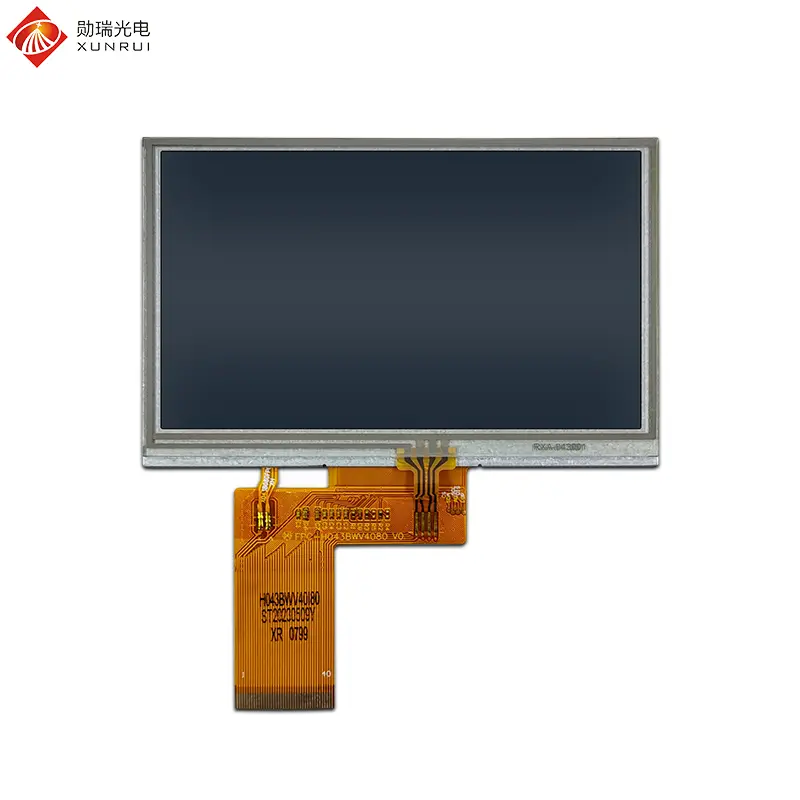

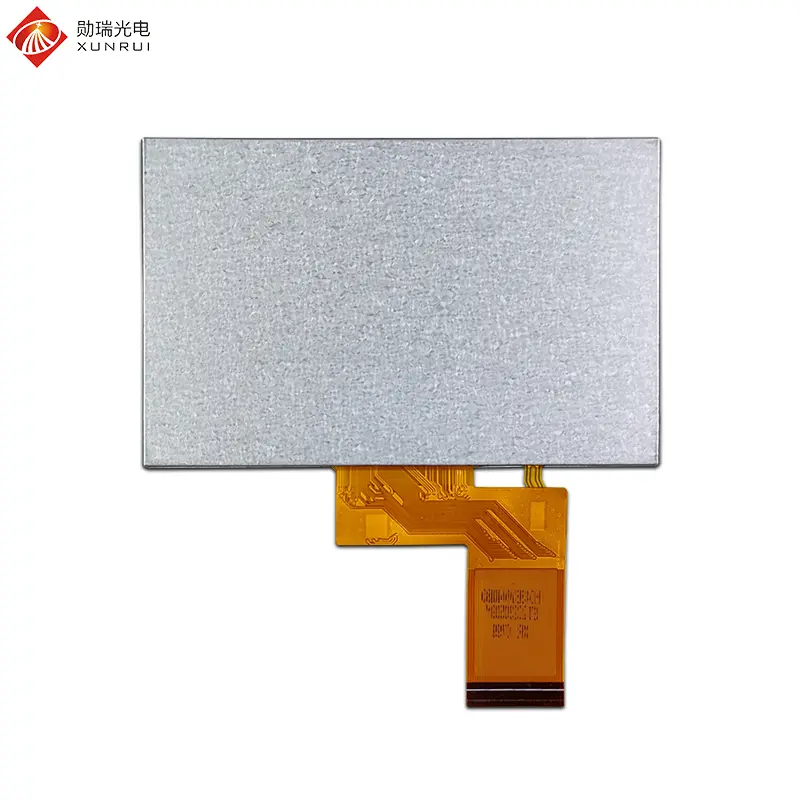

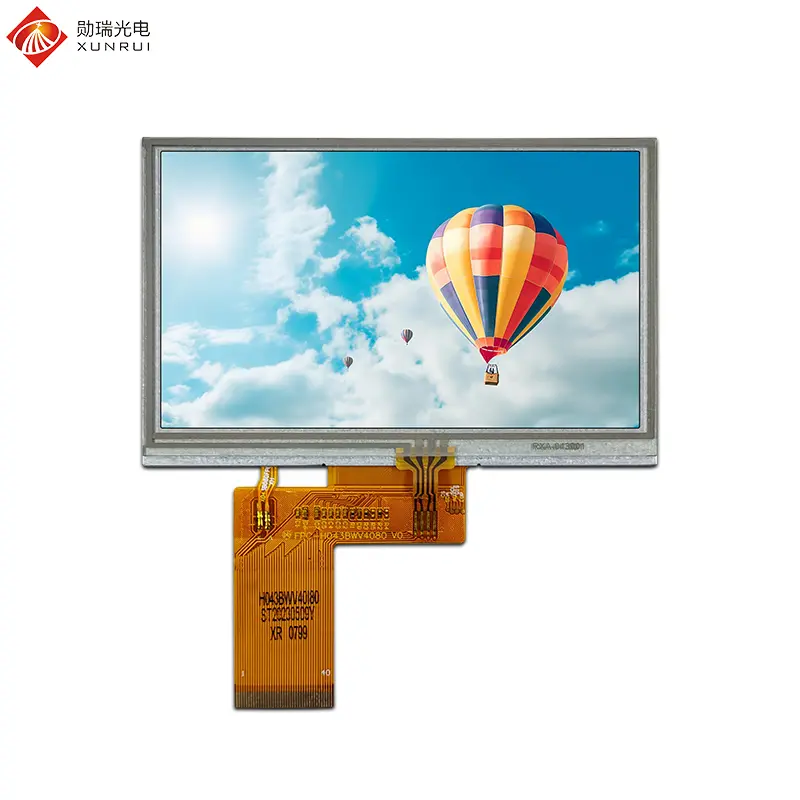

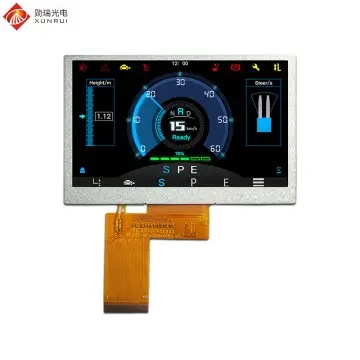

H043BWV40I3580-T is a 4.3 inch TFT LCD module with resistive touch function. It detects position through pressure and supports operation with gloves or a pen. Featuring IPS full-view technology with a resolution of 800×480, it includes a 24-bit RGB 40-pin interface and ST7262 Driver IC. With 300 nit brightness and a working temperature range of -20℃ to +70℃, it is ideal for industrial environments.
Applications: Industrial control (HMI, PLC), smart home (video intercoms, thermostats), and automotive dashboards.
| Feature | Spec |
| Model Name | H043BWV40I3580-T |
| LCD Size | 4.3 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 300 cd/m2 |
| Touch screen | Resistive touch |
| Viewing Direction | ALL (IPS) |
| Driver IC | ST7262 |

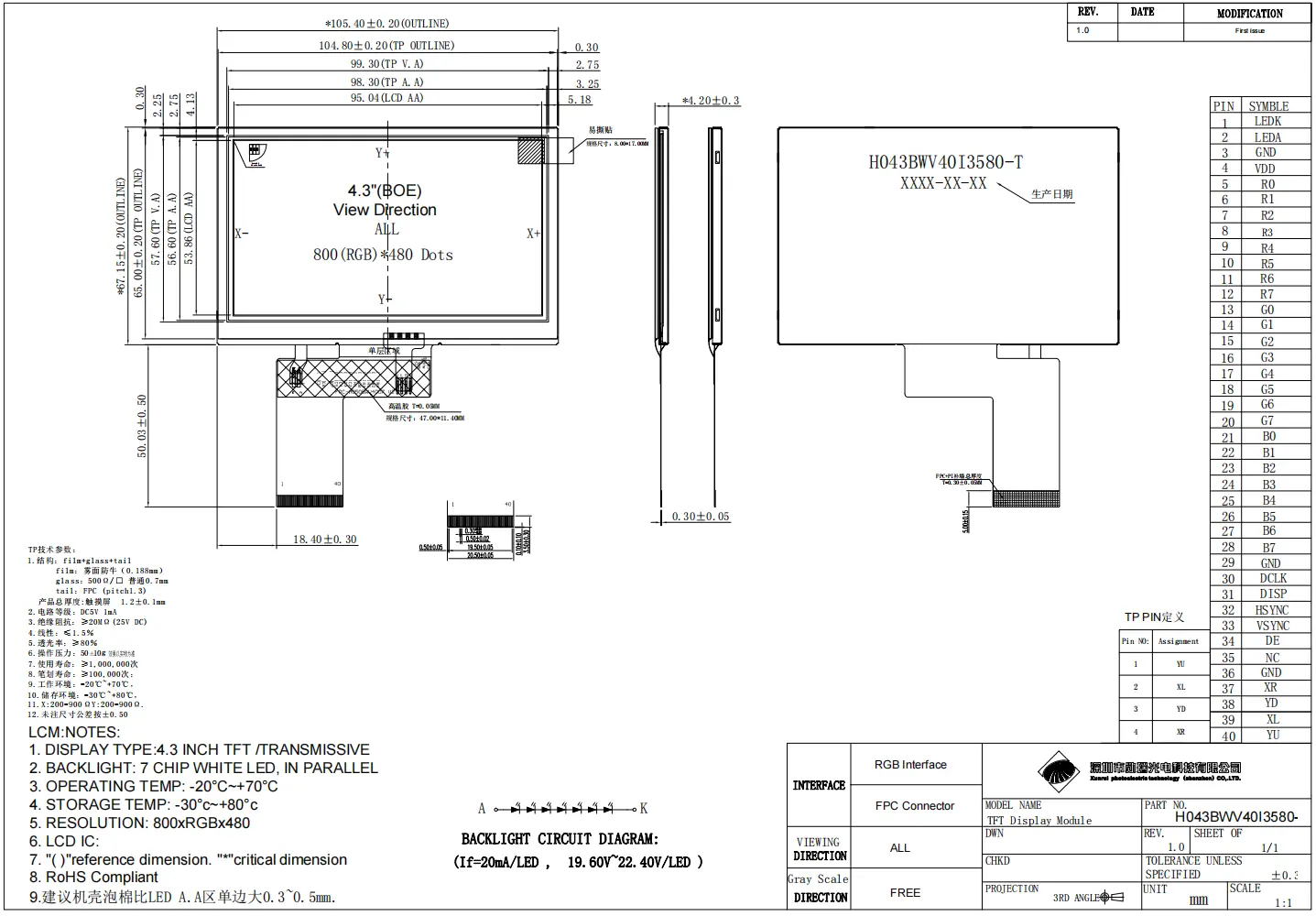

| LCM+TP Size (mm) | 105.40*67.15*4.2 |
| Operating Temp | -20℃ ~ +70℃ |
| No. | Symbol | Description |
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus (Red) |
| 13~20 | G0~G7 | Data bus (Green) |
| 21~28 | B0~B7 | Data bus (Blue) |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
