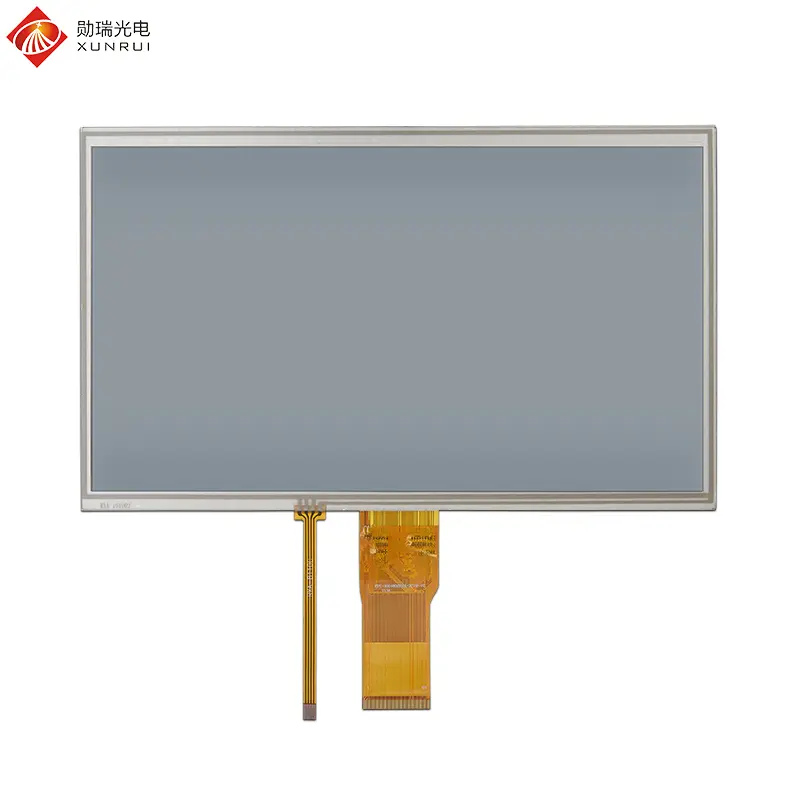

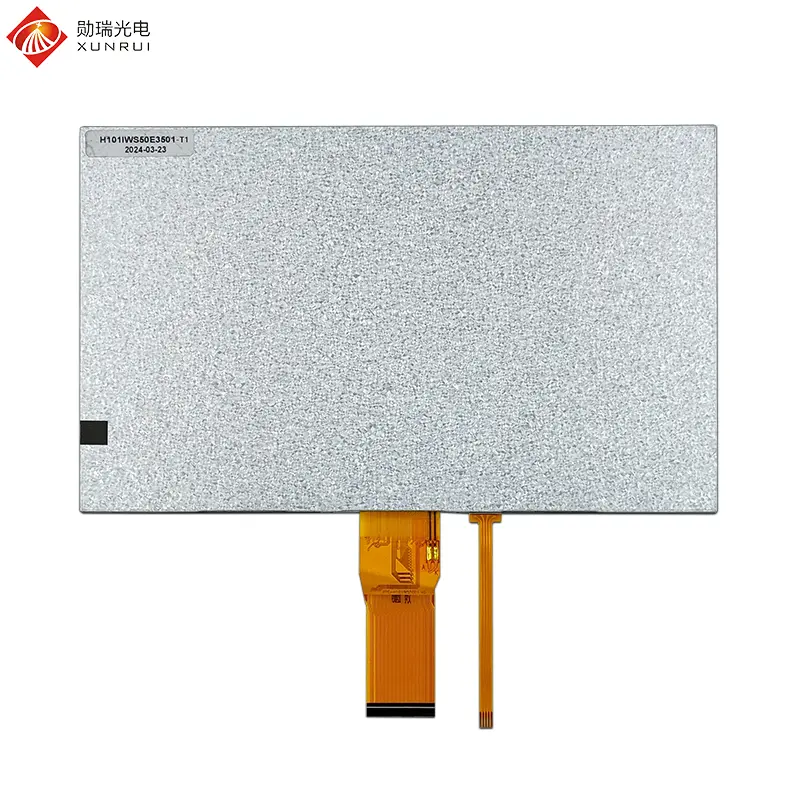

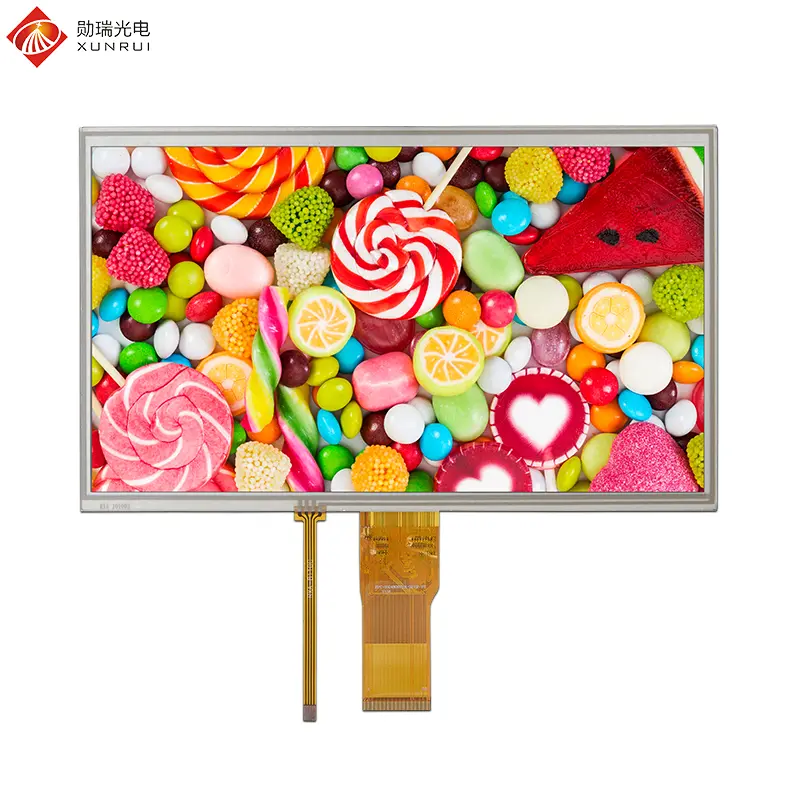

The H101IWS50E3501-T1 is a high-performance 10.1-inch TFT LCD module integrated with resistive touch functionality. This display utilizes a TN panel featuring a sharp resolution of 1024×600 and an RGB 50-pin interface. Powered by the EK79001HM+Gate IC:EK73215BCGA driver system, it delivers 260nit brightness and operates reliably within a temperature range of -10℃ to +60℃.
Engineered for durability, this 10.1-inch resistive touch screen is ideal for industrial environments. Key applications include industrial control terminals (PLC panels, embedded systems), medical equipment (ultrasound, vital sign monitors), in-vehicle navigation, retail POS systems, and rugged outdoor tablet computers. Its primary advantage is supporting stylus and gloved operation, ensuring precision in harsh or specialized working conditions.
| Feature | Specification |
|---|---|
| Model Name | H101IWS50E3501-T1 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 260 cd/m2 |
| Touch Screen | Resistive Touch |
| Viewing Direction | 6 O’ Clock |
| Color Depth | 16.7M |
| Driver IC | EK79001HM+Gate EK73215BCGA |

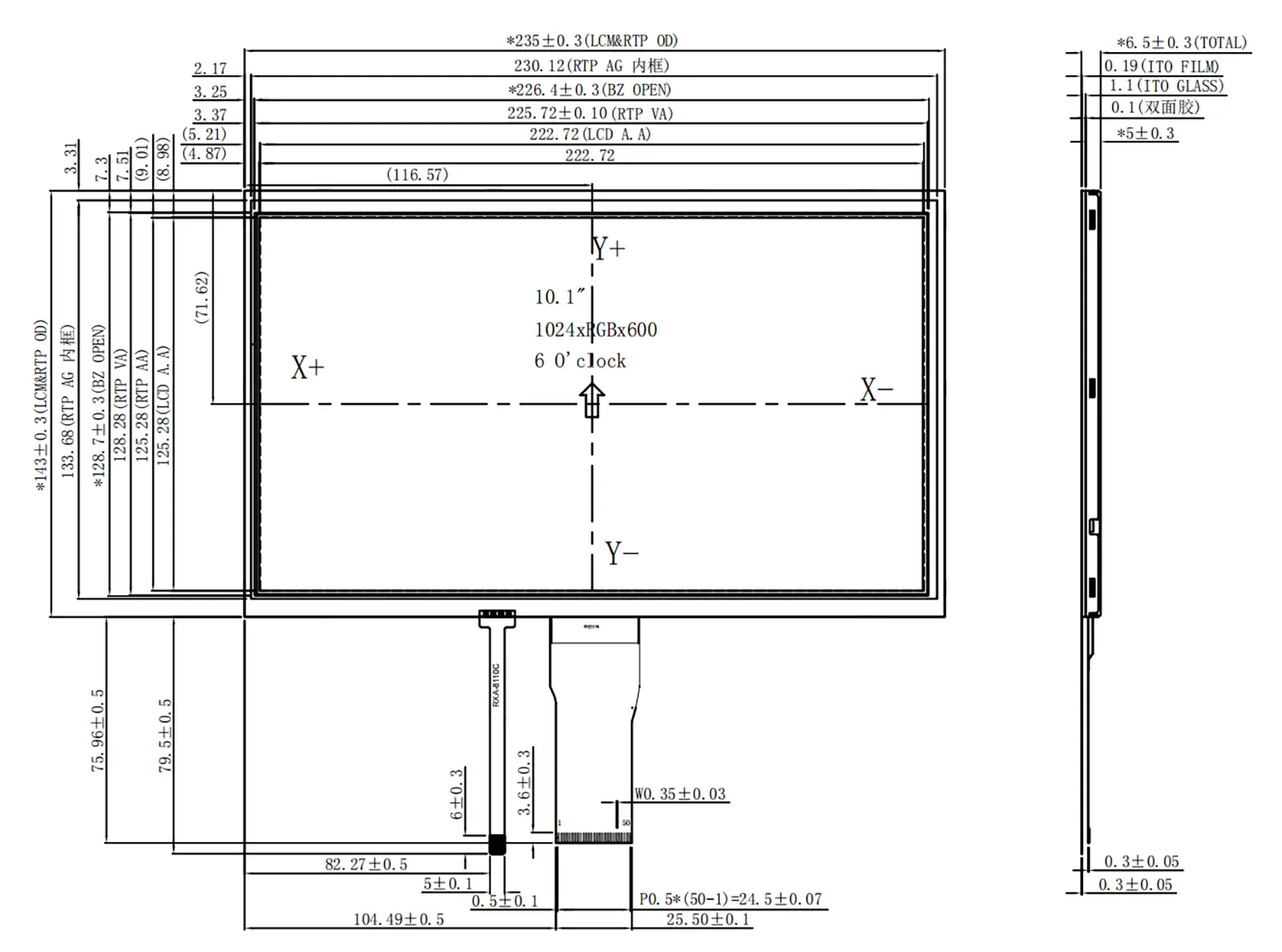

| LCM+RTP (W x H x D) | 235 × 143 × 6.5 mm |
| Active Area | 222.72(W) × 125.28(H) mm |
| Operating Temp | -10℃ ~ +60℃ |
| Storage Temp | -20℃ ~ +70℃ |
| Operating Voltage | 9.6V |
| No. | Symbol | I/O | Function Description |
|---|---|---|---|
| 1~2 | LEDA | P | LED Anode |
| 3~4 | LEDK | P | LED Cathode |
| 5 | GND | P | Ground |
| 6 | VCOM | P | Common voltage |
| 7 | DVDD | P | Digital power |
| 8 | MODE | I | DE/SYNC select (H:DE, L:HSD/VSD) |
| 9 | DE | I | Data enable signal |
| 10 | VS | I | Vertical sync input |
| 11 | HS | I | Horizontal sync input |
| 12~19 | B7~B0 | I | Blue data Input |
| 20~27 | G7~G0 | I | Green data Input |
| 28~35 | R7~R0 | I | Red data Input |
| 37 | DCLK | I | Clock input |
| 39 | L/R | I | Source right or left sequence control |
| 40 | U/D | I | Gate up or down scan control |
| 41 | VGH | P | Positive power for TFT |
| 42 | VGL | P | Negative power for TFT |
| 43 | AVDD | P | Power for Analog Circuit |
| 44 | RESET | I | Global reset pin (Active Low) |
