Product Description

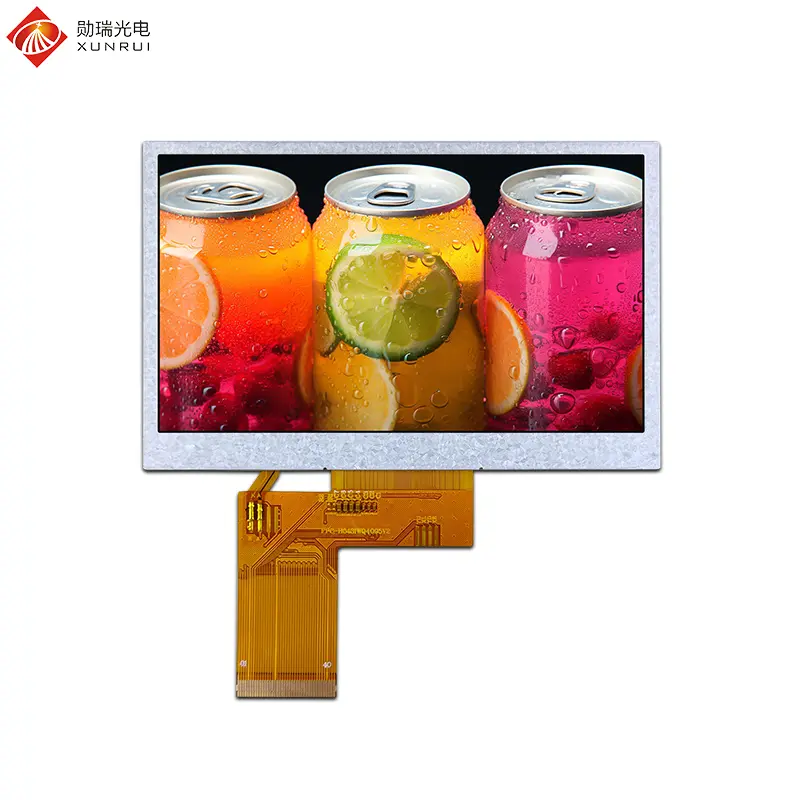

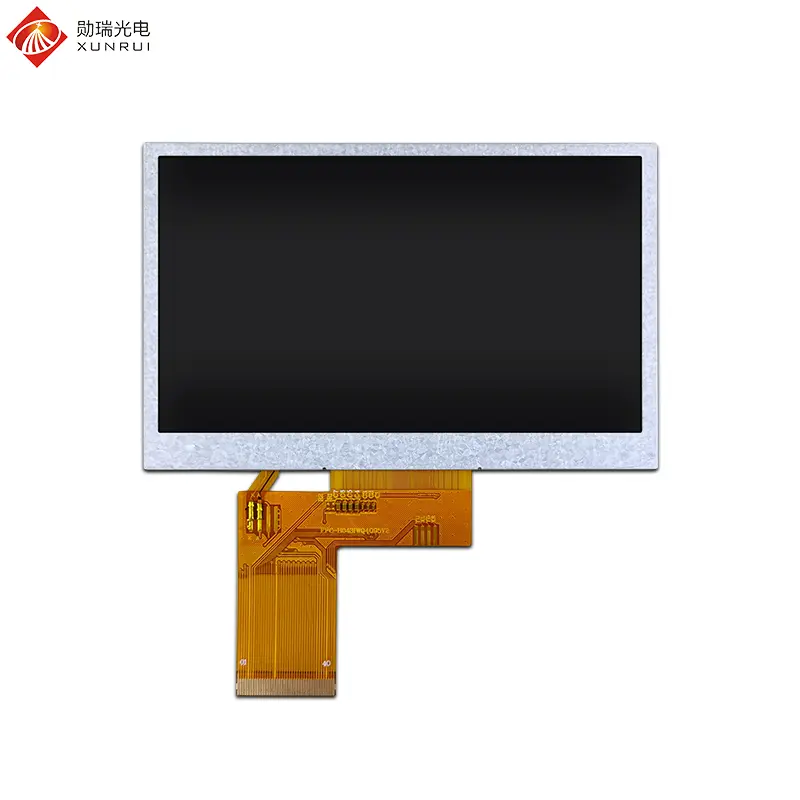

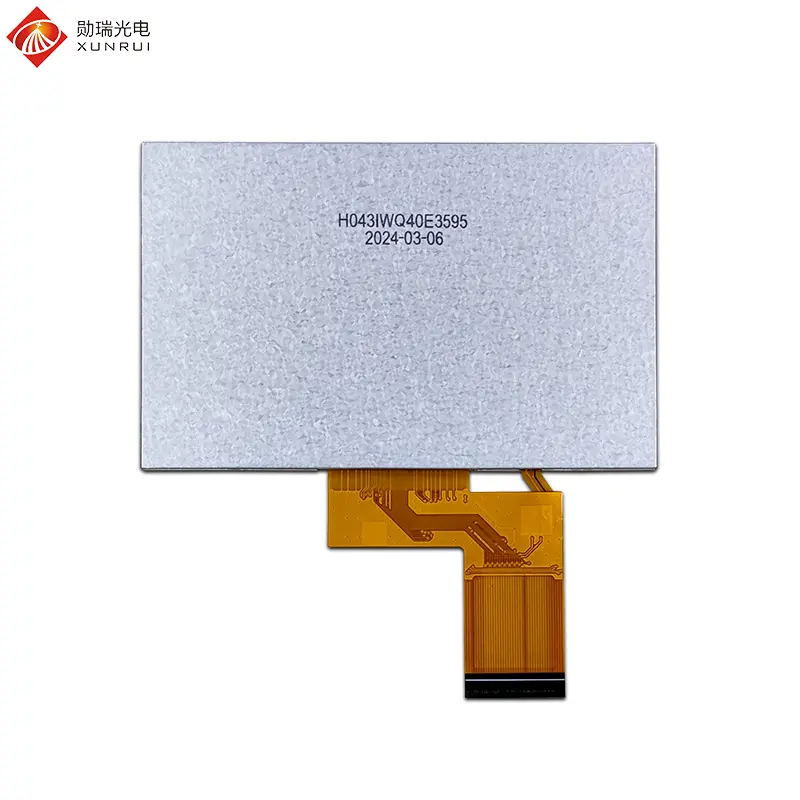

H043IWQ40E3595 is a 4.3 inch TFT LCD Display. This LCD screen uses a TN panel, with a resolution of 480x272, a 16:9 widescreen ratio, a MCU/SPI 40-pin interface, compatible with mainstream MCUs such as STM32 and ESP32, low power consumption and simple driving. It features the NV3041A Driver IC, a brightness of 350 nit, an industrial-grade operating temperature range of -20°C to 70°C, and some models can extend to -30°C to 80°C. It offers both resistive (supporting glove operation) or capacitive (supporting multi-touch) touch screens as options. This 4.3 inch TFT LCD module is mainly used in industrial control terminals: for displaying device status, parameter settings, and alarm information, and is the core component of the human-machine interface (HMI). It is commonly found in access control systems, video intercoms, smart gateways, and home control panels, used for presenting information and providing touch interaction. It is also used for charging display: for real-time display of charging status, parameters, and abnormal alerts. Additionally, it can be applied in: portable medical equipment, self-service terminals, IoT terminals, and other fields.

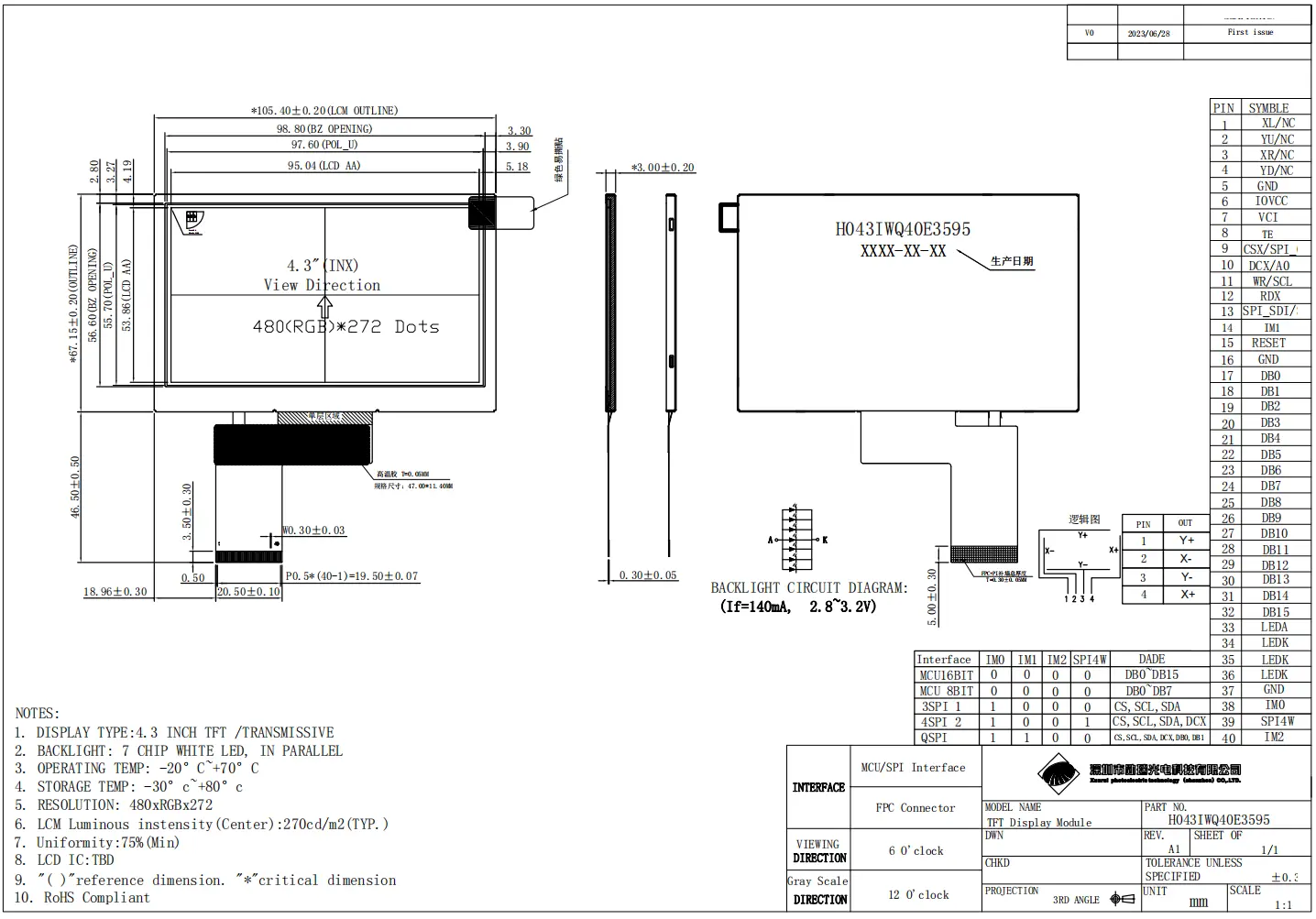

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H043IWQ40E3595
LCD Size
4.3 inch
Display Format
480x272
Interface
MCU/SPI 40pin
Luminance
350 cd/m2
Touch screen
None, optional
Viewing Direction
6 O'clock
Color Depth
16.7M
Driver IC
NV3041A
LCM (W x H x D) (mm)
105.40*67.15*3
Active Area(mm)
95.04 x 53.856
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
21V
Interface Definition
No.
Symbol
Description
1
XL/NC
TP pin XR
2
YU/NC
TP pin YU
3
XR/NC
TP pin XR
4
YD/NC
TP pin YD
5
GND
System Ground
6
IOVCC
Power supply for digital interface I/O pins
7
VCI
Power supply for analog circuit
8
TE
Tearing effect output pin for MCU synchronization
9
CSX/SPI_CS
Chip Select PIN
10
DCX/A0
Data/Command flag (H=Data, L=Command)
11
WR/SCL
Write signal / Serial clock input
12
RD
Read Signal and Read Data
13
SPI_SDI/SDA
SPI input and output pin
14
IM1
Interface Mode Select
15
RESET
Reset signal input PIN
17-32
DB0-DB15
Data Bus
33
LEDA
Backlight Anode
34-36
LEDK
Backlight Cathode
39
SPI4W
SPI 3/4 wire selection (H=4 wire, L=3 wire)
Frequently Asked Questions
1. What is the main interface of the H043IWQ40E3595 display?
This 4.3 inch module features a versatile 40-pin MCU/SPI interface, making it highly compatible with popular microcontrollers like STM32 and ESP32.
2. Can this LCD be used in industrial environments?
Yes, it is designed for industrial grade use with a standard operating temperature range of -20°C to +70°C, and options for wider ranges.
3. Does the 4.3 inch TFT LCD support touch functionality?
The standard model comes without touch, but we offer optional Resistive (supports gloves) and Capacitive (multi-touch) screens.
4. What is the power consumption and driving complexity?
This module is optimized for low power consumption and features a simple driving structure via the NV3041A Driver IC.
5. What are the typical applications for this display?
Common applications include industrial HMI terminals, smart home control panels, video intercoms, medical equipment, and IoT devices.
6. Is the display readable in bright indoor light?
With a luminance of 350 nit, the display provides clear and bright visuals for indoor industrial and consumer electronic applications.
