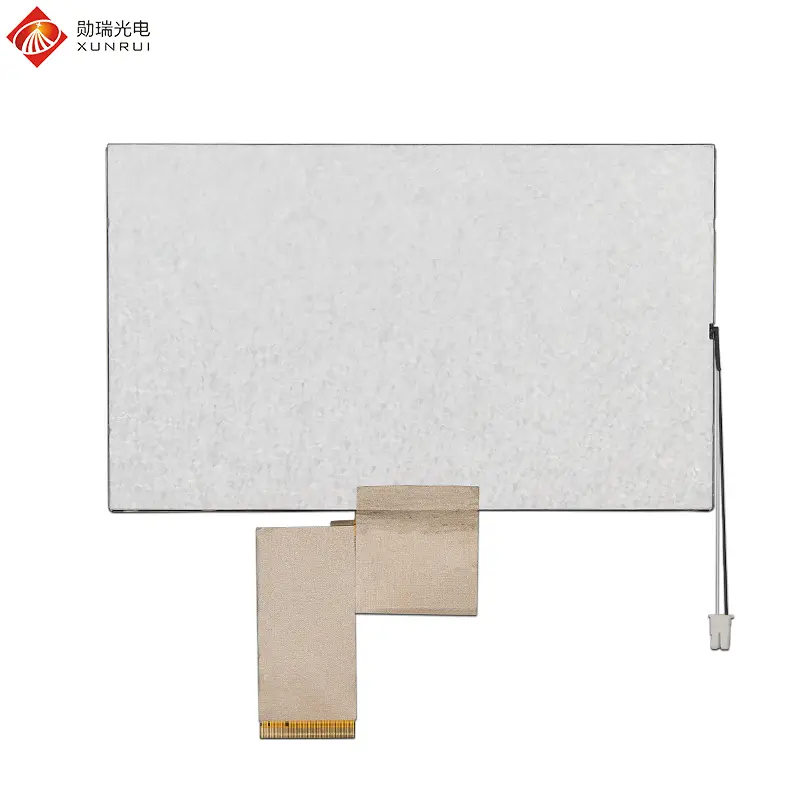

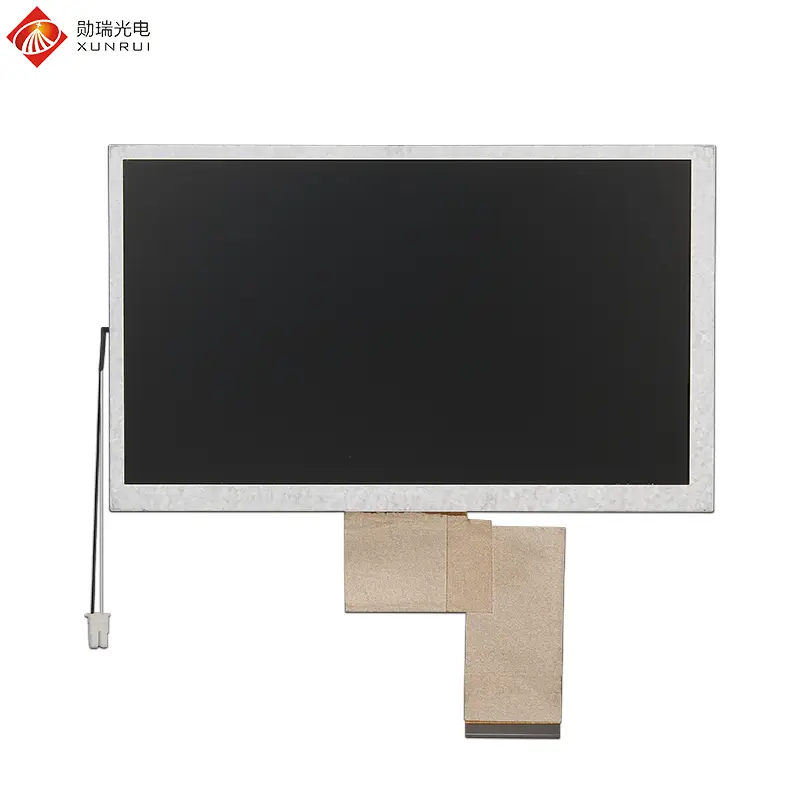

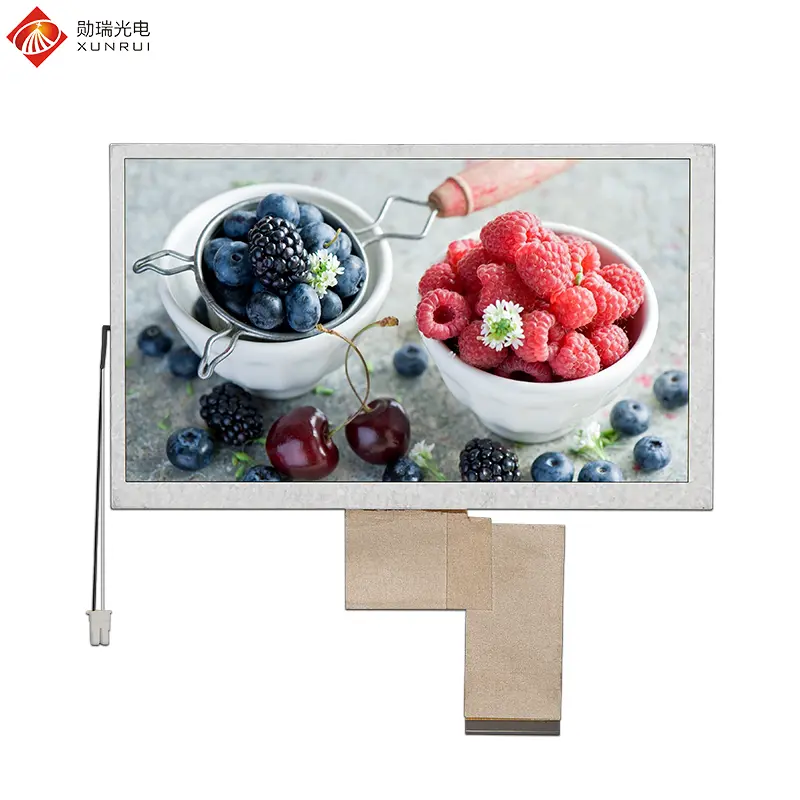

H080SWV60E3501 is an 8-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800x480 (WVGA), a width-to-height ratio of 15:9, and can achieve approximately 113 PPI (pixels per inch). It is designed to display clear text and basic graphical interfaces, meeting the UI requirements of most embedded systems.
The RGB 60-pin interface and 350 nit brightness support AG (anti-glare) or AR (anti-reflection) surface treatments, enhancing readability in outdoor or high-lighting environments. It supports optional capacitive/resistive touch screens (CTP/RTP). This 8-inch TFT LCD Display is mainly used in industrial control and automation, automotive electronics, medical health equipment, and power monitoring systems.
| Feature | Specification |
|---|---|
| Model Name | H080SWV60E3501 |
| LCD Size | 8 inch |
| Display Format | 800x480 |
| Interface | RGB 60pin |
| Luminance | 350 cd/m2 |
| Touch Screen | None, Optional |
| Viewing Direction | 12 O'CLOCK |
| Color Depth | 16.7M |
| LCM Size (W x H x D) | 192.8 * 116.9 * 6.4 mm |
| Active Area | 176.64 x 99.36 mm |
| Operating Temp | -20°C ~ +70°C |
| Storage Temp | -30°C ~ +80°C |
| Operating Voltage | 9.8V |
| No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power ground |
| 2 | AVDD | Power for Analog circuit |
| 3 | VCC | Power for Digital circuit |
| 4-11 | R0-R7 | Red Data bits |
| 12-19 | G0-G7 | Green Data bits |
| 20-27 | B0-B7 | Blue Data bits |
| 28 | DCLK | Sample clock |
| 33 | RESET | Global reset pin |
| 56 | VGH | Gate ON voltage |
| 58 | VGL | Gate OFF voltage |
