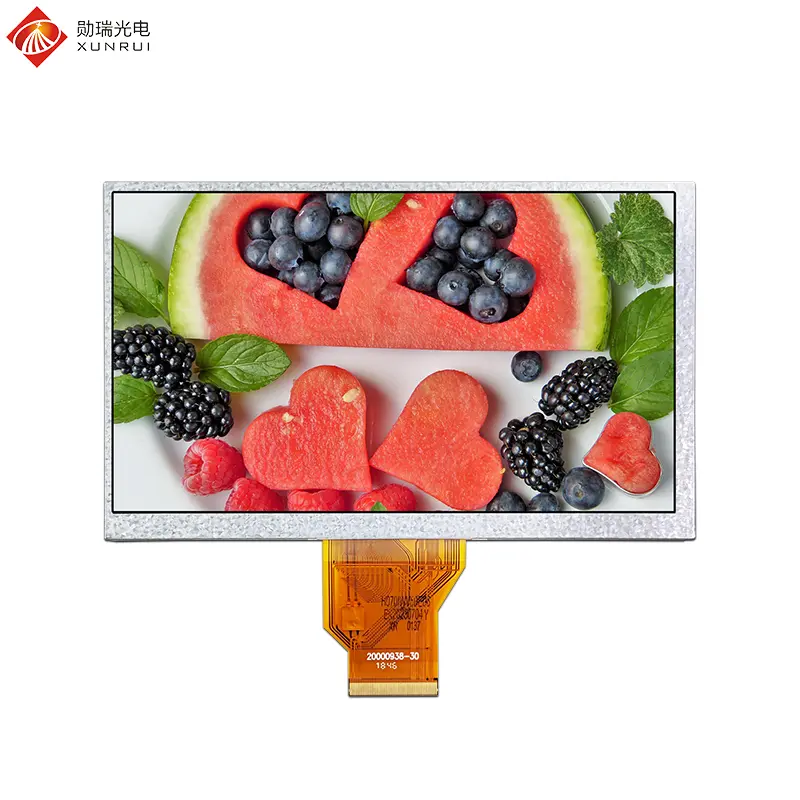

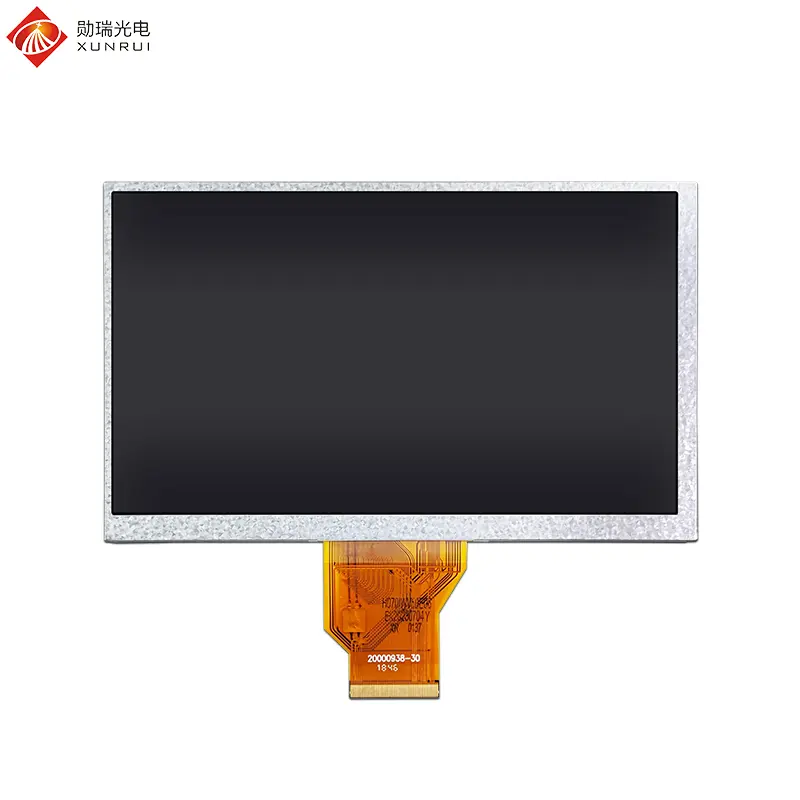

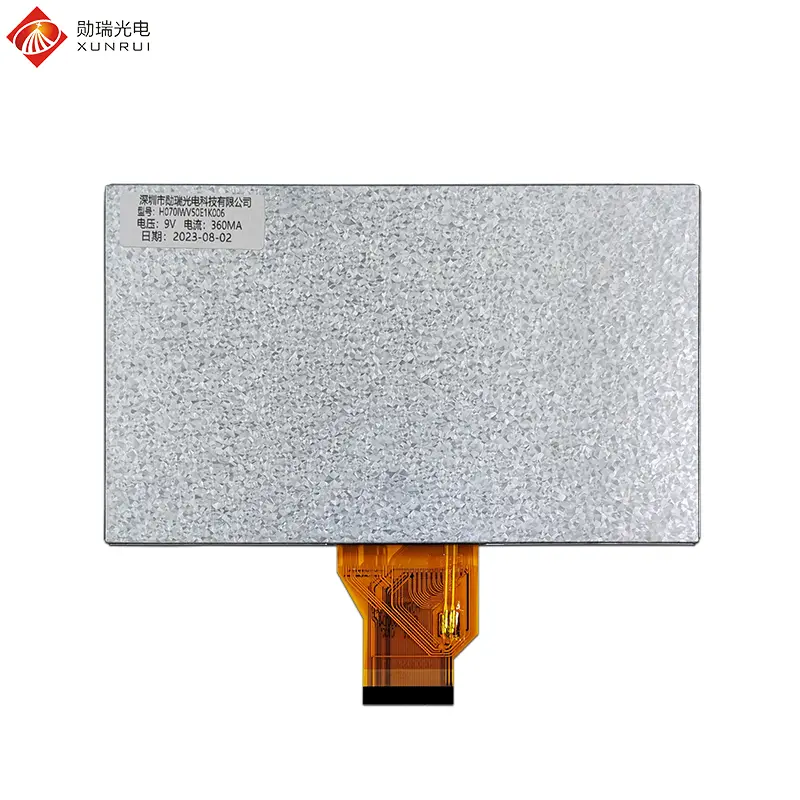

H070IWV50E1K006 is a 7-inch TFT LCD module with high brightness and wide operating temperature advantages. This LCD panel uses a TN panel, with a resolution of 800×480 and an RGB 50-pin interface. It is equipped with EK9713CA + EK73002AB2 Driver IC. It can be optionally equipped with resistive touch screen or capacitive touch screen. Some of them adopt full-coating technology to enhance the interaction experience.
Key Advantage: The brightness of 1000 nit enables the screen to remain clear and readable even in outdoor environments with strong sunlight (such as charging stations and vehicle navigation systems). If the brightness of the device used in sunlight is lower than 700 cd/m², it is prone to reflection and blurring, while the high-brightness screen can effectively avoid this problem.
The operating temperature can withstand -30℃ to +80℃, meeting the requirements of extremely cold or hot environments. In the northern winter or southern summer with high surface temperatures, the screen can still start and display normally. This feature makes it widely used in outdoor industrial control equipment and rail transit systems.

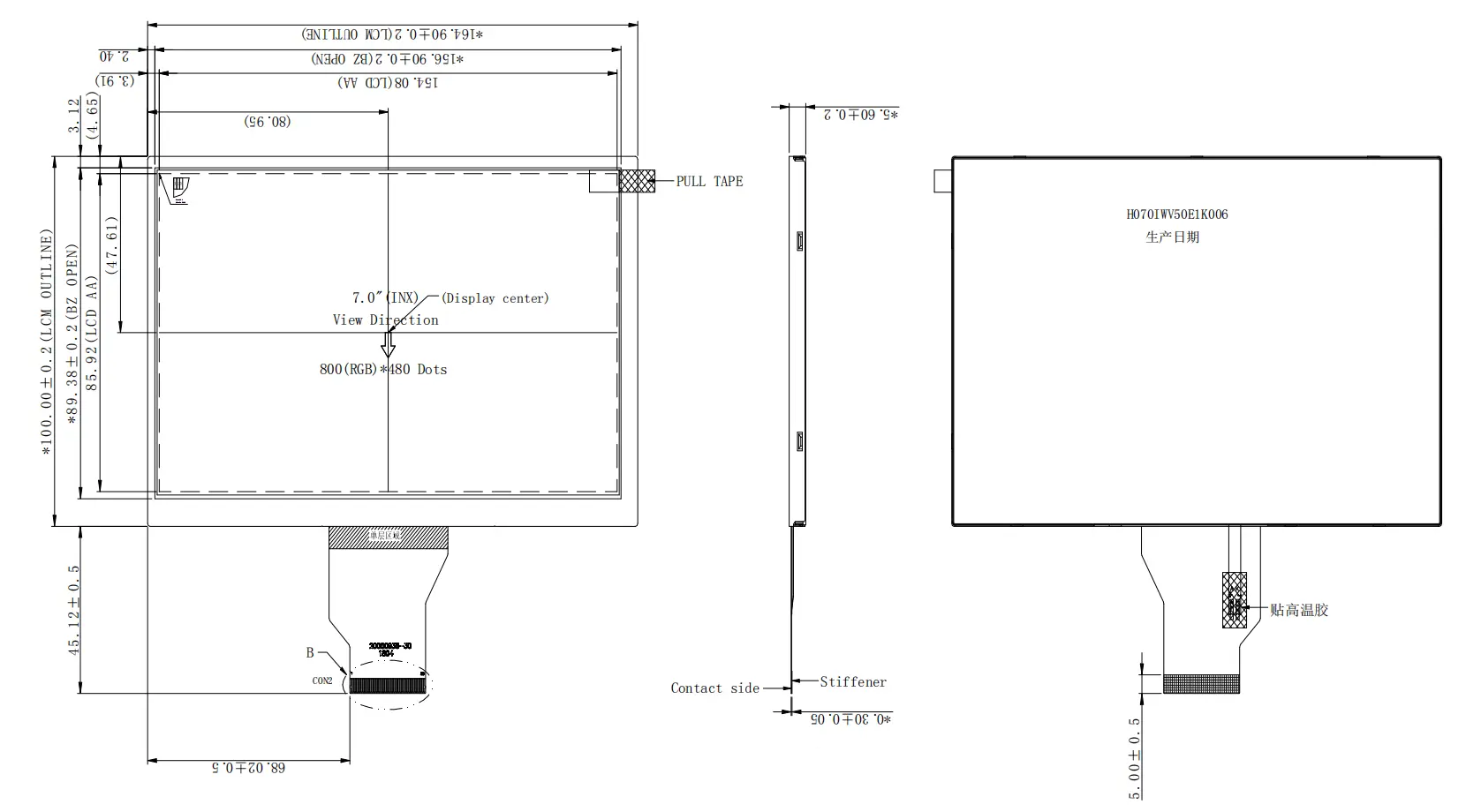

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H070IWV50E1K006
LCD Size
7 inch
Display Format
800×480
Interface
24-bit RGB 50pin
Luminance
1000 cd/m2
Touch screen
None, optional
Viewing Direction
12 O’clock
Color Depth
16.7M
Driver IC
EK9713CA+ EK73002AB2
LCM (W x H x D) (mm)
164.9(W)×100(H)×5.6(D)
Active Area(mm)
154.08 x 85.92
Operating Temperature
-30℃ ~ +80℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
9.3V
Interface Definition (Top Pins)
No.
Symbol
Description
1, 2
VLED+
Power for LED backlight (Anode)
3, 4
VLED-
Power for LED backlight (Cathode)
5
GND
Power Ground
6
VCOM
Common voltage
7
DVDD
Power for Digital Circuit
8
MODE
DE/SYNC mode select
9
DE
Data Enable
10
VS
Vertical sync signal
11
HS
Horizontal sync Signal
12-19
B7-B0
Blue data (MSB to LSB)
20-27
G7-G0
Green data (MSB to LSB)
28-35
R7-R0
Red data (MSB to LSB)
36
GND
Power Ground
37
DCLK
Pixel clock
38
GND
Power Ground
39
L/R
Left/right selection
40
U/D
Up/down selection
41
VGH
Gate ON Voltage
42
VGL
Gate OFF Voltage
43
AVDD
Power for Analog Circuit
44
RESET
Global reset pin
45
NC
No connection
46
VCOM
Common Voltage
47
DITHB
Dithering function
48
GND
Power Ground
49, 50
NC
No connection
