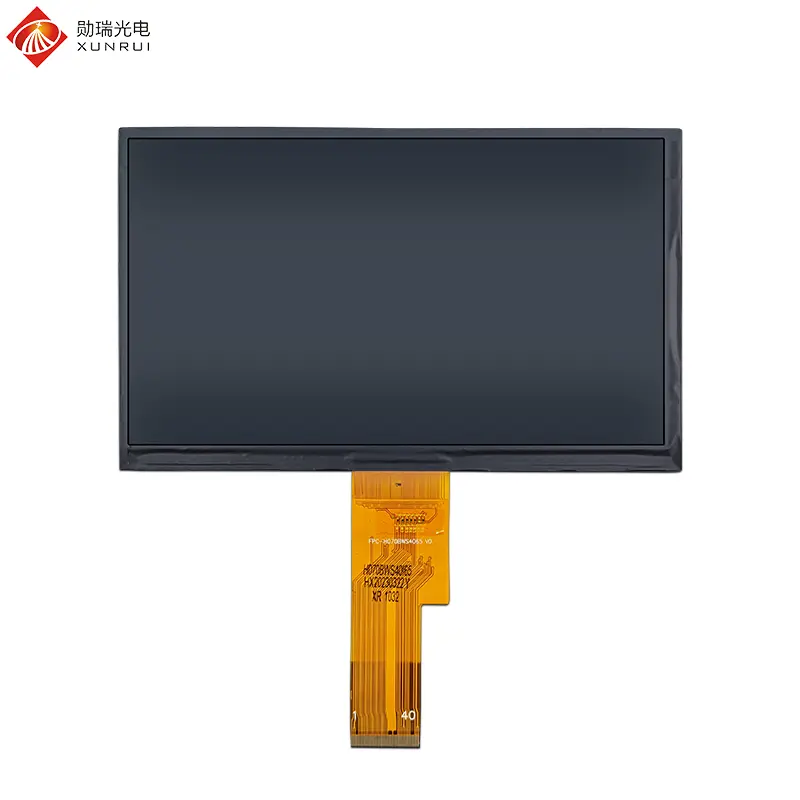

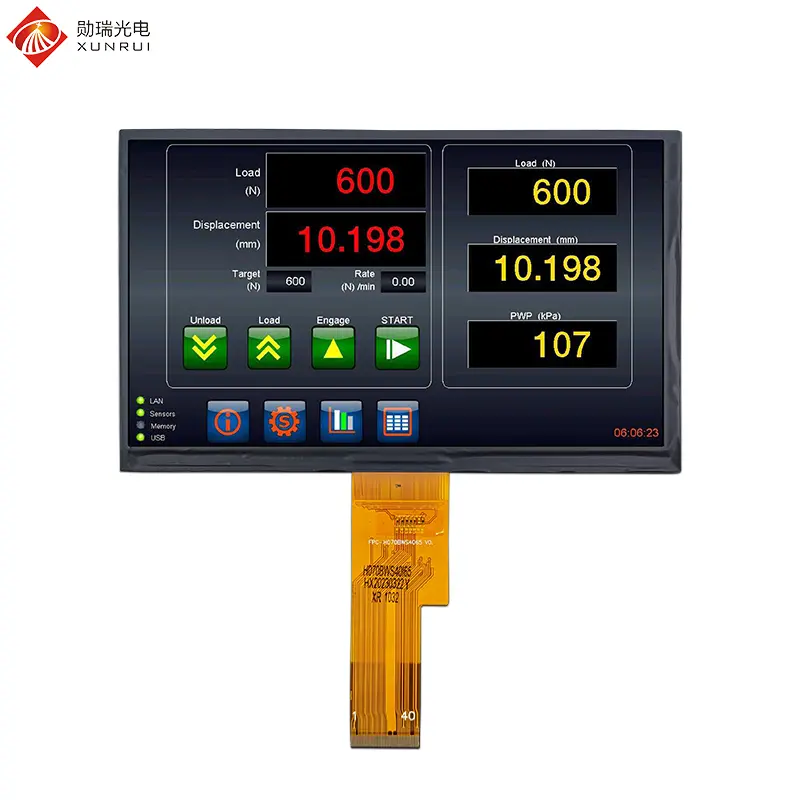

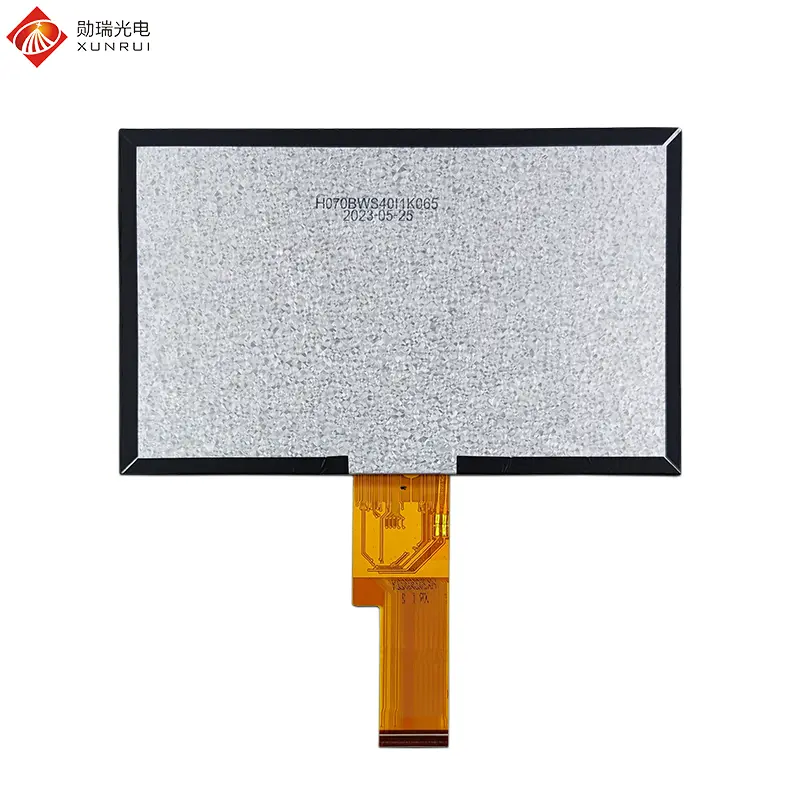

H070BWS40I1K065 is a high-brightness 7-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 1024×600, full viewing Angle, LVDS 40-pin interface, and a brightness of 1000 nits that is visible in sunlight.
The operating temperature can withstand -20℃ to +70℃, and resistive touch screens or capacitive touch screens can be optionally equipped. This 7-inch high-brightness LCD screen is mainly applied in industrial control and automation, in-vehicle electronic systems, smart home and security, medical equipment, and self-service terminals.
| Feature | Spec |
| Model Name | H070BWS40I1K065 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | LVDS 40pin |
| Luminance | 1000 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

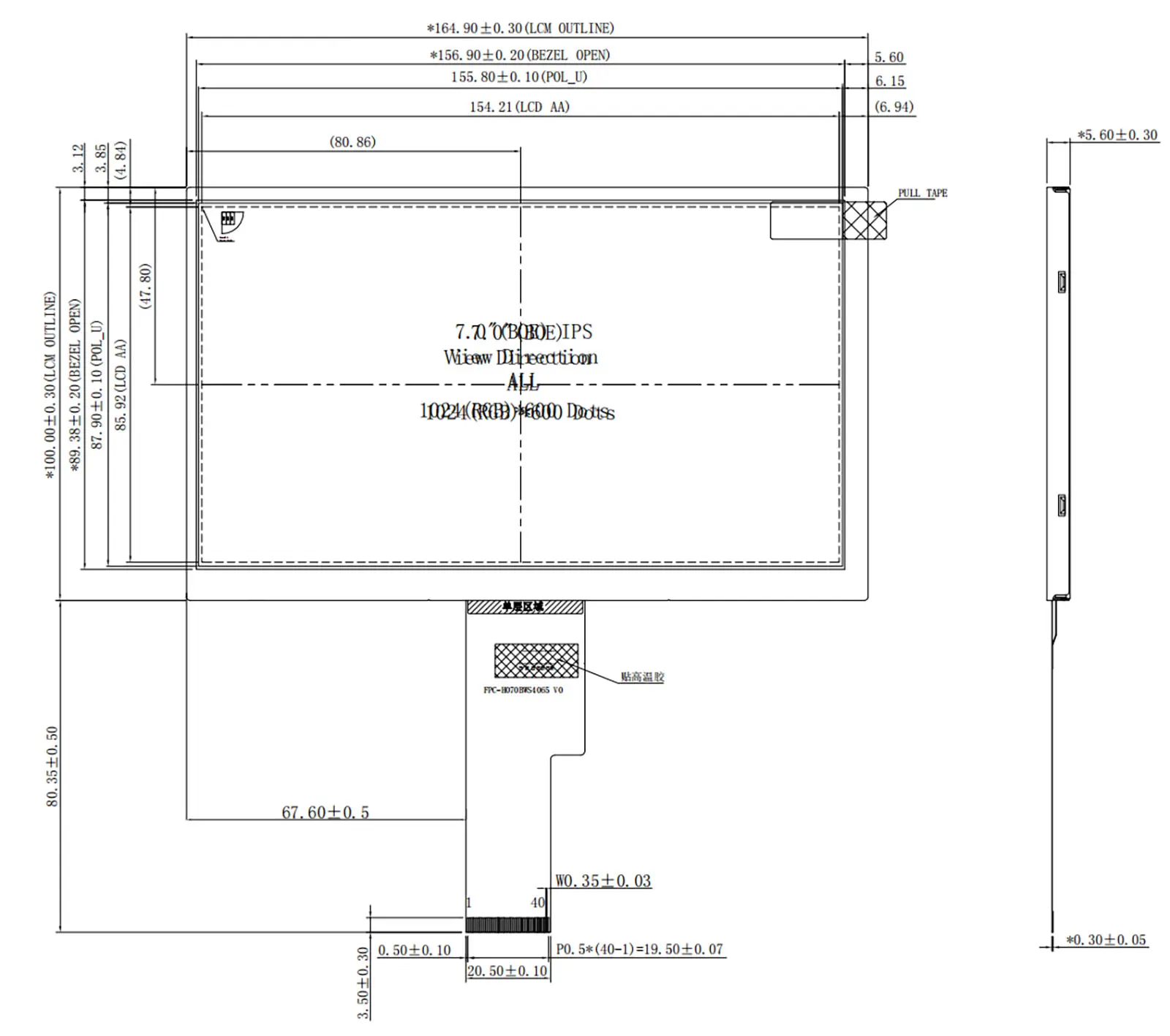

| LCM (W x H x D) (mm) | 164.9(W)×100(H)×5.6(D) |
| Active Area(mm) | 154.21(H)x85.92(V) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 24V |
| Pin No. | Symbol | Type | Function |
| 1 | VCOM | P | Common voltage |
| 2-3 | VDD | P | Digital power |
| 5 | REST | I | Global reset pin. Active low. |
| 6 | STBYB | I | Standby mode, normally pull high |
| 7, 10, 13, 16, 19, 22, 25, 30 | GND | P | Ground |
| 8-9 | RXIN0-/+ | I | LVDS differential data inputs 0 |
| 11-12 | RXIN1-/+ | I | LVDS differential data inputs 1 |
| 14-15 | RXIN2-/+ | I | LVDS differential data inputs 2 |
| 17-18 | RXCLKIN-/+ | I | LVDS differential clock inputs |
| 20-21 | RXIN3-/+ | I | LVDS differential data inputs 3 |
| 28 | SELB | I | 6bit/8bit mode select (H:6bit / L:8bit) |
| 31-32 | LED- | P | LED Cathode |
| 33-34 | L/R, U/D | I | Horizontal/Vertical inversion |
| 35 | VGL | P | Negative power for TFT |
| 38 | VGH | P | Positive power for TFT |
| 39-40 | LED+ | P | LED Anode |
