Product Description

💻 Product Description

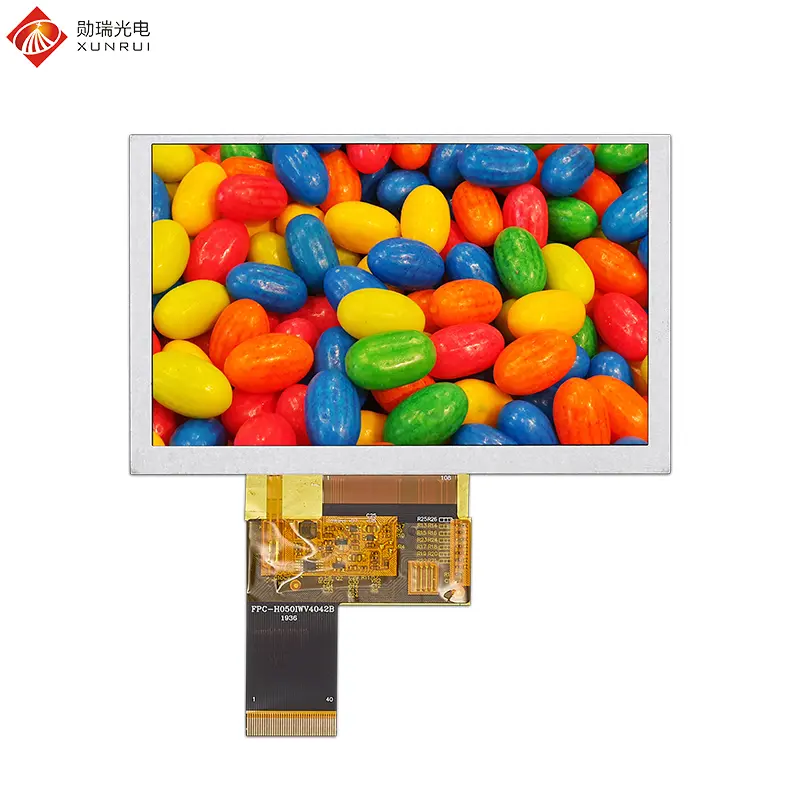

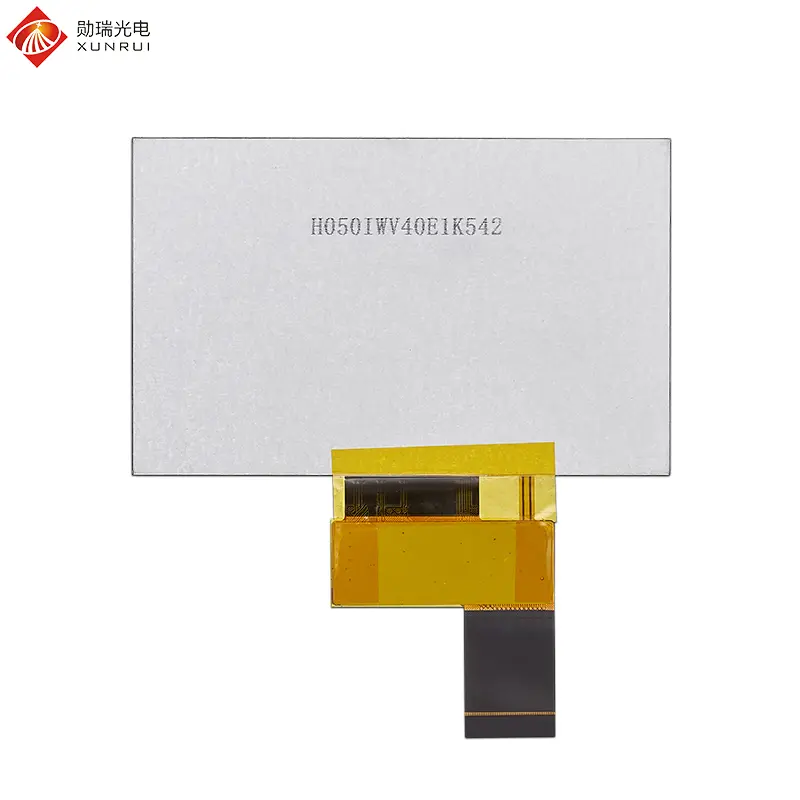

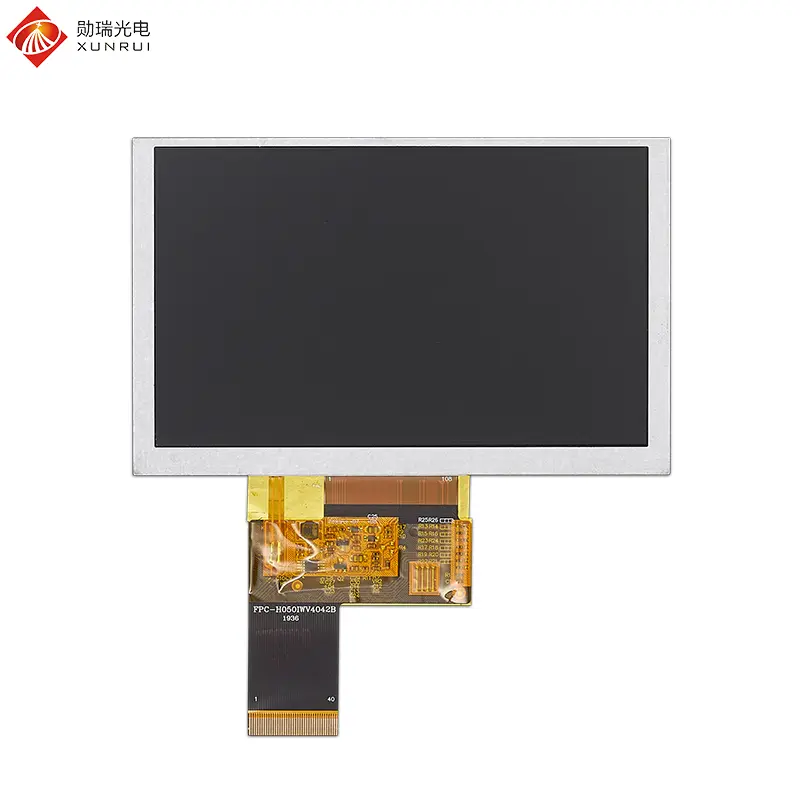

H050IWV40E1K542 is a high-brightness 5-inch TFT LCD module. This LCD screen adopts TN panel, with a resolution of 800x480, 24-bit RGB 40-pin interface, and ILI5960+ILI6122 Driver IC. With a brightness of 1200nit, it is visible in sunlight. The operating temperature range is from -20°C to +70°C. It can be optionally equipped with a resistive touch screen or a capacitive touch screen.
Main Applications:
  • Consumer Electronics: Portable navigation devices, e-book readers, etc.
  • In-vehicle Systems: In-vehicle navigation, rearview image systems, and information display panels.
  • Industrial & Medical: Industrial handheld terminals, Human-Machine Interfaces (HMI), and portable medical instruments like ultrasound devices.
  • Digital Signage: Outdoor advertising machines or electronic bus stop signs for close-range display.
📷 Featured LCD Modules
2 inch TFT LCD

2 inch 480x240 RGB 40pin

2.4 inch TFT LCD

2.4 inch 240x320 MCU 40pin

2.8 inch TFT LCD

2.8 inch 240x320 MCU 30pin

3.5 inch TFT LCD

3.5 inch 320x240 RGB 54pin

4.3 inch TFT LCD

4.3 inch 800x480 RGB 40pin IPS

5 inch TFT LCD

5 inch 800x480 1200nit TN

📏 Mechanical Drawing
5 inch high brightness LCD module drawing
📋 Specification Parameters
Feature Spec
Model Name H050IWV40E1K542
LCD Size 5 inch
Display Format 800x480
Interface 24-bit RGB 40pin
Luminance 1200 cd/m2
Touch screen None, optional
Viewing Direction 12 O’clock
Color Depth 16.7M
Driver IC ILI5960+ILI6122
LCM (W x H x D) (mm) 120.7*75.9*3
Active Area(mm) 108 x 64.80
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Operating Voltage 18V
💌 Interface Definition
No. Symbol Description
1 VBL- Backlight LED Cathode
2 VBL+ Backlight LED Anode
3 GND System Ground
4 VCC Power supply for logic operation
5~12 R0~R7 Data bus (Red)
13~20 G0~G7 Data bus (Green)
21~28 B0~B7 Data bus (Blue)
29 GND System Ground
30 CLK Pixel clock signal
31 DISP Display on/off control
32 HSYNC Horizontal Sync signal
33 VSYNC Vertical Sync signal
34 DEN Data Enable
35 NC No connect
36 GND System Ground
37-40 XR, YD, XL, YU Touch Panel signals (Optional)
❓ Frequently Asked Questions
Is this 5-inch LCD visible under direct sunlight?
Yes, with a high brightness of 1200 nits, this module is specifically designed for outdoor applications and remains clearly visible under direct sunlight.
What is the resolution of this TFT display?
The H050IWV40E1K542 model features a resolution of 800x480 pixels, providing a clear and sharp display for its 5-inch screen size.
Does this module support touch screen functionality?
The standard module comes without a touch screen, but it can be optionally equipped with either a resistive or capacitive touch screen based on your project requirements.
What is the operating temperature range?
This industrial-grade screen can operate reliably in temperatures ranging from -20°C to +70°C, making it suitable for various environments.
What type of interface does it use?
It utilizes a standard 24-bit RGB 40-pin interface, which is compatible with many common controller systems.
Can this be used for automotive displays?
Absolutely. Its high brightness and wide temperature range make it ideal for in-vehicle navigation, rearview cameras, and information panels.
