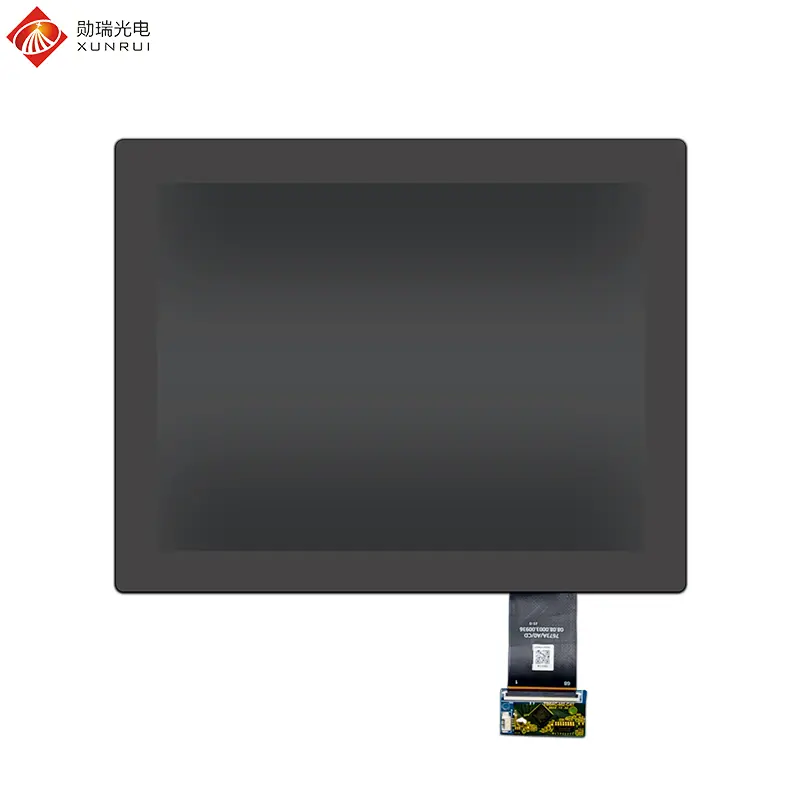

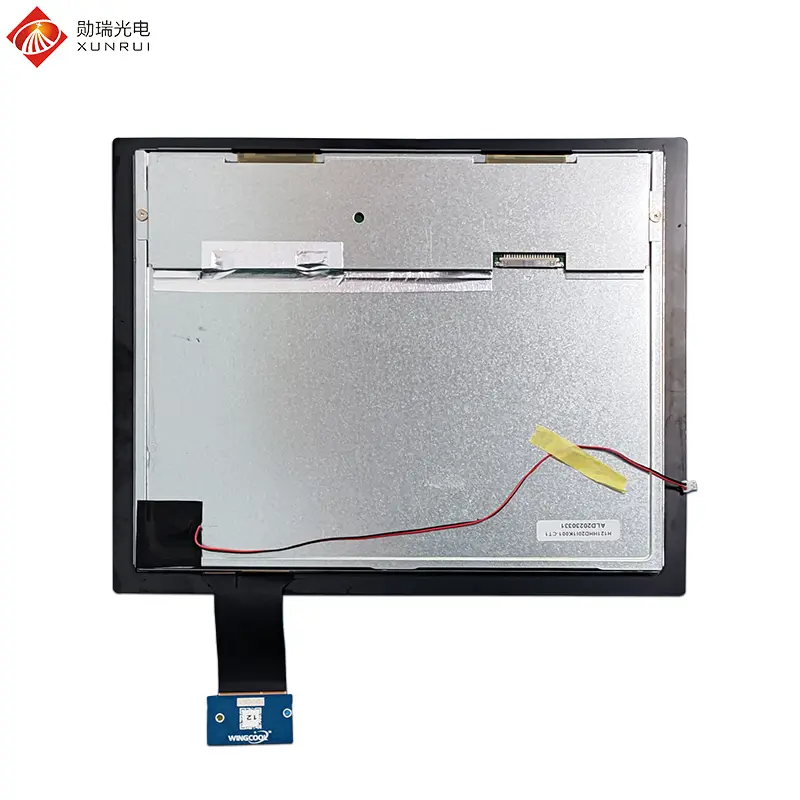

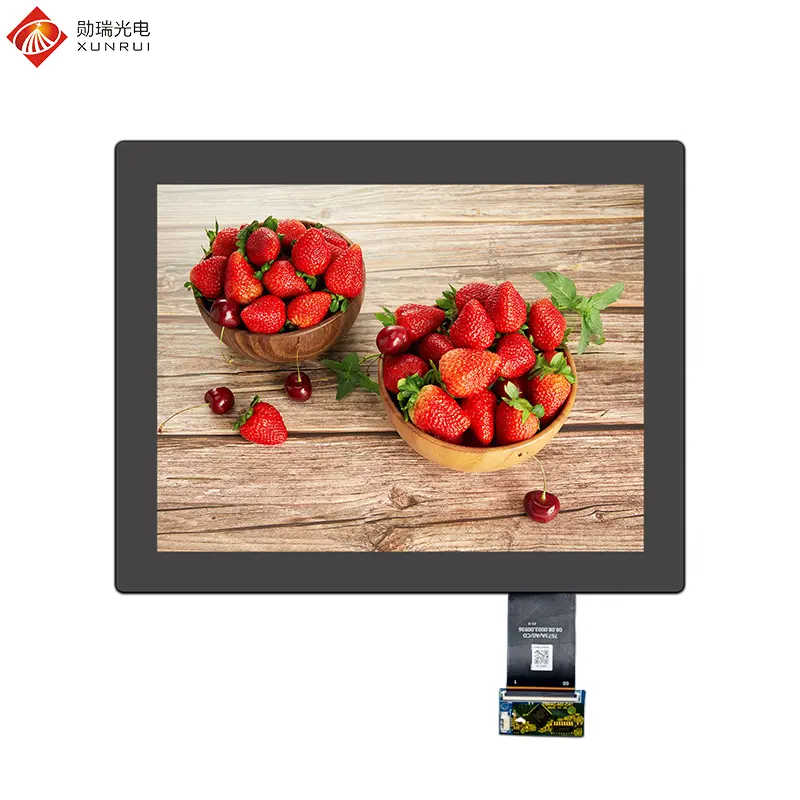

H121HHD20I1K001-CT1 is a 12.1 inch TFT LCD module with capacitive touch function. The capacitive touch screen supports multi-touch, has fast response and no pressure required, and is highly sensitive and smooth to operate. This LCD panel uses IPS panel technology to provide full viewing angles and rich display colors. The resolution is 1024×768 (XGA), with moderate pixel density, and the display of text, images and videos is clear and detailed, providing a high-definition visual experience. The LVDS 20PIN interface, with a 900nit high brightness design, can maintain clear display even in outdoor or strong light conditions. It is made of reinforced glass and impact-resistant materials, capable of withstanding external impacts and scratches. The working temperature can withstand -10℃ to +60℃, and can adapt to harsh environments such as industrial and vehicle use.
Key Applications: Professional instruments and testing equipment (oscilloscopes, spectrum analyzers), public information screens, industrial HMI panels, PLC controllers, vehicle transportation, and medical equipment.

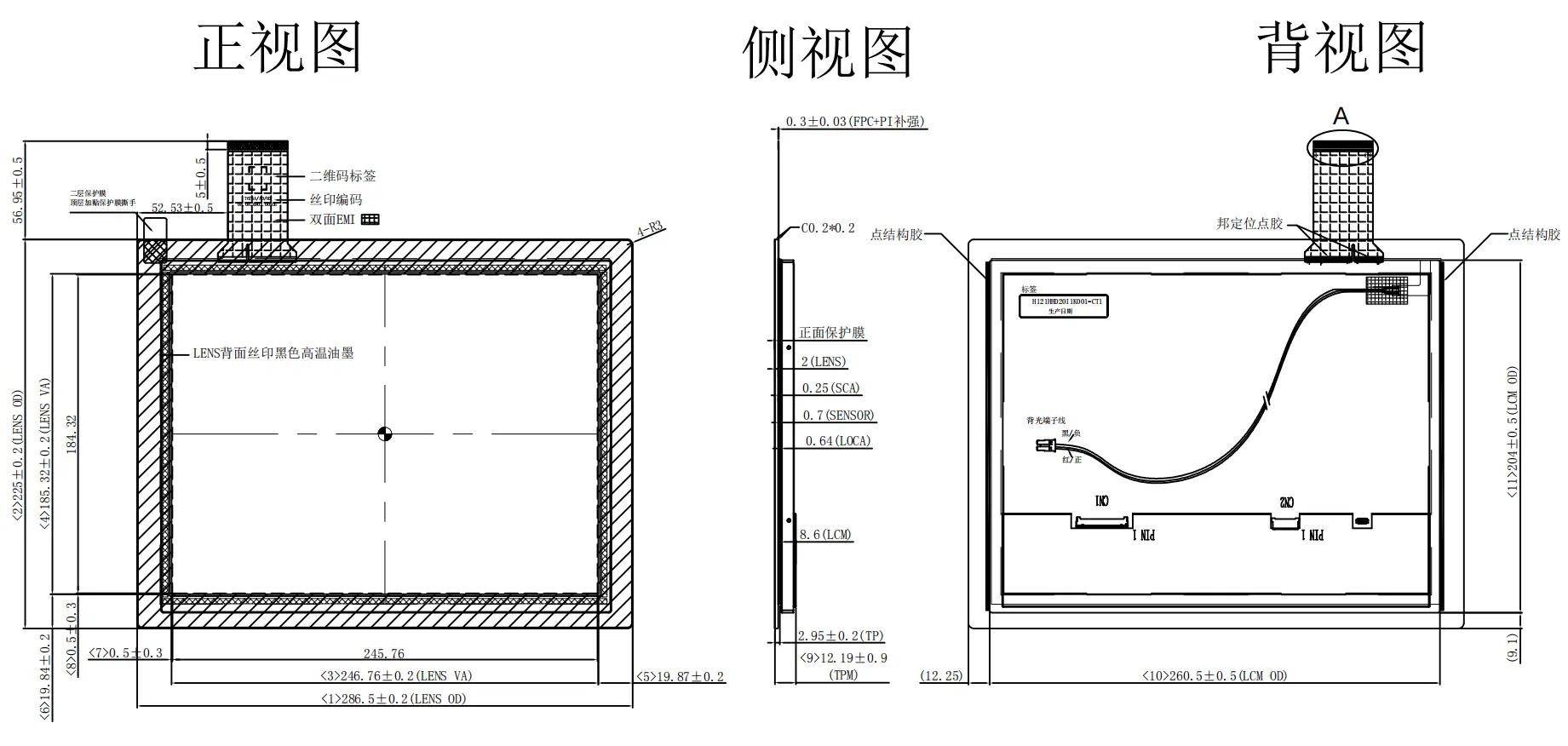

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H121HHD20I1K001-CT1
LCD Size
12.1 inch
Display Format
1024×768
Interface
LVDS 20PIN
Luminance
900 cd/m2
Touch screen
Capacitive touch
Viewing Direction
ALL (IPS)
Color Depth
16.7M
Module Size (mm)
286.5 * 225 * 12.19
Active Area (mm)
245.76 * 184.32
Operating Temp
-10℃ ~ +60℃
Storage Temp
-20℃ ~ +70℃
Interface Definition
No.
Symbol
Description
1
RX3+
Differential Data Input, CH3 (Positive)
2
RX3-
Differential Data Input, CH3 (Negative)
3
BIST
Normal operation/BIST pattern select. (1:BIST, 0:Normal)
4
SEL68
6bit/8bit mode select (1:8bits, 0:6bits)
5
GND
Ground
6
RXC+
Differential Clock Input (Positive)
7
RXC-
Differential Clock Input (Negative)
11
GND
Ground
19
VDD
Power supply, 3.3V
20
VDD
Power supply, 3.3V
Frequently Asked Questions
What is the resolution of this 12.1 inch display?
The module features a high-definition XGA resolution of 1024×768 pixels, providing clear and detailed visual output.
Is the screen readable in sunlight?
Yes, with a high brightness rating of 900 nits (cd/m2), this display is designed to remain clear and visible even in outdoor or strong light environments.
What type of touch technology does it use?
It utilizes capacitive touch technology (CTP) which supports multi-touch functionality, offering high sensitivity and a smooth user experience.
What interface is used for data connection?
The module uses a standard LVDS 20PIN interface, which is common in industrial and professional display applications.
Can this display work in harsh environments?
Yes, it is designed for durability with an operating temperature range of -10°C to +60°C and impact-resistant materials suitable for industrial use.
Does this LCD offer wide viewing angles?
Yes, it uses IPS (In-Plane Switching) panel technology, which ensures consistent color and full viewing angles from all directions.
