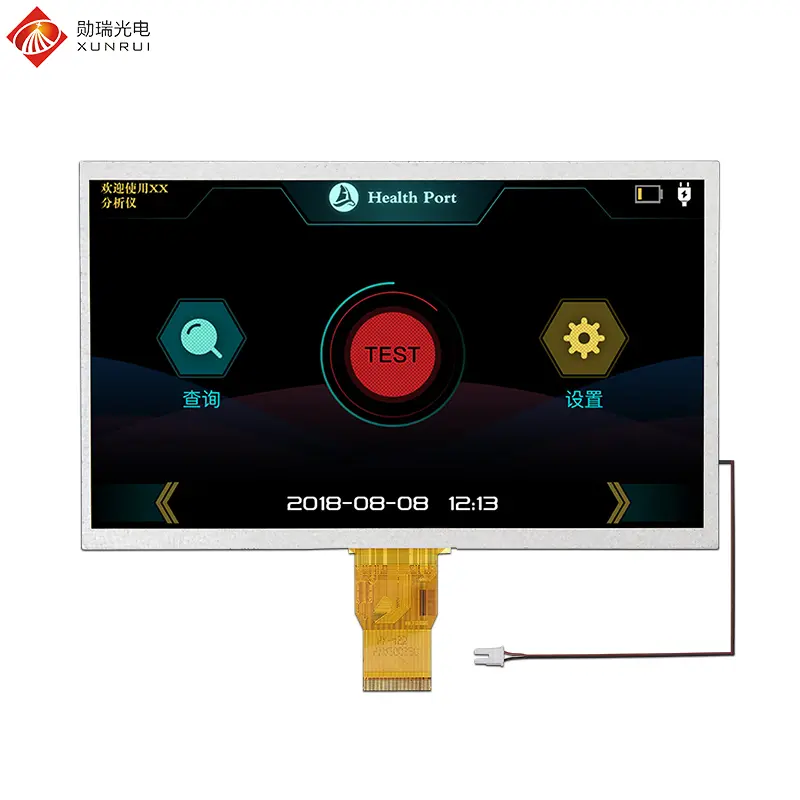

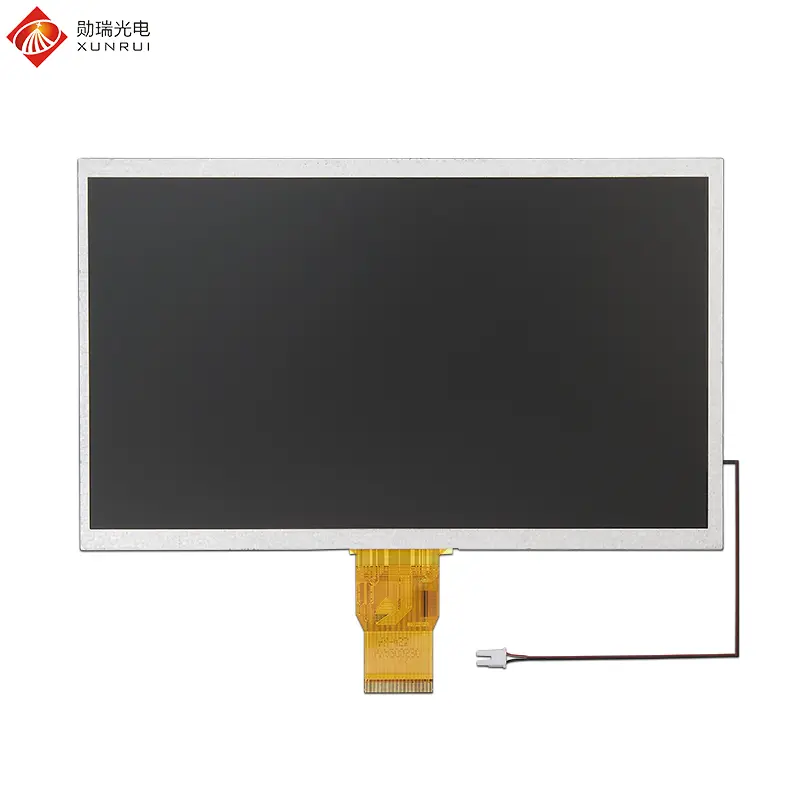

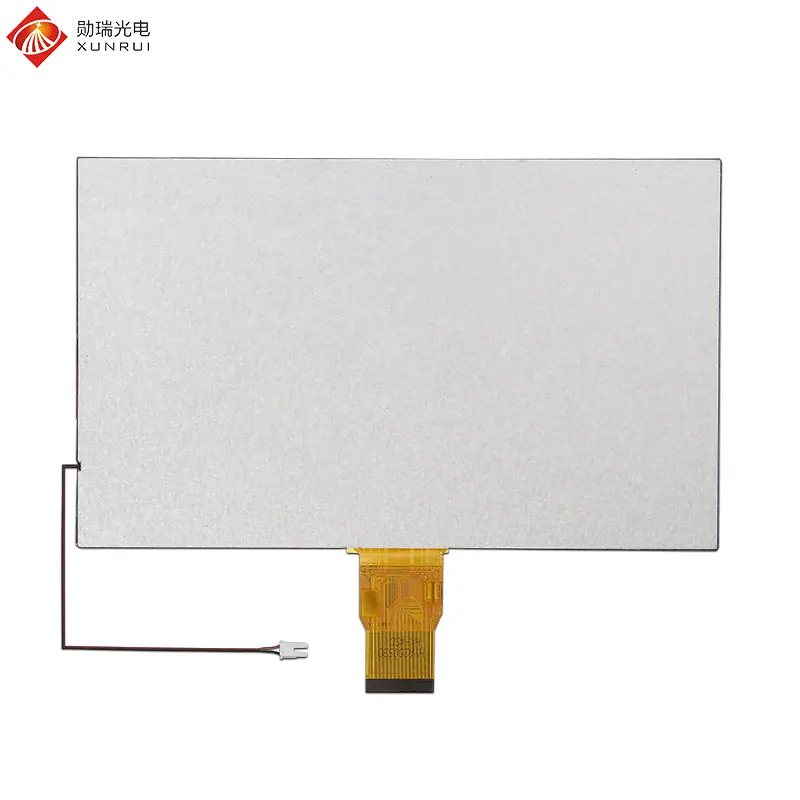

The H101BWS50E1K02 is a high-brightness 10.1-inch TFT LCD module. This LCD screen features a TN panel with a resolution of 1024×600, an RGB 50-pin interface, and a brightness of 1000 nits, making it clearly visible in sunlight. Designed for durability, the working temperature can withstand -20℃ to +70℃. For enhanced interactivity, a capacitive touch screen or resistive touch screen can be optionally equipped.
With its clear display and visibility in strong light, this module is widely used in various professional sectors:
| Feature | Spec |
| Model Name | H101BWS50E1K02 |
| LCD Size | 10.1 inch |
| Display Format | 1024×600 |
| Interface | RGB 50pin |
| Luminance | 1000 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O'CLOCK |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |

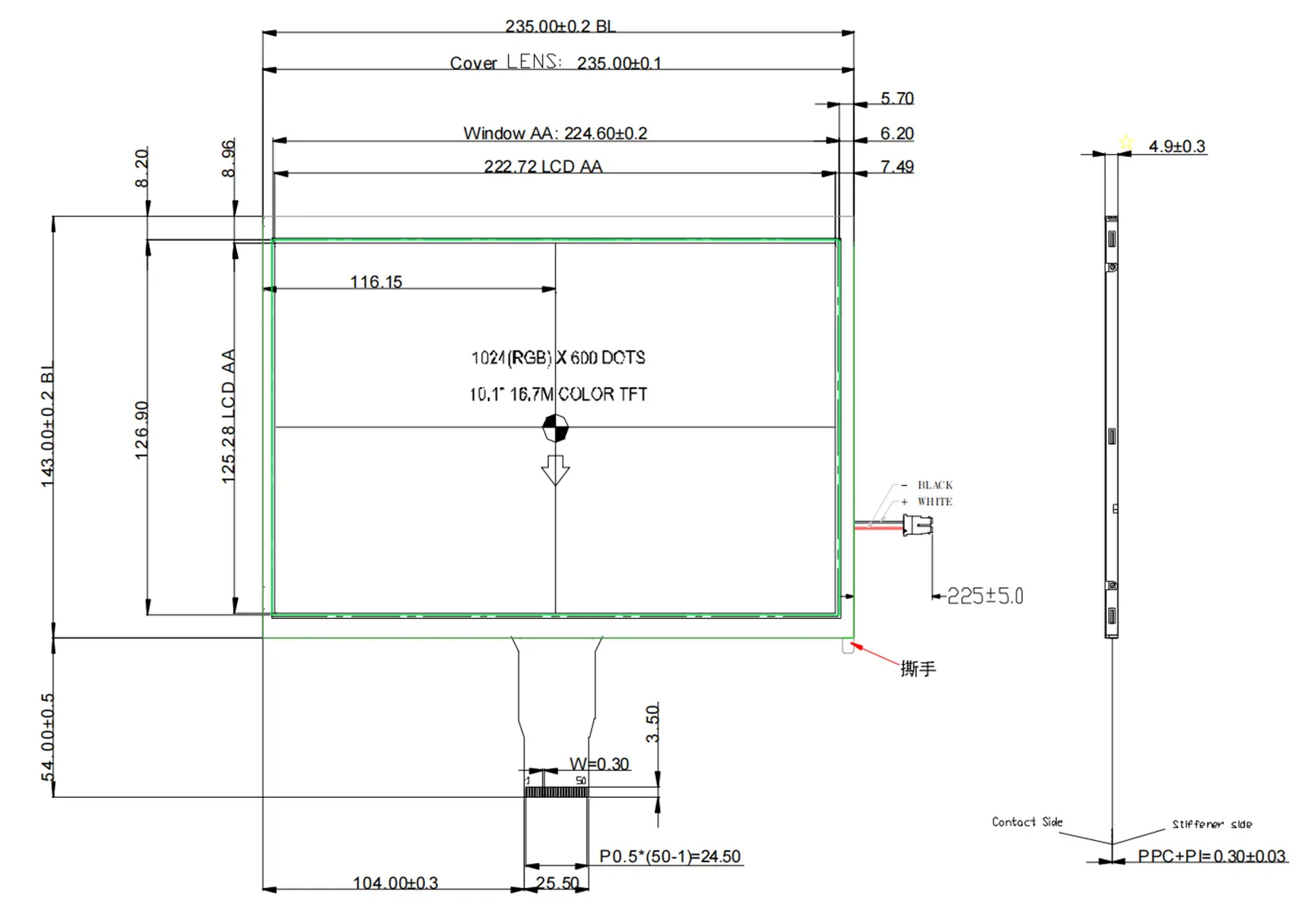

| LCM (W x H x D) (mm) | 235(W)×143(H)×4.9(T) |
| No. | Symbol | Description |
| 1, 2 | NC | No Connection |
| 5 | GND | Power Ground |
| 7 | DVDD | Power for Digital Circuit |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 37 | DCLK | Pixel clock |
