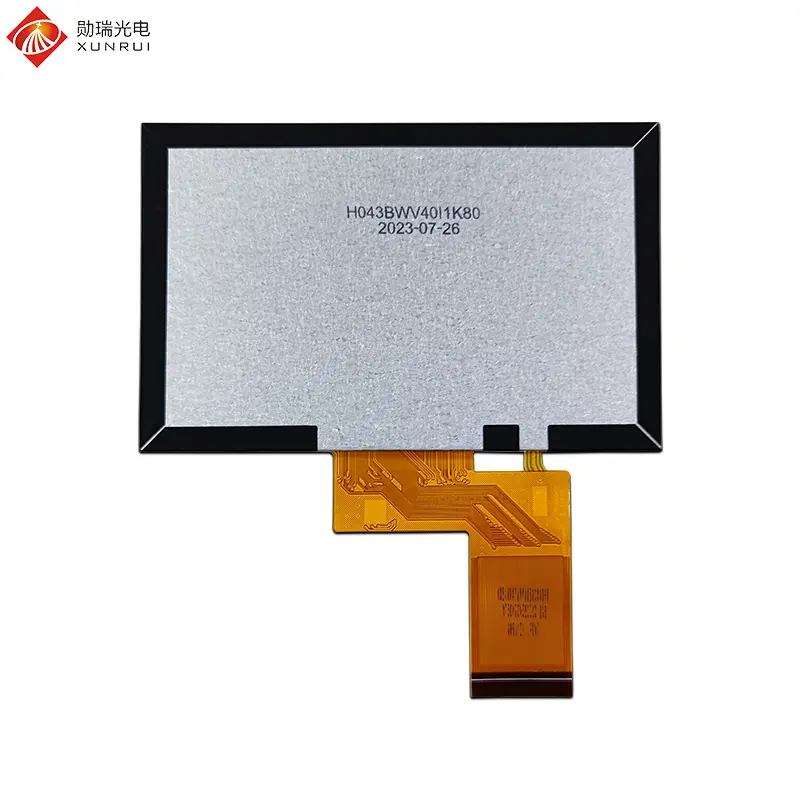

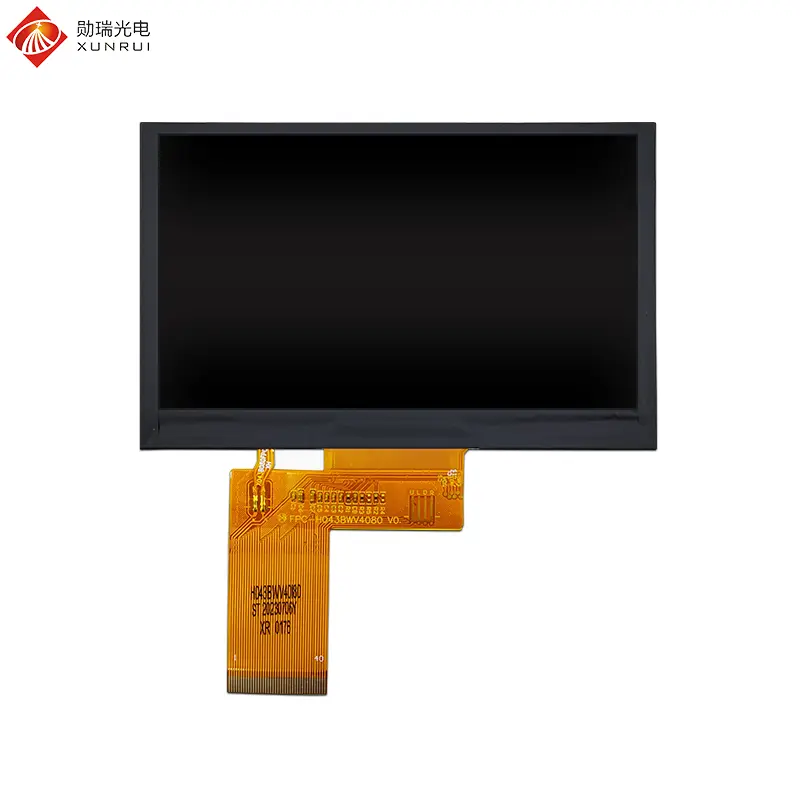

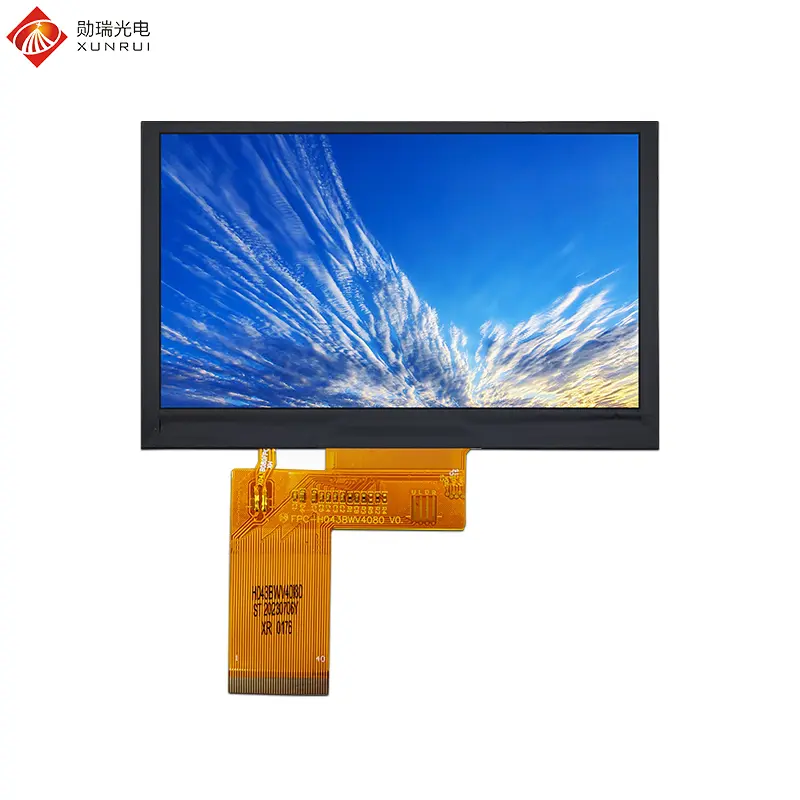

H043BWV40I1K80 is a high-brightness 4.3-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 800x480, full viewing Angle, 24-bit RGB 40-pin interface, and ST7262 Driver IC. With a brightness of 1000 nits, it is visible in sunlight. The operating temperature range is from -20°C to +70°C. Resistive touch screens or capacitive touch screens can be optionally equipped.
This 4.3-inch TFT LCD screen is mainly applied in industrial control equipment: as a human-machine interface (HMI), it is used in CNC machine tools, packaging machinery, instruments and meters, etc., to display equipment status, parameter Settings and alarm information. Its high brightness ensures clear reading in strong light environments.
In-vehicle system: applied to in-vehicle navigation systems, reversing camera systems, dash cams, etc., it provides navigation routes, real-time traffic conditions or rear view display. High brightness and wide viewing Angle ensure readability in strong outdoor light or complex lighting inside the vehicle. Self-service terminals and security equipment: used in queuing number calling machines, intelligent cash register devices, video intercoms, etc.
📋
Specification Parameters
| Feature |
Spec |
| Model Name |
H043BWV40I1K80 |
| LCD Size |
4.3 inch |
| Display Format |
800x480 |
| Interface |
24-bit RGB 40pin |
| Luminance |
1000 cd/m2 |
| Touch screen |
None, optional |
| Viewing Direction |
ALL (IPS) |
| Color Depth |
16.7M |
| Driver IC |
ST7262 |

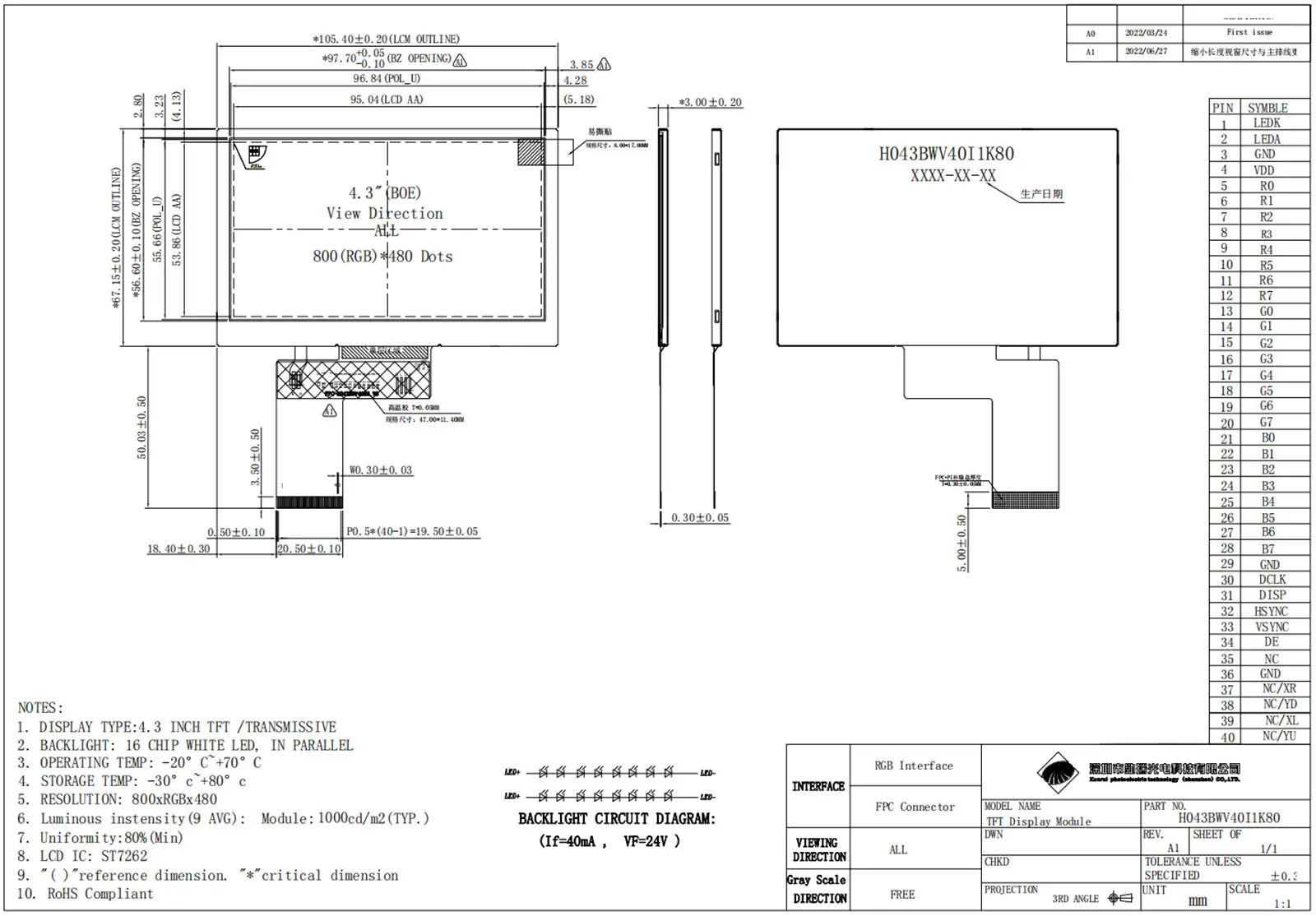

| LCM (W x H x D) (mm) |
105.40*67.15*3 |
| Operating Temperature |
-20°C ~ +70°C |
| Operating Voltage |
24V |
| No. |
Symbol |
Description |
| 1 |
VBL- |
Backlight LED Cathode |
| 2 |
VBL+ |
Backlight LED Anode |
| 3 |
GND |
System Ground |
| 4 |
VDD |
Power supply for logic operation |
| 5~12 |
R0~R7 |
Data bus (Red) |
| 13~20 |
G0~G7 |
Data bus (Green) |
| 21~28 |
B0~B7 |
Data bus (Blue) |
| 30 |
CLK |
Pixel clock signal |
| 31 |
DISP |
Display on/off control |
Frequently Asked Questions
Is this 4.3-inch LCD readable in direct sunlight?
Yes, with a high luminance of 1000 nits, the H043BWV40I1K80 is specifically designed to be sunlight-readable for outdoor applications.
What type of panel technology does this display use?
This module uses an IPS (In-Plane Switching) panel, which provides full viewing angles and superior color reproduction.
Can I add a touch screen to this module?
Yes, resistive or capacitive touch screens can be optionally equipped based on your project requirements.
What are the main industrial applications for this screen?
It is widely used in HMI for CNC machines, medical equipment, in-vehicle navigation systems, and smart home terminals.
What is the operating temperature range?
The module supports a wide operating temperature range from -20°C to +70°C, making it suitable for industrial environments.
Which driver IC is used in this LCD module?
This specific model uses the ST7262 Driver IC for reliable performance and 24-bit RGB interface communication.
