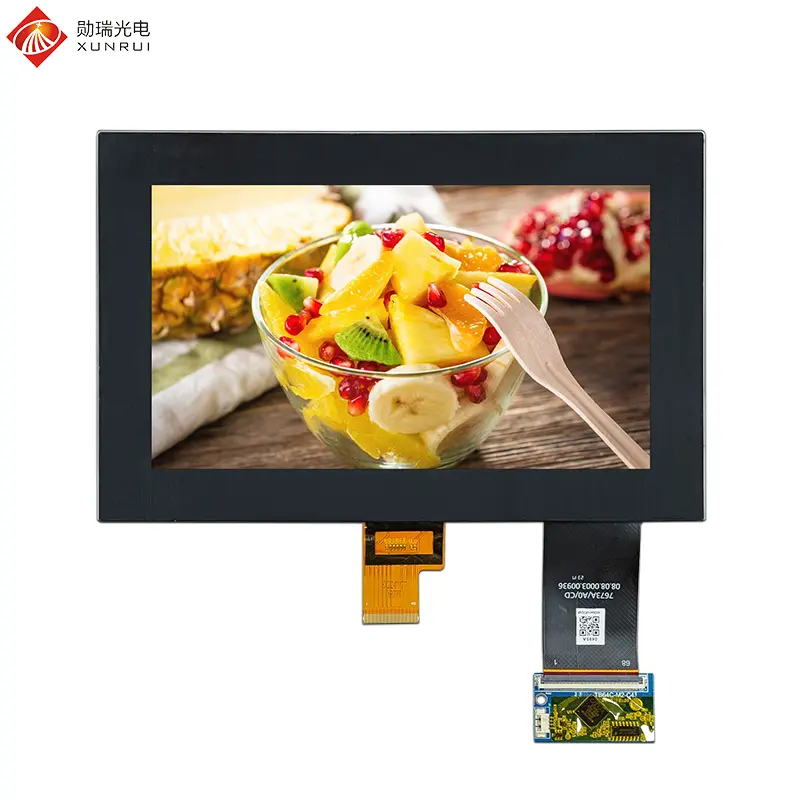

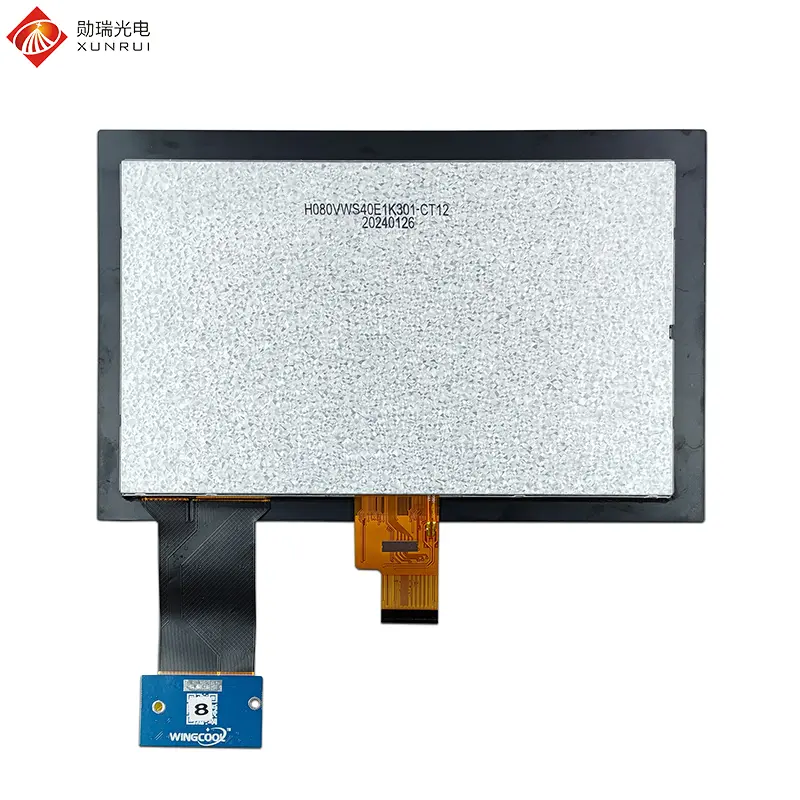

The H080VWS40E1K301-CT12 is a high-performance 8-inch TFT LCD module integrated with capacitive touch functionality. This display features a TN panel with a crisp 1024×600 resolution and utilizes an LVDS 40-pin interface for stable data transmission. Powered by the HX8282_A02+ HX8696_A01 Driver IC, it delivers an impressive brightness of 1300 nits, ensuring excellent visibility even in direct sunlight.
Designed for durability, this module operates reliably in temperatures ranging from -20°C to +70°C. It is ideally suited for various demanding applications:
| Feature | Specification |
|---|---|
| Model Name | H080VWS40E1K301-CT12 |
| LCD Size | 8 inch |
| Display Format | 1024×600 |
| Interface | LVDS 40pin |
| Luminance | 1300 cd/m2 |
| Touch Screen | Capacitive Touch |
| Viewing Direction | 6 O’clock |
| Color Depth | 16.7M |
| Driver IC | HX8282_A02 + HX8696_A01 |

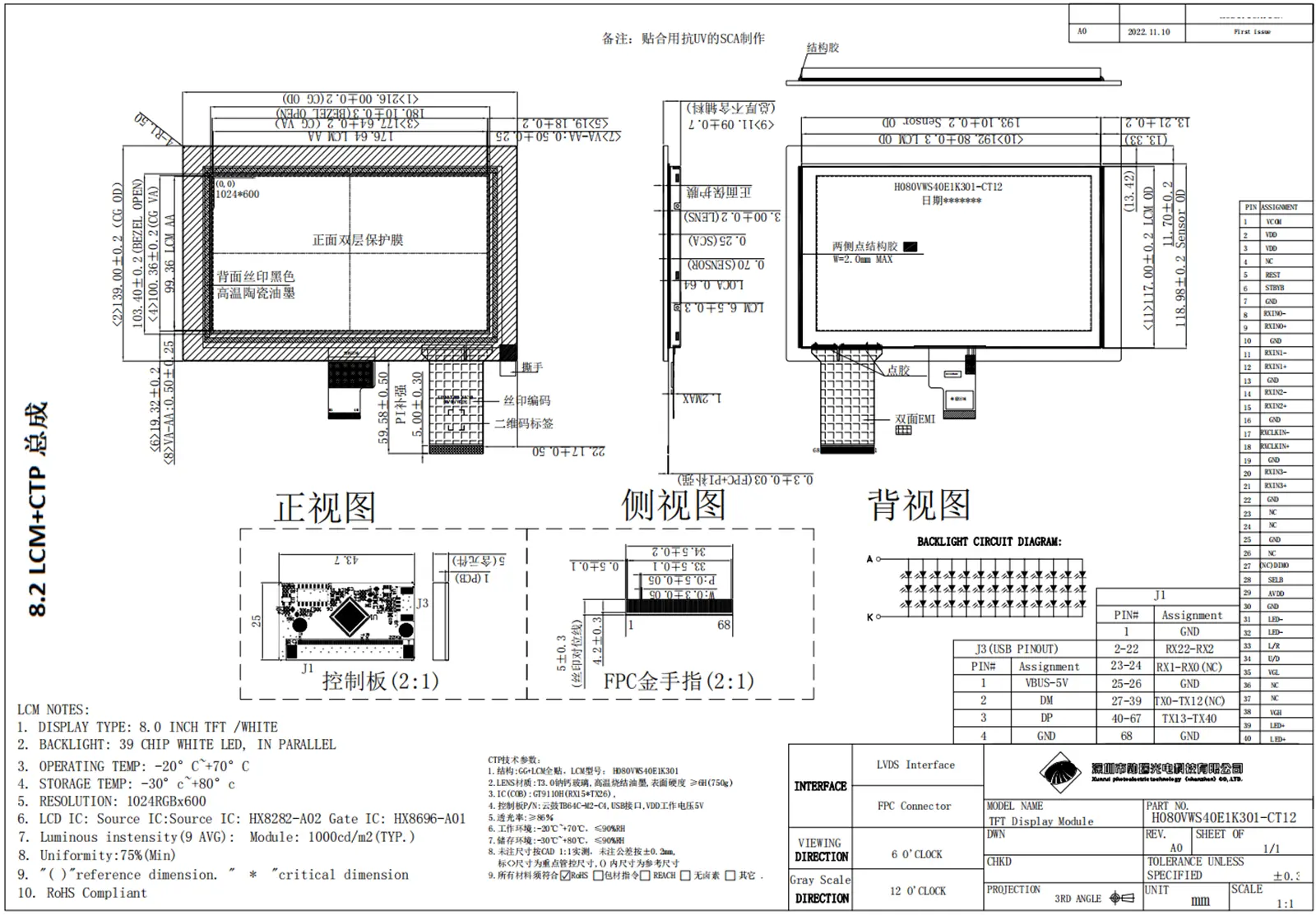

| Dimensions (W x H x D) | 216.00 * 139.00 * 11.09 mm |
| Active Area | 176.64 * 99.36 mm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Operating Voltage | 9.0V |
| No. | Symbol | Description |
|---|---|---|
| 1 | VCOM | Common Voltage |
| 2-3 | VDD | Digital power (3.3V) |
| 5 | RESET | Global reset pin |
| 8-9 | RXIN0-/+ | LVDS differential data input 0 |
| 11-12 | RXIN1-/+ | LVDS differential data input 1 |
| 14-15 | RXIN2-/+ | LVDS differential data input 2 |
| 17-18 | RXCLKIN-/+ | LVDS differential clock input |
| 20-21 | RXIN3-/+ | LVDS differential data input 3 |
| 31-32 | LED- | LED cathode |
| 35 | VGL | Negative power for TFT |
| 38 | VGH | Positive power for TFT |
| 39-40 | LED+ | LED Anode |
