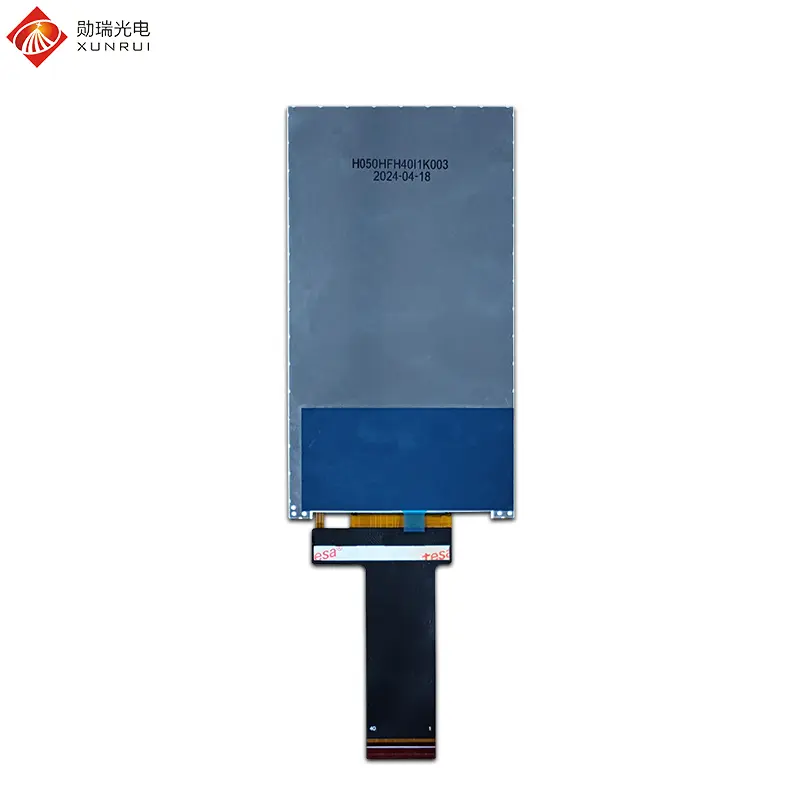

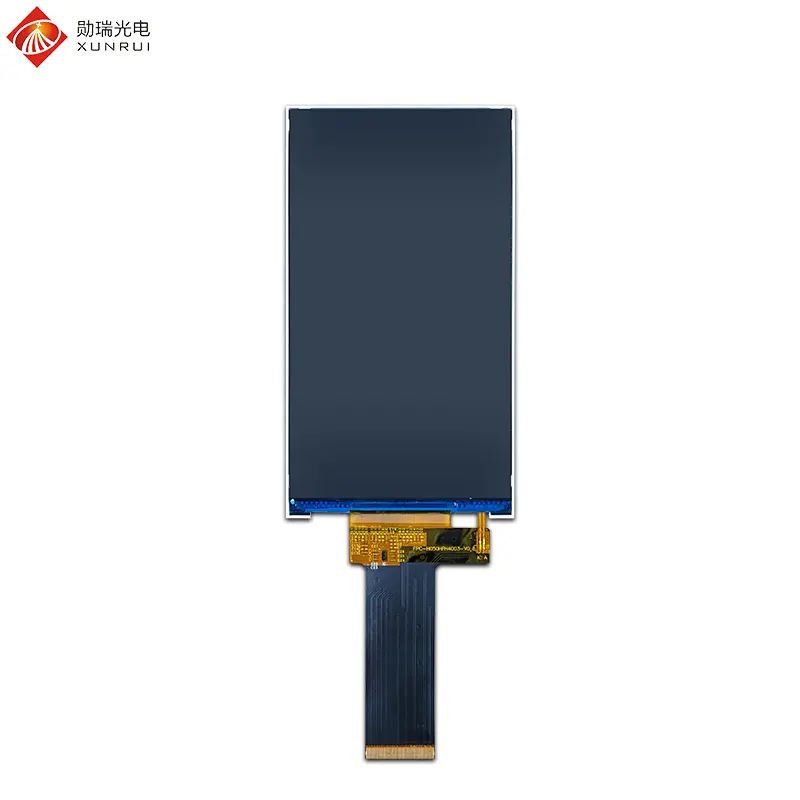

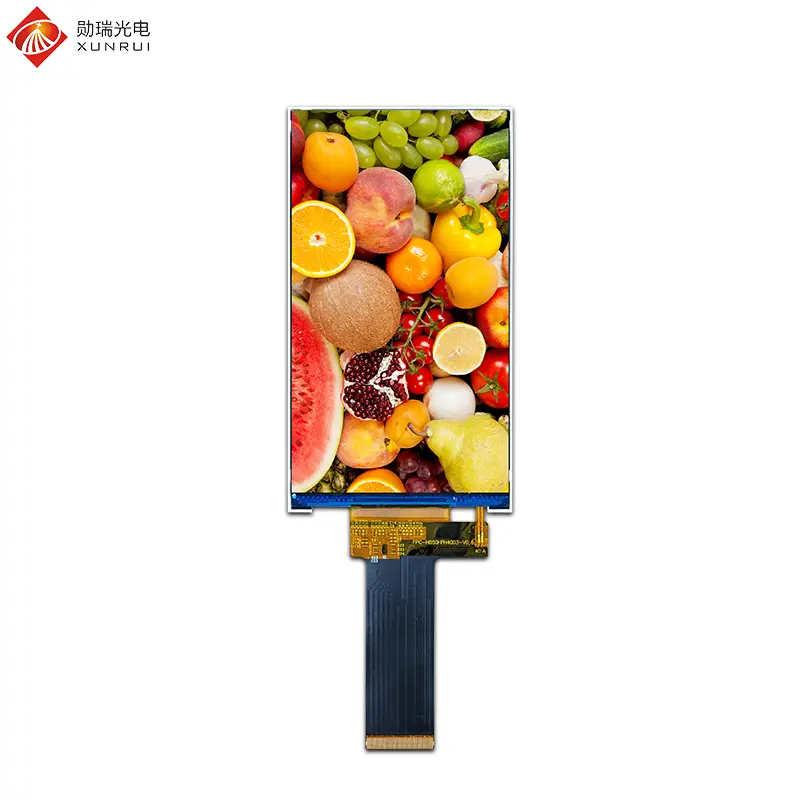

H050HFH40I1K003 is a high-brightness 5-inch TFT LCD module. This LCD screen features a vertical structure and utilizes IPS full-view technology, supporting a 16.7 million-color display. The color gamut covers over 72% NTSC, satisfying requirements for medical imaging gray-scale transition and multi-color alarms in industrial interfaces. With a resolution of 720×1280 (HD standard) on a 5-inch screen, it achieves a high pixel density of approximately 293 PPI.
Equipped with a MIPI 40-pin interface and a brightness of 1000 nits, it ensures excellent visibility under strong light conditions. The operating temperature range is -20°C to +70°C, and it can be optionally equipped with a touch screen. This display is ideally suited for industrial control, medical health equipment, and smart home terminals such as PLC operation panels, handheld detectors, portable ultrasound machines, and intelligent access control systems.
| Feature | Spec |
| Model Name | H050HFH40I1K003 |
| LCD Size | 5 inch |
| Display Format | 720×1280 |
| Interface | MIPI 40pin |
| Luminance | 1000 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |
| Operating Temperature | -20°C ~ +70°C |

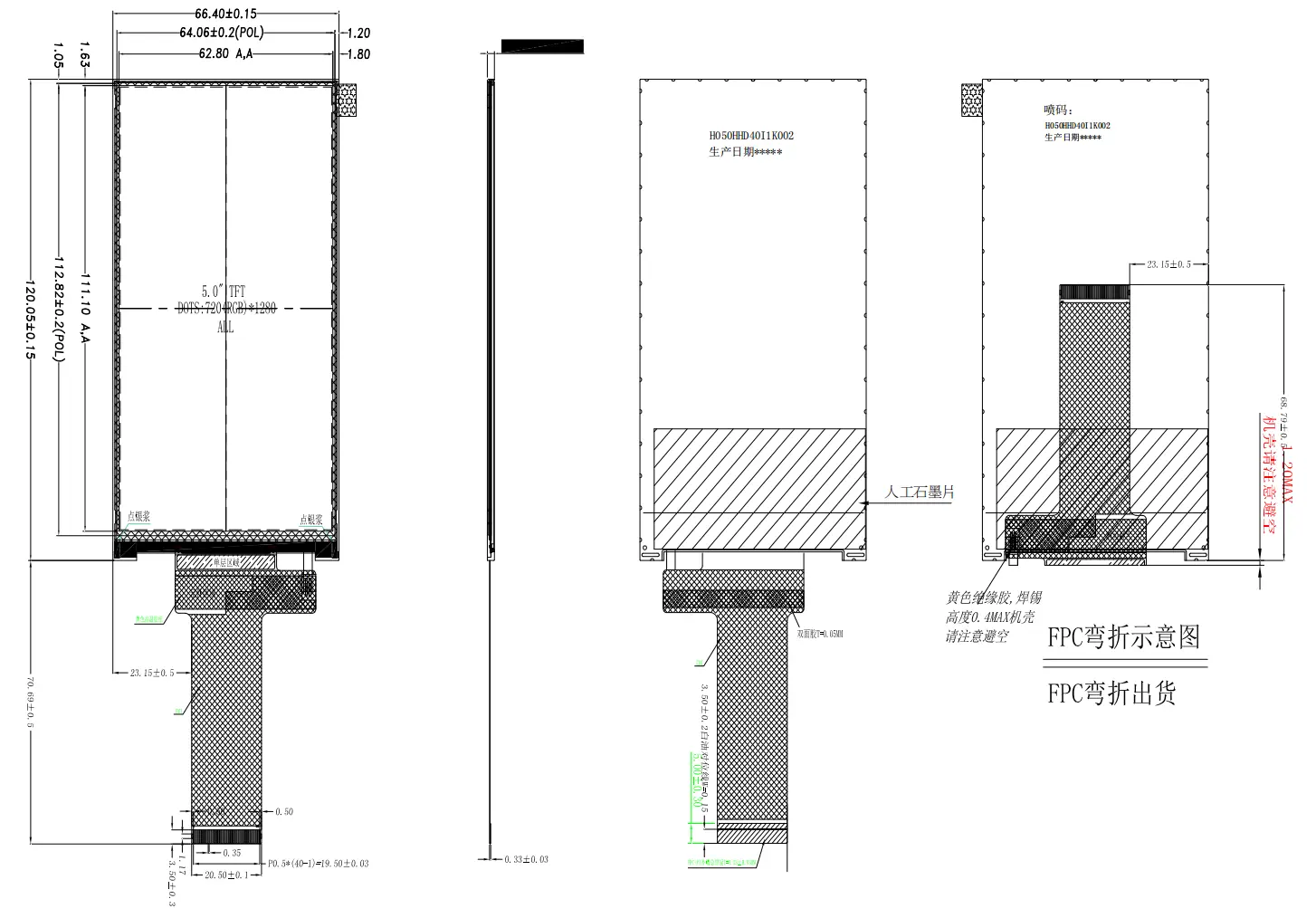

| LCM (W x H x D) (mm) | 66.40* 120.05* 2.05 |
| PIN No. | SYMBOL | Function |
| 1 | GND | Ground |
| 2-3 | D0P / D0N | DSI Data differential signal (lane 0) |
| 8-9 | CLK P / CLK N | DSI CLOCK differential signal input |
| 18-19 | IOVCC-1V8 | I/O Power supply |
| 24 | RSTBT | Reset Signal pin (“Low” is enable) |
| 28-29 | K | Backlight LED Cathode |
| 35-36 | A | Backlight LED Anode |
| 38-39 | VCC-3V3 | Power supply |
