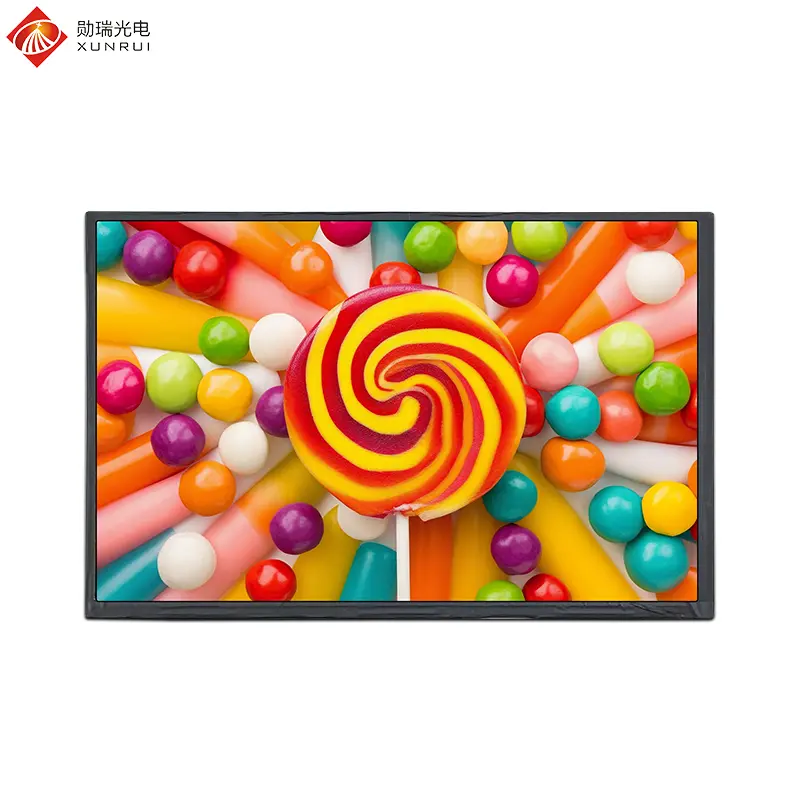

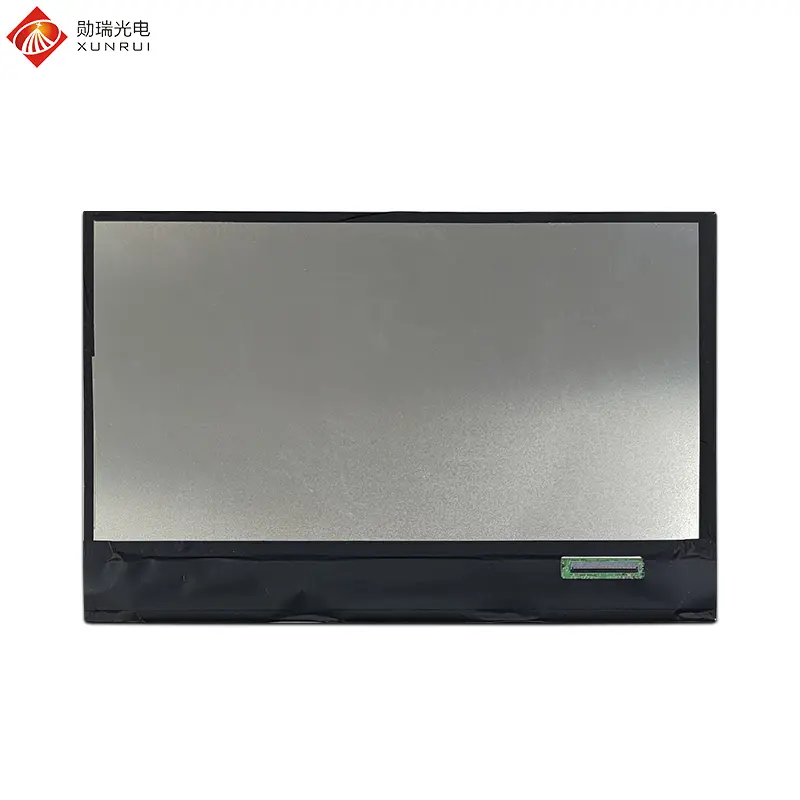

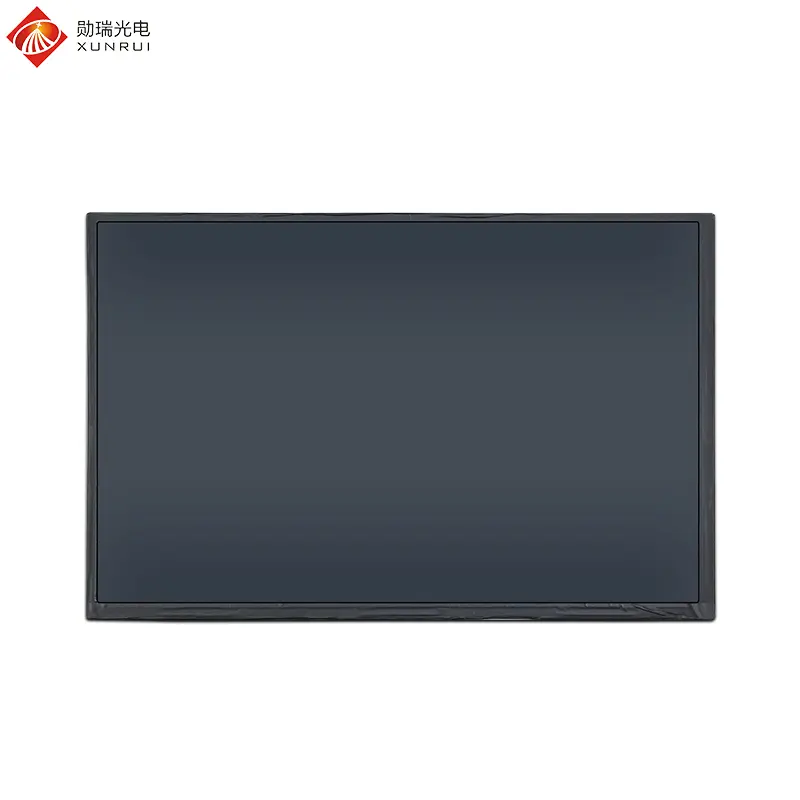

H101BWU45I3501 is a 10.1-inch TFT LCD module utilizing advanced IPS panel technology. It features a wide viewing angle of up to 178°, high color reproduction accuracy, and minimal color deviation, ensuring stable and clear visuals from any perspective.
With a resolution of 1920×1200 (WUXGA+) and a 16:10 aspect ratio, the display delivers a pixel density of approximately 224 PPI. This ensures sharp text and detailed imagery, making it an ideal choice for high-end applications like graphic design and video playback. The module includes an LVDS 45-pin interface and offers optional touch screen integration.
| Feature | Specification |
|---|---|
| Model Name | H101BWU45I3501 |
| LCD Size | 10.1 inch |
| Display Format | 1920×1200 |
| Interface | LVDS 45pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

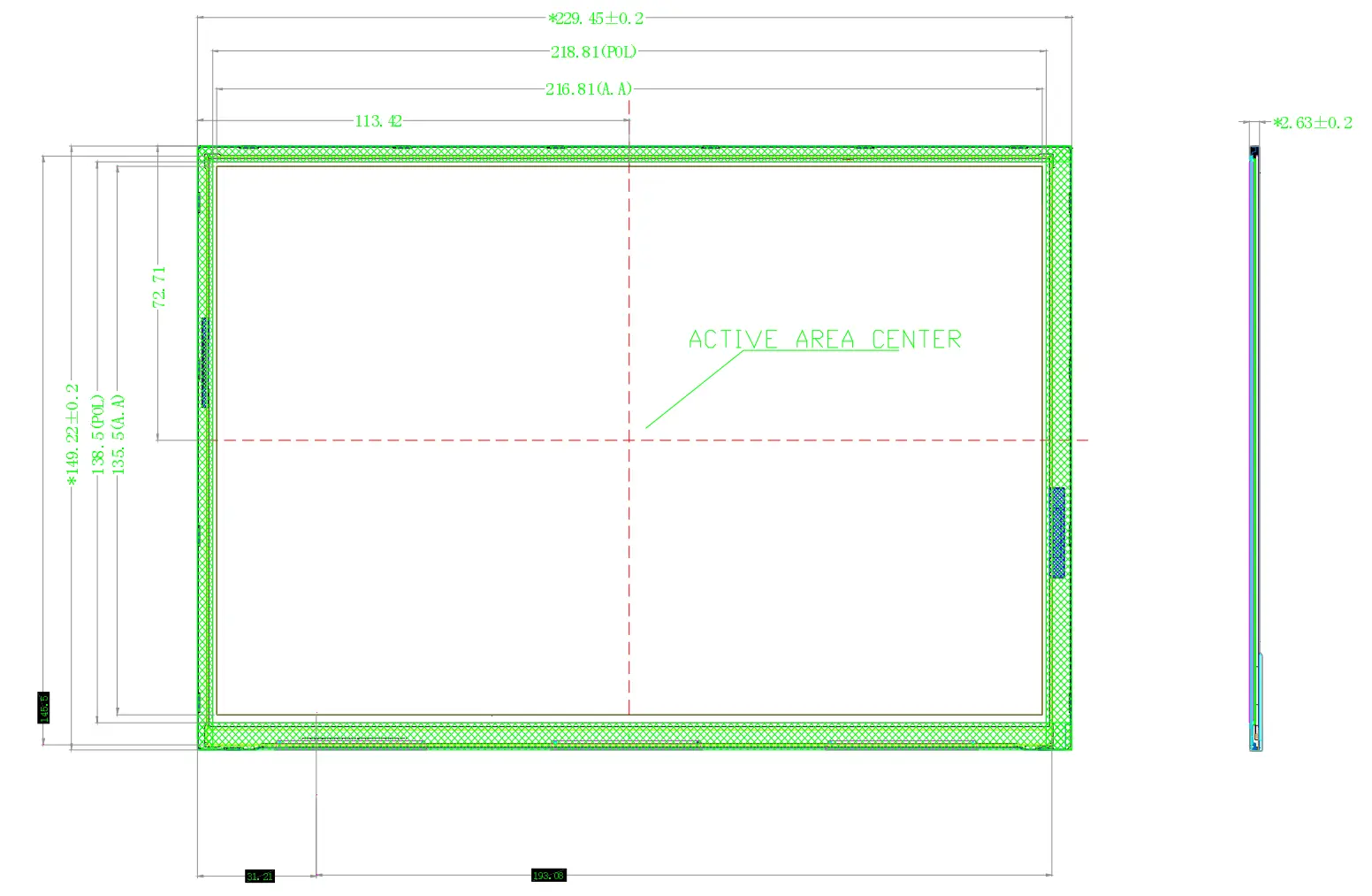

| LCM (W x H x D) (mm) | 229.45 * 149.22 * 2.63 |
| Active Area(mm) | 216.8064(H) * 135.504(V) |
| Operating Temperature | 0℃ ~ +60℃ |
| Operating Voltage | 9.0V |
| Pin No. | Symbol | Description | I/O |
|---|---|---|---|
| 1-6 | VDDIN | Power supply VDDIN=3.3V (Typ.) | P |
| 7 | VDD_OTP | OTP Power supply VDD OTP=8.6V | P |
| 8-9 | I2C_SCL/SDA | OTP Clock & Data | I |
| 10 | GND | GROUND | P |
| 11-12 | OLV0N/P | Odd LVDS data signal 0 | I |
| 17-18 | OLVCLKN/P | Odd LVDS Clock signal | I |
| 26-27 | ELV0N/P | EVEN LVDS data signal 0 | I |
| 32-33 | ELVCLKN/P | EVEN LVDS Clock signal | I |
| 42-43 | VLED+ | LED Anode | P |
| 44-45 | VLED- | LED Cathode | P |
