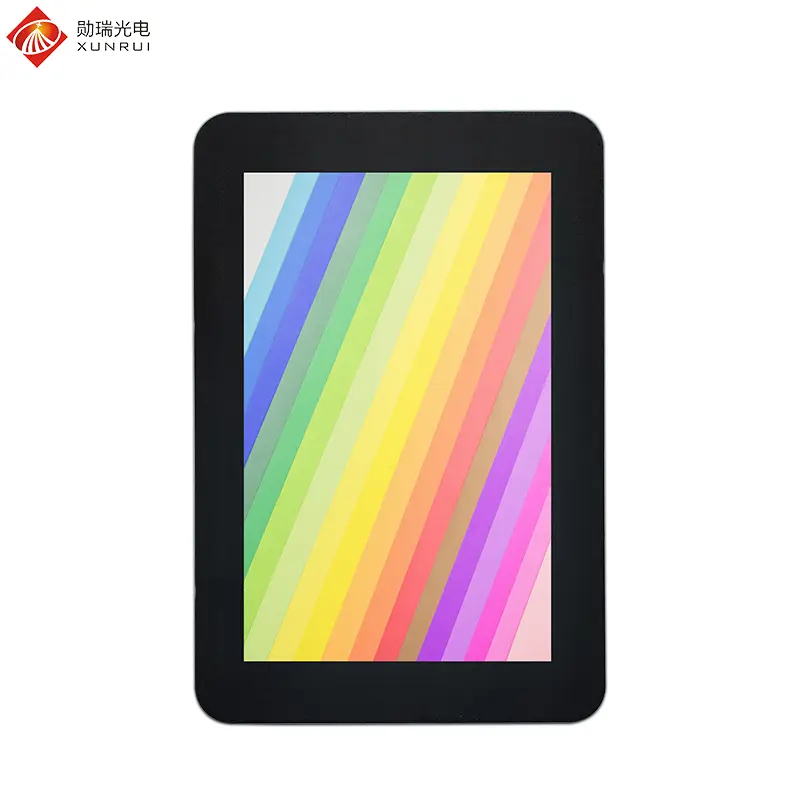

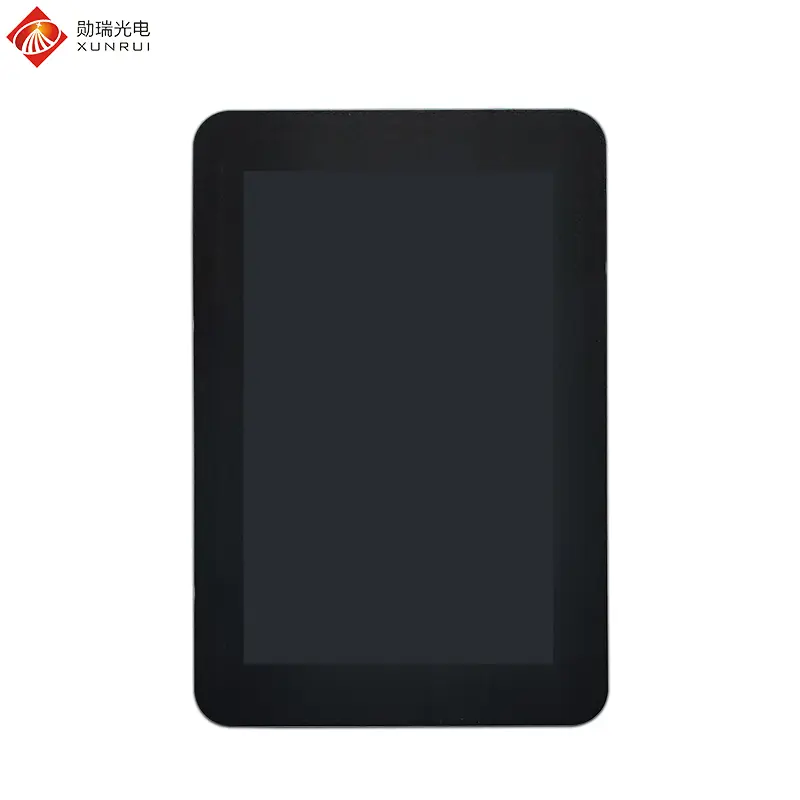

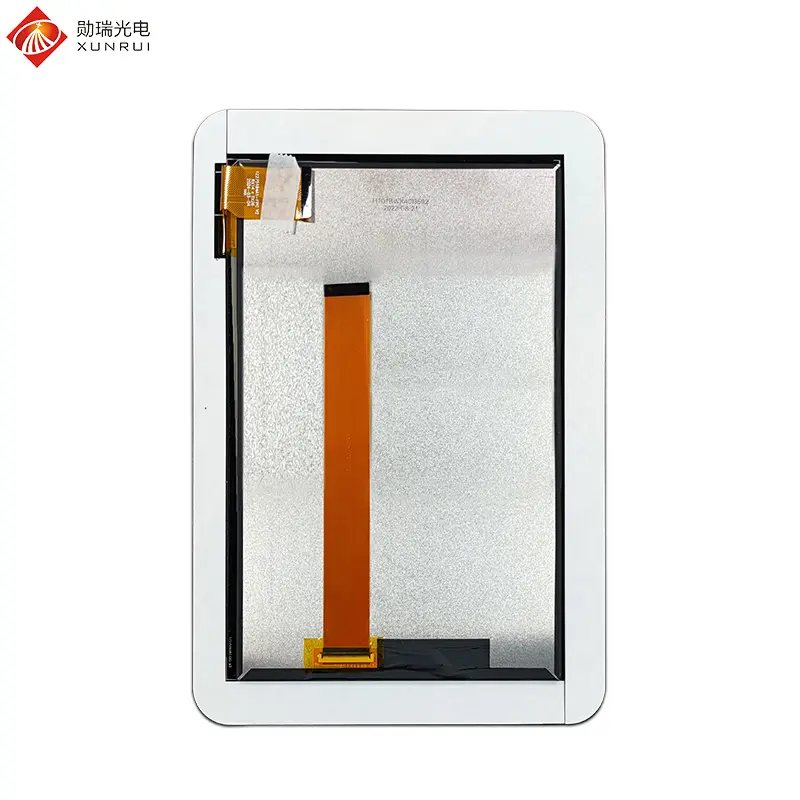

The H101BWX40I3502-CT9 is a high-performance 10.1-inch TFT LCD module integrated with capacitive touch functionality. Utilizing an advanced IPS panel, it offers a superior 178° wide viewing angle and 16.7M true color depth. This ensures exceptional color consistency and clarity from almost any perspective. With a resolution of 800×1280 (WXGA) and a MIPI 40-pin interface, this module is designed for modern high-speed data transmission.
Equipped with capacitive multi-touch technology, the screen provides a smooth, responsive user interface supporting complex gesture operations, significantly enhancing human-computer interaction.
Ideal for automation lines, CNC machines, and PLC terminals for real-time data monitoring and rugged durability.
Perfect for ultrasound machines and diagnostic monitors requiring high-precision image restoration and stability.
Widely used in vending machines, ticketing kiosks, and ATMs, supporting 24/7 reliable operation.
Suitable for interactive tablets and home central control panels with support for handwritten input.
| Feature | Specification |
|---|---|
| Model Name | H101BWX40I3502-CT9 |
| LCD Size | 10.1 inch |
| Display Format | 800×1280 |
| Interface | MIPI 40pin |
| Luminance | 300 cd/m2 |
| Touch Screen | Capacitive Touch |
| Viewing Direction | All (IPS) |
| Color Depth | 16.7M |

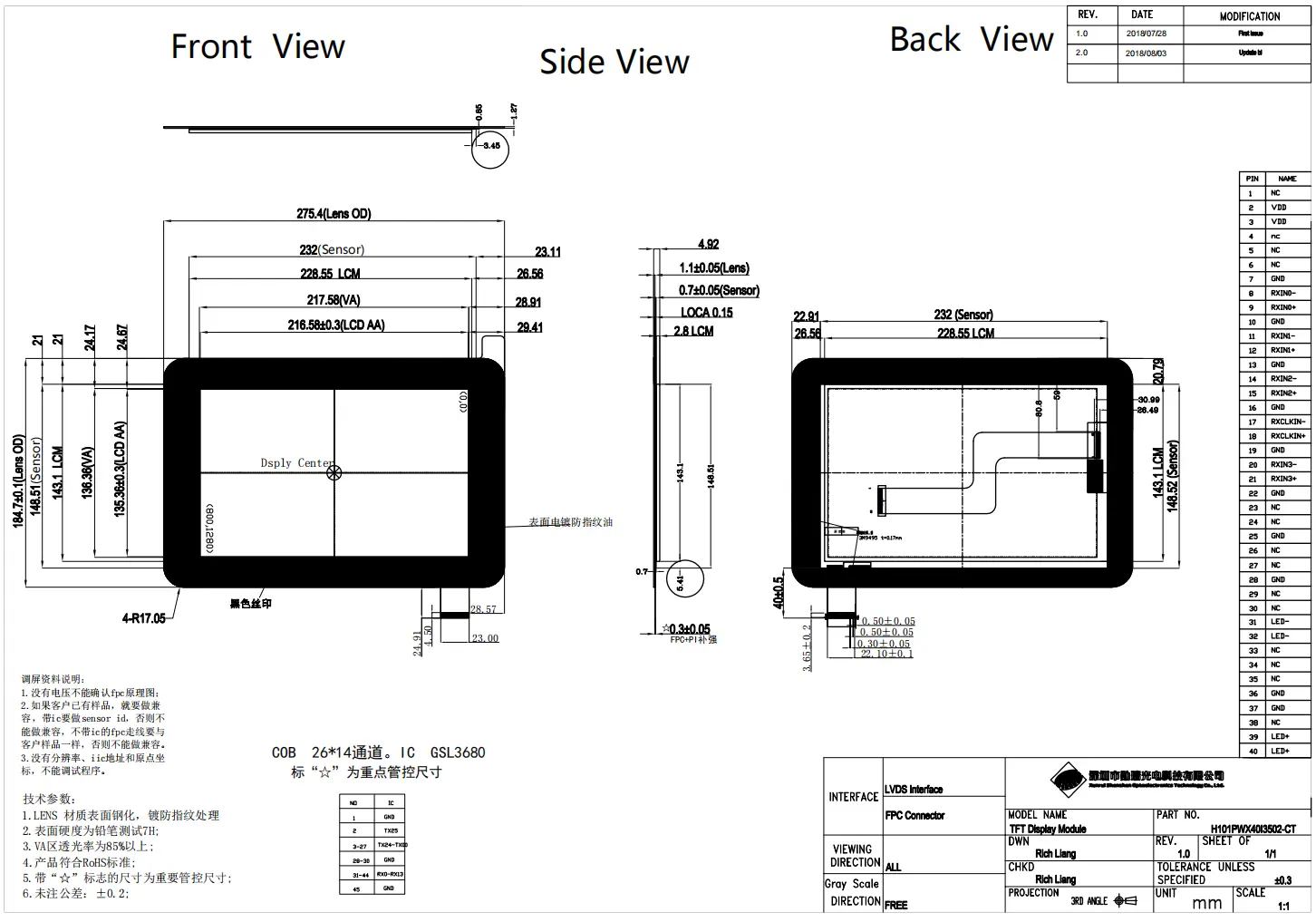

| Dimensions (mm) | 275.4(W) X 184.7(H) X 4.92(D) |
| Active Area (mm) | 135.36(V) X 216.576(H) |
| Operating Temp | -20℃ ~ +70℃ |
| Storage Temp | -30℃ ~ +80℃ |
| Pin No. | Symbol | Type | Function Description |
|---|---|---|---|
| 1 | NC | - | No Connection |
| 2-3 | VDDIN | P | Power Supply 3.3V |
| 4 | GND | P | Ground |
| 5 | RESET | I | Device Reset Signal |
| 8-9 | MIPI-0N/0P | I | MIPI Data Lane 0 |
| 11-12 | MIPI-1N/1P | I | MIPI Data Lane 1 |
| 14-15 | MIPI-CLKN/P | I | MIPI Clock Signal |
| 17-18 | MIPI-2N/2P | I | MIPI Data Lane 2 |
| 20-21 | MIPI-3N/3P | I | MIPI Data Lane 3 |
| 31-32 | LED- | P | Backlight Cathode |
| 39-40 | LED+ | P | Backlight Anode |
