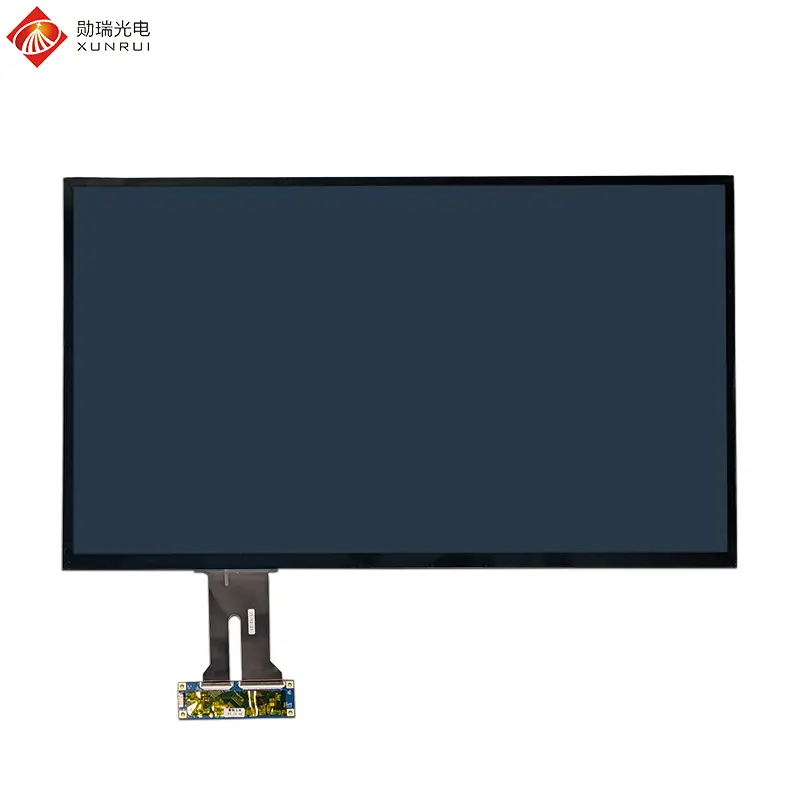

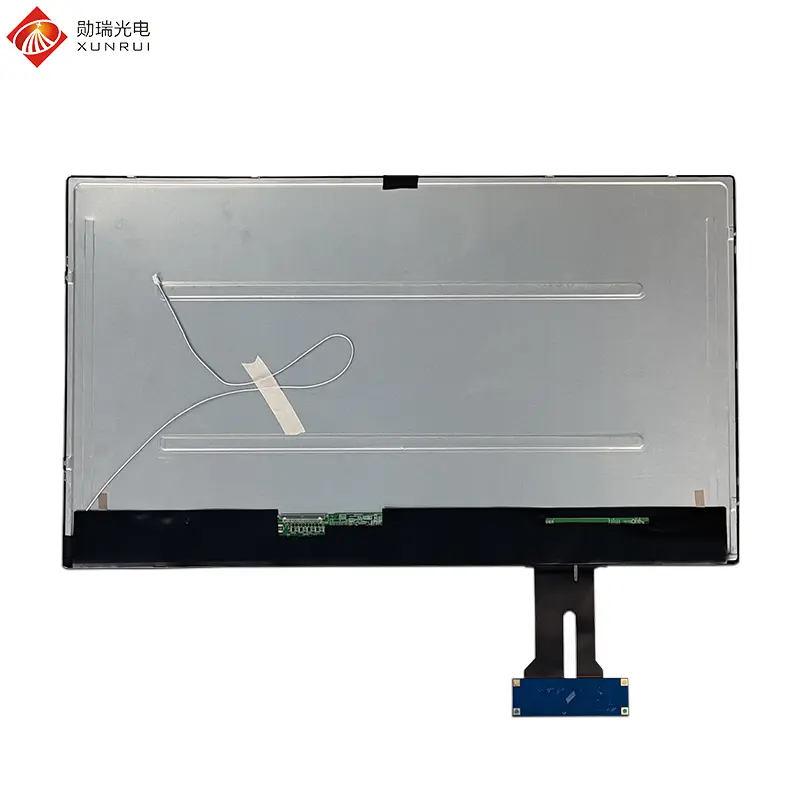

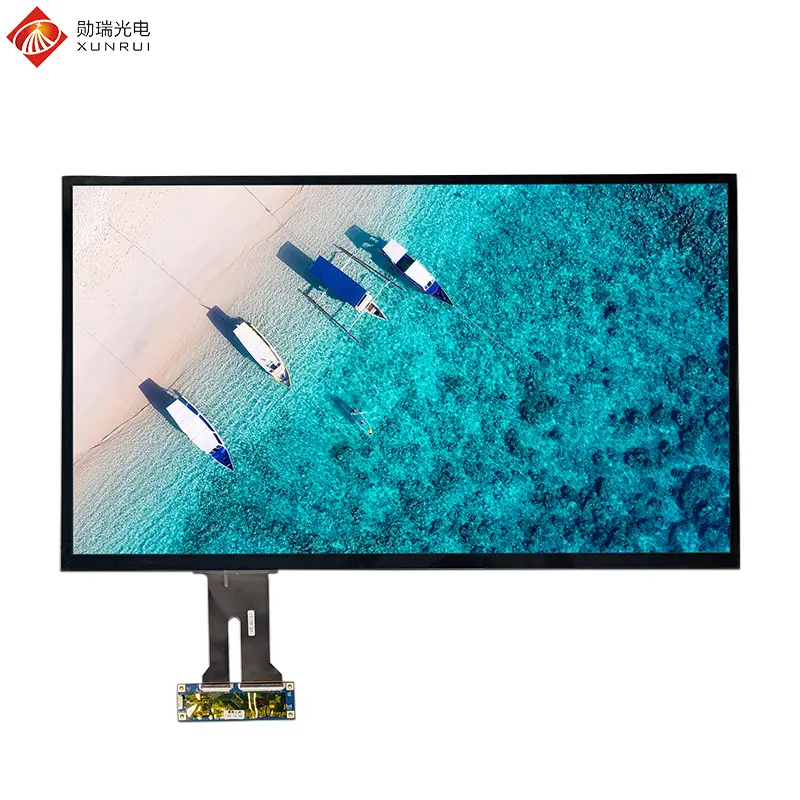

H238BFH30I3501-CT1 is a 23.8 inch TFT LCD module equipped with capacitive touch. This LCD screen uses an IPS panel with a full viewing angle, featuring a resolution of 1920×1080, an LVDS 30-pin interface, and a brightness of 250 nit.
Capacitive touch technology advantages:
This 23.8 inch TFT LCD screen is widely applied in commercial retail (self-checkout terminals, intelligent shopping guides), public information kiosks (airports, stations), government service platforms, industrial automation, and the education industry.
2 inch 480×240 RGB
2.4 inch 240×320 MCU
2.8 inch 240×320 MCU
3.5 inch 320×240 RGB
4.3 inch 800×480 RGB
5 inch 800×480 High Brightness
| Feature | Specification |
|---|---|
| Model Name | H238BFH30I3501-CT1 |
| LCD Size | 23.8 inch |
| Display Format | 1920×1080 |
| Interface | LVDS 30pin |
| Luminance | 250 cd/m2 |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

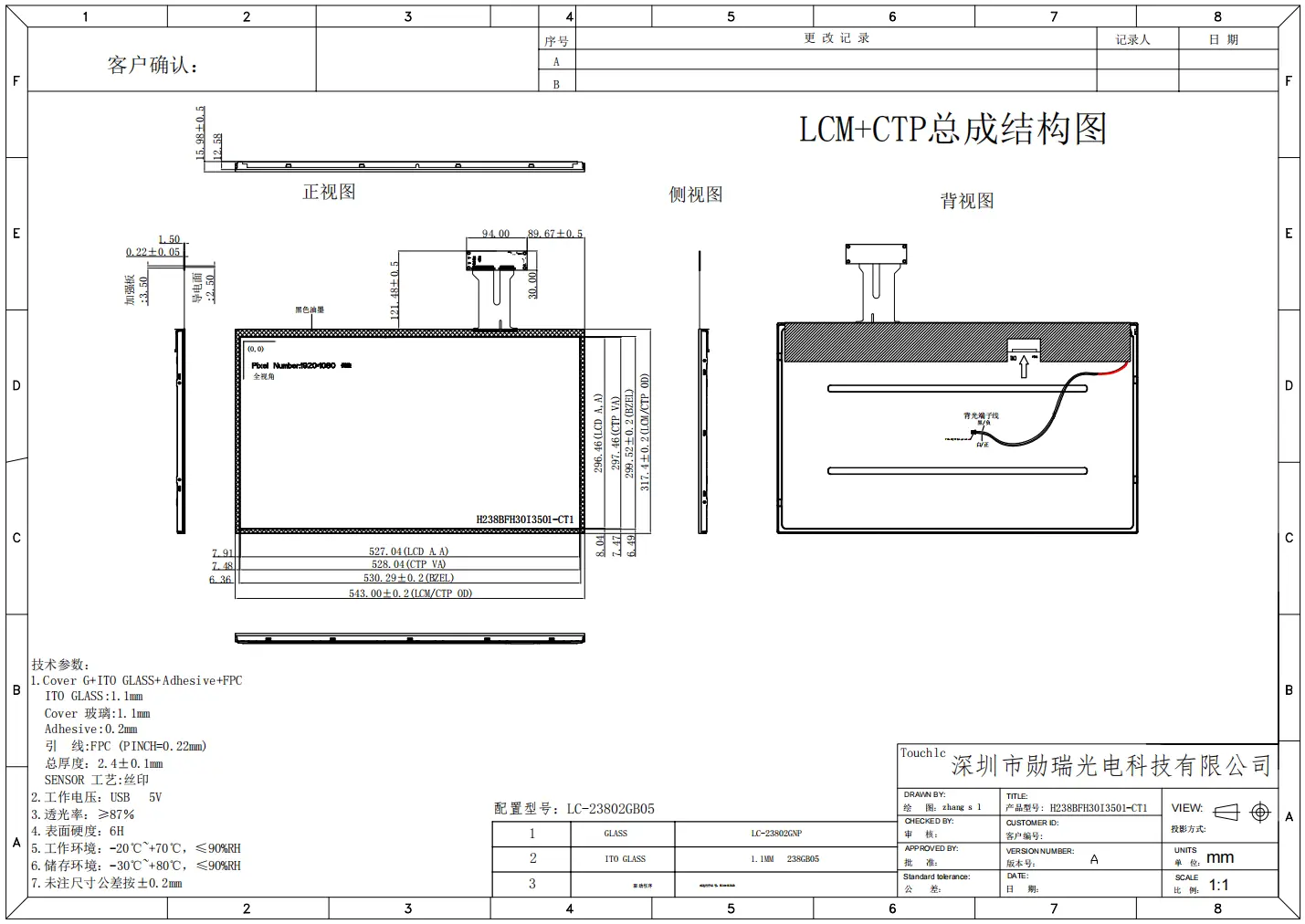

| LCM+CTP (W x H x D) (mm) | 543×317.4×15.98 |
| Active Area (mm) | 527.04(H)×296.46(V) |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Pin No | Symbol | Function |
|---|---|---|
| 1-2 | RXO0- / RXO0+ | Transmission data of Pixel 0 (ODD) |
| 3-4 | RXO1- / RXO1+ | Transmission data of Pixel 1 (ODD) |
| 5-6 | RXO2- / RXO2+ | Transmission data of Pixel 2 (ODD) |
| 7, 14, 17, 24 | GND | Ground |
| 8-9 | RXOC- / RXOC+ | Transmission Clock (ODD) |
| 10-11 | RXO3- / RXO3+ | Transmission data of Pixel 3 (ODD) |
| 12-13 | RXE0- / RXE0+ | Transmission data of Pixel 0 (EVEN) |
| 15-16 | RXE1- / RXE1+ | Transmission data of Pixel 1 (EVEN) |
| 18-19 | RXE2- / RXE2+ | Transmission data of Pixel 2 (EVEN) |
| 20-21 | RXEC- / RXEC+ | Transmission Clock (EVEN) |
| 22-23 | RXE3- / RXE3+ | Transmission data of Pixel 3 (EVEN) |
| 28-30 | VDD | Power Supply: +5V |
The IPS panel provides a full viewing angle (All Direction), ensuring consistent color and clarity even when viewed from extreme sides, which is essential for public displays.
Yes, the capacitive touch technology supports multi-touch, allowing for complex interactive gestures like zooming, rotating, and swiping.
This module utilizes an LVDS 30-pin interface, which is a standard high-speed digital interface for high-resolution displays.
With a brightness of 250 nits, it is ideal for indoor commercial environments. For direct sunlight outdoor use, a higher brightness module might be required.
The operating temperature range is 0℃ to +50℃, making it suitable for most indoor industrial and commercial applications.
G+G stands for Glass + Glass. This means the touch sensor is glass and the surface cover is also glass, providing superior scratch resistance and durability compared to plastic covers.
