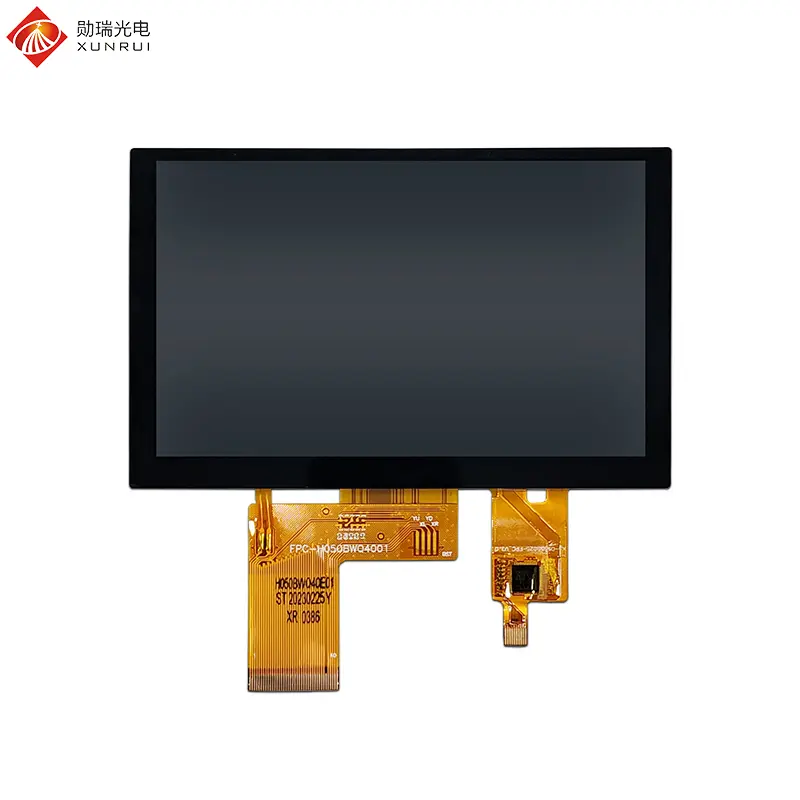

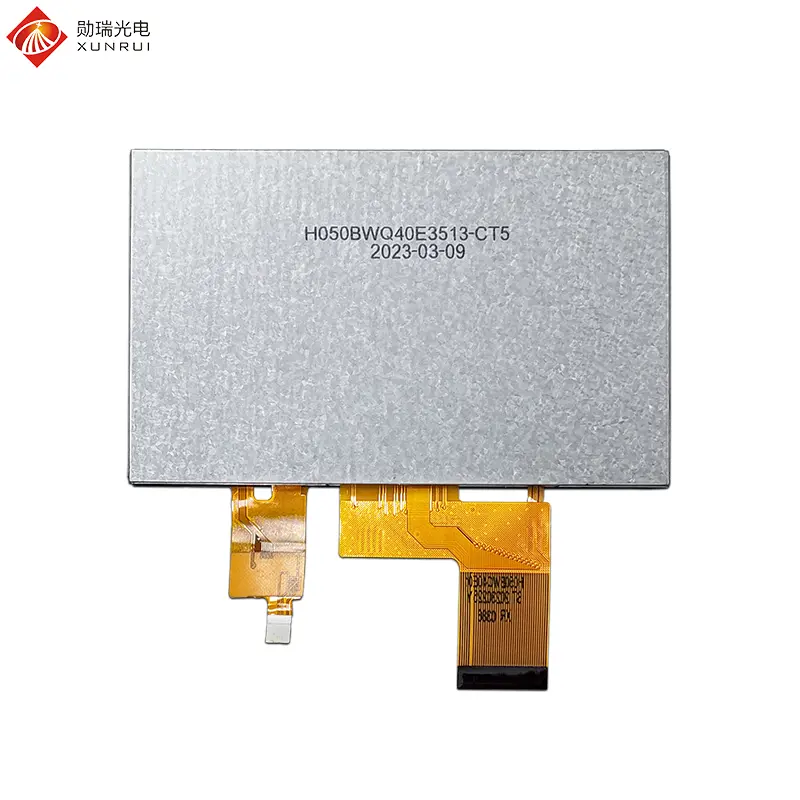

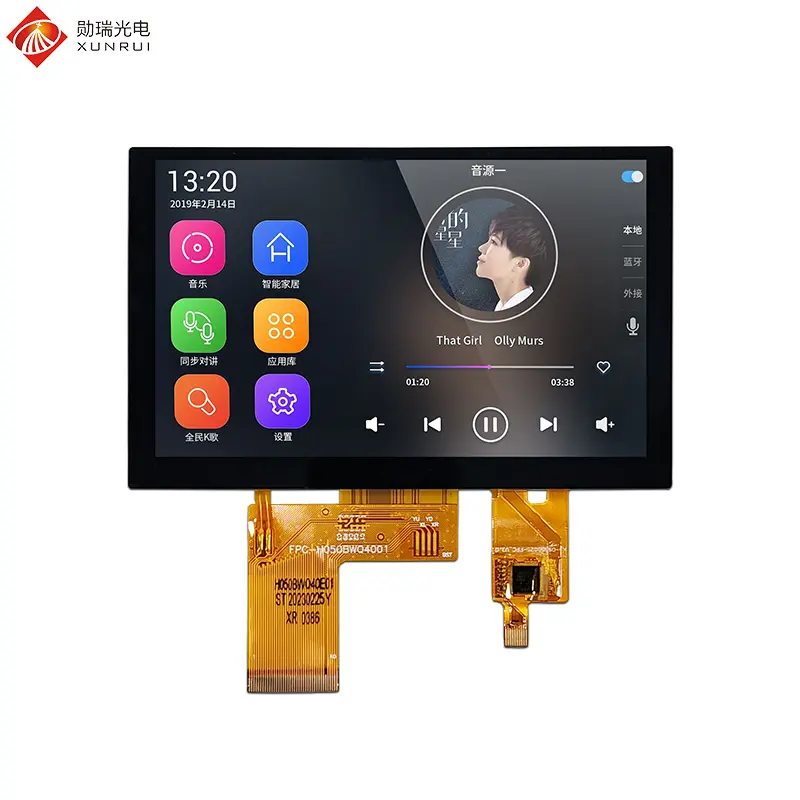

The H050BWQ40E3513-CT5 is a professional 5-inch TFT LCD module integrated with capacitive touch functionality. This display utilizes a TN panel with a 480x272 resolution, ensuring clear rendering of text, icons, and graphics within a 1-meter viewing distance. Equipped with a 24-bit RGB 40-pin interface, it offers seamless compatibility with embedded controllers like the STM32, making it an ideal choice for diverse industrial control systems.
Powered by the ST7257 Driver IC, the module delivers a brightness of 350 nits and is designed to operate reliably in temperatures ranging from -20°C to +70°C. The projected capacitive touch screen supports 5-point multi-touch, featuring a swift response time of approximately 8ms and high positioning accuracy. Compared to traditional resistive screens, this capacitive module offers superior light transmittance, enhanced durability, and an intuitive user experience.
| Feature | Specification |
|---|---|
| Model Name | H050BWQ40E3513-CT5 |
| LCD Size | 5 inch |
| Display Format | 480x272 |
| Interface | 24-bit RGB 40pin |
| Luminance | 350 cd/m2 |
| Touch Screen | Capacitive Touch |
| Viewing Direction | 6 O’clock |
| Color Depth | 16.7M |
| Driver IC | ST7257 |

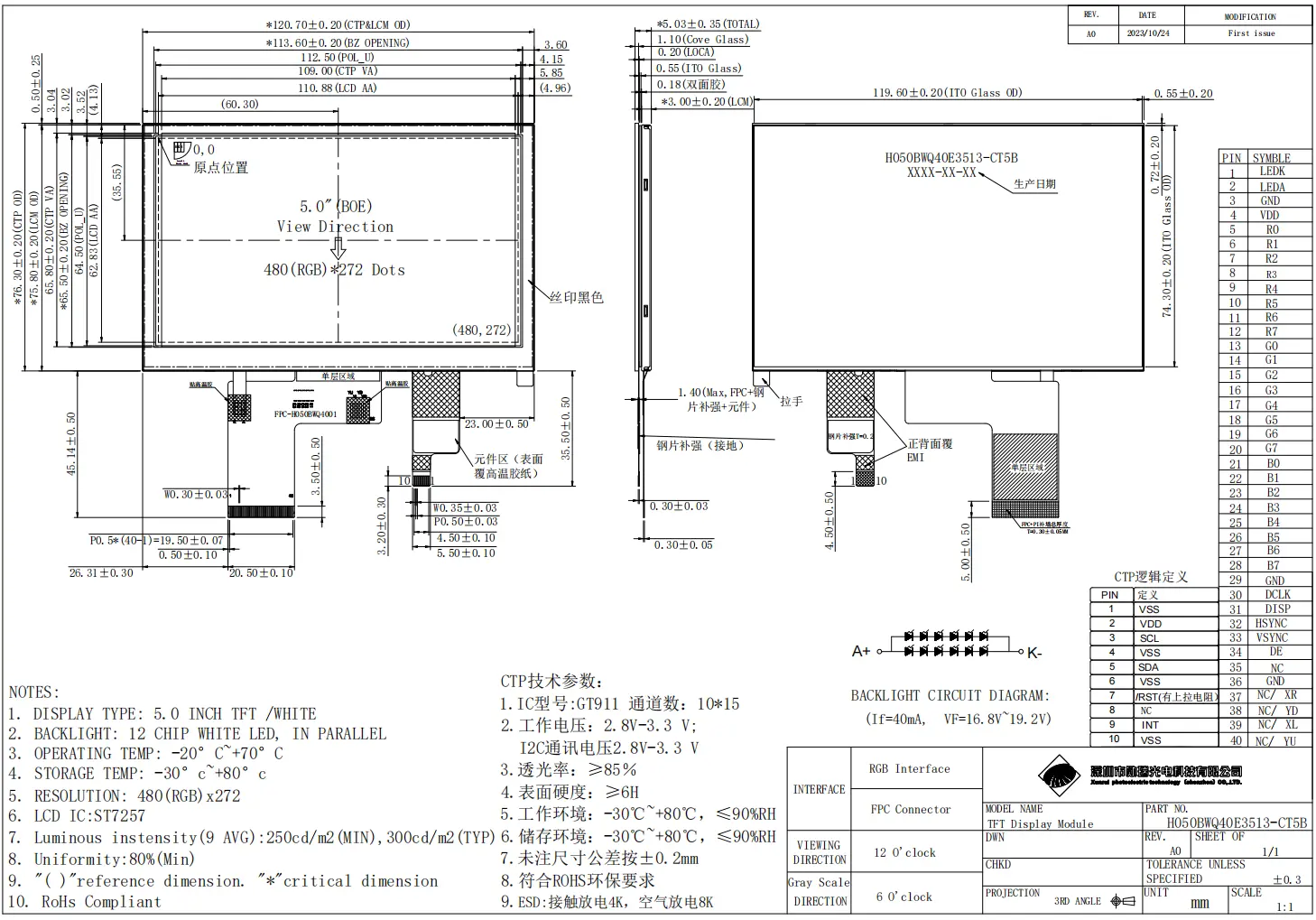

| LCM+CTP Dimension (mm) | 120.7 * 76.3 * 5.03 |
| Active Area (mm) | 110.88 x 62.83 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 18V |
| No. | Symbol | Description |
|---|---|---|
| 1 | LEDK | Backlight LED Cathode |
| 2 | LEDA | Backlight LED Anode |
| 3 | GND | Ground |
| 4 | VDD | Power supply |
| 5~12 | R0~R7 | Data bus (Red) |
| 13~20 | G0~G7 | Data bus (Green) |
| 21~28 | B0~B7 | Data bus (Blue) |
| 29 | GND | Ground |
| 30 | DCLK | Dot clock signal input |
| 31 | DISP | Display on/off (Standby mode) |
| 32 | HSYNC | Horizontal sync input |
| 33 | VSYNC | Vertical sync input |
| 34 | DE | Data enable input |
| 35 | NC | No connected |
| 36 | GND | Ground |
| 37~40 | XR, YD, XL, YU | TP Signal interface |
