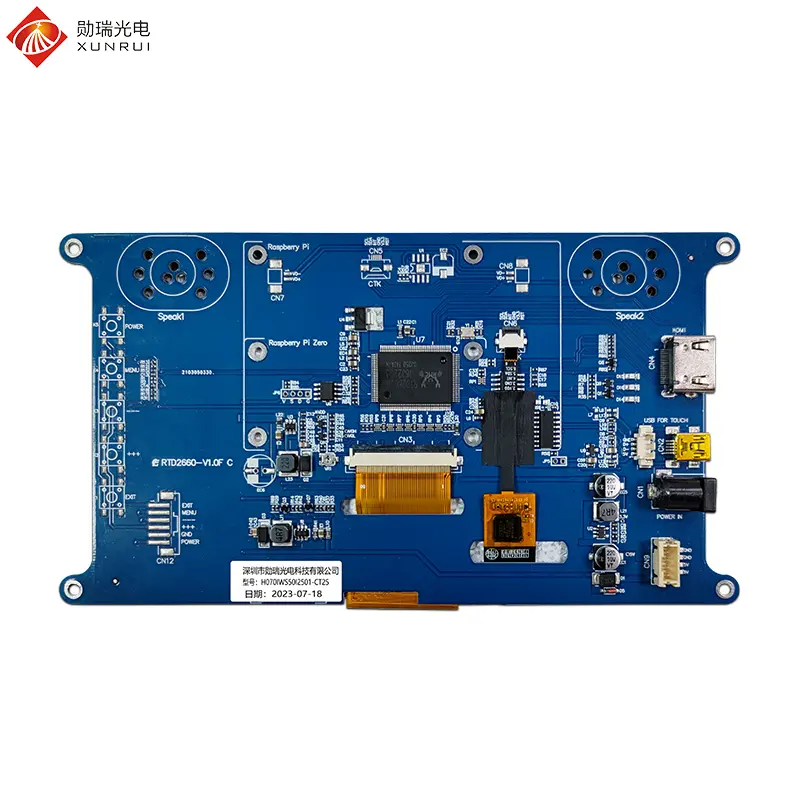

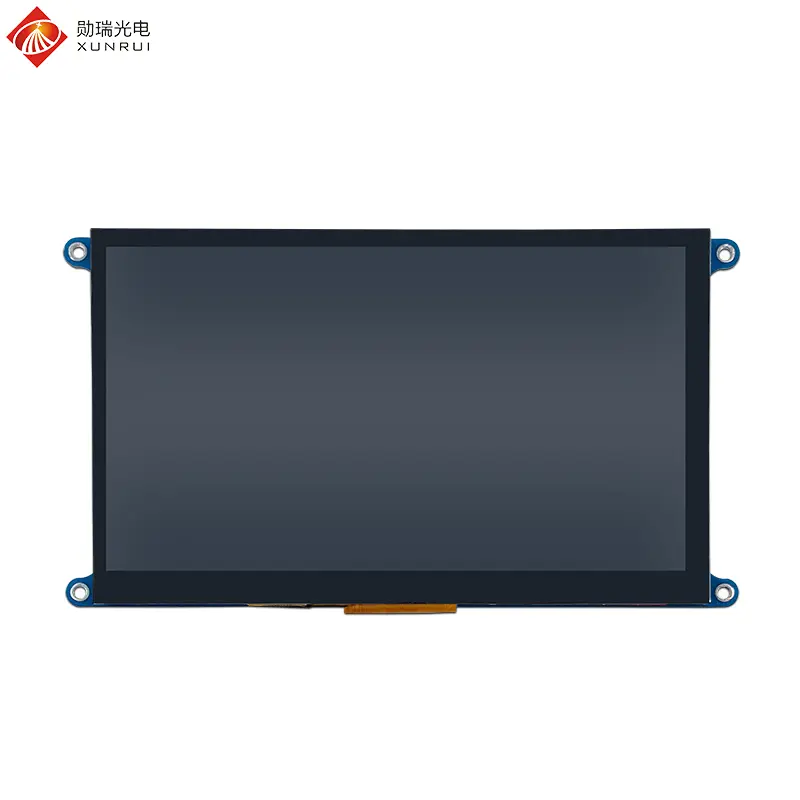

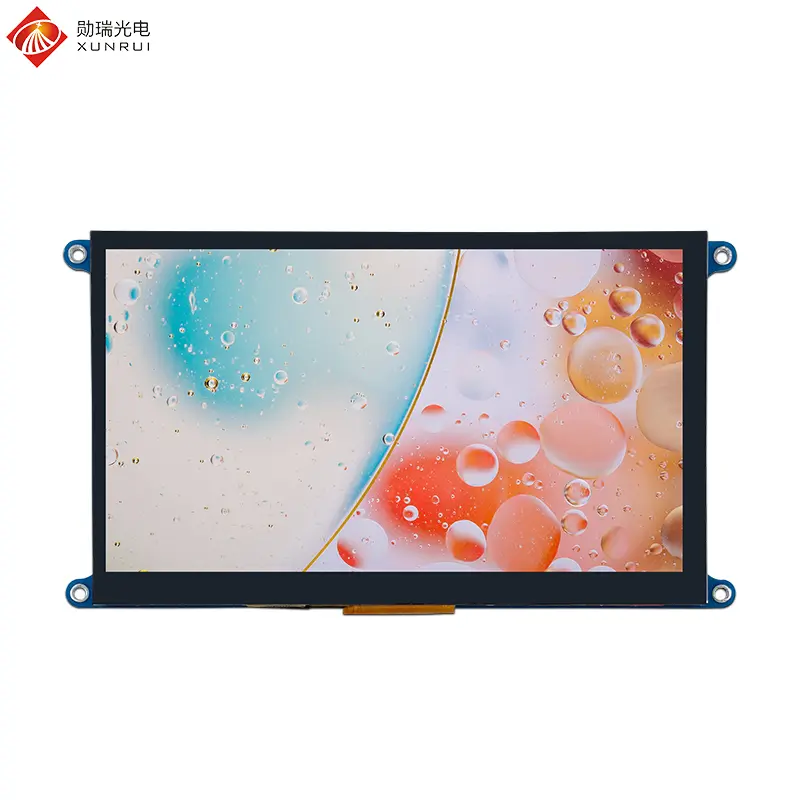

H070IWS50I2501-CT25-RTD2660-1.0F is a 7-inch TFT LCD module equipped with a driver board and a capacitive touch panel. This LCD screen adopts IPS full-view technology, with a nearly 180° wide viewing angle, accurate color reproduction, and is suitable for multi-angle viewing. It has a resolution of 1024×600 full HD input, ensuring clear and detailed images. The HX8282/HX8696 Driver IC, HDMI 50-pin interface, and HDMI is the mainstream digital video input interface, supporting plug-and-play and compatible with various devices such as computers, Raspberry Pi, and game consoles. Some products also integrate a VGA interface to enhance the flexibility of device connection. It is equipped with a capacitive touch screen, supporting multi-touch, using G+G tempered glass, with anti-scratch and wear-resistant properties, suitable for industrial control environments.
This 7-inch TFT LCD display is mainly applied in industrial control and automation: as the human-machine interaction interface for industrial control equipment, used in PLC control panels, machine status monitoring, production line operation terminals, etc. In the automotive and transportation field: used as reverse camera display, in-vehicle entertainment system or monitoring terminal, with a metal casing design to enhance durability and technological sense. In smart home and the Internet of Things: used as smart doorbell display, home control panel or digital photo frame, enhancing the intelligent experience of the home.
| Feature | Spec |
|---|---|
| Model Name | H070IWS50I2501-CT25-RTD2660-1.0F |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | HDMI 50pin |
| Luminance | 210 cd/m2 |
| Touch screen | capacitive touch |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | HX8282/HX8696 |

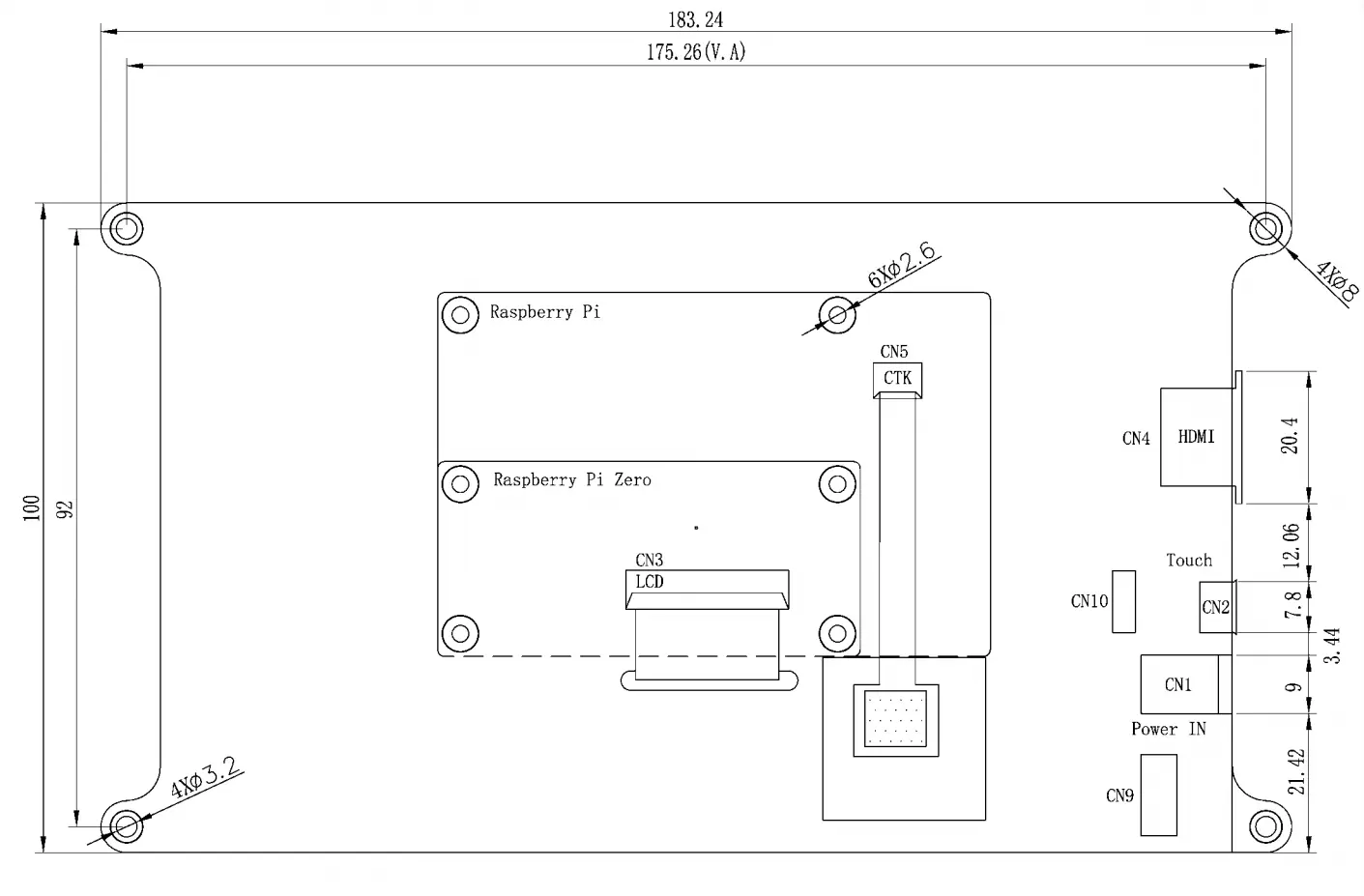

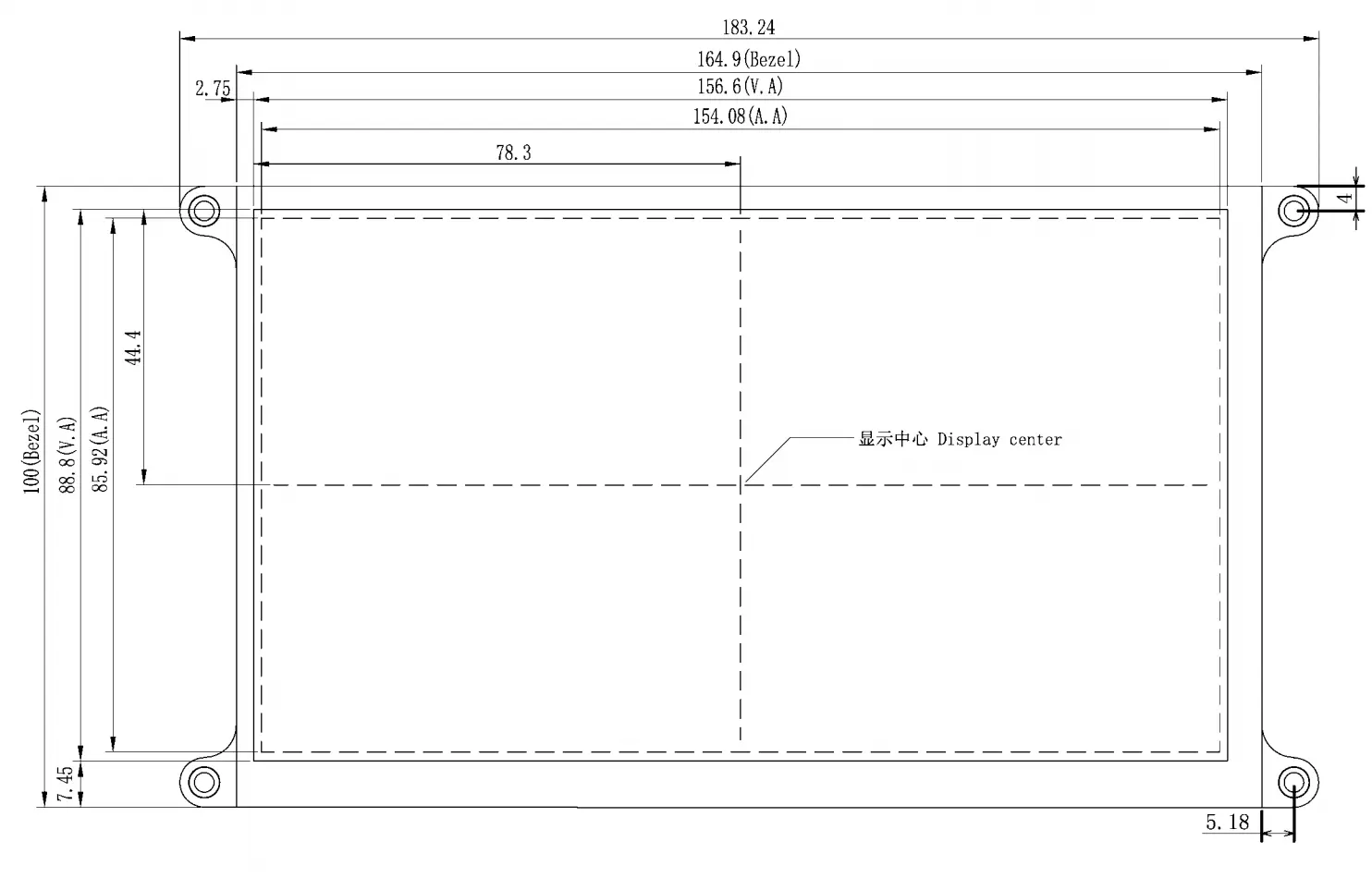

| LCM+CTP (W x H x D) (mm) | 164.9(W)×100(H)×13.6(D) |
| Active Area(mm) | 154.21 x 85.92 |
| Operating Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
| Operating Voltage | 9V |
| NO. | SYMBOL | I/O | Function | Remark |
|---|---|---|---|---|
| 1-2 | VLED+ | P | Power for LED backlight (Anode) | |
| 3-4 | VLED_ | P | Power for LED backlight (Cathode) | |
| 5 | GND | P | Power ground | |
| 6 | VCOM | I | Common voltage | |
| 7 | DVDD | P | Power for Panel | |
| 8 | MODE | I | DE/SYNC mode select | Note 1 |
| 9 | DE | I | Data Input Enable | |
| 10 | VS | I | Vertical Sync Input | |
| 11 | HS | I | Horizontal Sync Input | |
| 12-19 | B7-B0 | I | Blue data (MSB to LSB) | Note 2 |
| 20-27 | G7-G0 | I | Green data (MSB to LSB) | Note 2 |
| 28-35 | R7-R0 | I | Red data (MSB to LSB) | Note 2 |
| 36 | GND | P | Power Ground | |
| 37 | DCLK | I | Sample clock | Note 3 |
| 38 | GND | P | Power Ground | |
| 39 | L/R | I | Left /right selection | Note 45 |
| 40 | U/D | I | Up/down selection | Note 45 |
| 41 | VGH | P | Gate ON Voltage | |
| 42 | VGL | P | Gate OFF Voltage | |
| 43 | AVDD | P | Power for Analog circuit | |
| 44 | RESET | I | Global reset pin | Note 6 |
| 47 | DITHB | I | Dithering function | Note 7 |
