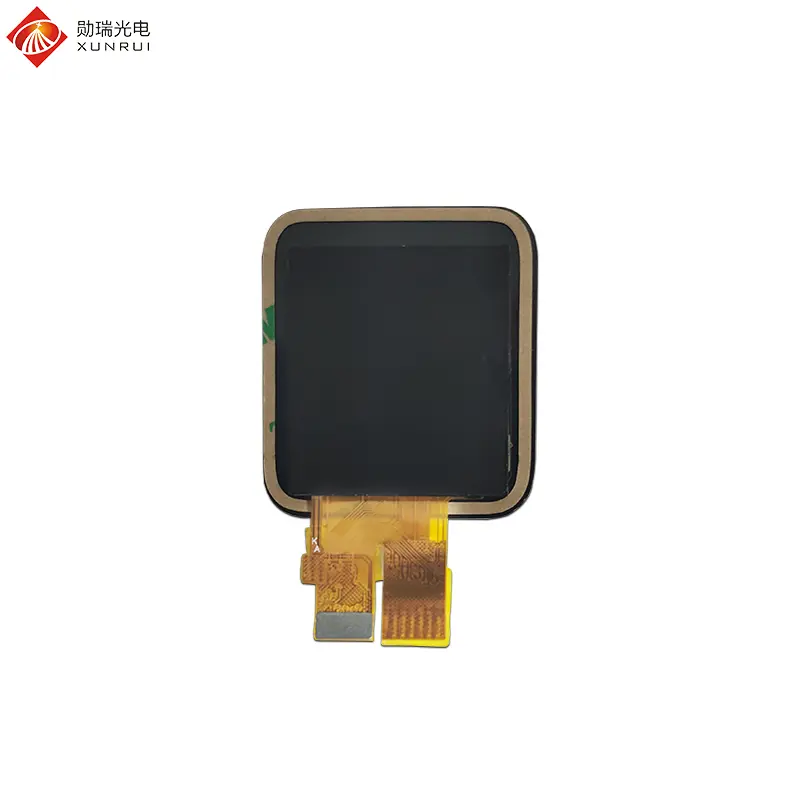

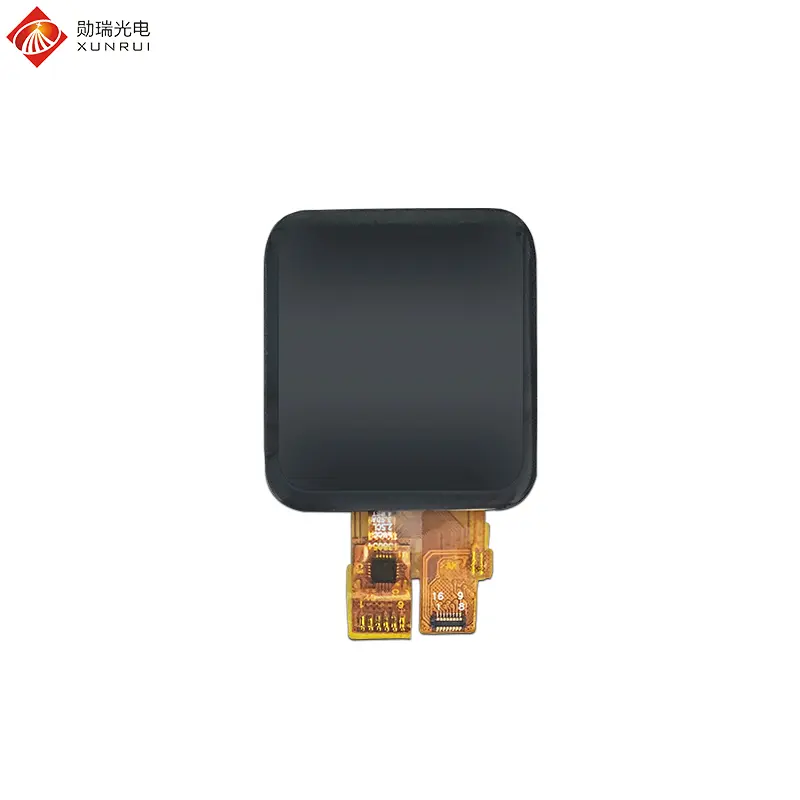

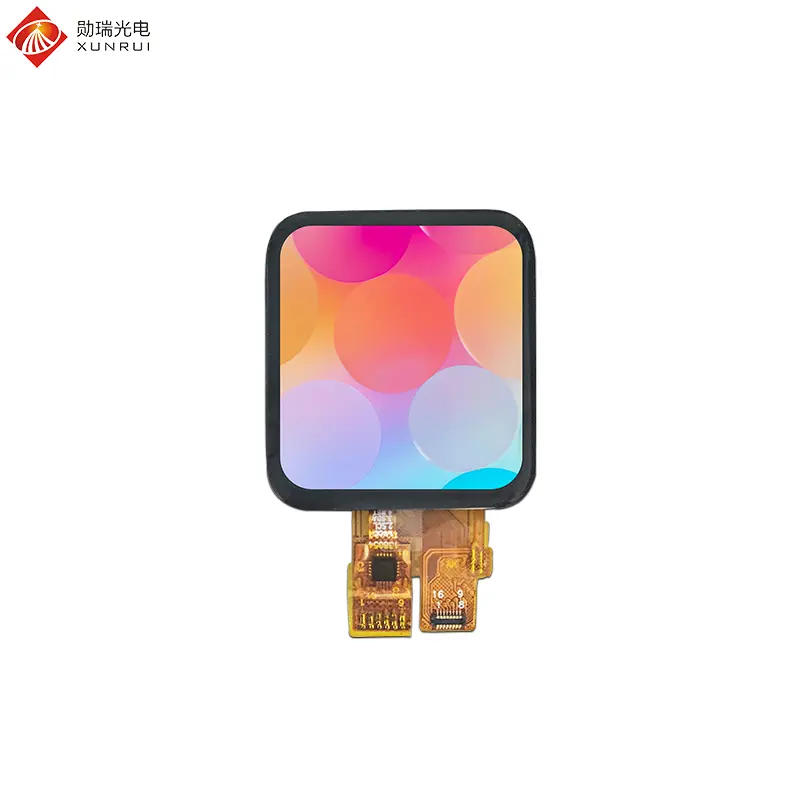

H013BQ16I2502-CT8 is a 1.3 inch TFT LCD module with capacitive touch function. This LCD screen adopts IPS panel technology to provide wide viewing angle and rich colors, high contrast ratio, excellent visual experience, with a resolution of 240×240, achieving retina-level clear display. It is suitable for devices with limited space, and has a SPI 16PIN interface, a brightness of 150 nit, low power consumption, which can significantly extend the battery life of smart watches and other portable devices.
| Feature | Specification |
|---|---|
| Model Name | H013BQ16I2502-CT8 |
| LCD Size | 1.3 inch |
| Display Format | 240×240 |
| Interface | SPI 16PIN |
| Luminance | 150 cd/m2 |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (IPS) |
| Color Depth | 262 K |
| Driver IC | ST7789V |

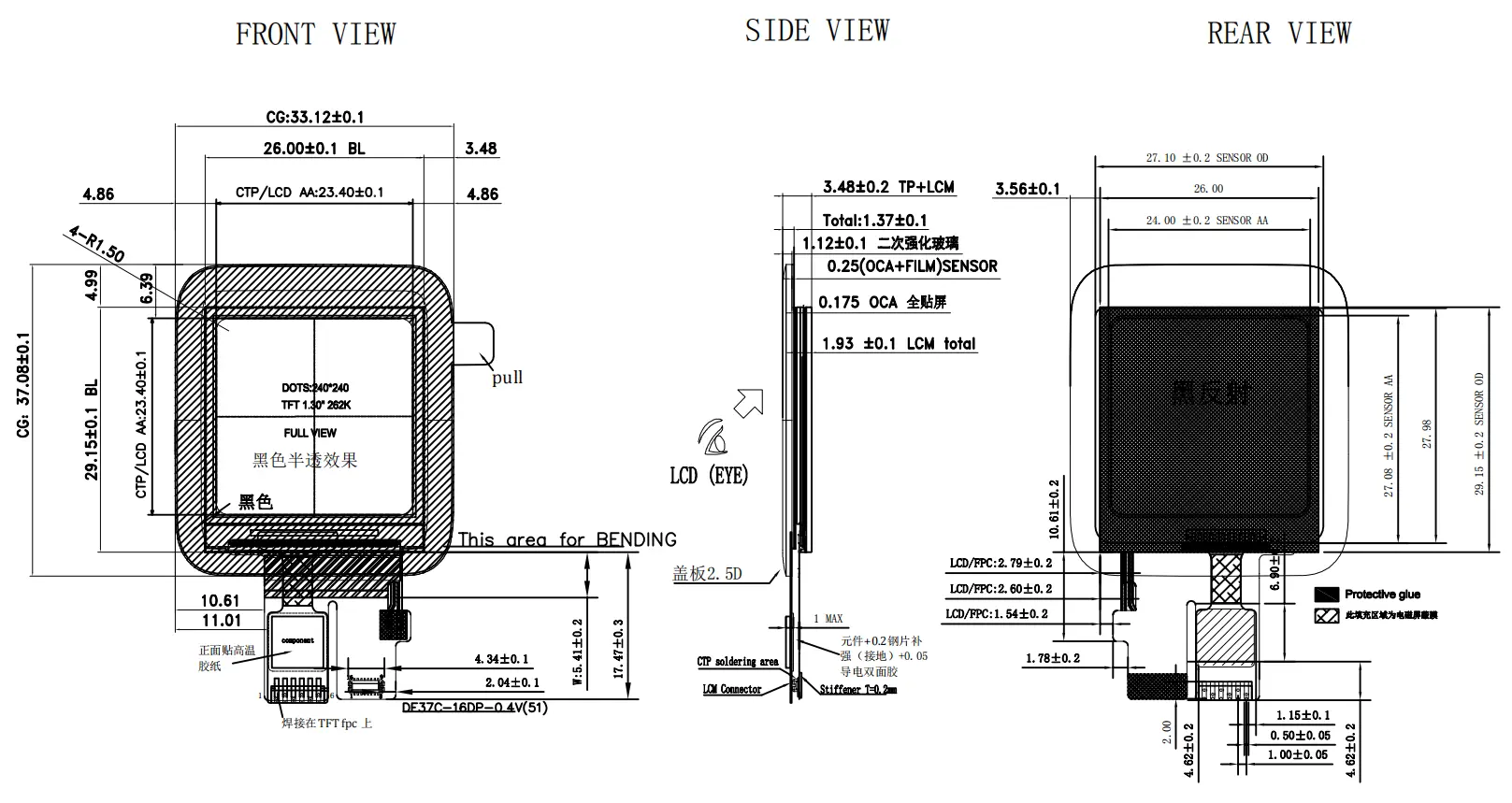

| LCM+CTP (W x H x D) (mm) | 33.12 × 37.08 × 3.48 |
| Active Area (mm) | 23.4 × 23.4 |
| Operating Temperature | -10℃ ~ +60℃ |
| Storage Temperature | -20℃ ~ +70℃ |
| NO. | SYMBOL | Description | I/O |
|---|---|---|---|
| 1 | LEDK | LED backlight input (Cathode) | Power supply |
| 2 | LEDA | LED anode | Power supply |
| 3 | VDD | Power supply | Power supply |
| 4 | GND | System Ground | Power supply |
| 5 | D/C | Data/Commander selection | I/O |
| 6 | CS | Chip select | I/O |
| 7 | SCL | Serial Data | I/O |
| 8 | SDA | Serial Clock | I/O |
| 9 | RST | Reset PIN | I/O |
| 10 | CTP_3.3V | TP Power Supply | Power supply |
| 11 | CTP_SCL | Touch I2C clock | I/O |
| 12 | CTP_SDA | Touch I2C data | I/O |
| 13 | CTP_RST | TSP Reset signal (Active low) | I/O |
| 14 | CTP_INT | Touch State change interrupt | I/O |
| 15 | CTP_GND | System Ground | Power supply |
| 16 | GND | System Ground | Power supply |
