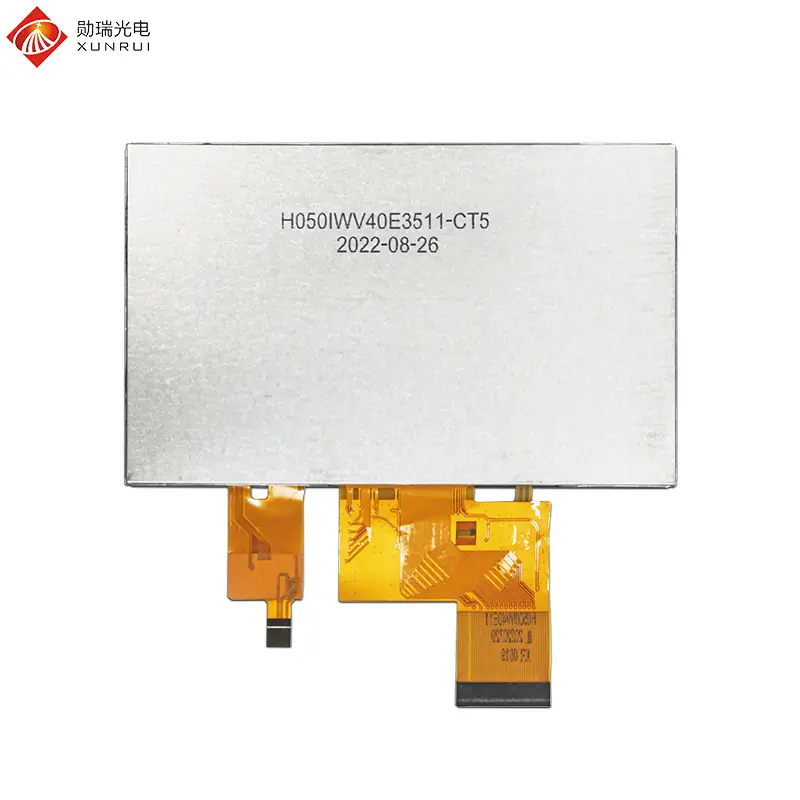

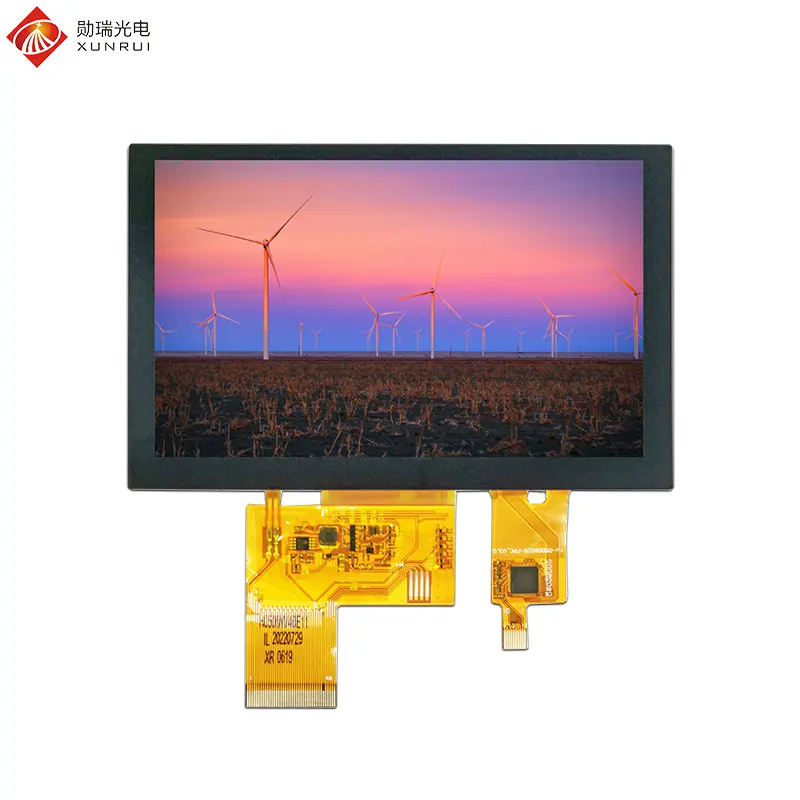

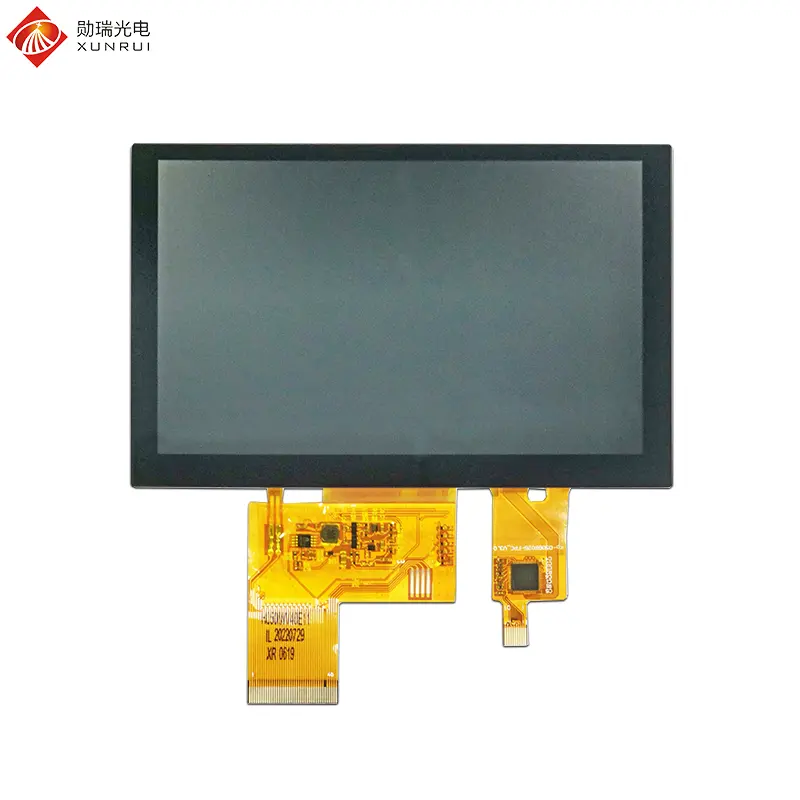

H050IWV40E3511-CT5 is a 5-inch TFT LCD module with capacitive touch function. This LCD screen adopts TN panel, with a resolution of 800×480, 24-bit RGB 40-pin interface, and ILI5960+ILI6122 Driver IC. It has a brightness of 350 nits and can withstand operating temperatures ranging from -20℃ to +70℃.

This 5-inch TFT LCD screen is mainly applied in industrial control and handheld devices: it is used for industrial control panels, handheld terminals (such as data collectors, barcode scanners), three-proof equipment, etc. It supports touching with gloves or water, and meets the stability requirements of industrial environments. Medical equipment: integrated into portable medical devices (such as blood glucose meters, blood pressure monitors, and ultrasound diagnostic instruments), facilitating data monitoring and operation by medical staff or patients. Security and monitoring: It is used for monitoring terminals and access control systems (such as video doorbells) to achieve real-time picture display and remote control. In-vehicle navigation and entertainment system: applied to in-vehicle navigation devices and intelligent cockpit display terminals, it supports gesture operation and high-brightness display to ensure driving safety. In addition, it is also applied in fields such as smart home, consumer electronics, and the Internet of Things.
