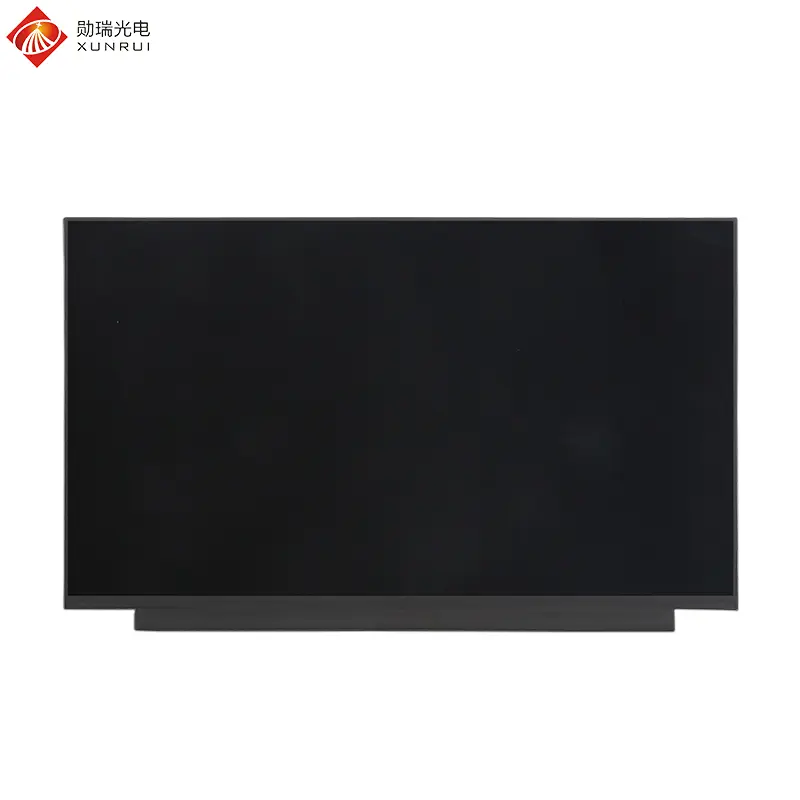

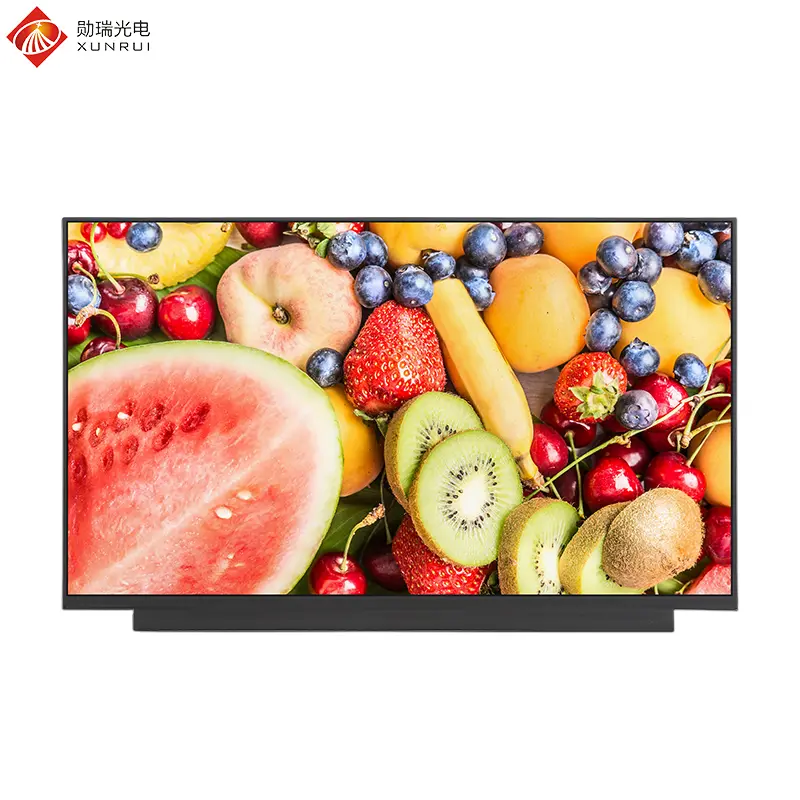

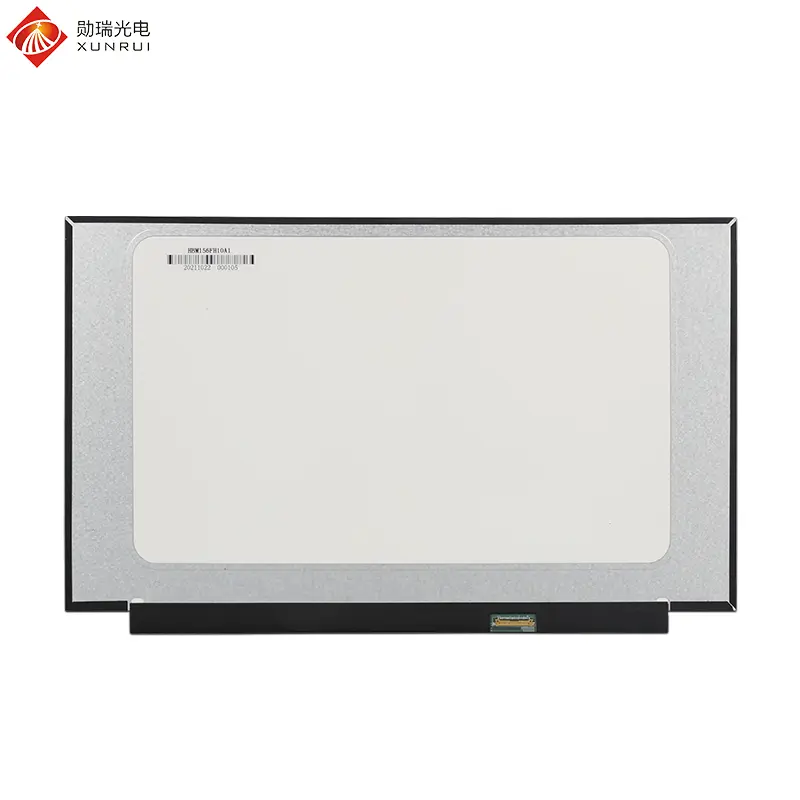

HBM156FH10A1 is a 15.6 inch TFT LCD module. The 15.6 inch screen provides ample space, facilitating multitasking operations (such as splitting the screen to handle documents), and the device is portable. This LCD screen adopts IPS wide-angle technology, presenting consistent colors from different angles, supporting the sRGB color gamut, and achieving accurate color reproduction. With a resolution of 1920×1080, it can clearly display text and image details, suitable for office, design, and audio-visual entertainment. The EDP 30-pin interface, 400 nit brightness (some models can reach 1000 nit), can withstand a working temperature range of 0°C to +50°C. The back is of a hollow design, and the overall style is a straight row. A touchscreen can be optionally selected. This 15.6 inch TFT LCD screen is mainly applied in office and study: laptops, portable displays, suitable for document processing, programming and online courses. Entertainment and media: televisions, game displays, providing immersive viewing and gaming experiences. Digital signage: information release and advertisement display in shopping malls and stations. It can also be applied in industrial and medical fields.

📐Mechanical Drawing

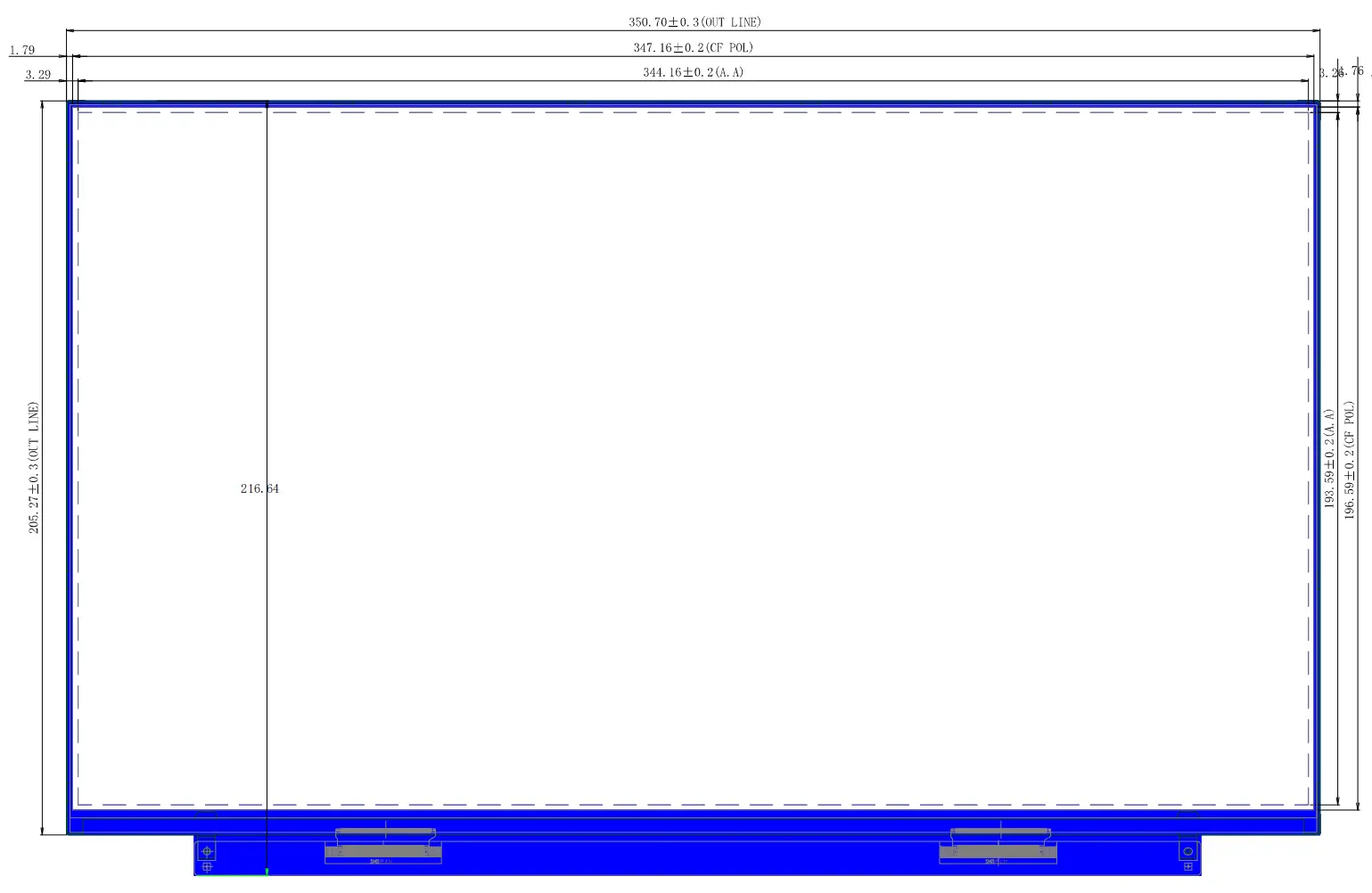

Mechanical Drawing 15.6 inch LCD

📋Specification Parameters

Feature Spec
Model NameHBM156FH10A1
LCD Size15.6 inch
Display Format1920×1080
InterfaceEDP 30PIN
Luminance400 cd/m2
Touch screenNone, optional
Viewing DirectionALL (IPS)
Color Depth16.7M
LCM (W x H x D) (mm)350.7(H) x 205.27(V) x 2.65(D)
Active Area(mm)344.16(H) × 193.59(V)
Operating Temperature0℃ ~ +50℃
Storage Temperature-10℃ ~ +60℃
Operating Voltage12V

🔌Interface Definition

Pin No. Symbol I/O Function
1NCINC
2H_GNDPHigh Speed Ground
3Lane1_NIComplement Signal Link Lane 1
4Lane1_PITrue Signal Link Lane 1
5H_GNDPHigh Speed Ground
6Lane0_NIComplement Signal Link Lane 0
7Lane0_PITrue Signal Link Lane 0
8H_GNDPHigh Speed Ground
9AUX_CH_PITrue Signal Auxiliary Channel
10AUX_CH_NIComplement Signal Auxiliary Channel
11H_GNDPHigh Speed Ground
12LCD_VDDPLCD logic and driver power (3.3V)
13LCD_VDDPLCD logic and driver power (3.3V)
15-16LCD_GNDPLCD logic and driver ground
17HPDOHPD signal pin
18-21LED-1/4PBacklight ground
22BL_ENABLEIBacklight on/off
23BL_PWM_DIMISystem PWM
26-29BL_PWRPLED Power Supply 5V-21V
30NC-Color Engine Function Reserved

🖼Featured Product Series

2 inch TFT 2 inch RGB 150nit TN TFT
2.4 inch TFT 2.4 inch MCU 250nit TN TFT
2.8 inch TFT 2.8 inch MCU 250nit TN TFT
3.5 inch TFT 3.5 inch RGB 350nit TN TFT
4.3 inch TFT 4.3 inch RGB 300nit IPS
5 inch TFT 5 inch 1200nit High Brightness

Frequently Asked Questions

What is the resolution and viewing technology of this 15.6 inch display?
This module features a Full HD resolution of 1920×1080 and utilizes IPS wide-angle technology for consistent color accuracy from all viewing angles.
What interface does the HBM156FH10A1 use?
The display is equipped with an EDP 30-pin interface, commonly used in modern laptops and portable monitors.
Can this LCD screen be used in bright environments?
Yes, the standard brightness is 400 nits, but there are options available that can reach up to 1000 nits for improved visibility in high-light settings.
Is touch functionality available for this module?
The standard model does not include a touch screen, but a touchscreen component is available as an optional add-on.
What are the primary applications for this 15.6 inch TFT LCD?
It is ideal for laptops, portable displays, digital signage, gaming monitors, and professional industrial or medical equipment.
What is the operating temperature range?
The module is designed to operate reliably within a temperature range of 0°C to +50°C.
