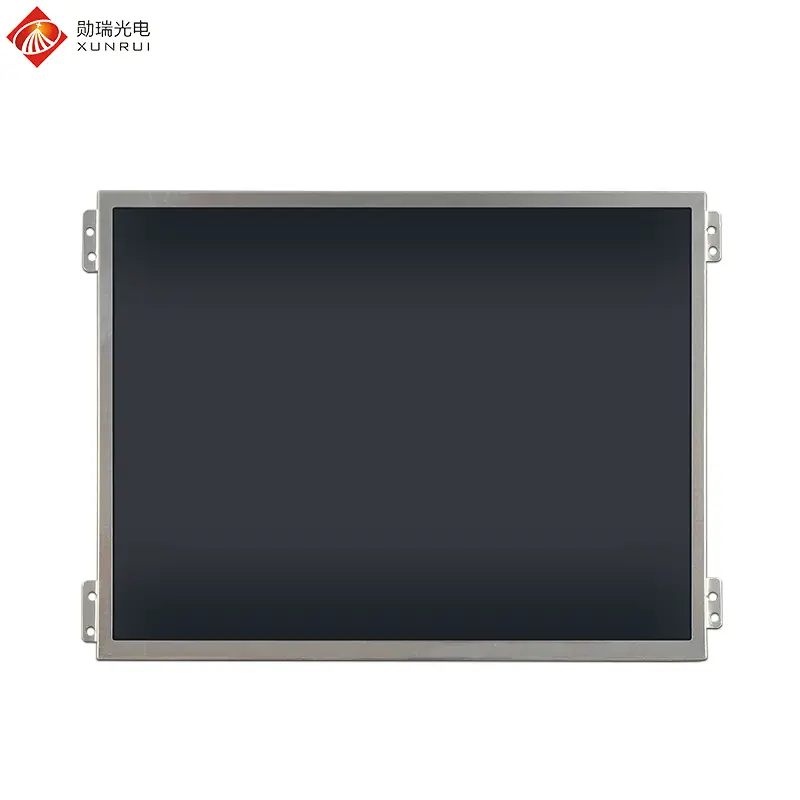

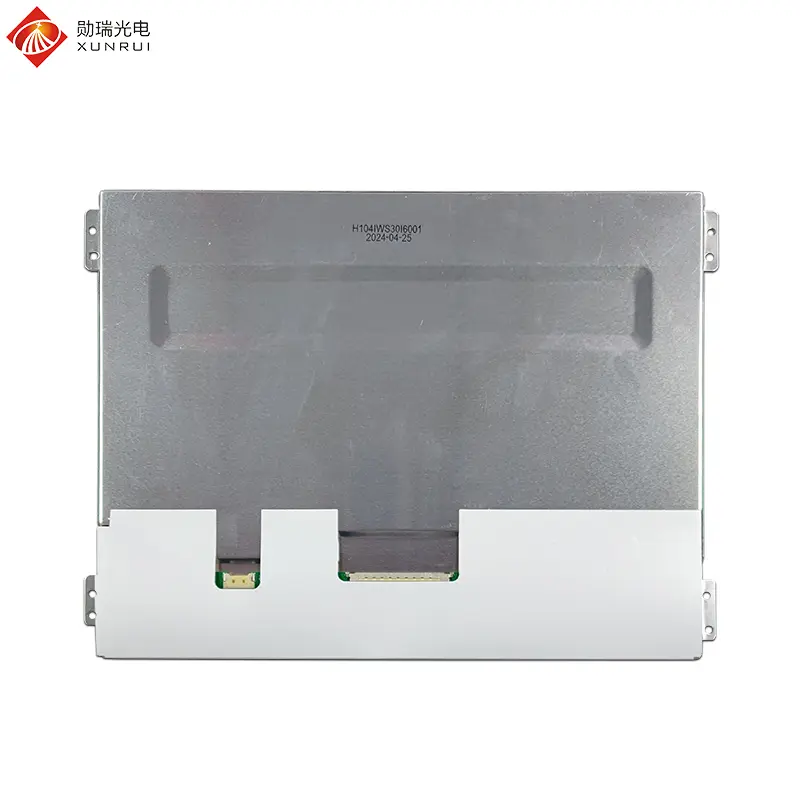

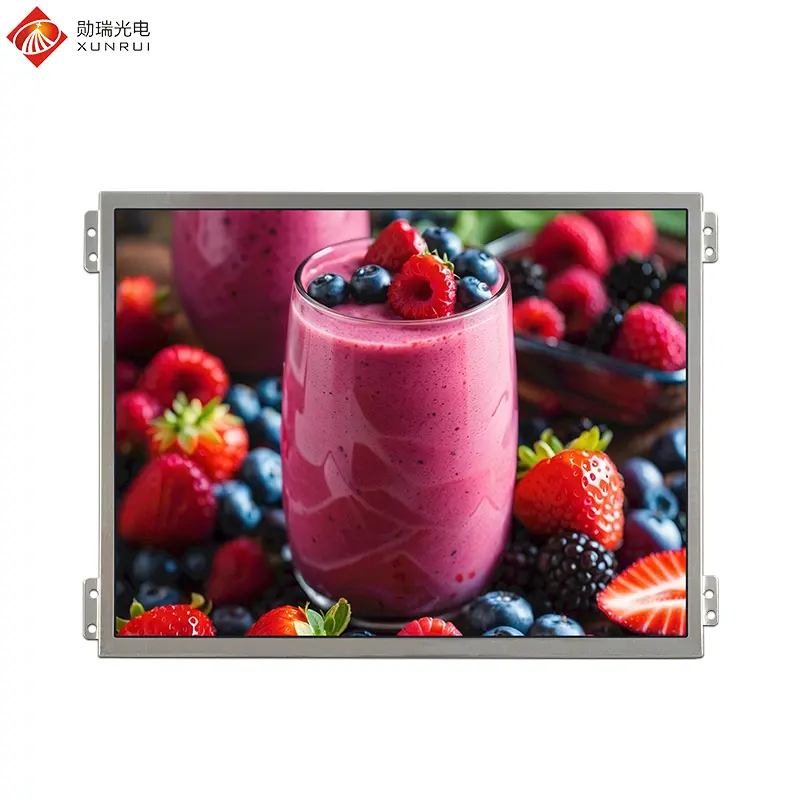

H104IWS30I6001 is a 10.4-inch TFT LCD module with a wide operating temperature range. This LCD screen features an IPS display technology providing a wide viewing angle of 160°-178°, supporting multi-angle color-free viewing. It has a resolution of 1024x768 (XGA) and utilizes an LVDS 30-pin interface. The robust operating temperature range of -30°C to 80°C meets the stringent requirements for industrial-grade applications.
Key Applications:
| Feature | Specification |
|---|---|
| Model Name | H104IWS30I6001 |
| LCD Size | 10.4 inch |
| Display Format | 1024 x 768 |
| Interface | LVDS 30pin |
| Luminance | 600 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 256K / 16.7 M |

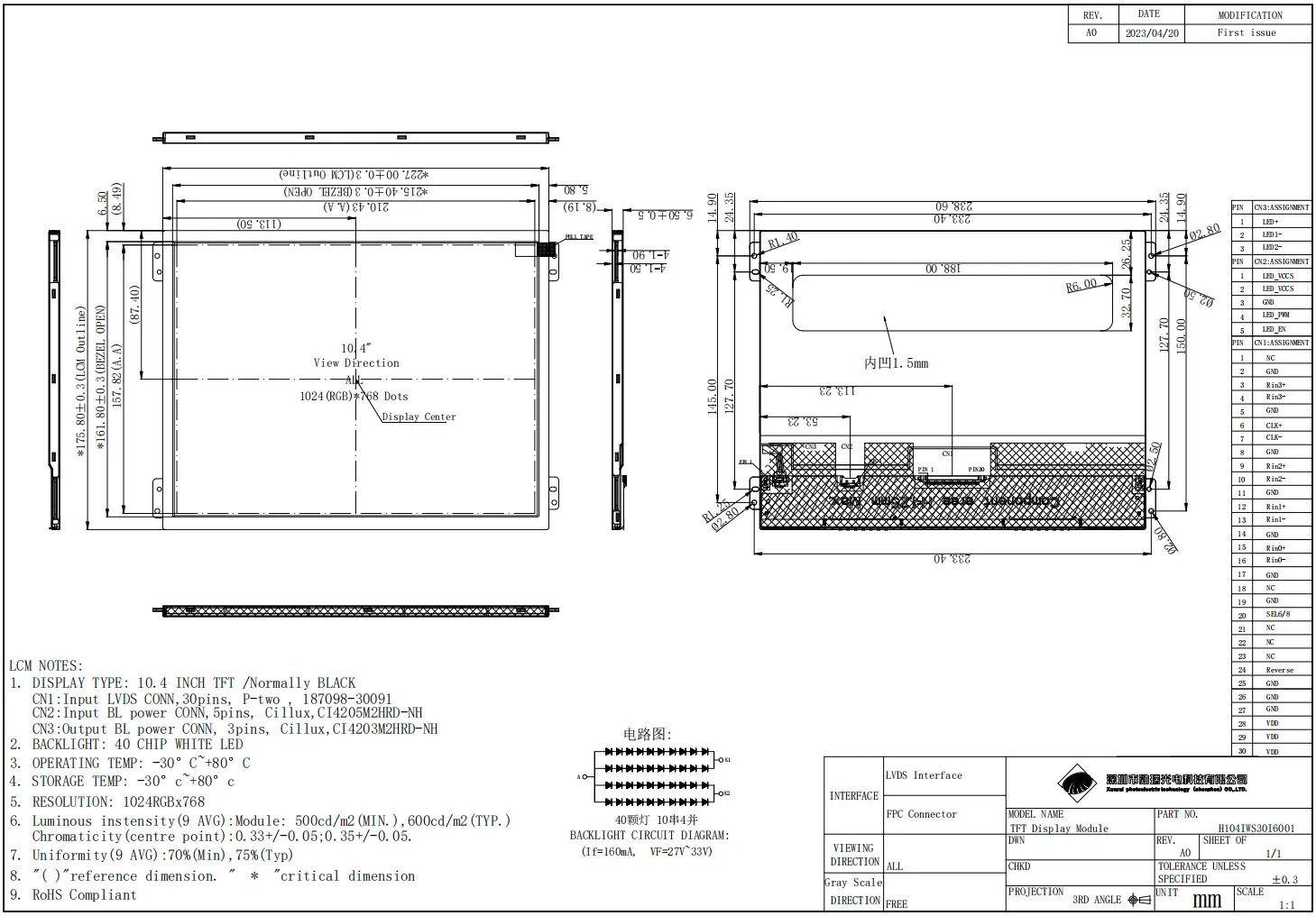

| LCM (W x H x D) (mm) | 227.00 x 175.80 x 6.50 |
| Active Area (mm) | 210.43 x 157.82 |
| Operating Temperature | -30℃ ~ +80℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 3.3V |
| No | Symbol | I/O | Function | Remark |
|---|---|---|---|---|
| 1 | NC | I | Reserved as BIST function | 1 |
| 2 | GND | P | Ground | - |
| 3 | Rin3+ | I | Positive LVDS differential data input (+) | - |
| 4 | Rin3- | I | Negative LVDS differential data input (-) | - |
| 5 | GND | P | Ground | - |
| 6 | CLK+ | I | Clock signal (+) | - |
| 7 | CLK- | I | Clock signal (-) | - |
| 8 | GND | P | Ground | - |
| 9 | Rin2+ | I | Positive LVDS differential data input (+) | - |
| 10 | Rin2- | I | Negative LVDS differential data input (-) | - |
| 20 | SEL6/8 | I | Selection for 6 bits/8bit LVDS data input | 2 |
| 28-30 | VDD | P | Power supply: + 3.3V | - |
