📘 Product Description

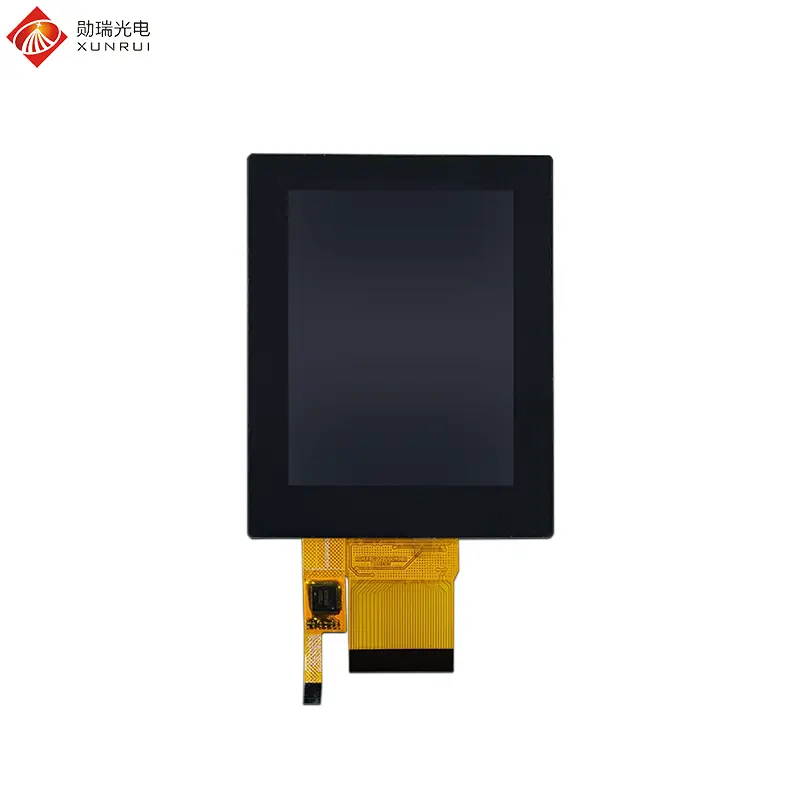

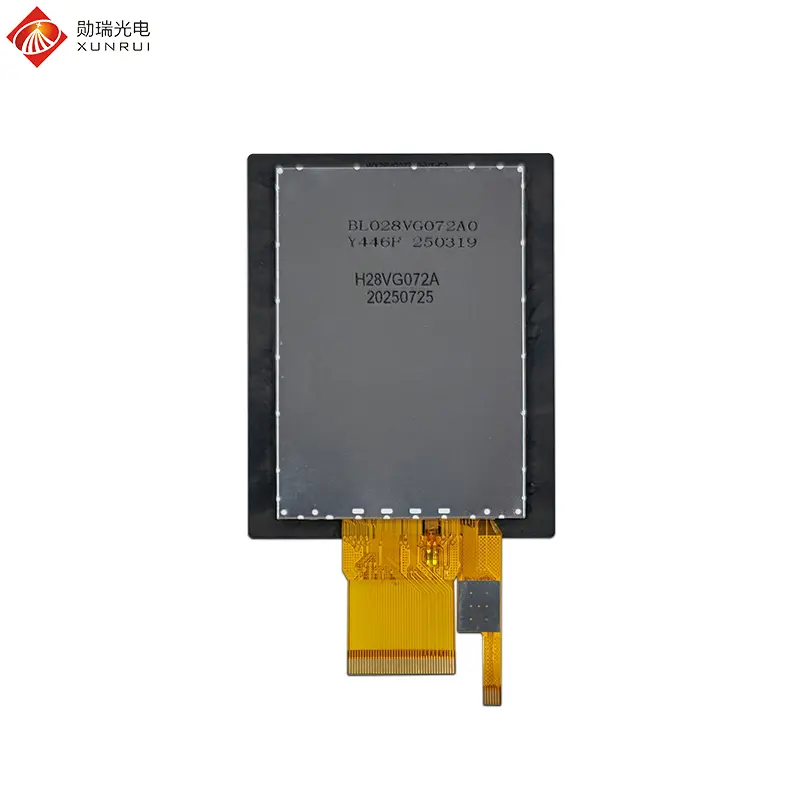

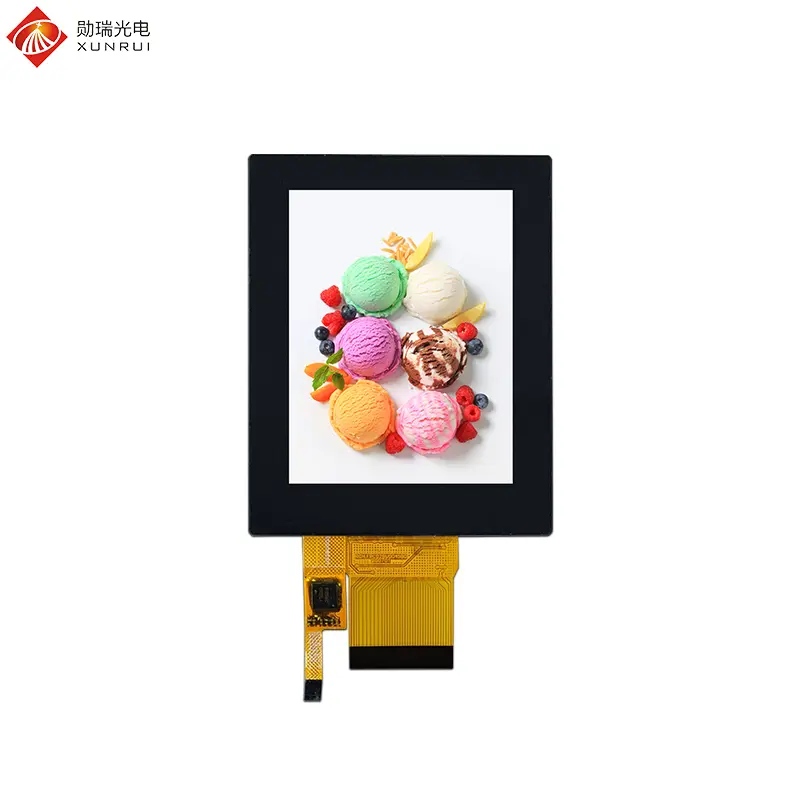

H28VG072A is a 2.8-inch TFT LCD module. This screen achieves a resolution of 480(RGB)×640 within the limited 2.8-inch diagonal space. The driving IC is NV3049F. The interface mode is flexible and supports various communication protocols such as RGB (parallel) and MIPI, facilitating connection with microcontrollers or application processors like STM32. It is equipped with a capacitive touch panel and a full-coating process, effectively reducing reflections and enhancing outdoor readability.
Key Features: High resolution, low power consumption, and compact size.
This display has an irreplaceable advantage in medical and health monitoring equipment (portable oximeters, blood glucose meters), industrial control and instrumentation, portable consumer electronics (GPS, handheld game consoles), and Smart home IoT terminals.
❓ Frequently Asked Questions
Q1: What is the resolution of the H28VG072A display?
A: The H28VG072A offers a high resolution of 480x640 pixels within a compact 2.8-inch screen.
Q2: Which interfaces does this 2.8-inch TFT LCD support?
A: It features flexible interface modes, supporting both MIPI and RGB (40-pin) communication protocols.
Q3: Is this screen suitable for outdoor use?
A: Yes, with a brightness of 540 cd/m2 and a full-coating capacitive touch panel, it offers enhanced readability and reduced reflections in outdoor environments.
Q4: Does the module include a touch panel?
A: Yes, it is equipped with a high-sensitivity capacitive touch screen for interactive applications.
Q5: What are the typical applications for this display?
A: It is ideal for medical health monitors, industrial handheld terminals, portable GPS devices, and smart home control panels.
Q6: What is the viewing angle of the H28VG072A?
A: It provides an "ALL" viewing direction, ensuring clear visibility from almost any angle.
