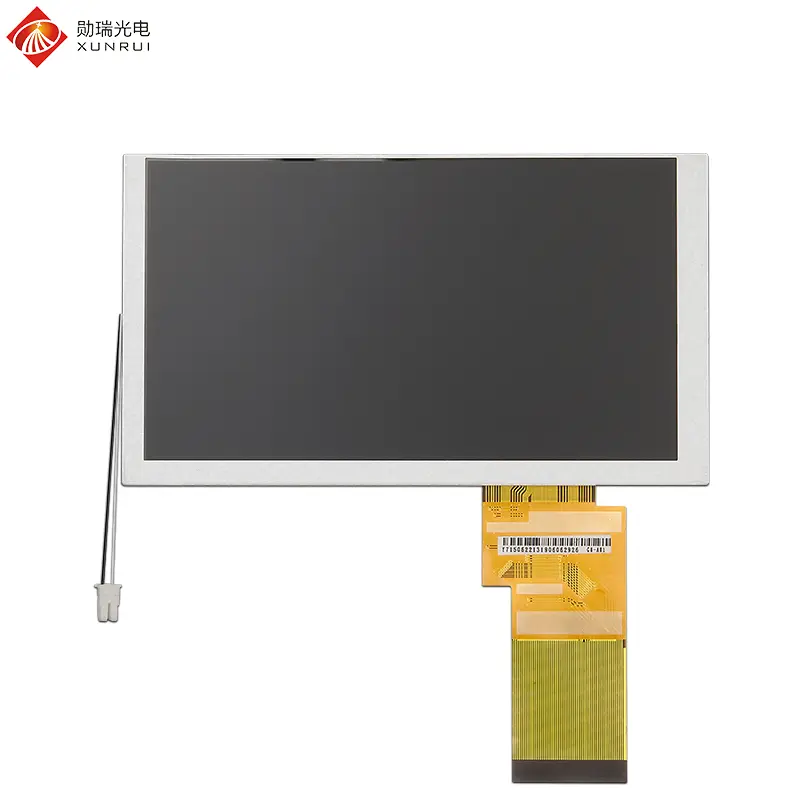

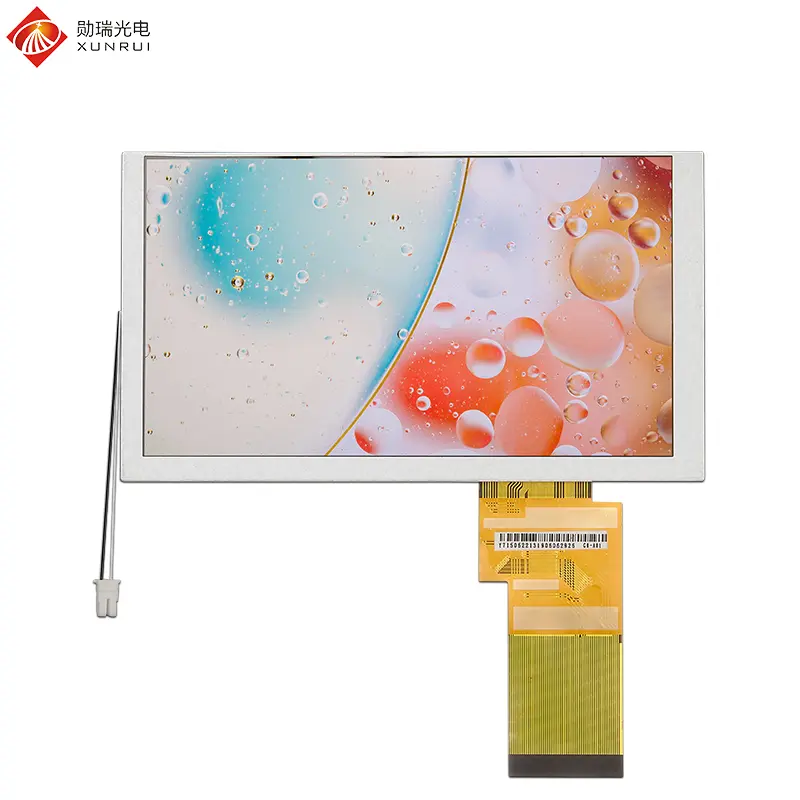

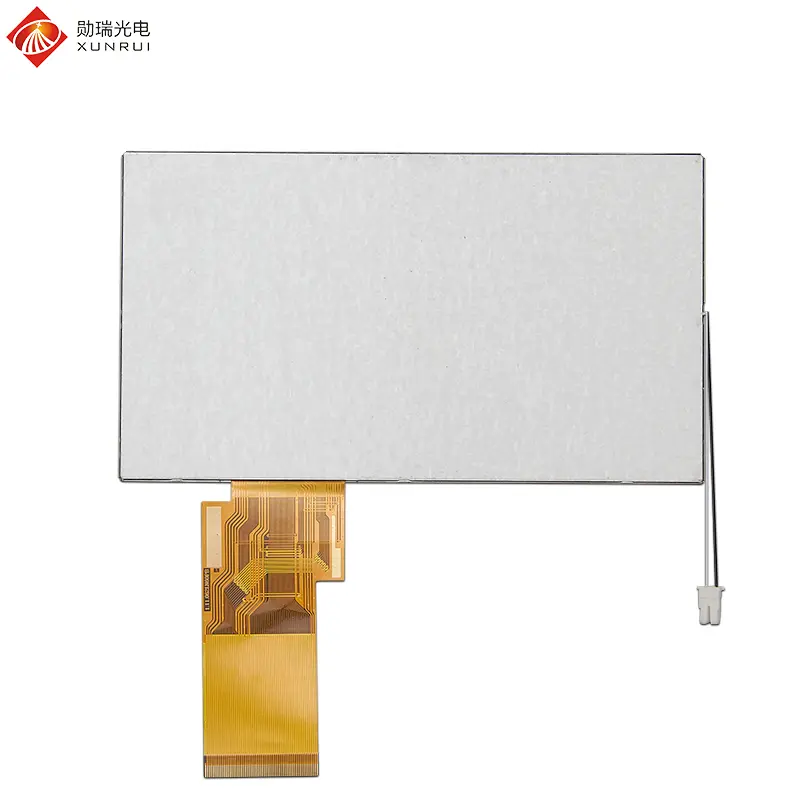

●H062HWV60E5001 is a 6.2-inch TFT LCD module. This LCD screen adopts TN panel technology, with a resolution of 800 x 480 (WVGA), supporting 16.7M true color (24-bit), meeting the color requirements of most professional scenarios. It has an RGB 60-pin interface.
●It can be optionally equipped with capacitive (multi-touch) or resistive touch screens, supporting operation with gloves or wet hands, and can be customized for touch screen type, backlight brightness, interface definition, and firmware functions.
●Main Applications:
- Vehicle systems: taxi vehicle terminals, rearview cameras, dashboard displays.
- Industrial control (HMI): PLC control panels, robot operation interfaces, production line monitoring.
- Medical equipment: portable monitors, ultrasound equipment, infusion pump interfaces.
- Smart home and terminals: all-home intelligent central control, video doorbells, building intercom systems.
- Financial technology equipment: ATM machines, POS terminals, encrypted transaction screens.
The 6.2-inch 800 x 480 LCD screen is currently the mainstream medium-sized TFT-LCD module in industrial and professional equipment. With its high resolution, good environmental adaptability, and wide interface compatibility, it has become the core display solution in fields such as vehicle, medical, and industrial control.
Frequently Asked Questions
What is the resolution and display technology of this 6.2-inch LCD?
The H062HWV60E5001 features a WVGA resolution of 800 x 480 and utilizes TN panel technology with 16.7M true colors.
Does this module support touch screen functionality?
The standard module comes without a touch screen, but it can be optionally equipped with either capacitive (multi-touch) or resistive touch screens based on your requirements.
What is the typical brightness and is it customizable?
The standard luminance is 500 cd/m2. However, the backlight brightness can be customized to meet specific application needs, such as high-visibility requirements.
What interface does this 6.2-inch TFT LCD use?
It uses an RGB 60-pin interface, making it compatible with a wide range of industrial and vehicle control systems.
What are the operating temperature ranges for this display?
The module is designed for industrial use with an operating temperature range of -20°C to +70°C and a storage range of -30°C to +80°C.
What kind of customizations are available for this LCD module?
Customizations include touch screen type (Capacitive/Resistive), backlight brightness levels, interface definition adjustments, and specialized firmware functions.
