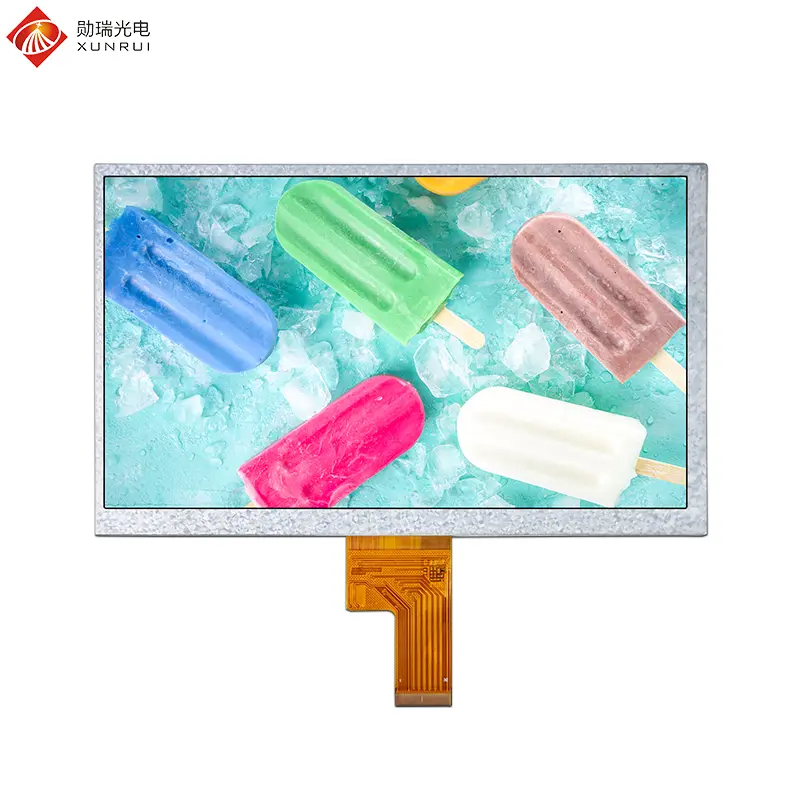

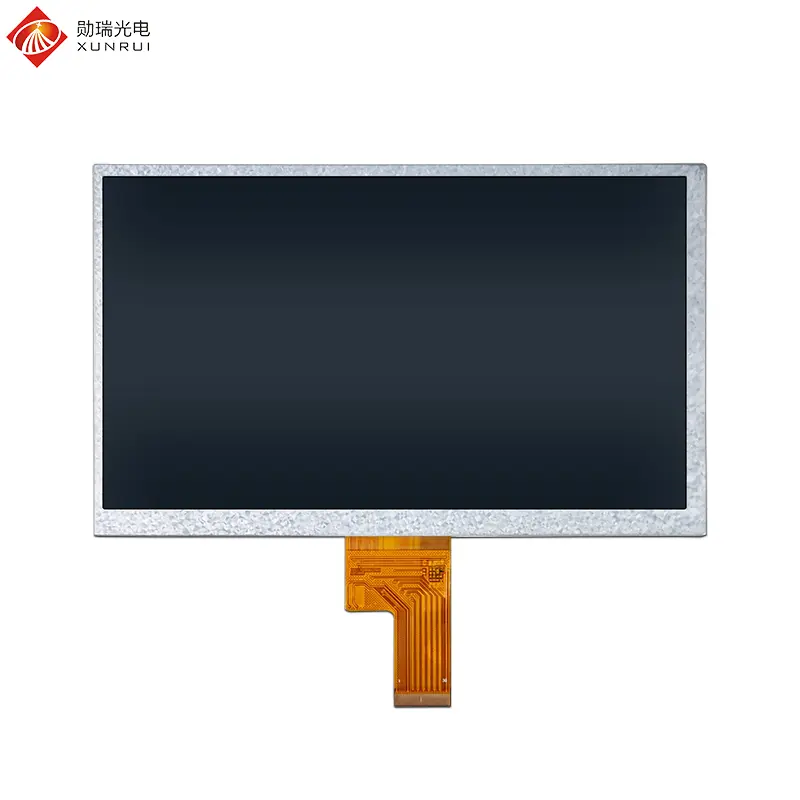

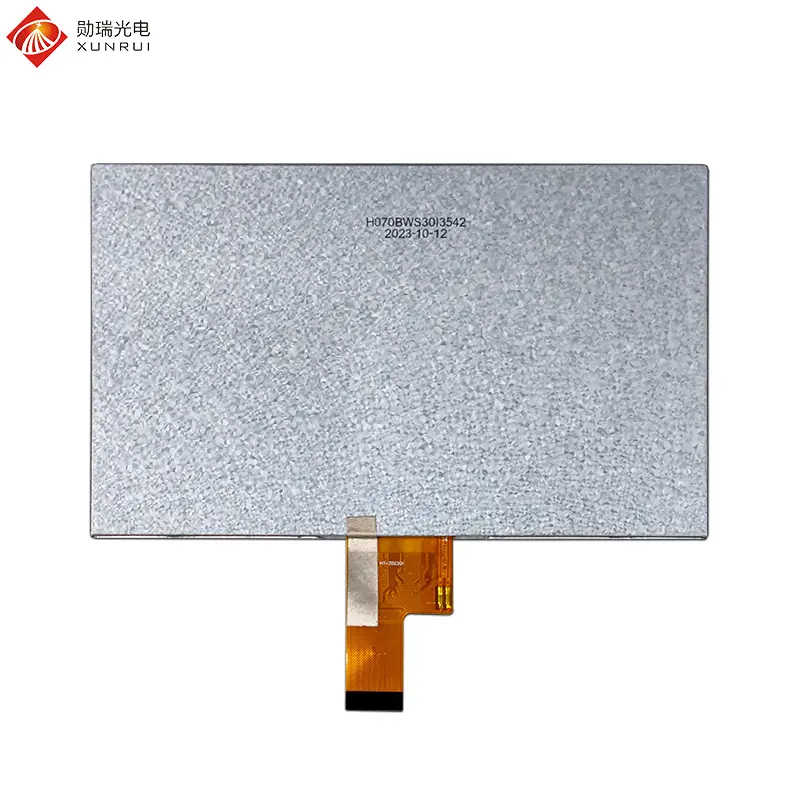

H070BWS30I3542 is a 7-inch TFT LCD Display utilizing IPS full-view technology, ensuring no color deviation from multiple angles and stable color reproduction. With a resolution of 1024×600 (WSVGA) and a 16:9 aspect ratio, it delivers high-detailed text and imagery at approximately 170 PPI.
This module supports 16.7M colors (8-bit) with up to 72% NTSC color gamut, making it ideal for graphical UIs and video playback. The high-speed MIPI 30PIN interface ensures reduced system latency and simple wiring.
Key features include 350 nit brightness, a working temperature range of -10°C to +60°C, and shock/dust resistance suitable for industrial sites. Optional touch screen integration is available. It is widely used in Industrial HMI, smart home panels, portable medical devices, automotive aftermarket displays, and IoT terminals.
| Feature | Specification |
|---|---|
| Model Name | H070BWS30I3542 |
| LCD Size | 7 inch |
| Display Format | 1024×600 |
| Interface | MIPI 30pin |
| Luminance | 350 cd/m2 |
| Touch Screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

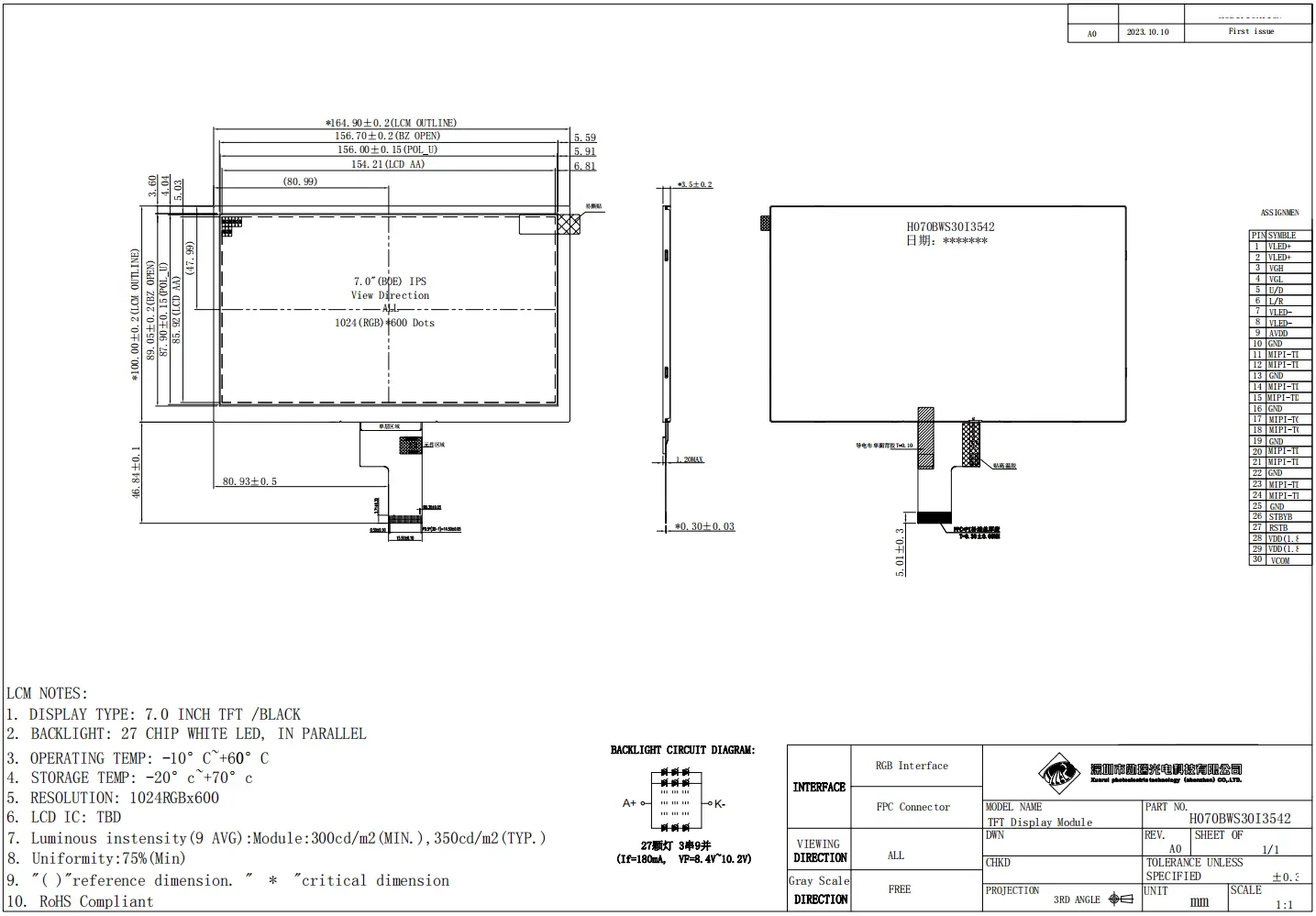

| LCM (W x H x D) (mm) | 164.9 x 100 x 3.5 |
| Active Area (mm) | 154.21 x 85.92 |
| Operating Temp | -10℃ ~ +60℃ |
| Storage Temp | -20℃ ~ +70℃ |
| Operating Voltage | 9.0V |
| PIN NO | Symbol | Description |
|---|---|---|
| 1-2 | VLED+ | LED backlight (Anode) |
| 3 | VGH | Gate ON Voltage |
| 4 | VGL | Gate OFF Voltage |
| 5 | U/D | Up / Down select |
| 6 | L/R | Left / Right select |
| 7-8 | VLED- | LED backlight (Cathode) |
| 9 | AVDD | Analog power supply |
| 10 | GND | Ground |
| 11-12 | MIPI_TDP3/N3 | Data lane 3 differential input |
| 14-15 | MIPI_TDP2/N2 | Data lane 2 differential input |
| 17-18 | MIPI_TCP/N | MIPI-DSI Clock differential input |
| 20-21 | MIPI_TDP1/N1 | Data lane 1 differential input |
| 23-24 | MIPI_TDP0/N0 | Data lane 0 differential input |
| 27 | LRSTB | Global reset pin (Active Low) |
| 28-29 | VDD | Power supply (1.8V) |
| 30 | VCOM | Common voltage power supply |
