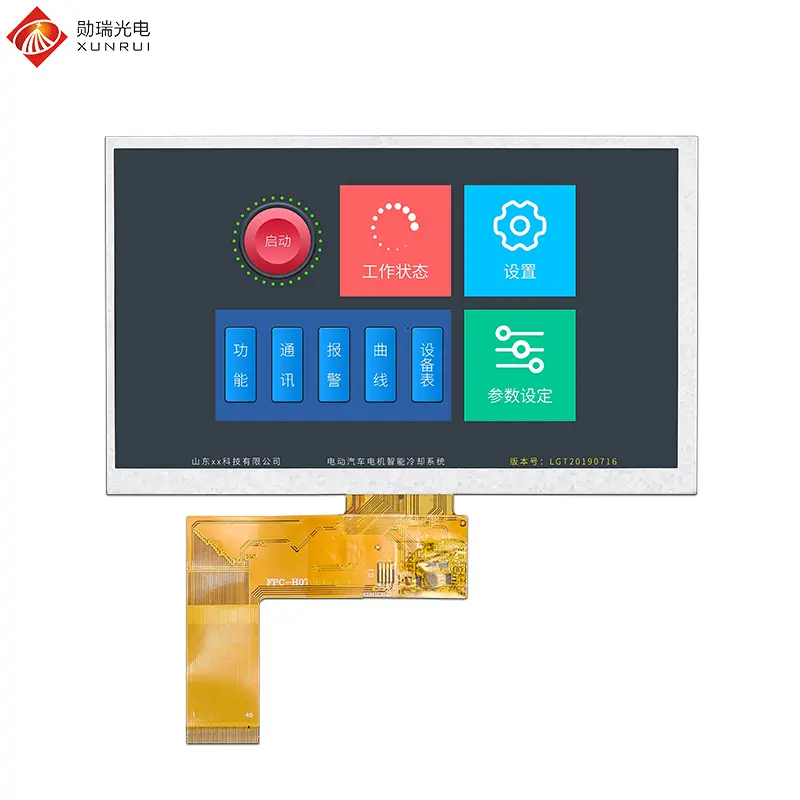

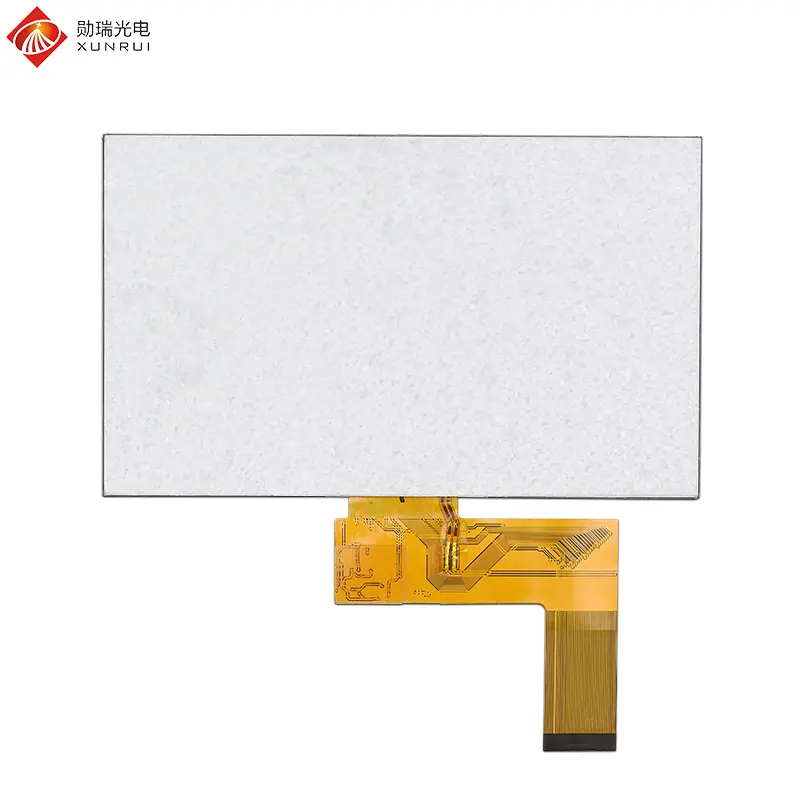

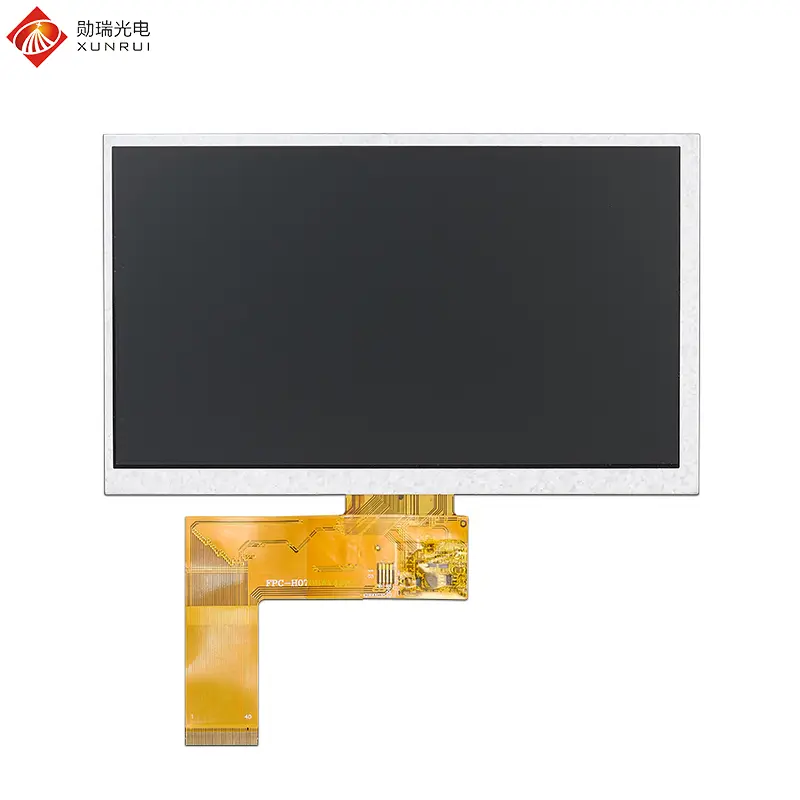

H070BWV40E5007 is a 7-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×480 and a display ratio of 16:9. It has a compact design, making it easy to be embedded in various devices. The Driver IC, EK9716BD4 + EK73002AB2, has a RGB 40-pin interface and transmits signals using TTL levels, offering strong compatibility.
✔
Supports optional capacitive/resistive touch screens (CTP/RTP).
✔
Customizable high brightness (up to 700~1000 cd/m²).
✔
Backlight lifespan over 30,000 hours for long-term use.
✔
Excellent shock resistance and wide temperature adaptability.
This 7-inch TFT LCD Display is mainly used in industrial automation control terminals (HMI) for PLC operation panels and monitoring systems. It is also ideal for medical equipment display modules, vehicle navigation, intelligent transportation systems, and smart home security monitoring.
❓ Frequently Asked Questions
What is the resolution of this 7-inch TFT module?
The H070BWV40E5007 module features a standard resolution of 800×480 with a 16:9 aspect ratio.
Can this display be used in outdoor environments?
Yes, while the standard luminance is 450 cd/m², it can be customized for high brightness (700~1000 cd/m²) to ensure visibility in strong sunlight.
What type of interface does it use?
It uses a standard RGB 40-pin interface, which is compatible with most MCUs and embedded processors like STM32 and i.MX series.
Is the touch screen included?
The standard model does not include a touch screen, but we offer optional capacitive (CTP) and resistive (RTP) touch screen customization.
What is the typical lifespan of the backlight?
The backlight is designed for industrial use and typically lasts over 30,000 hours of continuous operation.
What are the main application areas for this LCD?
It is widely used in HMI industrial terminals, medical monitors, vehicle navigation systems, and smart home control panels.
