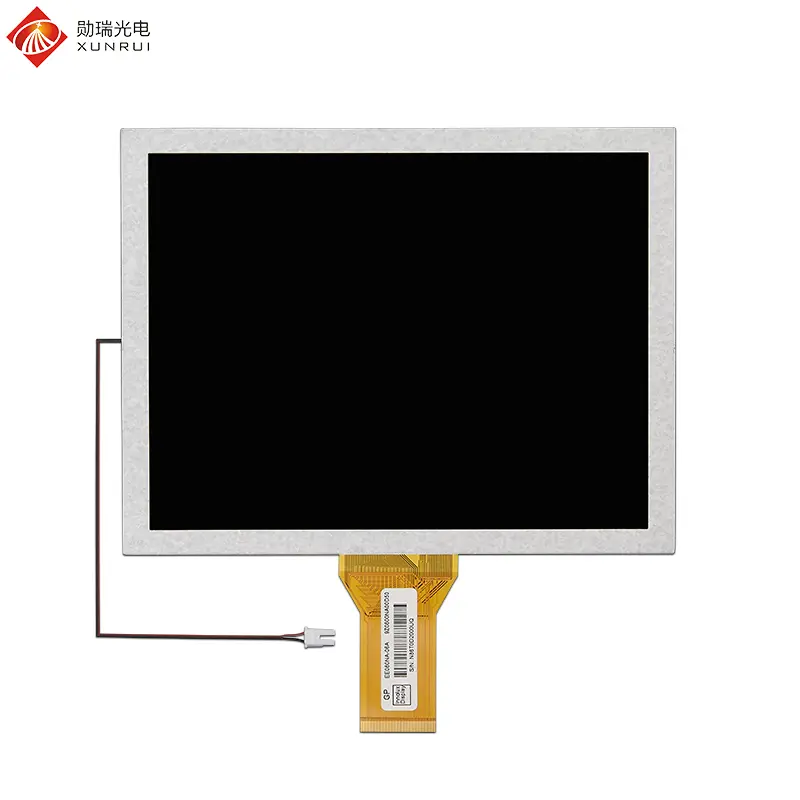

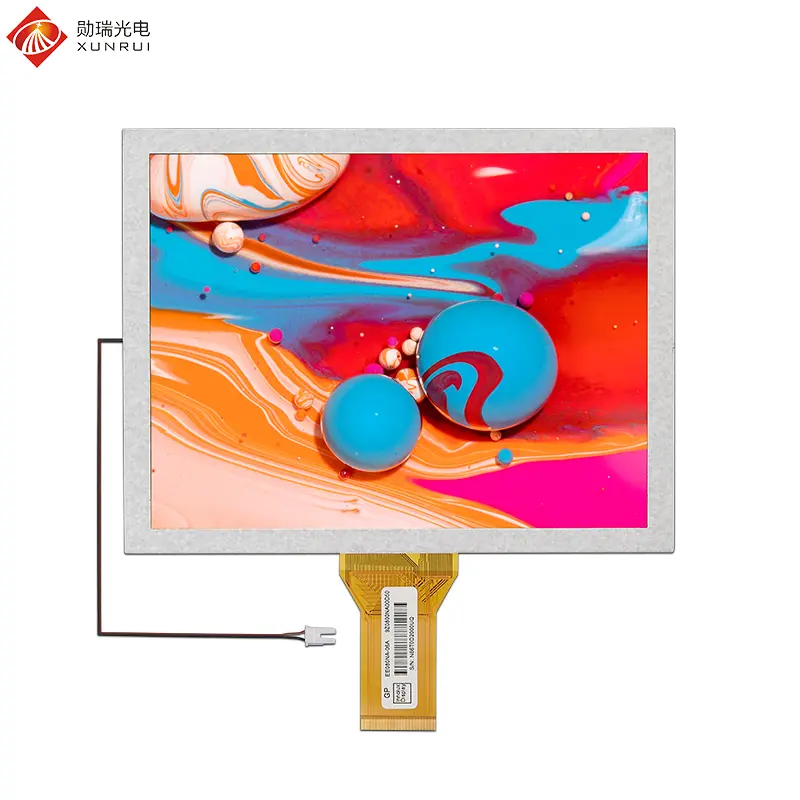

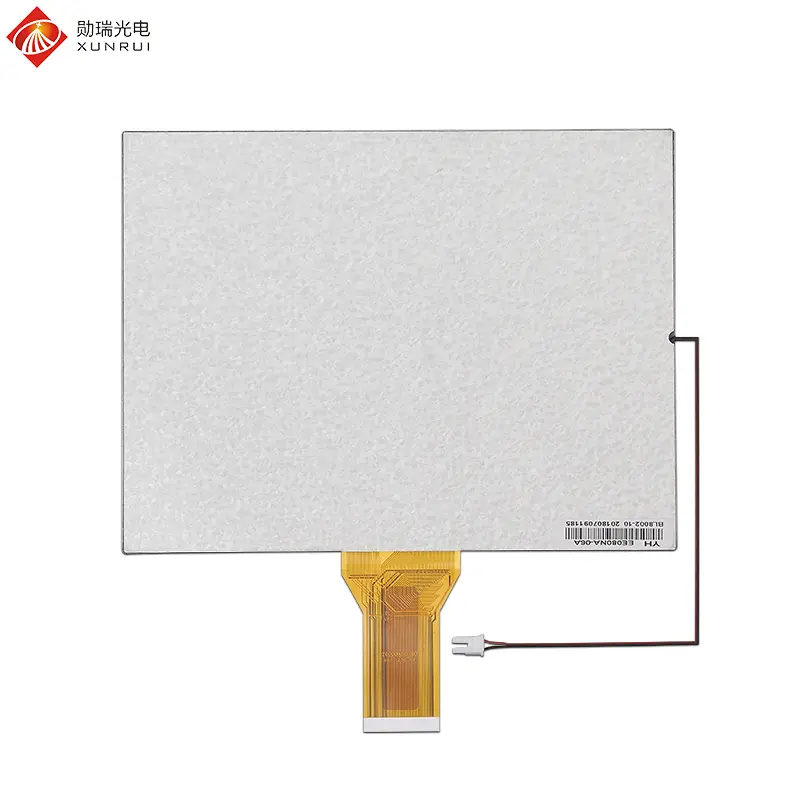

H080IWS50E3501 is an 8-inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×600 (SVGA) and a screen ratio of 4:3. It conforms to standard industrial display specifications and is suitable for embedded systems and control interface design. The RGB 50-pin interface, with a brightness of 350 nit, has a contrast ratio generally ranging from 800:1 to 1000:1, ensuring clear image details and sharp text edges. It supports optional capacitive/resistive touch screens (CTP/RTP).
This 8-inch TFT LCD Display is mainly applied in industrial automation control: used in machine tools, CNC equipment, PLC human-machine interface (HMI), production line monitoring systems, etc. In medical equipment: used in portable monitors, drug distribution machines, and surgical assistance equipment. In smart home: as a control panel for lighting, air conditioning, and security systems. It is also ideal for commercial terminals and vehicle-mounted devices like forklifts and engineering vehicles, supporting 24/7 operation.
Frequently Asked Questions
What is the main application of the H080IWS50E3501 LCD?
This 8-inch module is primarily designed for industrial automation control (HMI), medical monitors, smart home panels, and vehicle-mounted navigation or monitoring systems.
Does this display support touch screen functionality?
The standard model comes without touch, but it supports optional capacitive (CTP) or resistive (RTP) touch screen integration based on your project requirements.
What type of interface is required for connection?
It uses a standard industrial RGB 50-pin interface, which is compatible with most embedded control systems.
Is this screen visible in bright environments?
With a brightness of 350 nits and a high contrast ratio (up to 1000:1), it provides clear visibility for indoor and standard outdoor shaded industrial environments.
What are the operating temperature limits?
The module is built for durability, with an operating temperature range of -20°C to +70°C, making it suitable for tough industrial conditions.
What is the resolution and aspect ratio?
The screen features a SVGA resolution of 800×600 pixels with a classic 4:3 aspect ratio, ideal for industrial data display.
