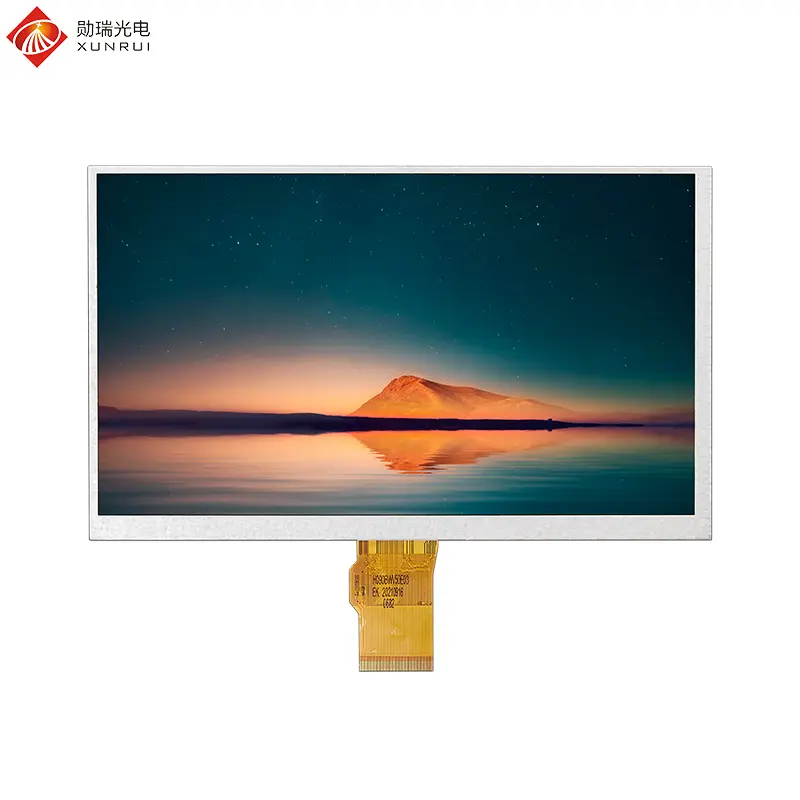

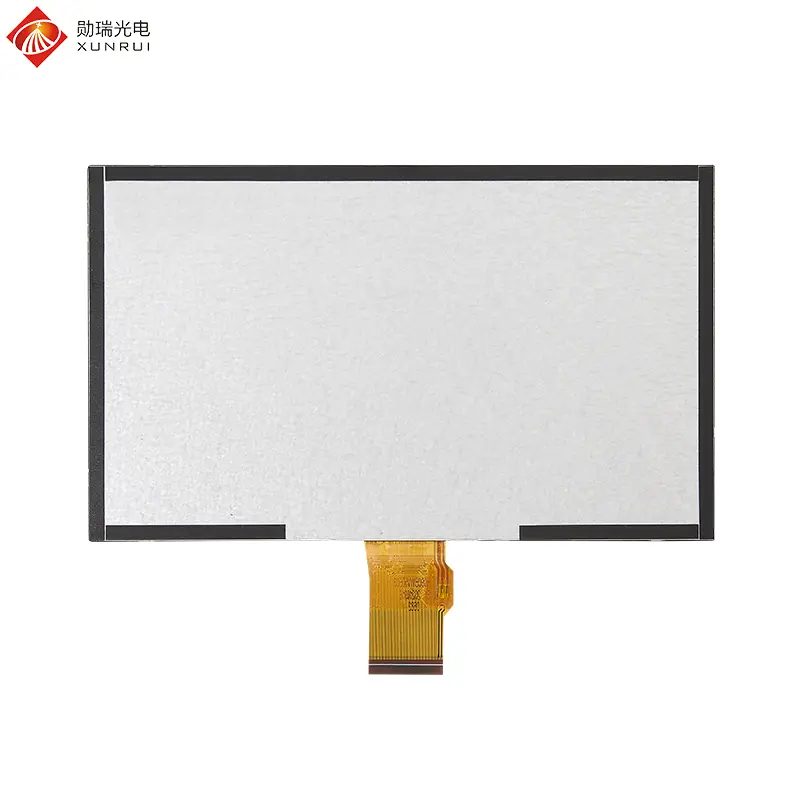

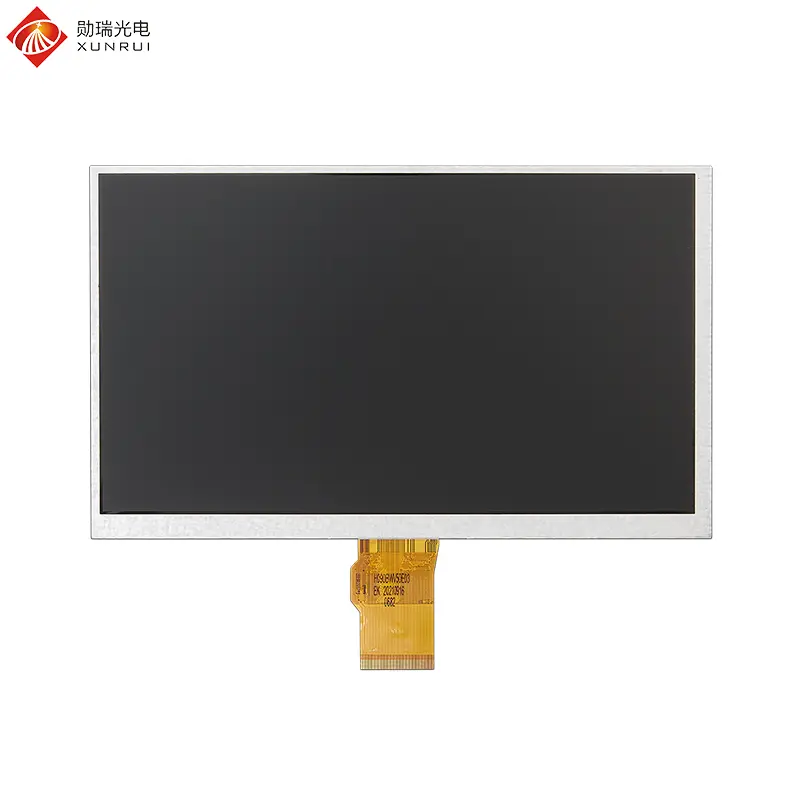

H090BWV50E5004 is a 9 inch TFT LCD module featuring a TN panel with a resolution of 800×480. This high-performance display utilizes an RGB 50pin interface and provides a brightness of 500 nits. Designed for reliability, it operates within a wide temperature range of -20℃ to +70℃.
This module is highly customizable and can be equipped with capacitive touch screens, resistive touch screens, adapter boards, and driver boards. Special processes such as anti-vibration, anti-interference, anti-static, anti-glare, anti-reflection, and glove-friendly operation are available upon request.
Key Applications:
• Industrial Automation: CNC machine tools for process monitoring and automated production lines for real-time status display.
• Medical Devices: CT scanners and ultrasonic diagnostic instruments requiring high-resolution imaging.
• Transportation & Smart Home: Integration into vehicle displays and intelligent home control hubs.
| Feature | Specification |
|---|---|
| Model Name | H090BWV50E5004 |
| LCD Size | 9 inch |
| Display Format | 800×480 |
| Interface | 24bit-RGB 50pin |
| Luminance | 500 cd/m2 |
| Touch Screen | None (Optional) |
| Viewing Direction | 12 O'clock |
| Color Depth | 16.7M |

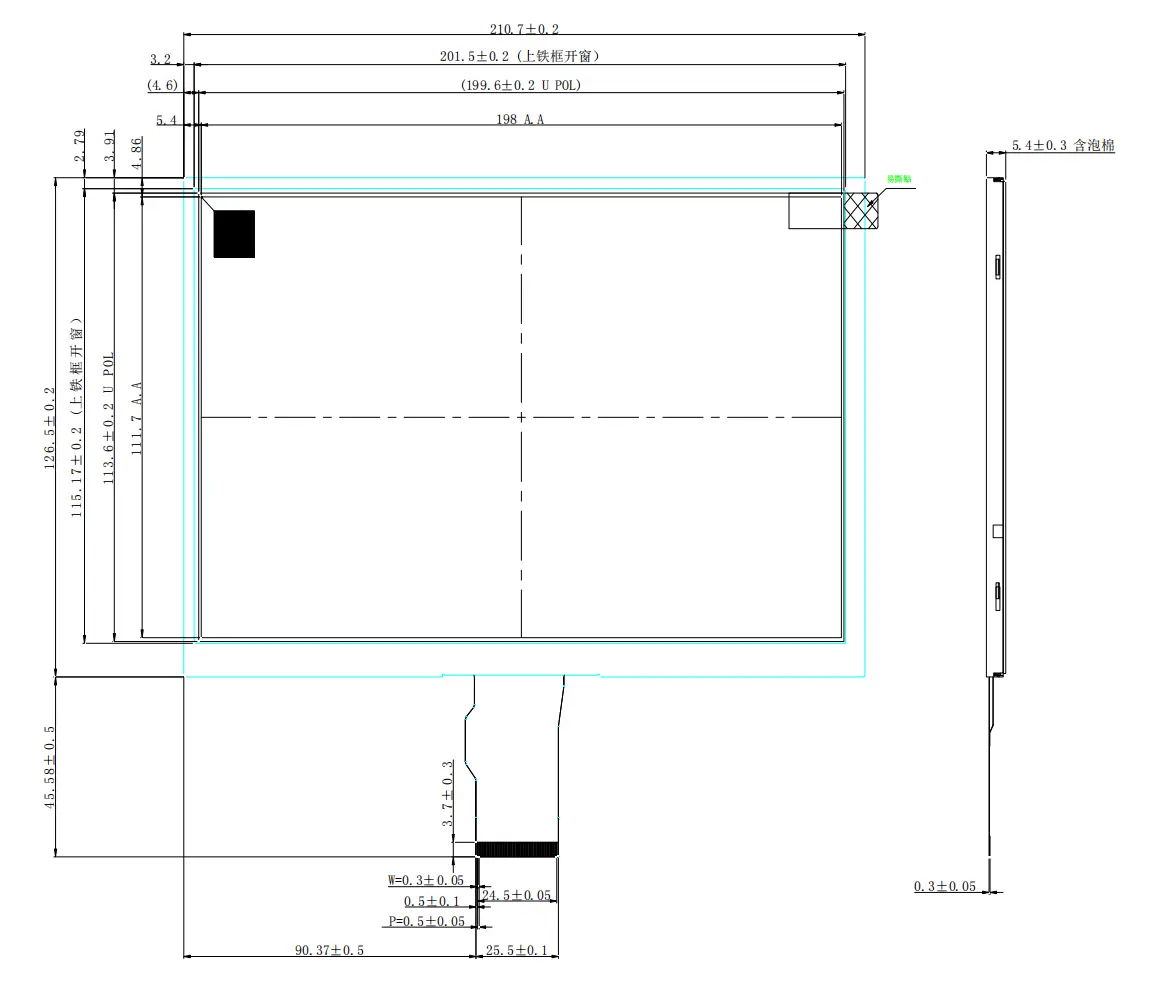

| LCM (W x H x D) (mm) | 210.6 * 126.5 * 3.5 |
| Active Area (mm) | 198 x 111.69 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.0V |
| No. | Symbol | Description |
|---|---|---|
| 1,2 | LEDA | Power for LED backlight (Anode) |
| 3,4 | LEDK | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | VCC | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12-19 | B7-B0 | Blue data (MSB to LSB) |
| 20-27 | G7-G0 | Green data (MSB to LSB) |
| 28-35 | R7-R0 | Red data (MSB to LSB) |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock |
| 39 | L/R | Left/right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
