💡 Product Description

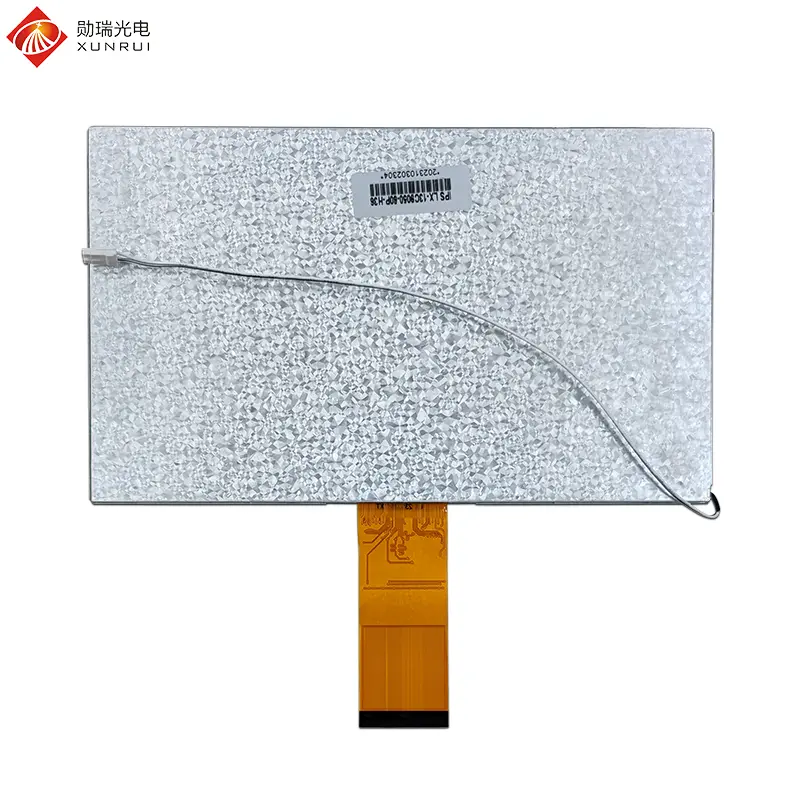

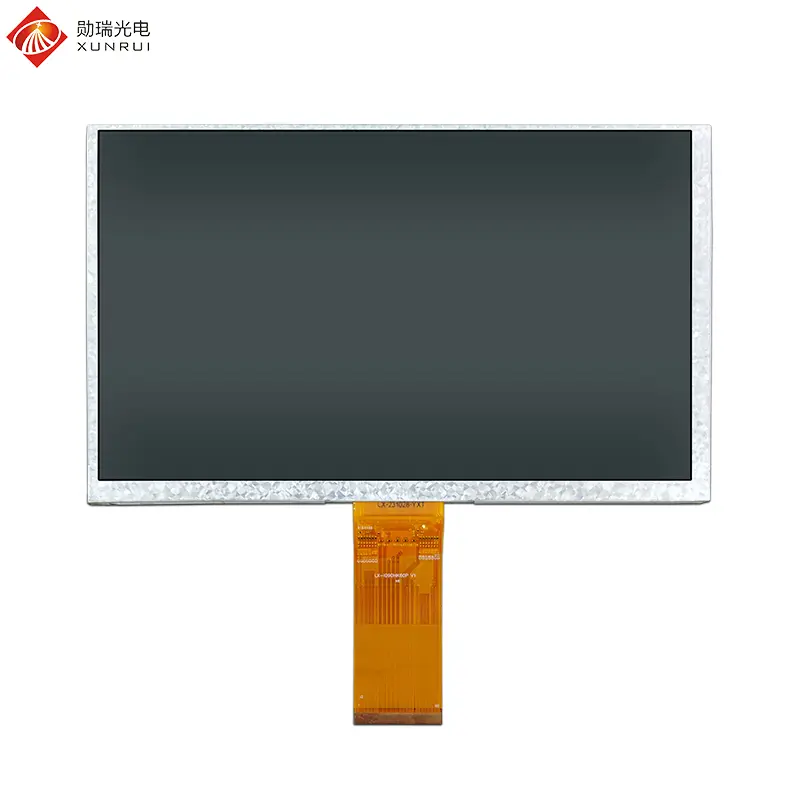

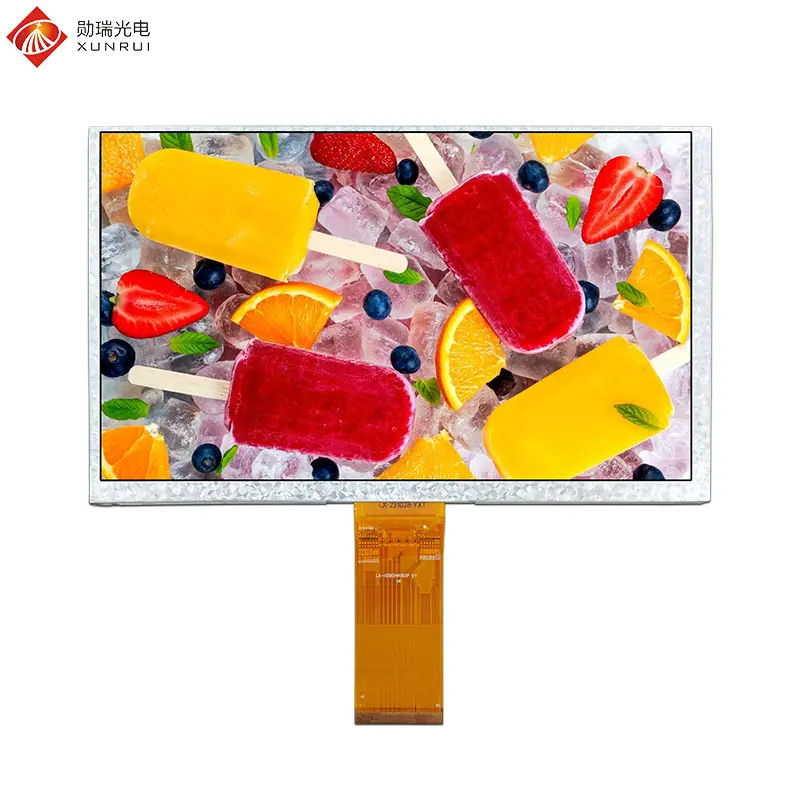

H090KWS60I4010 is a 9 inch TFT LCD module. This LCD screen uses an IPS panel with a full viewing angle. The resolution is 1024 × 600, and it has a 60-pin interface, a 400 nit brightness, and can withstand a working temperature range of -20°C to +60°C. It can be equipped with capacitive touch screens, resistive touch screens, adapter boards, and driver boards.
Application Scenarios:
- 🔹 Industrial: High brightness (≥400cd/m²), wide viewing angle (IPS), and industrial-grade temperature range.
- 🔹 Automotive: High reliability, support for AHD/CVBS video formats.
- 🔹 Consumer Electronics: Smart home, security, medical equipment, and lightweight design.
❓ Frequently Asked Questions
1. What is the resolution and panel type of this 9-inch LCD?
The H090KWS60I4010 features a 1024 x 600 resolution using an IPS panel, which provides full viewing angles for superior clarity from any direction.
2. Does this display support touch screen functionality?
While the standard module comes without touch, it can be optionally equipped with either capacitive or resistive touch screens based on your project requirements.
3. What are the operating temperature limits for industrial use?
This module is designed for reliability, with an operating temperature range of -20°C to +60°C and a storage range of -20°C to +70°C.
4. What type of interface does the H090KWS60I4010 use?
The module utilizes a 60-pin LVDS interface, making it compatible with various industrial and automotive driver boards.
5. Is this display suitable for outdoor or high-light environments?
With a luminance of 400 cd/m², it offers good visibility for indoor and semi-outdoor applications like smart home panels and industrial consoles.
6. Can I flip the display orientation via hardware?
Yes, the interface definition includes pins for SHLR (Left/Right display control) and UPND (Up/Down display control) to manage the orientation.
