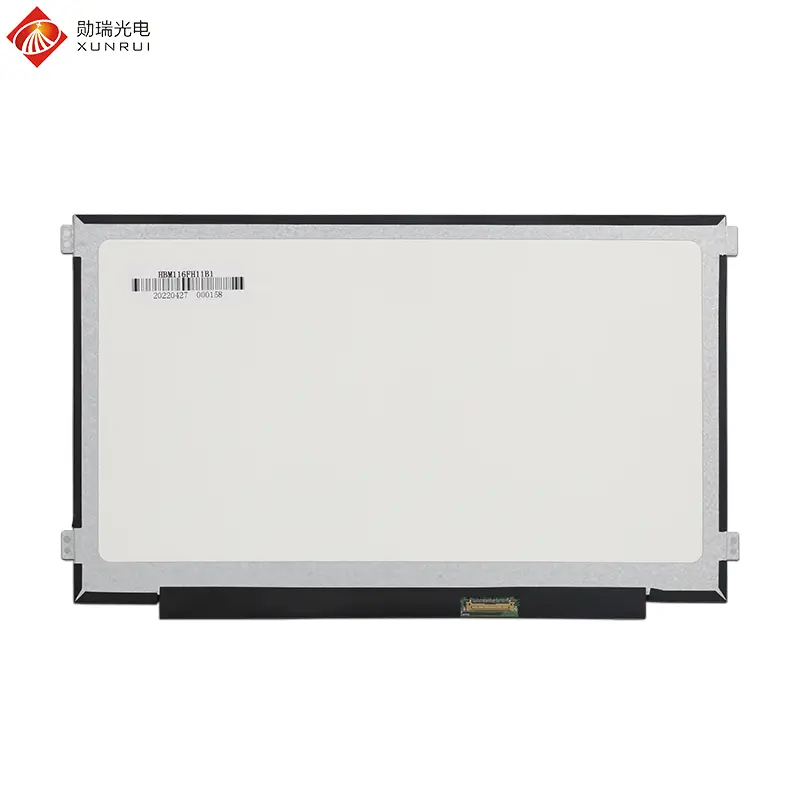

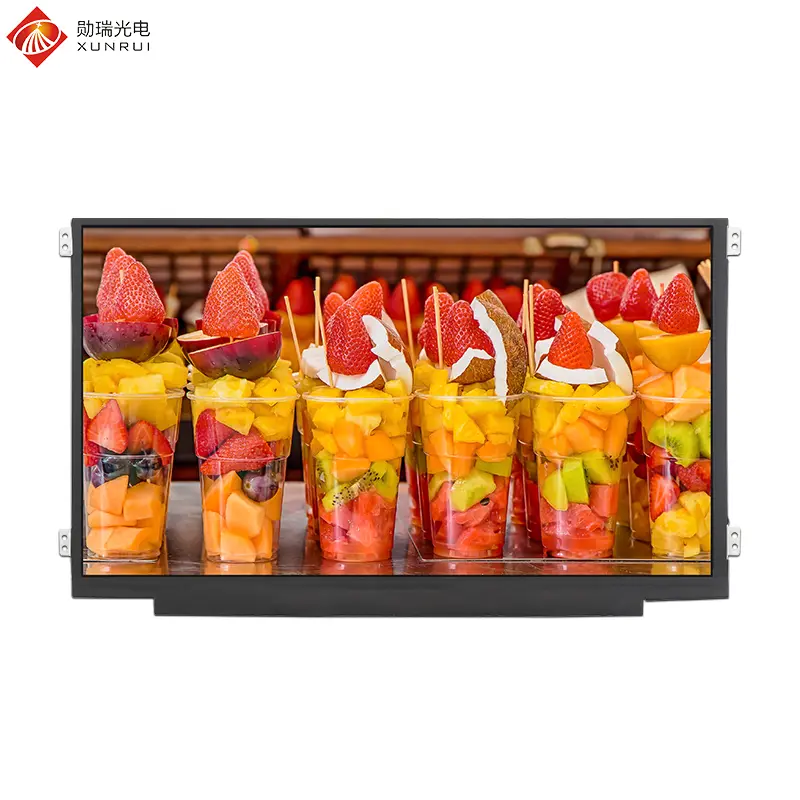

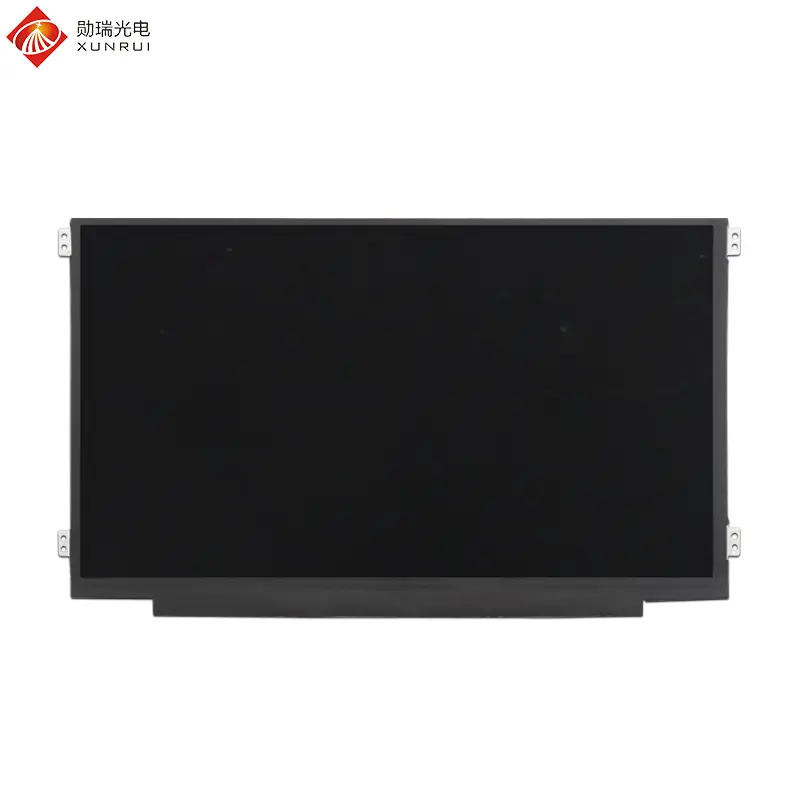

HBM116FH11B1 is a high-performance 11.6 inch TFT LCD module. This display utilizes an IPS panel, delivering a resolution of 1920×1080 (Full HD) with a full viewing angle for superior clarity. It features an EDP 30-pin interface, a brightness level of 220 nit, and is designed to operate within a temperature range of 0°C to +50°C. For enhanced interactivity, it can also be equipped with an optional touch screen.
Key Advantages:
This 11.6 inch TFT LCD screen is ideal for industrial equipment, vehicle-mounted displays, and medical devices.
2 inch 480×240 RGB TN TFT
2.4 inch 240×320 MCU TN TFT
2.8 inch 240×320 MCU TN TFT
3.5 inch 320×240 RGB TN TFT
4.3 inch 800×480 RGB IPS
5 inch 800×480 1200nit High Brightness
| Feature | Specification |
|---|---|
| Model Name | HBM116FH11B1 |
| LCD Size | 11.6 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30PIN |
| Luminance | 220 cd/m2 |
| Touch Screen | None, Optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

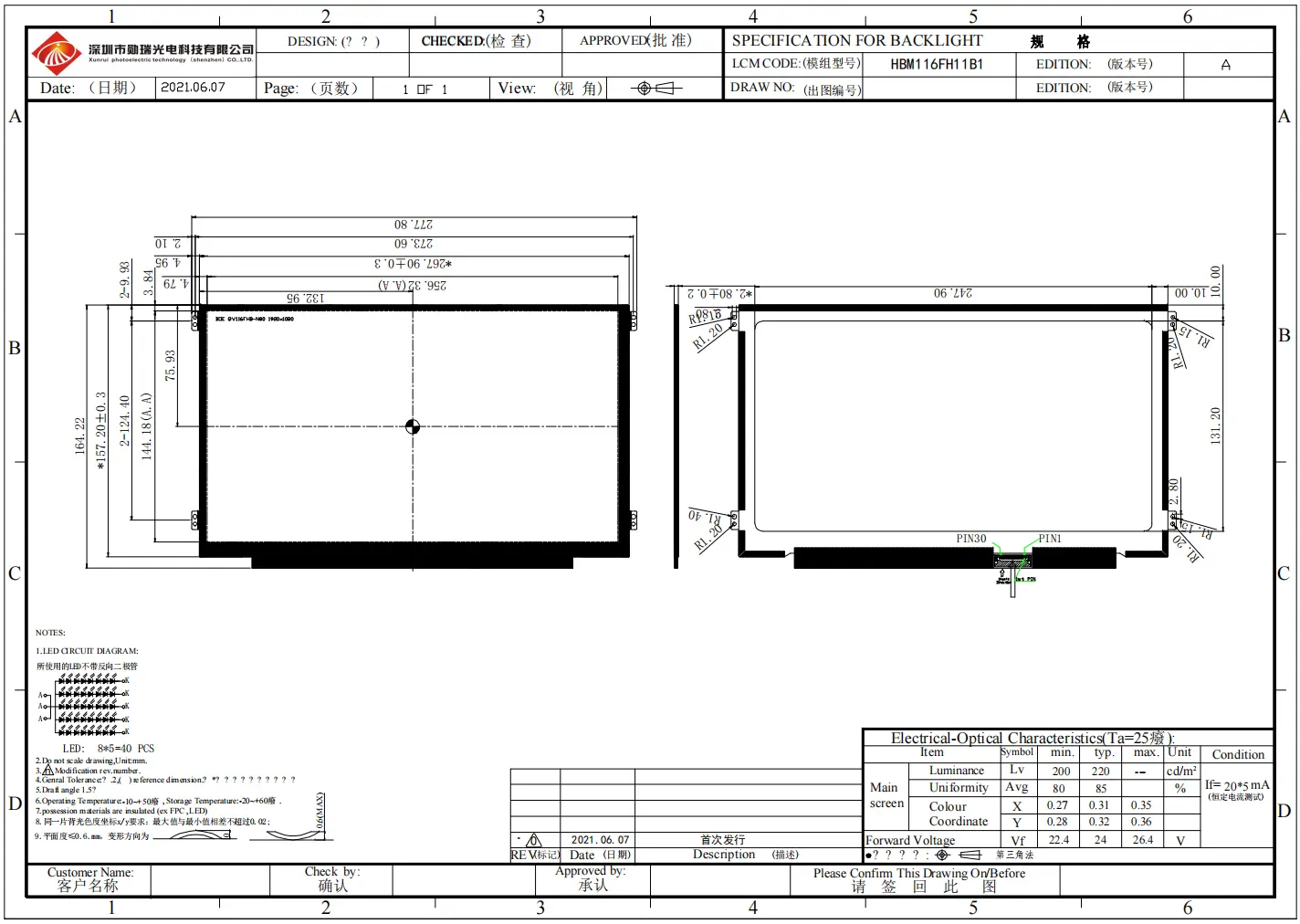

| LCM (W x H x D) (mm) | 267.9×164.22×2.8 |
| Active Area (mm) | 256.32(H) × 144.18(V) |
| Operating Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -10℃ ~ +60℃ |
| Operating Voltage | 24V |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | - | Reserved for CD |
| 2 | H_GND | P | High Speed Ground |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed Ground |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed Ground |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 12-13 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 15-16 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | HPD signal pin |
| 18-21 | LED-GND | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM dimming |
| 26-29 | Vled | P | Backlight power |
