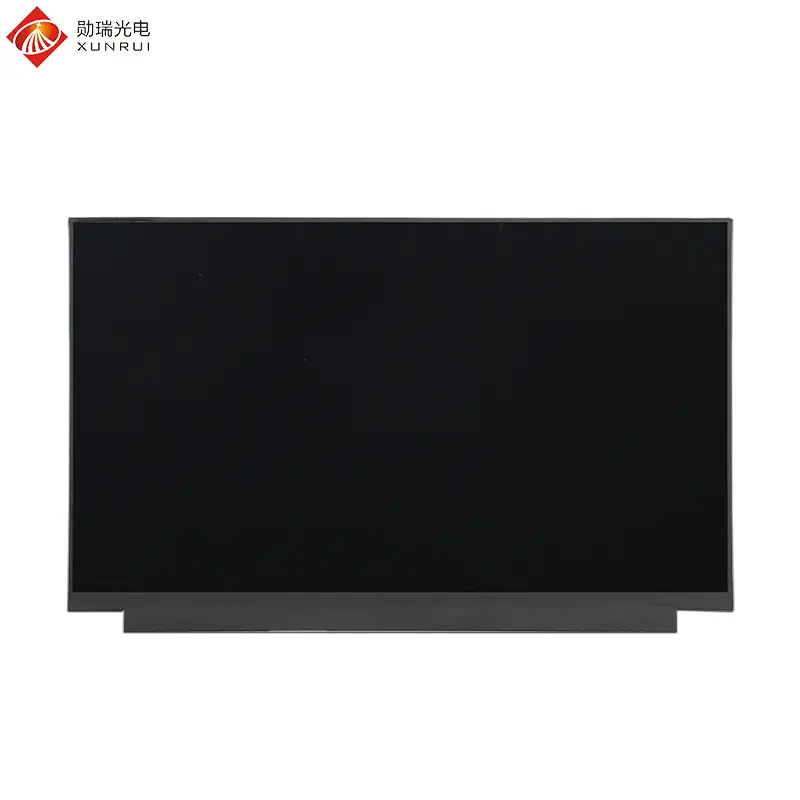

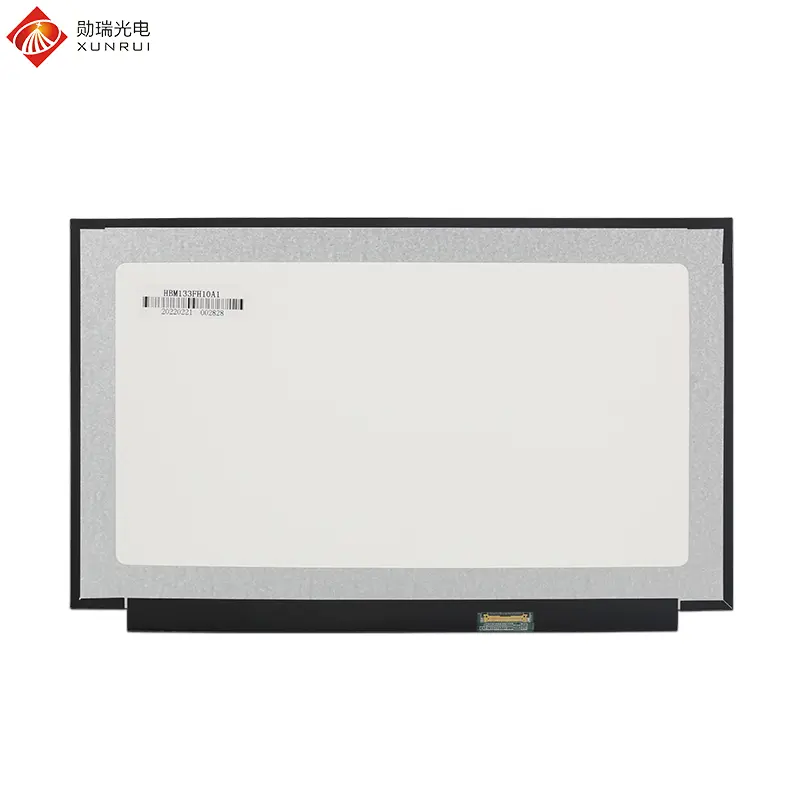

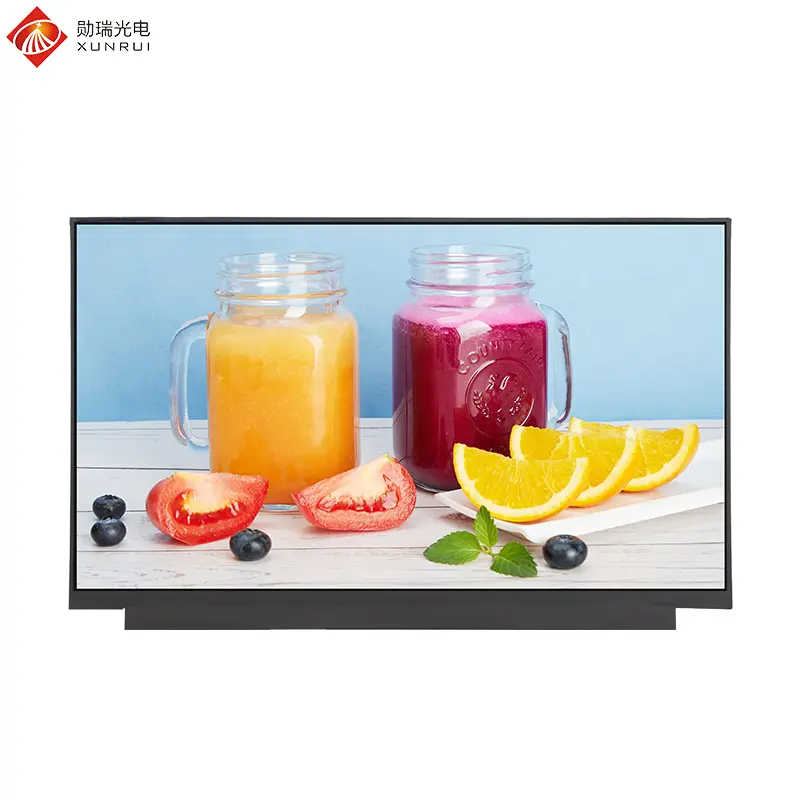

HBM133FH10A1 is a full-view 13.3 inch TFT LCD module that uses an IPS panel. The IPS technology offers an ultra-wide viewing angle of 178°, consistent color; contrast ratio ranging from 800:1 to 1500:1, with clear picture layers. The resolution is 1920×1080 (some models support: 2560×1440 (QHD) or 3840×2160 (4K)), EDP 30-pin interface, 280 nit brightness, capable of withstanding a working temperature range of 0°C to +50°C, and can be optionally equipped with a touchscreen.
This LCD screen features ultra-narrow bezels, ultra-thin thickness, a hollow design on the back, and a straight row style overall. This 13.3 inch TFT LCD screen is mainly applied in high-end laptops and mobile office: mainstream size, balancing portability and visual comfort, suitable for documents, web pages, and light design. It can also be applied in education and training, automotive electronics, industrial control, medical equipment, and consumer electronics.

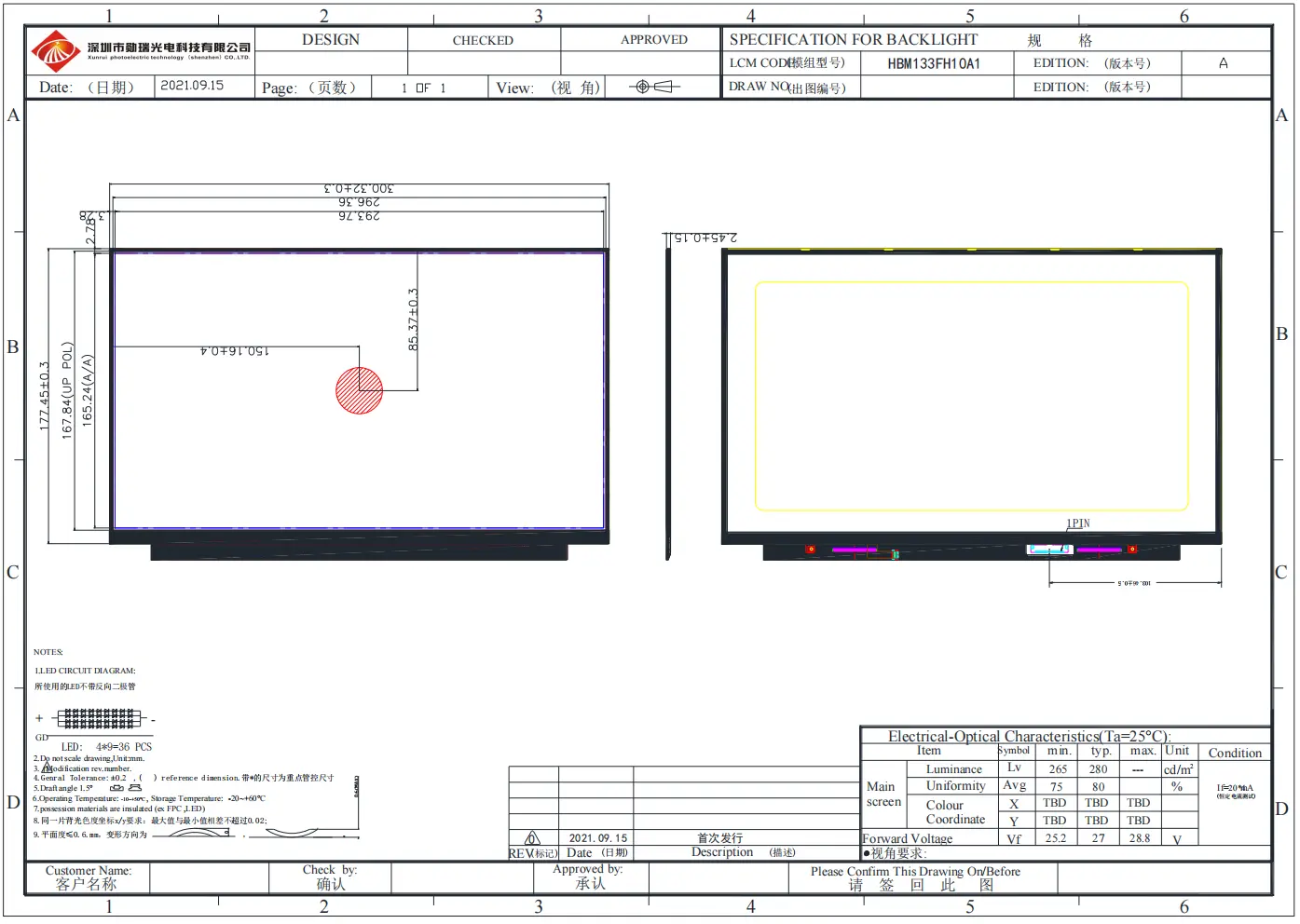

| Feature | Specification |
|---|---|
| Model Name | HBM133FH10A1 |
| LCD Size | 13.3 inch |
| Display Format | 1920×1080 |
| Interface | EDP 30PIN |
| Luminance | 280 cd/m2 |
| Touch screen | Optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |
| LCM (W x H x D) (mm) | 300.32 x 177.45 x 2.45 |
| Active Area (mm) | 293.76(H) × 165.24(V) |
| Operating Temp | 0°C ~ +50°C |
| Storage Temp | -20°C ~ +60°C |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | NC | - | No connection |
| 2 | H_GND | P | High Speed Ground |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed Ground |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 12 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 17 | HPD | O | HPD signal pin |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM |
| 26-29 | BL_PWR | P | Backlight power |
