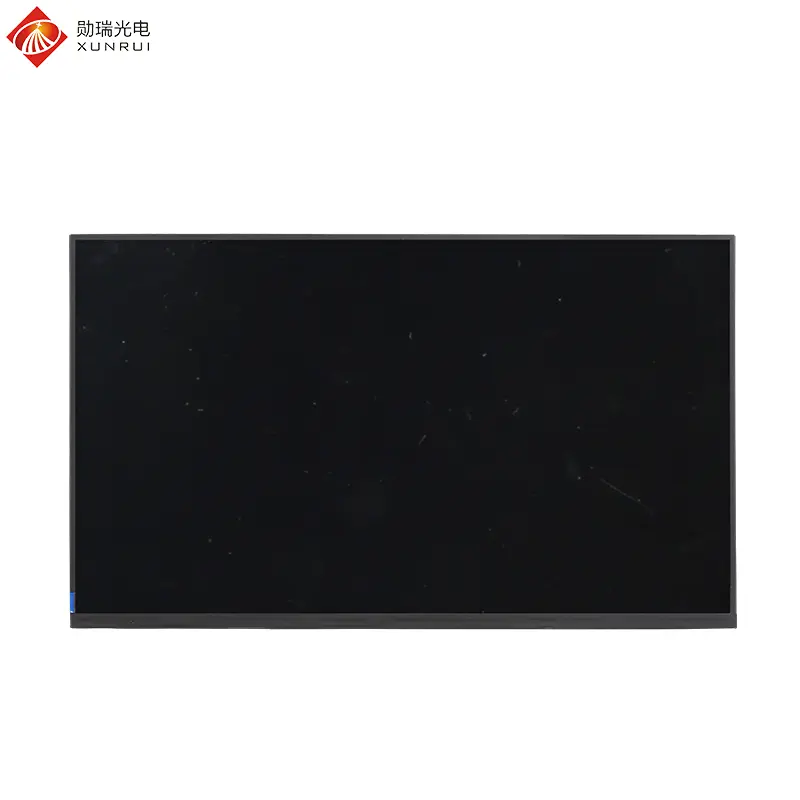

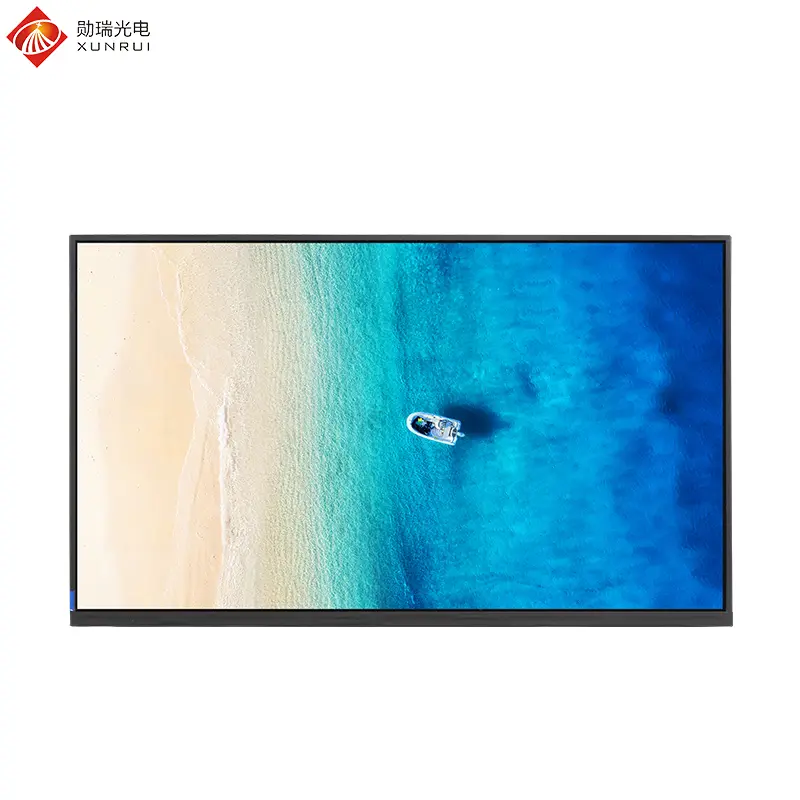

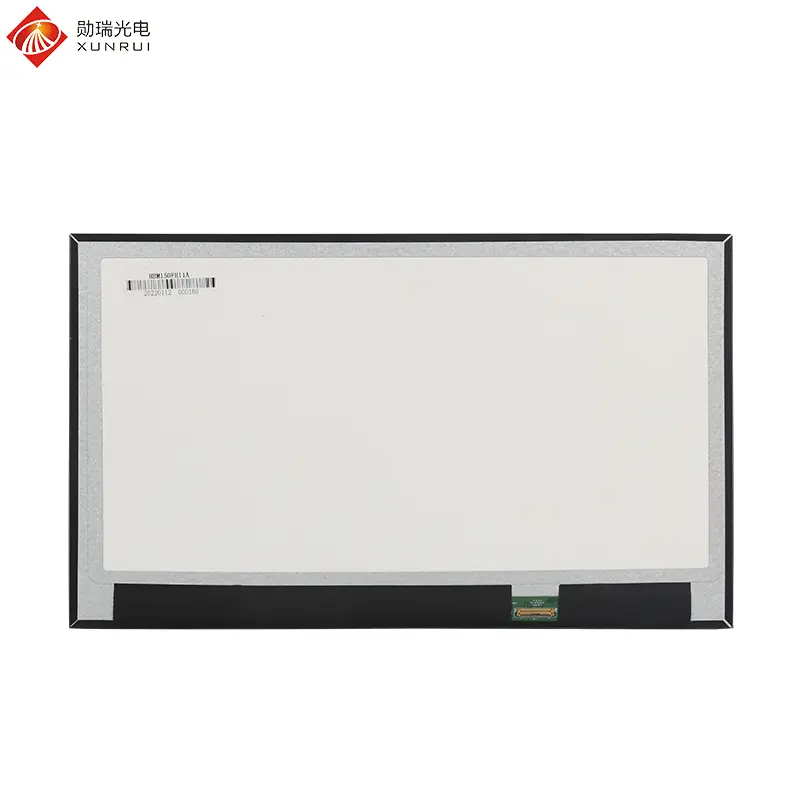

HBM150FH11A is a 15-inch TFT LCD module with a resolution of 1920x1080 (FHD), a 16:9 widescreen ratio, and is compatible with the majority of video content and office software interfaces. Some models support capacitive multi-touch, suitable for interactive scenarios such as self-service terminals and cashier systems.
This 15-inch TFT LCD Display, with its 16:9 golden ratio, high pixel density, and wide compatibility, is widely used in various fields including office, industrial control, consumer electronics, and outdoor display. It is the mainstream configuration for laptops and portable displays, balancing portability and visual experience. In retail scenarios, the 15-inch IPS screen integrates monitoring, cashier system, and customer flow statistics, simplifying the desktop layout.
| Feature | Spec |
|---|---|
| Model Name | HBM150FH11A |
| LCD Size | 15 inch |
| Display Format | 1920x1080 |
| Interface | EDP 30pin |
| Luminance | 300 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7 M |

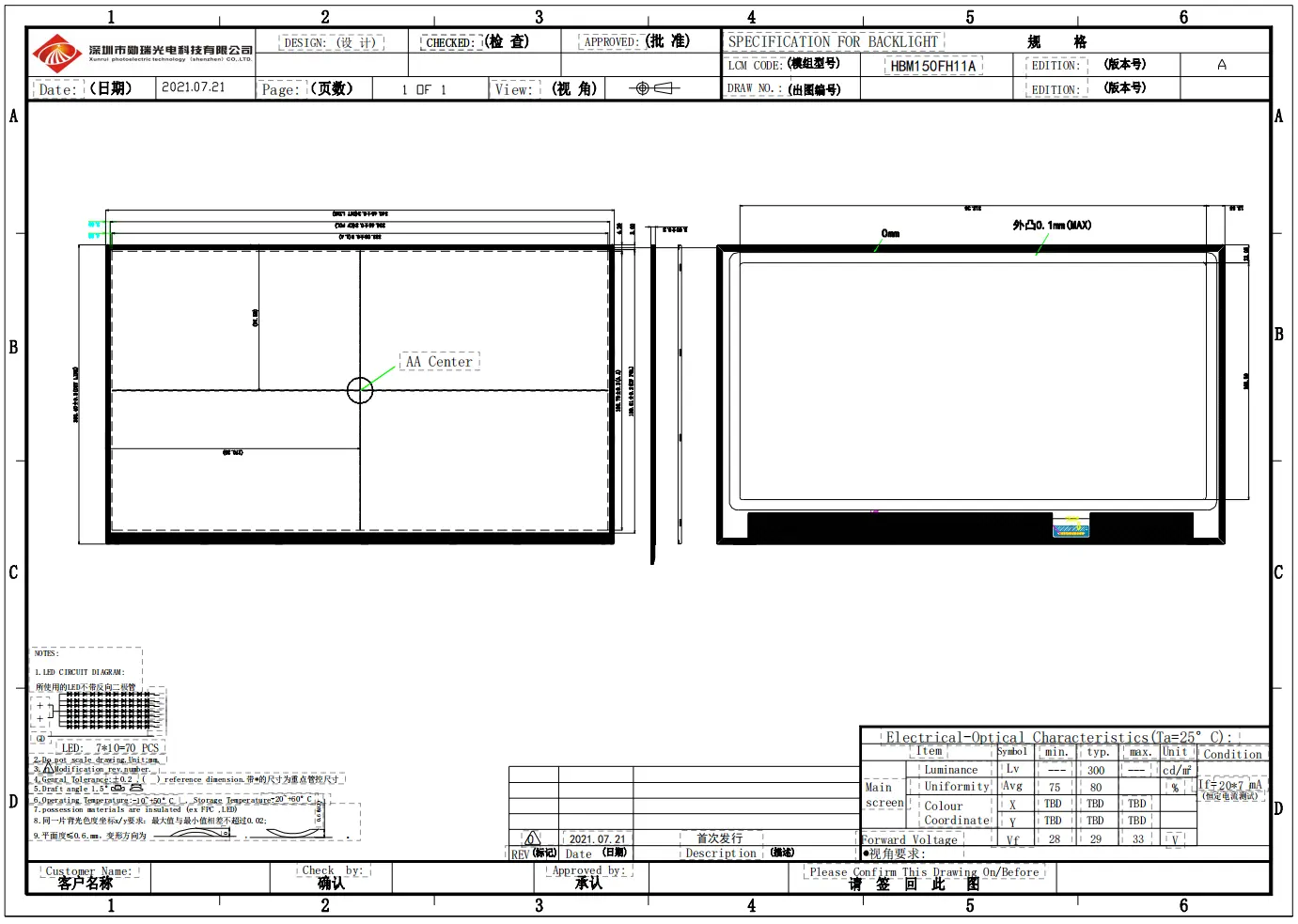

| LCM (W x H x D) (mm) | 340.46 * 200.4 * 3.0 |
| Active Area(mm) | 322.064 (H) x 186.786 (V) |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Operating Voltage | 12V |
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | CABC_EN | I | CABC-EN |
| 2 | H_GND | P | High Speed ground |
| 3 | Lane1_N | I | Complement Signal Link Lane 1 |
| 4 | Lane1_P | I | True Signal Link Lane 1 |
| 5 | H_GND | P | High Speed ground |
| 6 | Lane0_N | I | Complement Signal Link Lane 0 |
| 7 | Lane0_P | I | True Signal Link Lane 0 |
| 8 | H_GND | P | High Speed ground |
| 9 | AUX_CH_P | I | True Signal Auxiliary Channel |
| 10 | AUX_CH_N | I | Complement Signal Auxiliary Channel |
| 11 | H_GND | P | High Speed ground |
| 12 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 13 | LCD_VDD | P | LCD logic and driver power (3.3V) |
| 14 | LCD-TEST | I | Panel self test enable |
| 15 | LCD_GND | P | LCD logic and driver ground |
| 17 | HPD | O | Hot plug detect output |
| 18-21 | BL-GND | P | Backlight ground |
| 22 | BL_ENABLE | I | Backlight on/off |
| 23 | BL_PWM_DIM | I | System PWM Reset low active |
| 26-29 | BL_PWR | P | LED Power Supply 5V-21V |
| 30 | NC | - | No Connection |
