📋 Product Description

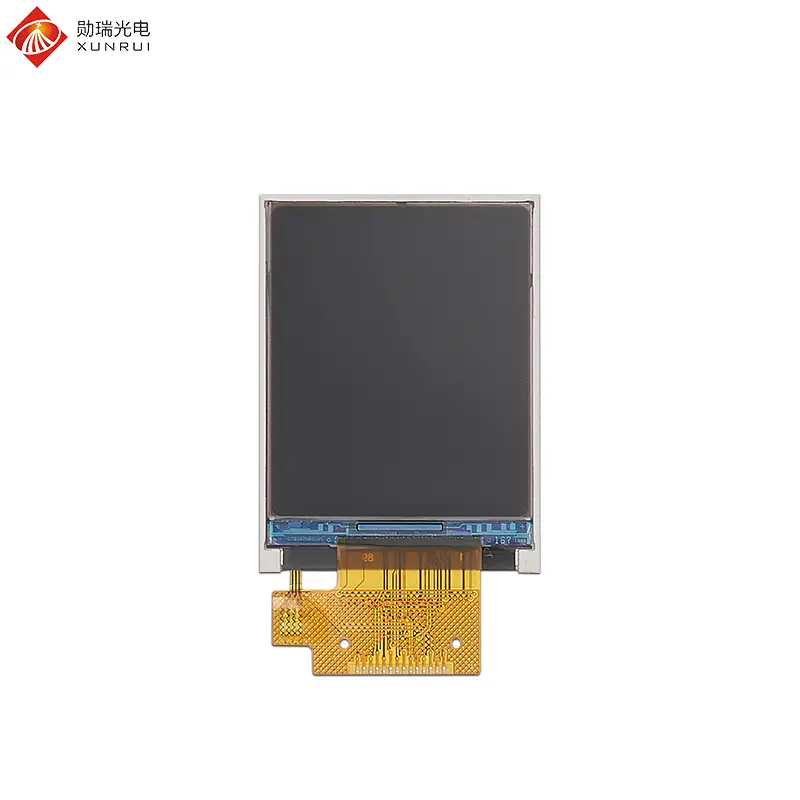

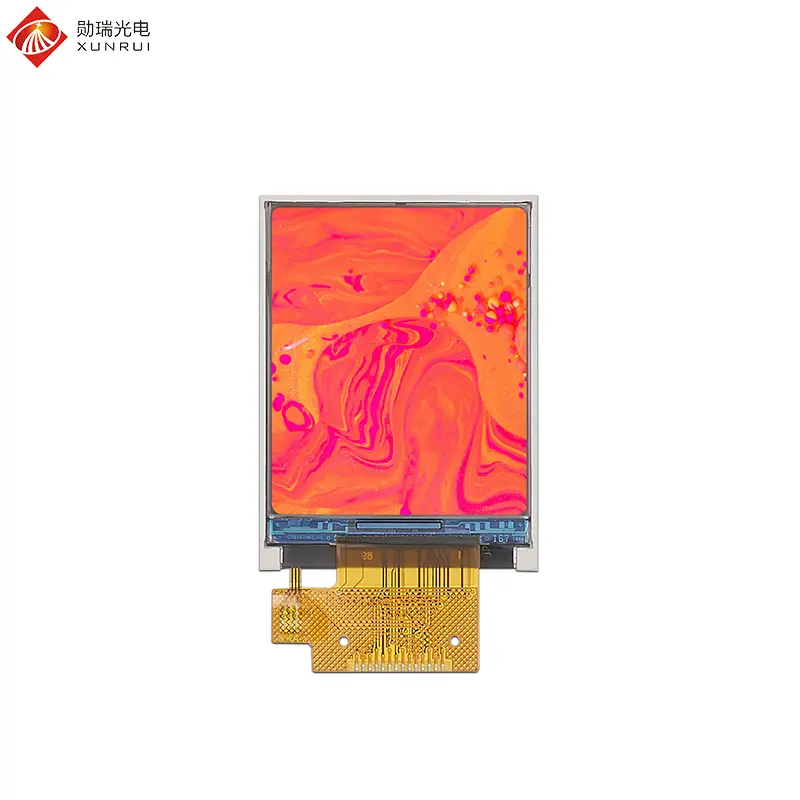

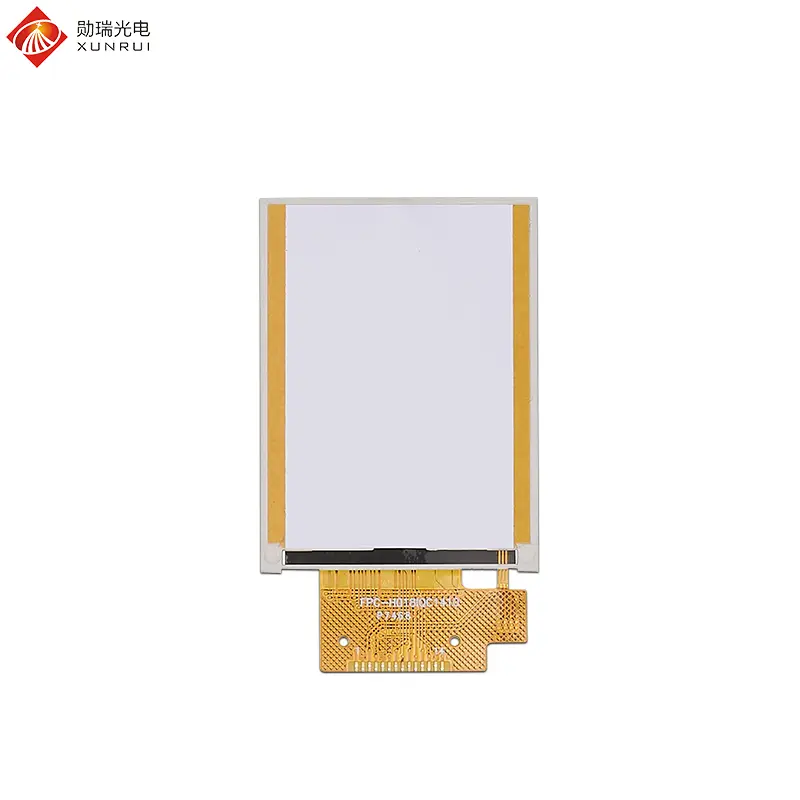

H018IQC14T2510 is a 1.77-inch TFT LCD module. This LCD screen is a small-sized, highly integrated TFT color display, widely used in portable electronic devices and embedded systems, featuring low power consumption, flexible interfaces, and compact size. The resolution is 128×160 (QQVGA), supporting 262K true color display. It has a SPI 14-pin interface. The driving IC is ST7735S. It has strong market applicability and abundant development materials.
Main Applications:
- Smart wearable devices: Smart watches, health bands, Bluetooth earphone charging cases, etc.
- Medical monitoring equipment: Blood oxygen meters, thermometers, portable ECG monitors.
- Consumer electronics: Digital photo frames, small household appliances (coffee machines, water purifiers), video intercom systems.
- Instruments and meters: Multimeters, pressure gauges, flow meters, CNC equipment.
❓ Frequently Asked Questions
What is the resolution of the H018IQC14T2510 LCD module?
The module features a resolution of 128×160 (QQVGA), supporting 262K true colors.
What type of interface does this 1.77-inch display use?
It uses a 14-pin SPI interface, making it easy to integrate with various microcontrollers.
Which driver IC is used in this TFT LCD?
This display is powered by the widely supported ST7735S driver IC.
What are the operating temperature limits?
The operating temperature range is -20℃ to +70℃, with storage capability from -30℃ to +80℃.
Is touch functionality available for this model?
The standard model comes without a touch screen, but a touch panel is optional.
Can this display be used for medical equipment?
Yes, it is ideal for medical devices like blood oxygen meters and thermometers due to its compact size and clear visualization.
