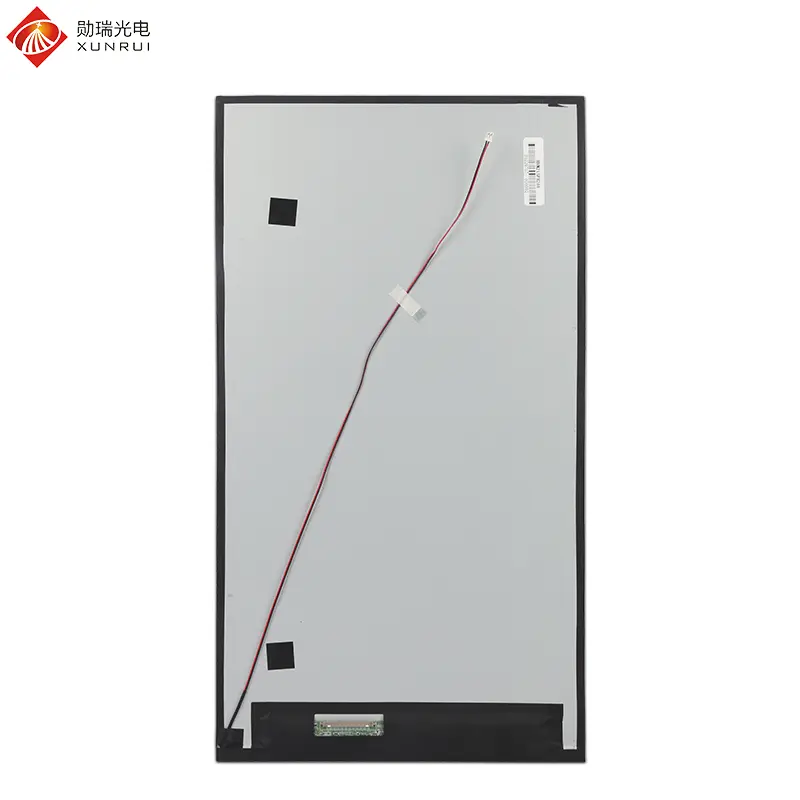

Product Description

HBM215FH20A is a 21.5-inch TFT LCD module with a vertical display. The 21.5-inch TFT LCD Display is currently the mainstream choice among medium to large-sized display devices. It is equipped with an LVDS 30-pin interface, featuring a full HD resolution of 1080×1920 (FHD) and a moderate screen size. It achieves a good balance between visual comfort, information carrying capacity and cost, and is widely used in various fields such as commercial displays, education and conferences. For example, commercial self-service terminals: applied in commercial advertising all-in-one machines, elevator advertising display screens, self-service vending machines, meal pickup cabinets, charging piles and other human-computer interaction devices. Education and conference systems: integrated into a single machine, used for teaching demonstrations, remote meetings, etc. Some models support IP65 protection, capacitive touch, and wide temperature operation (-30°C to 85°C), suitable for industrial control, medical, self-service terminals and other scenarios.

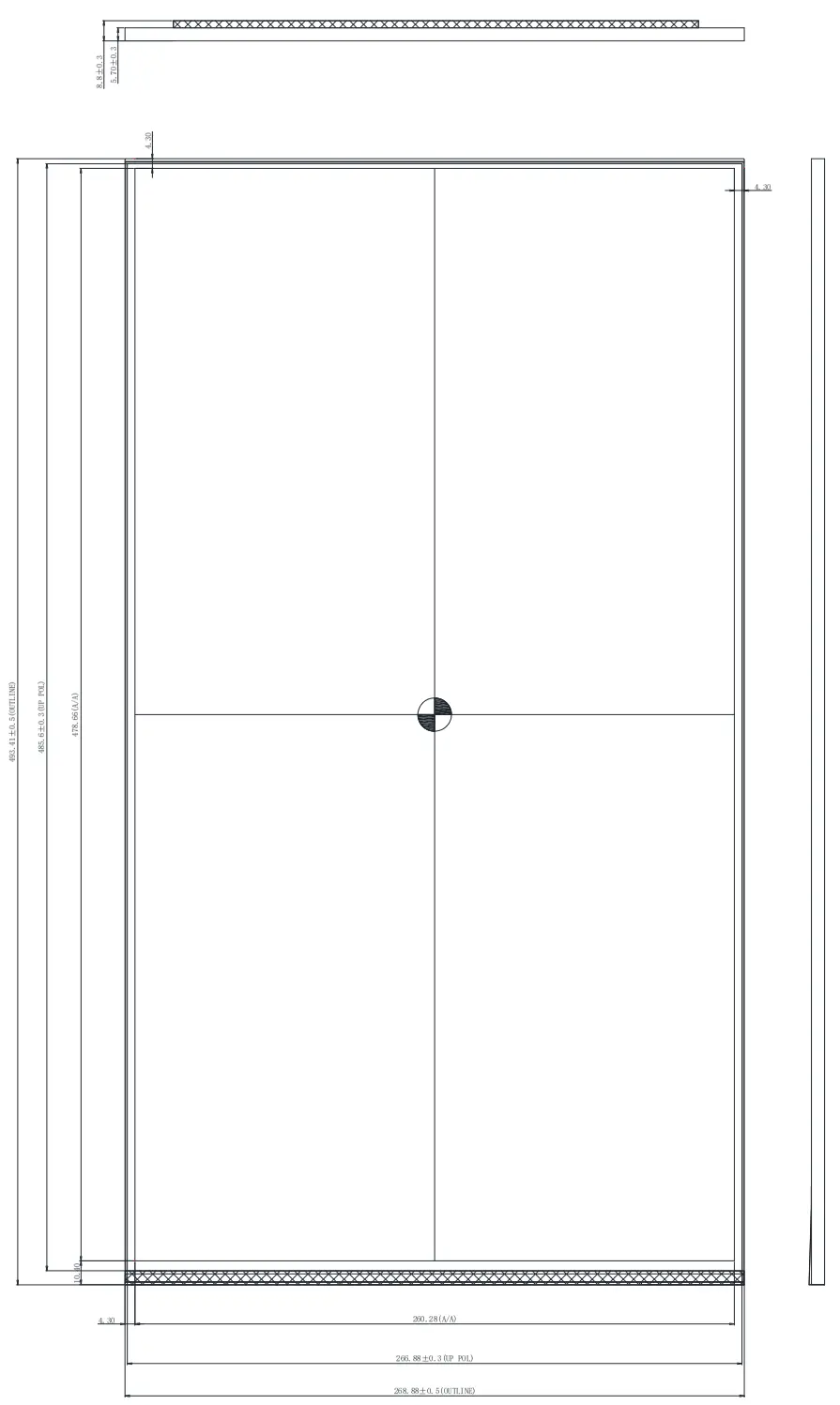

Mechanical Drawing

Mechanical Drawing 21.5 inch LCD
📋

Specification Parameters

Feature Spec
Model NameHBM215FH20A
LCD Size21.5 inch
Display Format1080×1920
InterfaceLVDS 30pin
Luminance250 cd/m2
Touch screenNone, optional
Viewing DirectionALL
Color Depth16.7 M
LCM (W x H x D) (mm)268.88 (H)*493.41(V) *5.7(D)
Active Area(mm)260.28(H)*478.656(V)
Operating Temperature-20℃ ~ +70℃
Storage Temperature-30℃ ~ +80℃
Operating Voltage48V
🔌

Interface Definition

Pin No. Symbol Description
1RXO0-Negative Transmission data of Pixel 0 (ODD)
2RXO0+Positive Transmission data of Pixel 0 (ODD)
3RXO1-Negative Transmission data of Pixel 1 (ODD)
4RXO1+Positive Transmission data of Pixel 1 (ODD)
5RXO2-Negative Transmission data of Pixel 2 (ODD)
6RXO2+Positive Transmission data of Pixel 2 (ODD)
7STBYB(NC)Reserved for manufacturer use (No Connection)
8RXOC-Negative Transmission Clock (ODD)
9RXOC+Positive Transmission Clock (ODD)
10RXO3-Negative Transmission data of Pixel 3 (ODD)
11RXO3+Positive Transmission data of Pixel 3 (ODD)
14GNDPower Ground
28-30VDDPower Supply: +5V(4.5V~5.5V)
?

Frequently Asked Questions

What is the resolution of the HBM215FH20A module?
The module features a Full HD resolution of 1080×1920 (FHD) in a vertical display orientation.
What type of interface does this 21.5-inch LCD use?
It is equipped with a standard LVDS 30-pin interface, making it compatible with many industrial and commercial controller boards.
Can I add a touch screen to this display?
Yes, while the standard model comes without a touch screen, a capacitive touch panel is optional based on your project requirements.
What is the operating temperature range?
The HBM215FH20A supports an operating temperature range of -20°C to +70°C, suitable for most indoor and semi-outdoor environments.
What are the primary applications for this 21.5-inch module?
It is widely used in commercial self-service terminals, vending machines, advertising screens, education systems, and medical human-computer interaction devices.
Does it support wide viewing angles?
Yes, the viewing direction is listed as "ALL," indicating excellent visibility from various angles.
