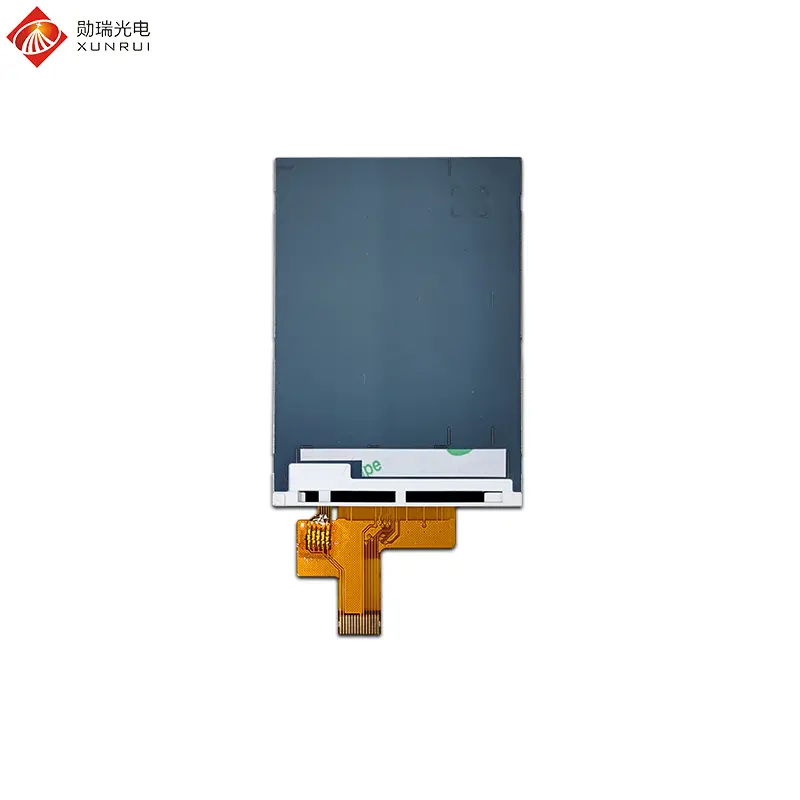

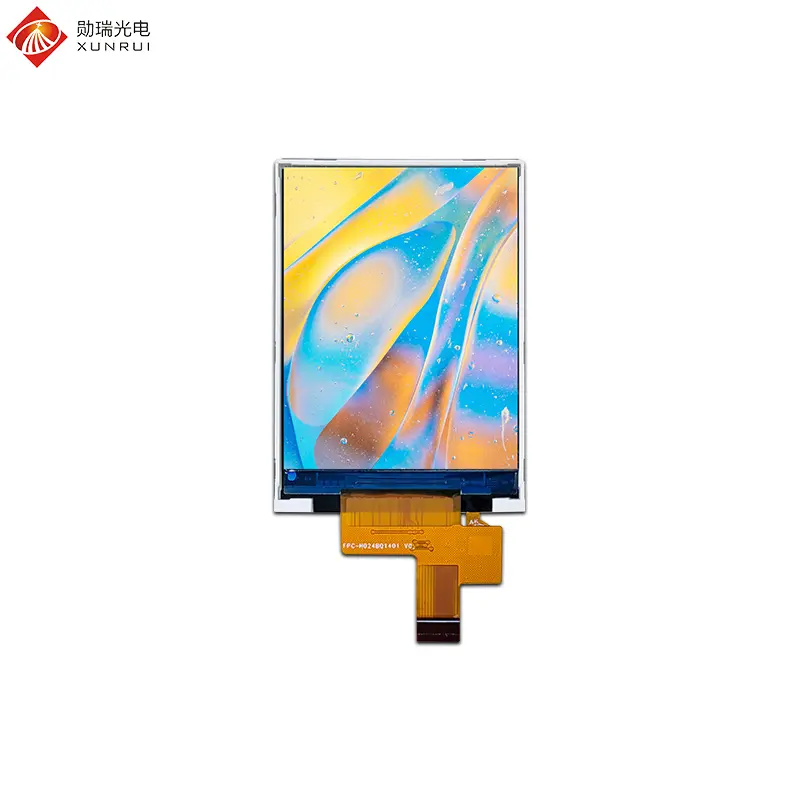

H024BQ14I2501 is a 2.4-inch TFT LCD module with a full viewing Angle. This LCD screen adopts an ips panel, with a wide-temperature design that can withstand operating temperatures ranging from -30℃ to +85℃. It has a resolution of 240×320 and an SPI 4-line 14-pin interface. ST7789V Driver IC, 250nit brightness. This 2.4-inch TFT LCD screen is mainly applied in consumer electronic products: including learning machines, electronic photo albums, game consoles, handheld audio and video players, handheld and portable devices: such as portable navigation devices, law enforcement recorders, industrial equipment: PLC controllers, medical instruments: portable ultrasound devices, and other fields.

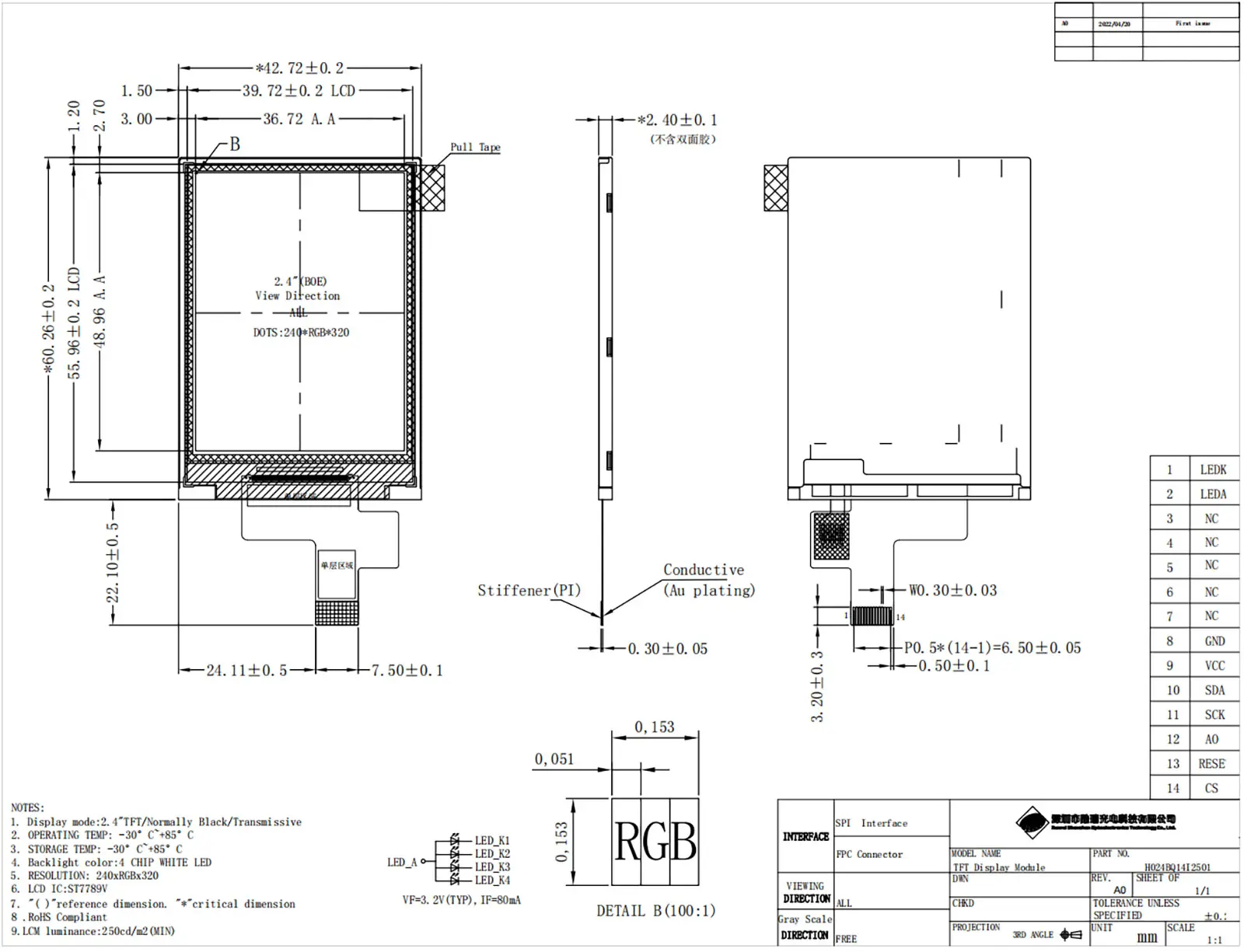

| Feature | Spec |
| Model Name | H024BQ14I2501 |
| LCD Size | 2.4 inch |
| Display Format | 240*320 |
| Interface | SPI 4 Line 14pin |
| Luminance | 250 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL (IPS) |
| Color Depth | 65K |
| Driver IC | ST7789V |
| LCM (W x H x D) (mm) | 42.72(W)*60.26(H)*2.40 (T) |
| Active Area(mm) | 36.72(W)*48.96(H) |
| Operating Temperature | -30℃ ~ +85℃ |
| Operating Voltage | 3.3V |
| PIN NO | PIN NAME | DESCRIPTION |
| 1 | LEDK | LED backlight cathode |
| 2 | LEDA | Backlight LED Anode |
| 8 | GND | System Ground |
| 9 | VCC | power supply 2.8V/3.3V |
| 10 | SDA | Serial Data |
| 11 | SCK | Serial Clock |
| 12 | AO | Data/command selection |
| 13 | RESET | Reset signal input |
| 14 | CS | Chip select |
