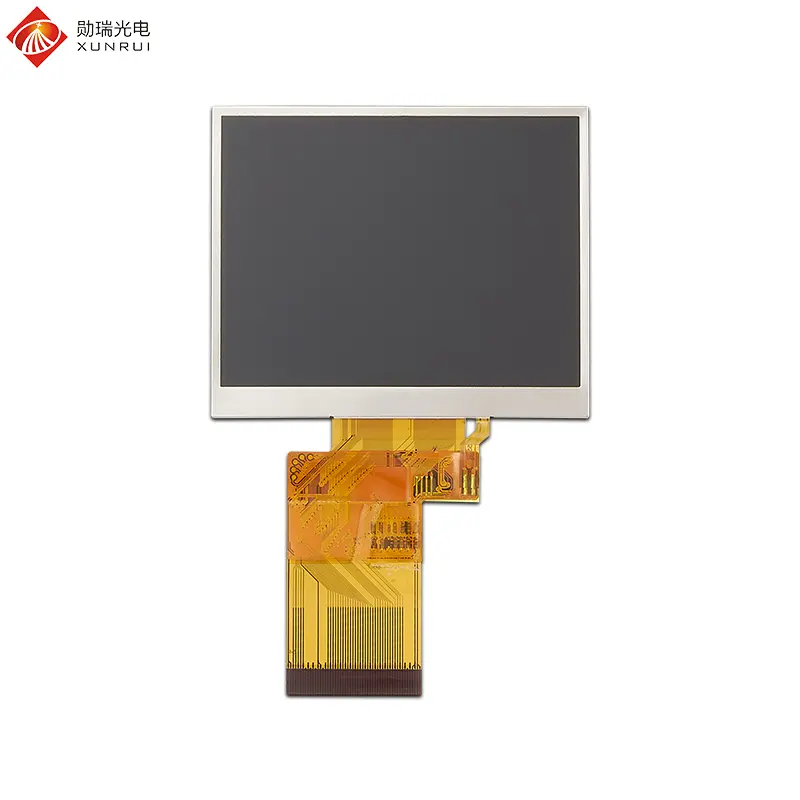

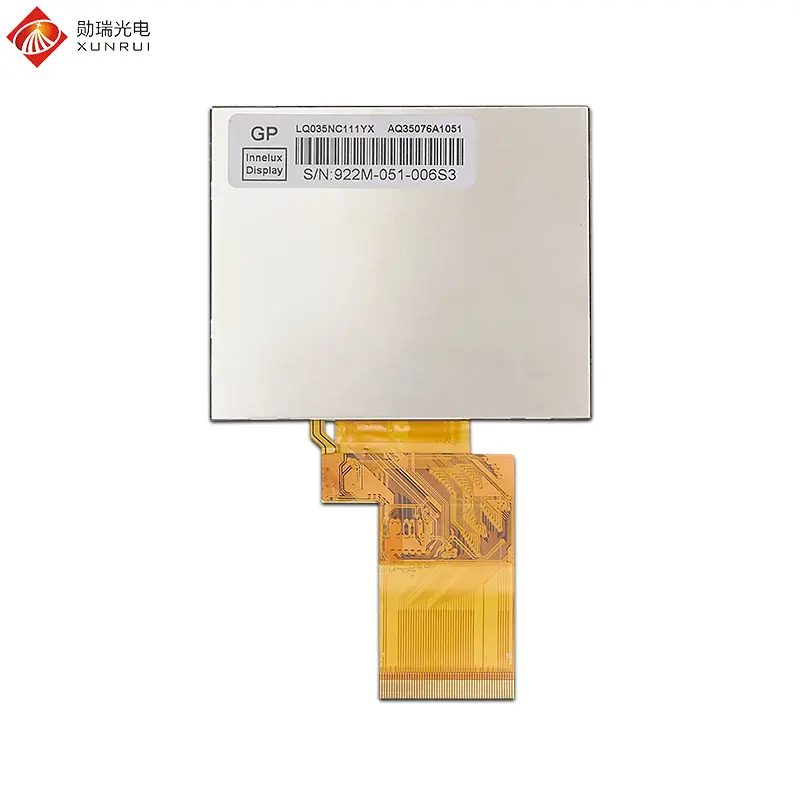

The H035TQ54E3501 is a high-performance 3.5-inch TFT LCD module designed for durability and precision. Utilizing a TN panel, this module is engineered to withstand demanding environments with an operating temperature range from -20°C to +70°C. It features a sharp 320×240 resolution, supported by a 24-bit RGB 54-pin interface and the NV3035 Driver IC. With a brightness of 350 nits and an optional touch screen, it provides excellent visibility and interactivity for professional equipment.
Key Applications: This 3.5-inch display is optimized for Industrial Control systems, including human-machine interfaces (HMI) for CNC machine tools, robotics, and PLC equipment. It is also an ideal choice for Medical Equipment such as portable ultrasound devices and patient monitors, where high-precision imagery and reliable touch operations are critical.
| Feature | Specification |
|---|---|
| Model Name | H035TQ54E3501 |
| LCD Size | 3.5 inch |
| Display Format | 320×240 |
| Interface | 24bit-RGB 54pin |
| Luminance | 350 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O'clock |
| Color Depth | 16.7M |
| Driver IC | NV3035 |

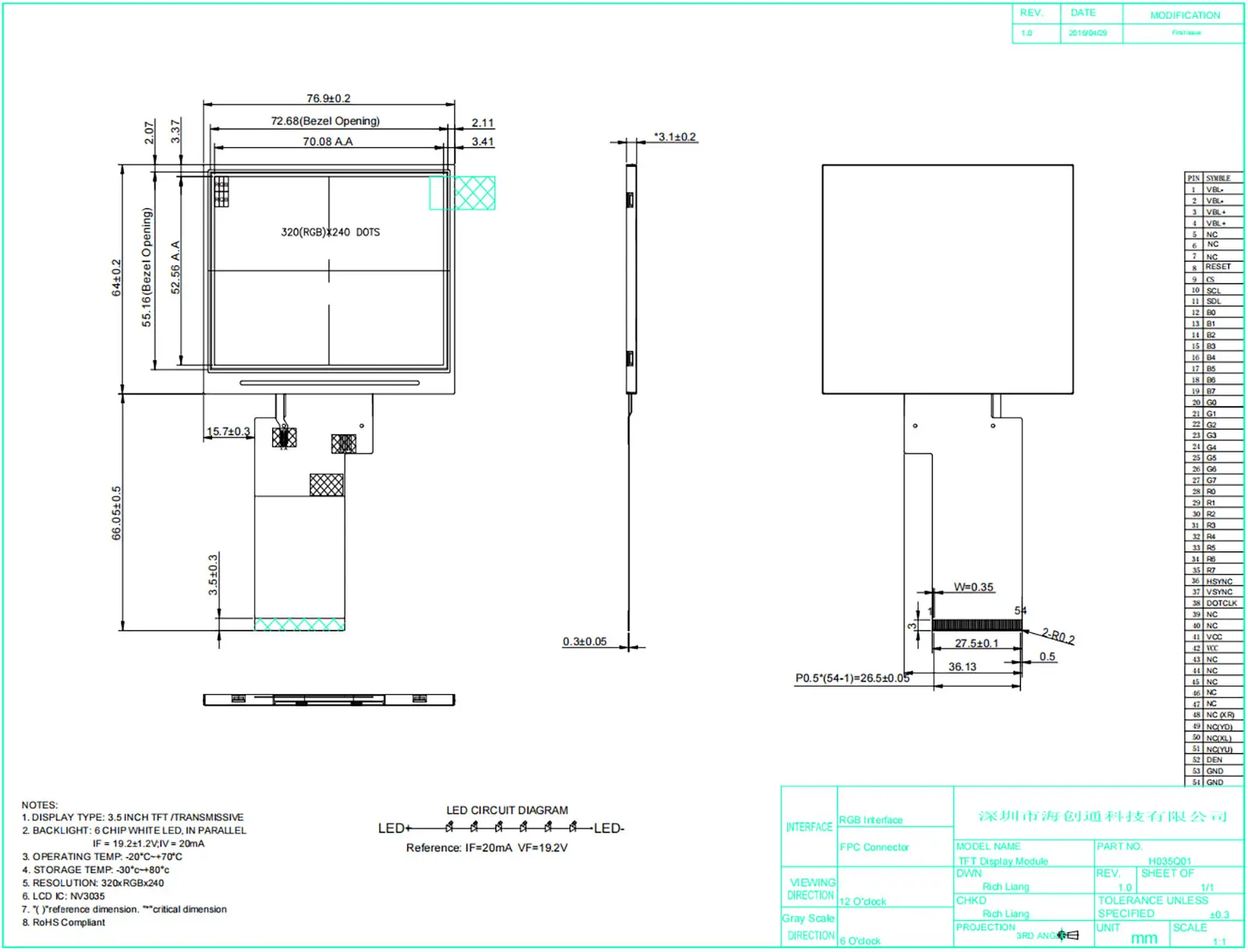

| LCM (W x H x D) (mm) | 76.90 * 64.0 * 3.1 |
| Active Area (mm) | 70.08 x 52.56 |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Operating Voltage | 19.2V |
| No. | Symbol | Description |
|---|---|---|
| 1, 2 | VBL- | Backlight LED Cathode |
| 3, 4 | VBL+ | Backlight LED Anode |
| 5-7 | NC | No Connection |
| 8 | RESET | Reset Signal pin (Low enable) |
| 9 | SPENB | Chip select |
| 10 | SPCK | Serial Clock |
| 11 | SPDA | Serial Data |
| 12-19 | B0~B7 | Data bus (Blue) |
| 20-27 | G0~G7 | Data bus (Green) |
| 28-35 | R0~R7 | Data bus (Red) |
| 36 | HSYNC | Line Synchronous Signal |
| 37 | VSYNC | Frame Synchronous Signal |
| 38 | DOTCLK | Dot-clock signal and oscillator source |
| 41-42 | VCC | Power supply for logic operation |
| 48 | XR | Touch panel right side |
| 49 | YD | Touch panel bottom side |
| 50 | XL | Touch panel left side |
| 51 | YU | Touch panel up side |
| 52 | DEN | Display enable signal |
| 53-54 | GND | System Ground |
