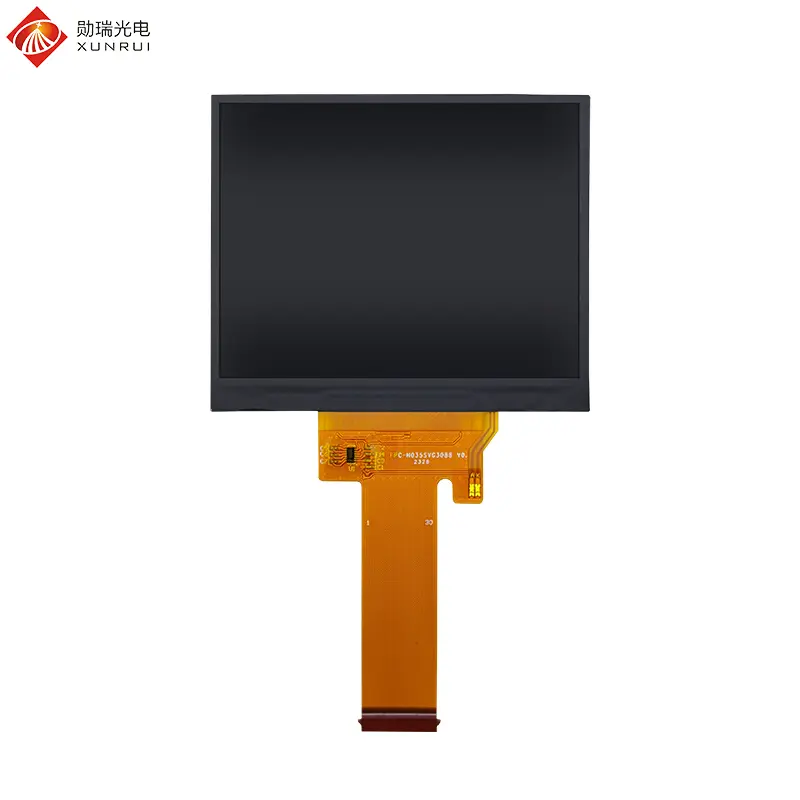

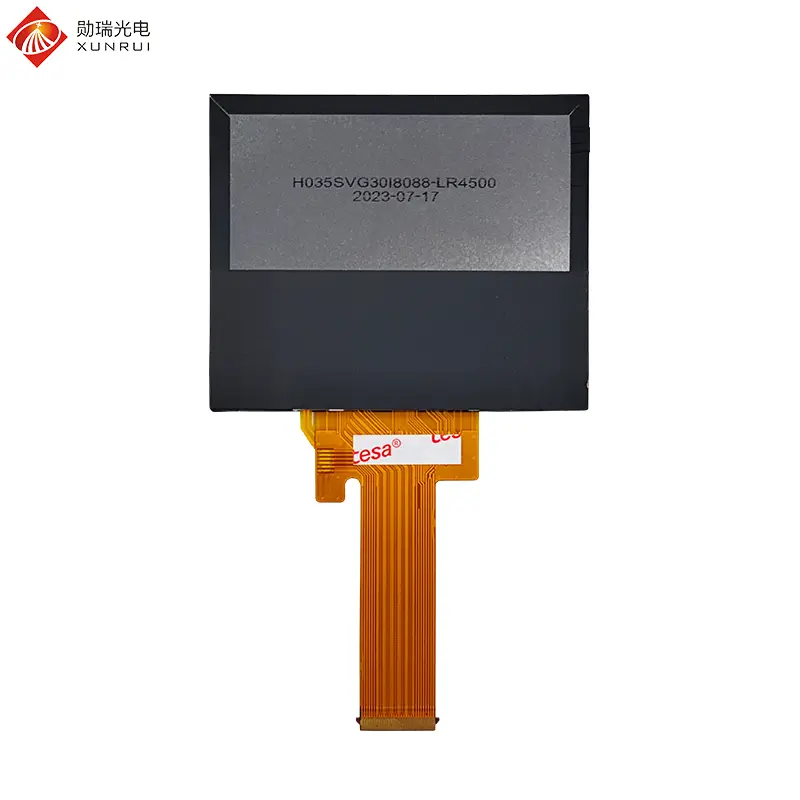

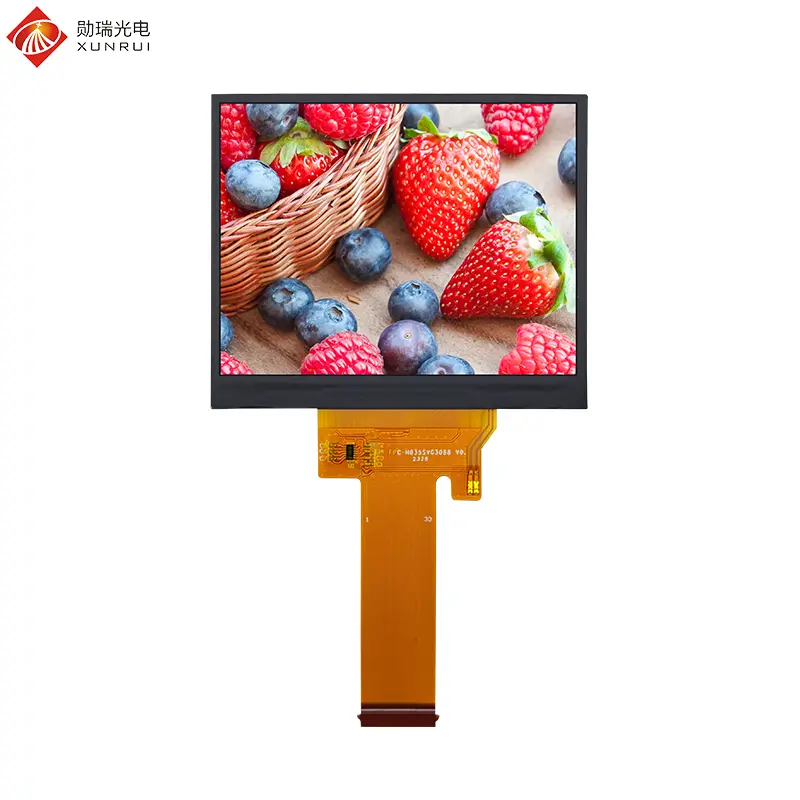

H035SVG30I8088 is a high-definition full-view 3.5-inch TFT LCD module. This LCD screen adopts an IPS panel with a resolution of 640×480, a 4-lane MIPI 30-pin interface, an ST7703 Driver IC, and a brightness of 800 nits. The working temperature can withstand -20℃ to +70℃, and a touch screen can be optionally equipped. This 3.5-inch TFT LCD screen is mainly applied in automotive and avionics: as a display for automotive instrument panels, navigation systems or avionics devices, it can withstand vibration and temperature changes and provide critical data visualization in a limited space. Smart home and instrumentation: It is used for smart home appliance control panels, small sensor devices, remote controls, etc., to achieve a simple and intuitive operation interface.
| Feature | Spec |
| Model Name | H035SVG30I8088 |
| LCD Size | 3.5 inch |
| Display Format | 640×480 |
| Interface | 4 Lane MIPI 30pin |
| Luminance | 800 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | ST7703/ST7703I |

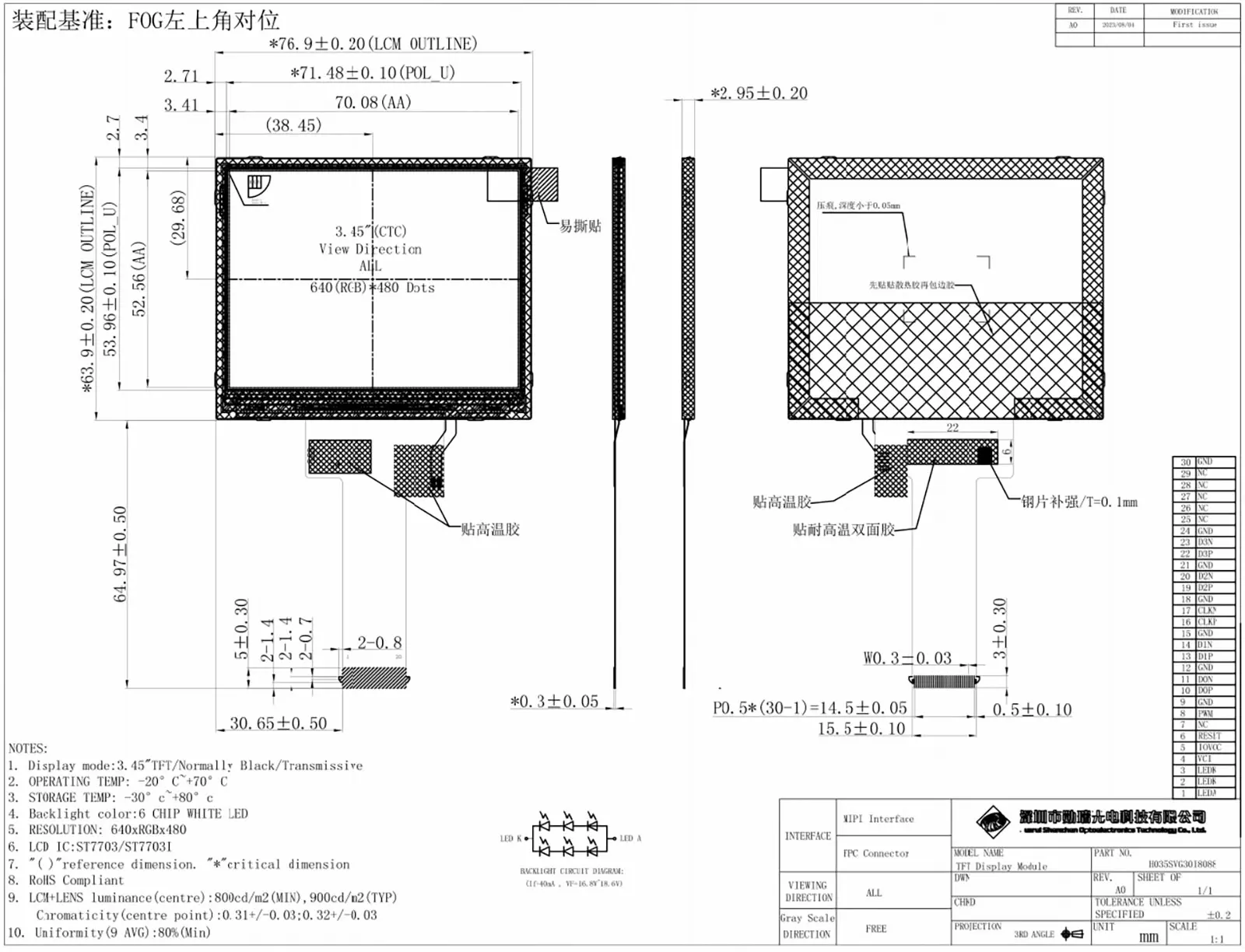

| LCM (W x H x D) (mm) | 74.80(H)*94.08( W)*2.95(T) |
| Active Area(mm) | 52.56(H)*70.08(W) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 17.7V |
| Pin No. | Symbol | I/O | Functional |
| 1 | LEDA | P | LED Power supply + |
| 2~3 | LEDK | P | LED Power supply - |
| 4 | VCI | P | Power supply for analog circuit |
| 5 | IOVCC | P | Power supply for logic circuit. |
| 6 | RESET | I | Reset pin |
| 9 | GND | P | System ground. |
| 10~11 | D0P / D0N | I/O | Data differential signal pins. |
| 16~17 | CLKP / CLKN | I | Clock differential signal input pins. |
2 inch 480×240 RGB 40pin
2.4 inch 240×320 MCU 40pin
2.8 inch 240×320 MCU 30pin
3.5 inch 320×240 RGB 54pin
4.3 inch 800×480 RGB 40pin
5 inch 800×480 High brightness
A1: This module features a high-definition resolution of 640×480 pixels with an IPS panel for wide viewing angles.
A2: It utilizes a 4-lane MIPI 30-pin interface, which is ideal for high-speed data transmission in modern electronic devices.
A3: Yes, with a brightness of 800 nits, this display provides excellent visibility even in bright environments.
A4: Yes, it supports an operating temperature range from -20°C to +70°C, making it suitable for automotive and industrial use.
A5: The standard model does not include a touch screen, but a capacitive or resistive touch screen can be optionally equipped based on your requirements.
A6: It is widely used in automotive instrument panels, avionics devices, smart home control panels, and various industrial instrumentation.
