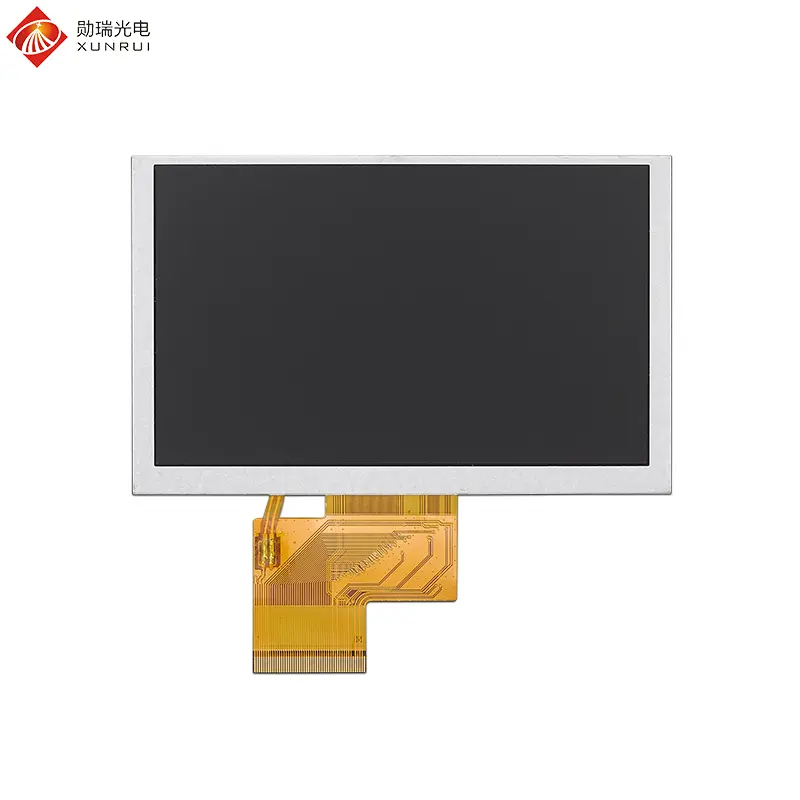

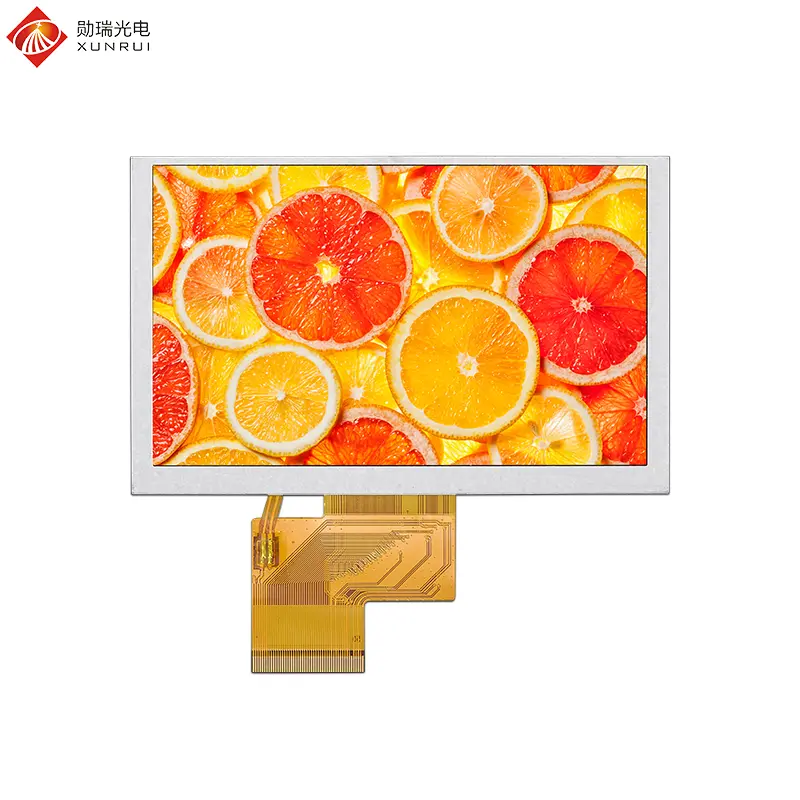

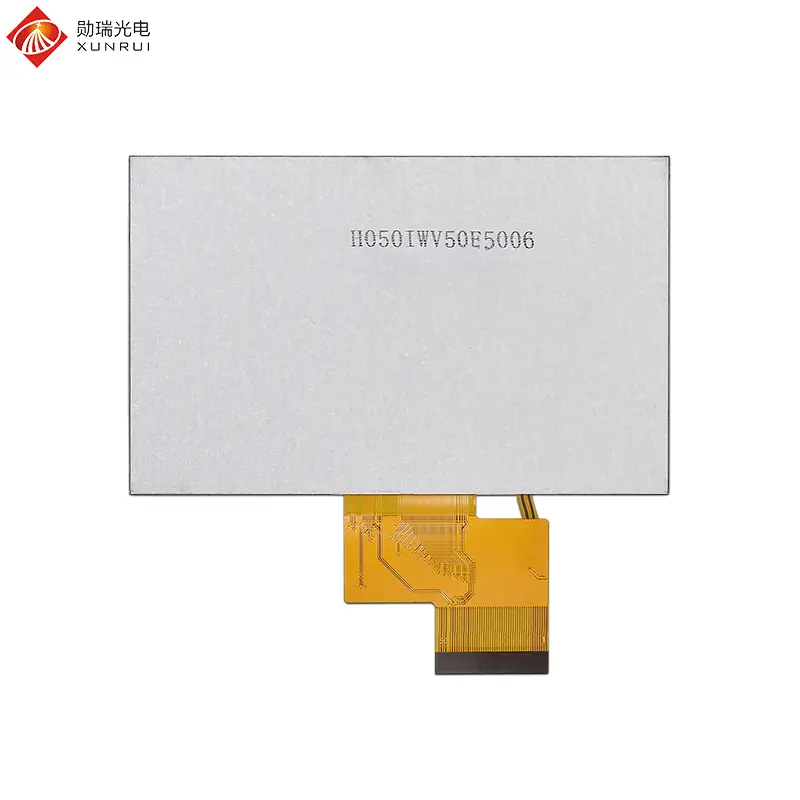

H050IWV50E5006 is a 5 inch TFT LCD module. This LCD screen uses a TN panel, with a resolution of 800×480 (approximately 187 PPI), and offers true color reproduction, wide viewing angles, making it suitable for text and image as well as video display. It features a 24-bit RGB 50-pin interface, a brightness of 500 nit, and can withstand a working temperature range of -20°C to +70°C.
It can be optionally equipped with a resistive touch screen or a capacitive touch screen. This 5 inch TFT LCD Display is mainly applied in industrial control and automation: as the HMI panel for PLC or equipment, it displays parameters and curves, and is suitable for harsh environments. It is also applicable in home and IoT: used in smart speakers, surveillance cameras, etc., providing a touch operation interface.
It is used in vehicle and navigation systems: displaying maps and real-time images, with a size suitable for vehicle space. It is used in medical and portable devices: for monitoring equipment, clearly displaying waveforms, meeting medical standards. It is also used in smart agriculture and drones: displaying real-time data and flight trajectories to improve operational efficiency. This 5 inch screen is a mature solution in the industrial and consumer electronics fields, balancing size, resolution, and cost. If you are developing industrial control or vehicle equipment, it is worth giving special consideration.
| Feature | Spec |
| Model Name | H050IWV50E5006 |
| LCD Size | 5 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 50pin |
| Luminance | 500 cd/m2 |
| Touch screen | None, optional |
| Viewing Direction | 12 O’clock |
| Color Depth | 16.7M |

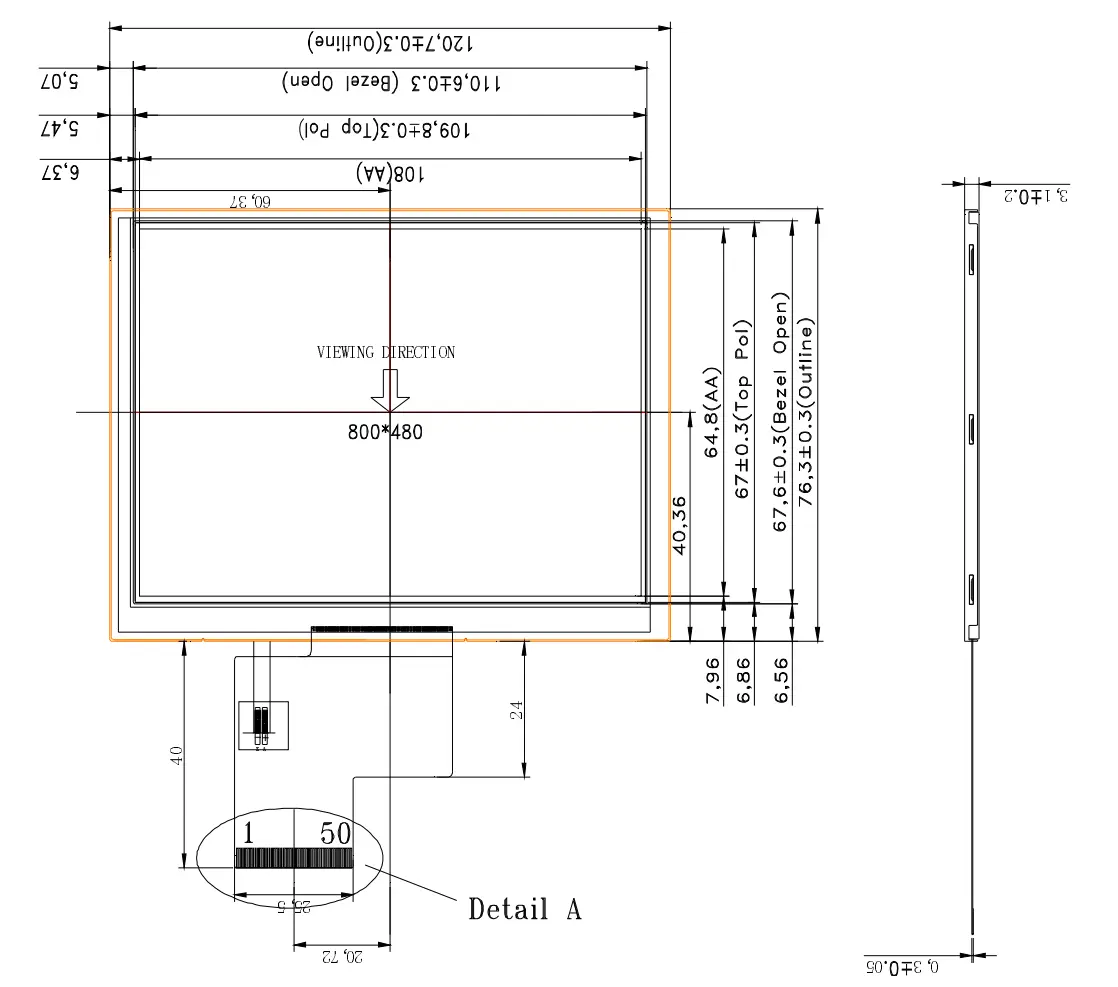

| LCM (W x H x D) (mm) | 120.2*75.9*3 |
| Active Area(mm) | 108 x 64.80 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 19.2V |
| No. | Symbol | Description |
| 1,2 | VLED+ | Power for LED backlight (Anode) |
| 3,4 | VLED- | Power for LED backlight (Cathode) |
| 5 | GND | Power Ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for Digital Circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data Enable |
| 10 | VS | Vertical sync signal |
| 11 | HS | Horizontal sync Signal |
| 12-19 | B7-B0 | Blue data |
| 20-27 | G7-G0 | Green data |
| 28-35 | R7-R0 | Red Data |
| 36 | GND | Power Ground |
| 37 | DCLK | Pixel clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left/right selection |
| 40 | U/D | up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | Vcom | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49,50 | NC | No connection |
