Product Description

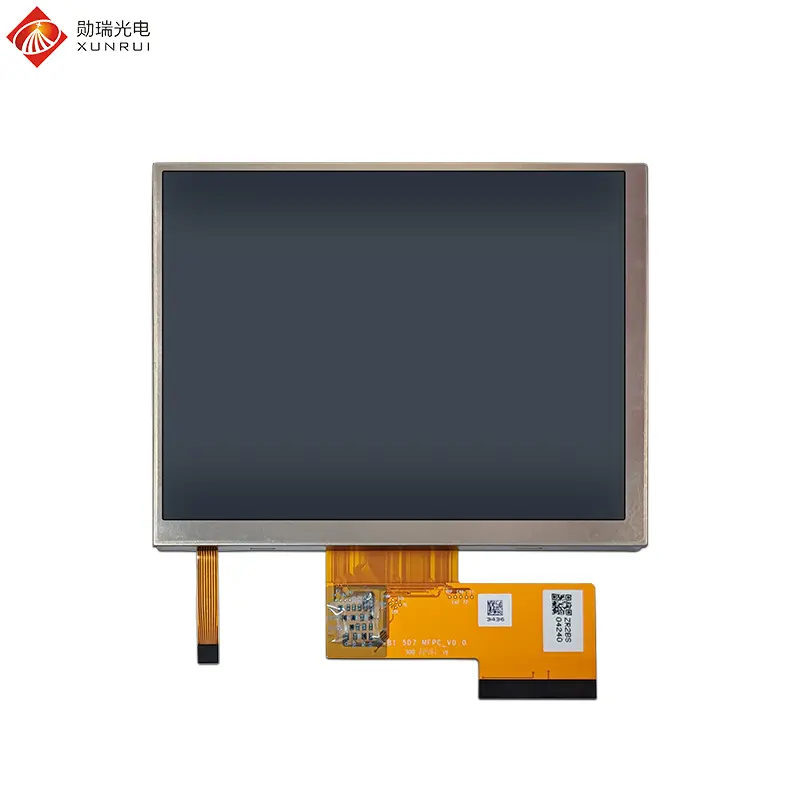

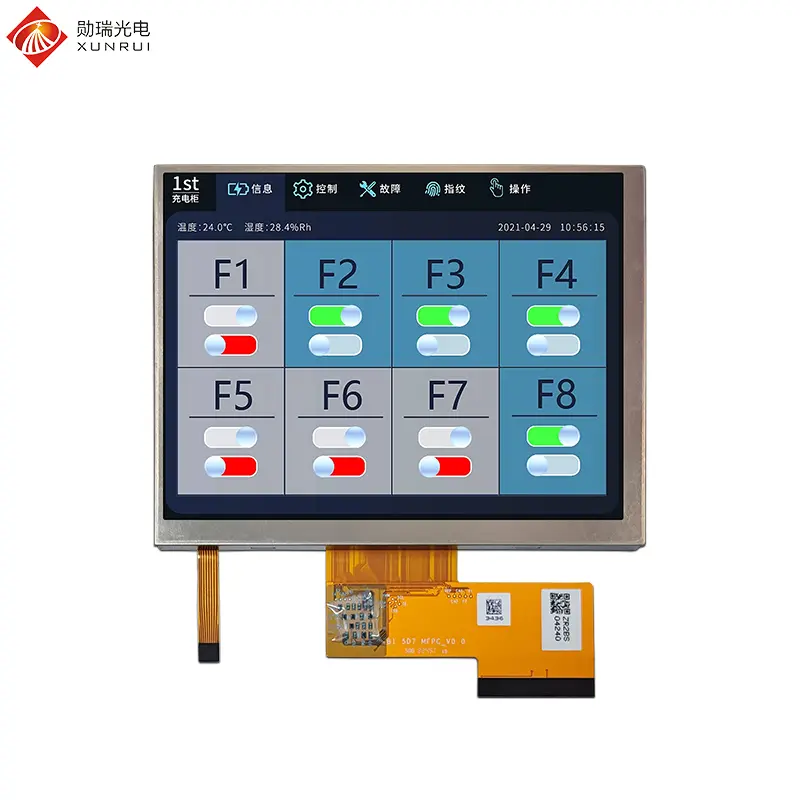

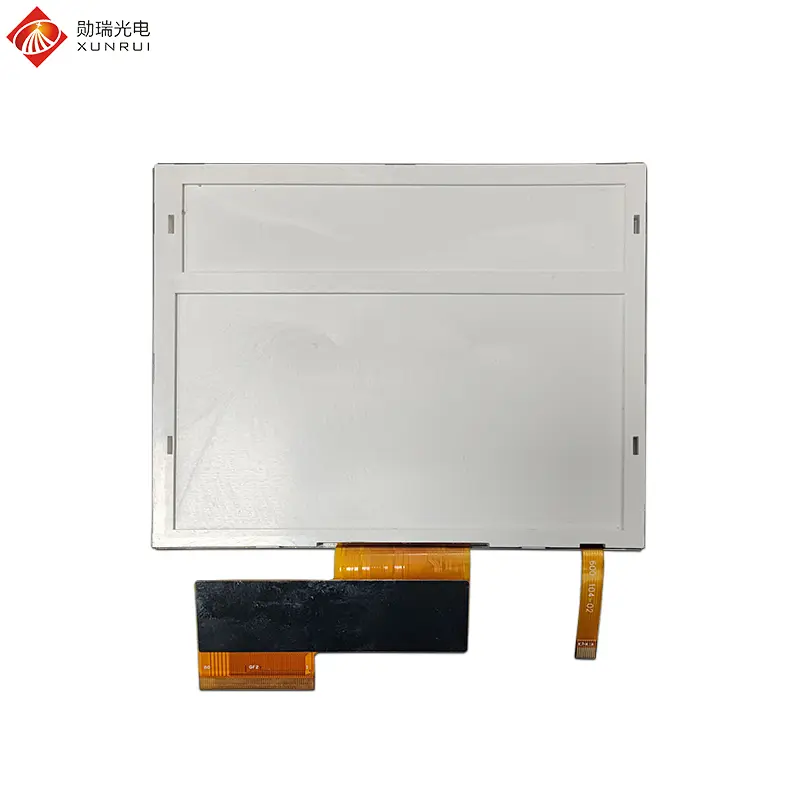

H057BWV60I3501 is a 5.7-inch TFT LCD module with a resolution of 640×480 (VGA), featuring RGB LVDS MIPI 60-pin interface. It supports mainstream main control chips such as ARM, STM32, and PLC, and is compatible with various industrial control systems. It supports 16.7M true color (24-bit), meeting the color reproduction requirements of most industrial and medical scenarios. LED backlight + dynamic adjustment technology reduces power consumption by more than 20%, has a lifespan of over 50,000 hours, and reduces maintenance costs.

This 5.7-inch TFT LCD Display is mainly used in:

Industrial control: Human-Machine Interface (HMI), Robot control (path planning, torque feedback).
Medical equipment: Monitors (electrocardiogram, blood oxygen), Portable ultrasound machines.
Smart terminals: Smart locks, environmental monitoring, POS machines, and handheld scanners.

The 5.7-inch 640×480 LCD screen is a standard-sized TFT LCD module, making it a "classic choice" in embedded systems due to its stable performance and interface compatibility.

★

Featured Display Modules

2 inch 480×240 RGB 40pin 150nit TN TFT

2.4 inch 240×320 MCU 40pin 250nit TN TFT

2.8 inch 240×320 MCU 30pin 250nit TN TFT

3.5 inch 320×240 RGB 54pin 350nit TN TFT

4.3 inch 800×480 RGB 40pin 300nit IPS

5 inch 800×480 1200nit High brightness TN

✍

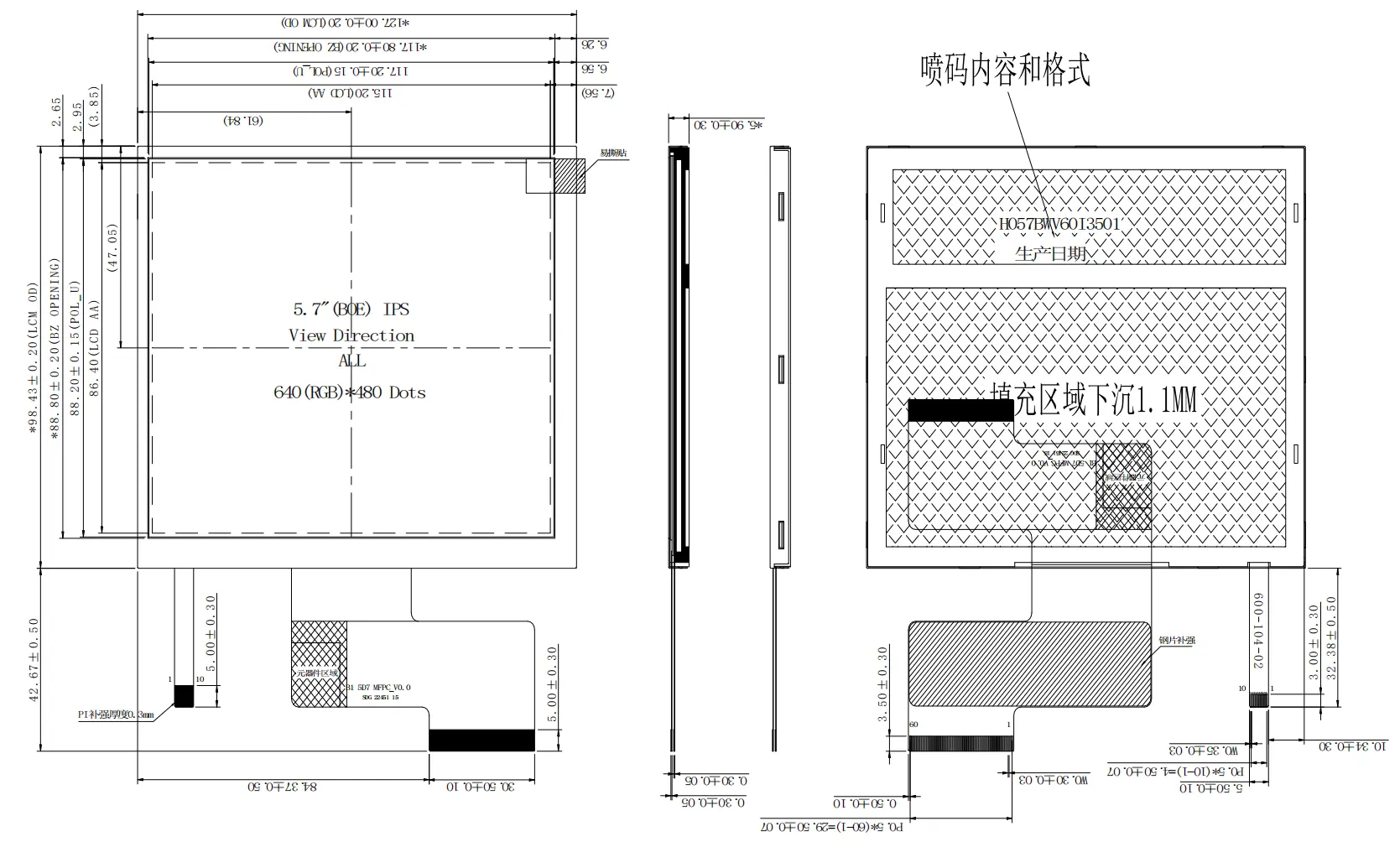

Mechanical Drawing

📋

Specification Parameters

Feature	Specification
Model Name	H057BWV60I3501
LCD Size	5.7 inch
Display Format	640×480
Interface	RGB & LVDS & MIPI 60pin
Luminance	350 cd/m2
Touch screen	None, optional
Viewing Direction	ALL (IPS/Full Viewing)
Color Depth	16.7M
Driver IC	JD9168S
LCM (W x H x D) (mm)	12798.435.9
Active Area (mm)	115.2(H) x 86.4(V)
Operating Temp	-20℃ ~ +70℃
Storage Temp	-30℃ ~ +80℃
Operating Voltage	9.0V

⚙

Interface Definition

Pin	Name	Description	Pin	Name	Description	Pin	Name	Description	Pin	Name	Description
1	SDA	SPI data	16	G3	RGB data	31	LANO	lane mode	46	DON	LVDS DON
2	CSX	Chip select	17	G4	RGB data	32	LANI	lane mode	47	DOP	LVDS DOP
3	SCL	SPI clock	18	G5	RGB data	33	LVFMT	LVDS format	48	D1N	LVDS DIN
4	RESX	Reset	19	G6	RGB data	34	STBYB	standy mode	49	D1P	LVDS DIP
5	B0	RGB data	20	G7	RGB data	35	IM1	IF mode	50	CKN	LVDS CKN
6	B1	RGB data	21	RO	RGB data	36	IMO	IF mode	51	CKP	LVDS CKP
7	B2	RGB data	22	R1	RGB data	37	DCLK	RGB clock	52	D2N	LVDS D2N
8	B3	RGB data	23	R2	RGB data	38	DE	Data enable	53	D2P	LVDS D2P
9	B4	RGB data	24	R3	RGB data	39	VS	V-sync	54	D3N	LVDS D3N
10	B5	RGB data	25	R4	RGB data	40	HS	H-sync	55	D3P	LVDS D3P
11	B6	RGB data	26	R5	RGB data	41	DS2	lane seq	56	IOVCC	Power
12	B7	RGB data	27	R6	RGB data	42	DS1	lane seq	57	AVDD	Power
13	G0	RGB data	28	R7	RGB data	43	DS0	lane seq	58	AVEE	Power
14	G1	RGB data	29	GS	gate scan	44	PS	lane seq	59	VPP	OTP power
15	G2	RGB data	30	SS	source scan	45	GND	Ground	60	GND	Ground

Frequently Asked Questions

What interfaces does this 5.7-inch TFT LCD support?

This module is highly versatile, supporting RGB, LVDS, and MIPI 60-pin interfaces, making it compatible with various controllers like STM32 and ARM.

Is this display suitable for medical equipment?

Yes, with its 16.7M true color support and high contrast, it is ideal for medical monitors and portable ultrasound machines where detail is critical.

What is the lifespan of the backlight?

The LED backlight features dynamic adjustment technology and offers a lifespan of over 50,000 hours, significantly reducing maintenance costs.

Can I add a touch screen to this module?

While the standard H057BWV60I3501 model does not include a touch screen, capacitive or resistive touch panels are available as optional upgrades.

What are the operating temperature limits?

The module is designed for industrial environments, operating reliably between -20°C and +70°C, and can be stored from -30°C to +80°C.

Does this display offer wide viewing angles?

Yes, it features an "ALL" viewing direction (Full Viewing Angle), ensuring clear visibility from almost any perspective.
