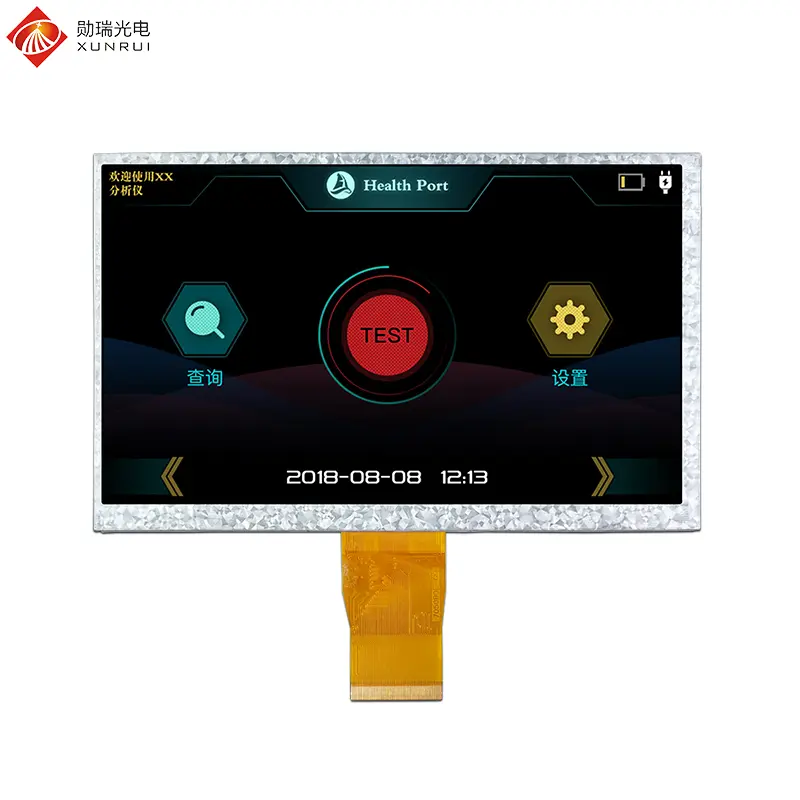

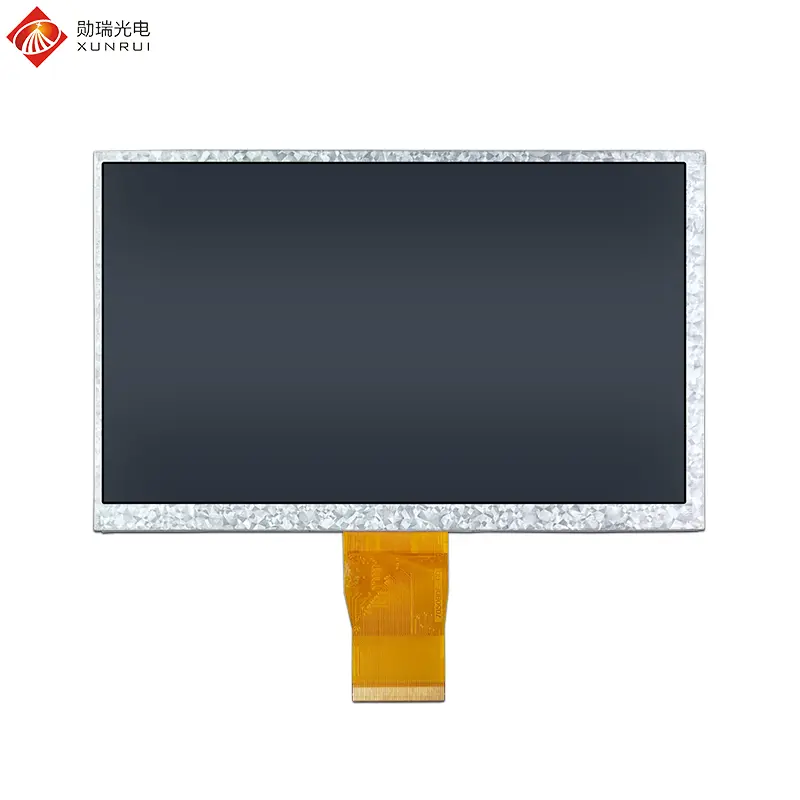

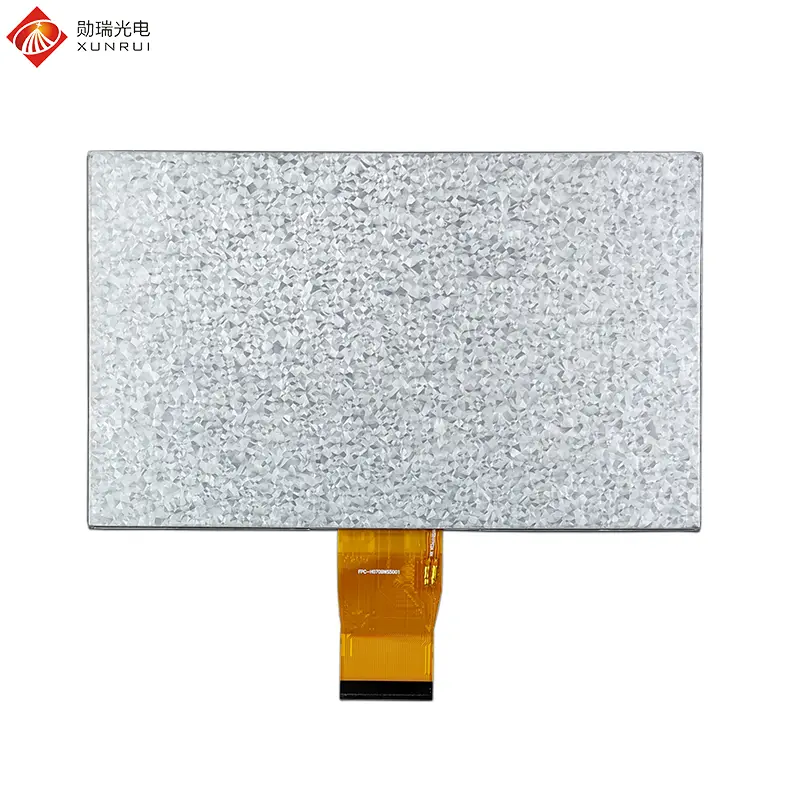

H070BWS50E3511 is a 7-inch TFT LCD display module utilizing a TN panel with a resolution of 1024x600. It features an RGB 50-pin interface, supporting parallel data transmission, making it highly compatible with traditional MCUs or embedded motherboards. With a brightness of 350 nits, this industrial-grade product ensures reliable performance and can be customized with optional resistive or capacitive touch screens to suit diverse project requirements.
🏭 Industrial Control

Perfect for PLC panels, HMI, and CNC machine monitoring.

🏥 Medical Devices

Applied in nucleic acid extraction instruments and portable monitors.

🏠 Smart Home

Ideal for central control hubs and environmental monitoring terminals.

Featured TFT LCD Modules

2 inch TFT LCD
2 inch 480x240 RGB 40pin
2.4 inch TFT LCD
2.4 inch 240x320 MCU interface
2.8 inch TFT LCD
2.8 inch 240x320 MCU 30pin
3.5 inch TFT LCD
3.5 inch 320x240 RGB 54pin
4.3 inch TFT LCD
4.3 inch 800x480 RGB IPS
5 inch TFT LCD
5 inch 800x480 1200nit High Brightness

Mechanical Drawing

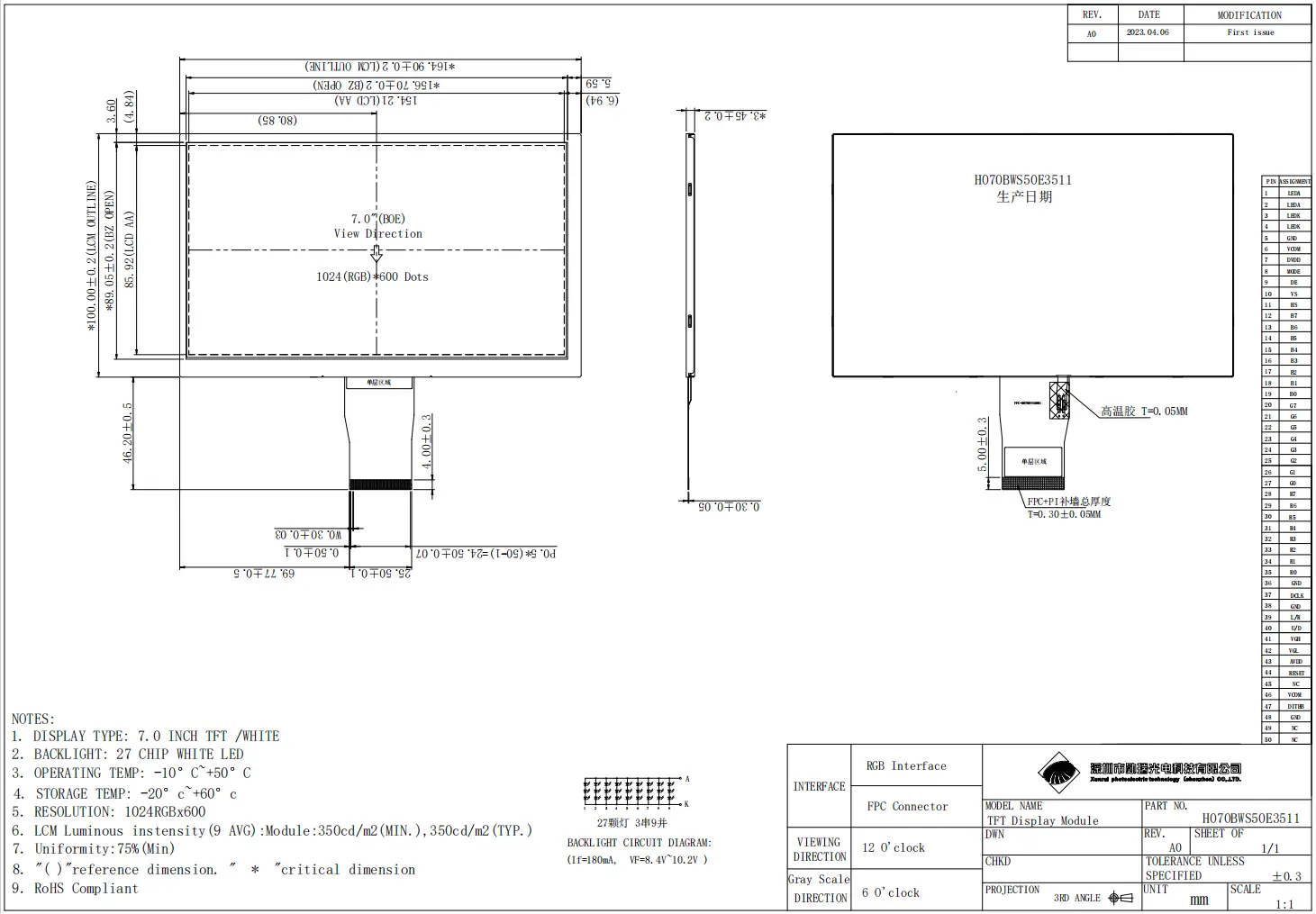

7 inch TFT LCD screen drawing

Specification Parameters

Feature Specification
Model NameH070BWS50E3511
LCD Size7 inch
Display Format1024x600
InterfaceRGB 50pin
Luminance350 cd/m2
Viewing Direction12 O'clock
Color Depth16.7M
LCM (W x H x D) (mm)164.9 * 100 * 3.45
Active Area (mm)154.21 * 85.92
Operating Temp-10°C ~ +50°C
Operating Voltage9.3V

Interface Definition (Summary)

No. Symbol Description
1,2LEDALED Anode
3,4LEDKLED Cathode
5GNDPower Ground
7DVDDPower for Digital Circuit
9DEData Enable
10VSVertical Sync Signal
11HSHorizontal Sync Signal
12-19B7-B0Blue Data Bits
20-27G7-G0Green Data Bits
28-35R7-R0Red Data Bits
37DCLKPixel Clock
41VGHGate ON Voltage
44RESETGlobal Reset Pin

Frequently Asked Questions

1. What is the resolution of the H070BWS50E3511 module?
The module features a high-definition resolution of 1024x600 pixels, providing clear and sharp imagery for industrial and commercial displays.
2. Does this 7-inch LCD support touch functionality?
The standard model comes without touch, but it is optionally compatible with both resistive and capacitive touch screens based on your specific application needs.
3. What type of interface does this display use?
It uses a standard RGB 50-pin interface, which is widely compatible with most industrial MCUs and embedded systems for parallel data transmission.
4. Can this LCD be used in outdoor environments?
With a brightness of 350 nits, it is ideal for indoor industrial use. For direct sunlight outdoor applications, please consult us for a higher brightness version (up to 1000+ nits).
5. What are the typical applications for this module?
Common applications include Industrial HMI panels, medical monitoring equipment, smart home central controls, and automated vending machines.
6. What is the operating temperature range?
The device operates reliably between -10°C and +50°C, suitable for most controlled industrial environments.
