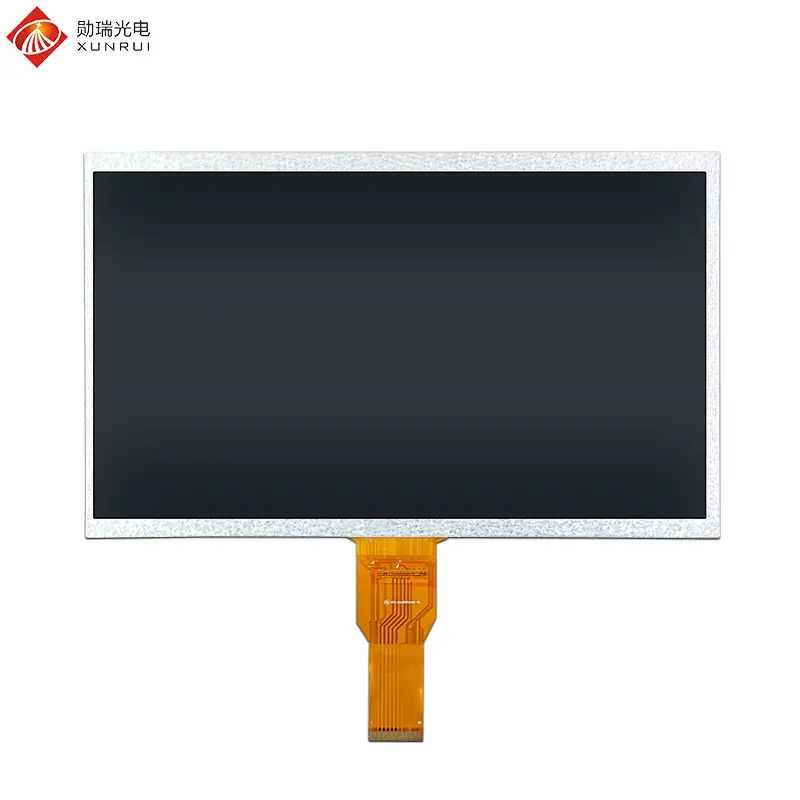

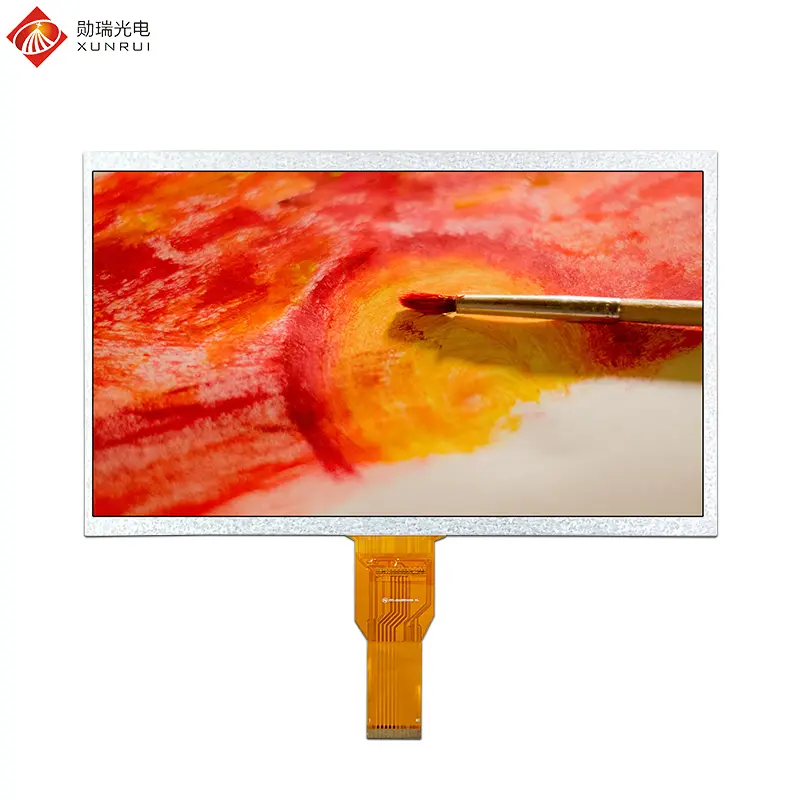

H101BWS40I1K006 is a high-brightness 10.1-inch TFT LCD module. This LCD screen uses an IPS panel and supports full-view display of over 85 degrees. When viewed from left, right, top, or bottom, the colors remain stable without obvious color deviation, enhancing the experience for collaborative work or operation from different angles. The resolution is 1024×600 (WSVGA), with a width-to-height ratio of 16:9. It has a LVDS 40-pin interface, featuring strong anti-interference capabilities, suitable for long-distance transmission.

The brightness is 1000 nit, ensuring clear readability even in direct sunlight or strong light conditions. It supports a wide temperature range of -20°C to 70°C, passing reliability tests such as high temperature, high humidity, vibration, and static electricity, and is suitable for harsh environments.
