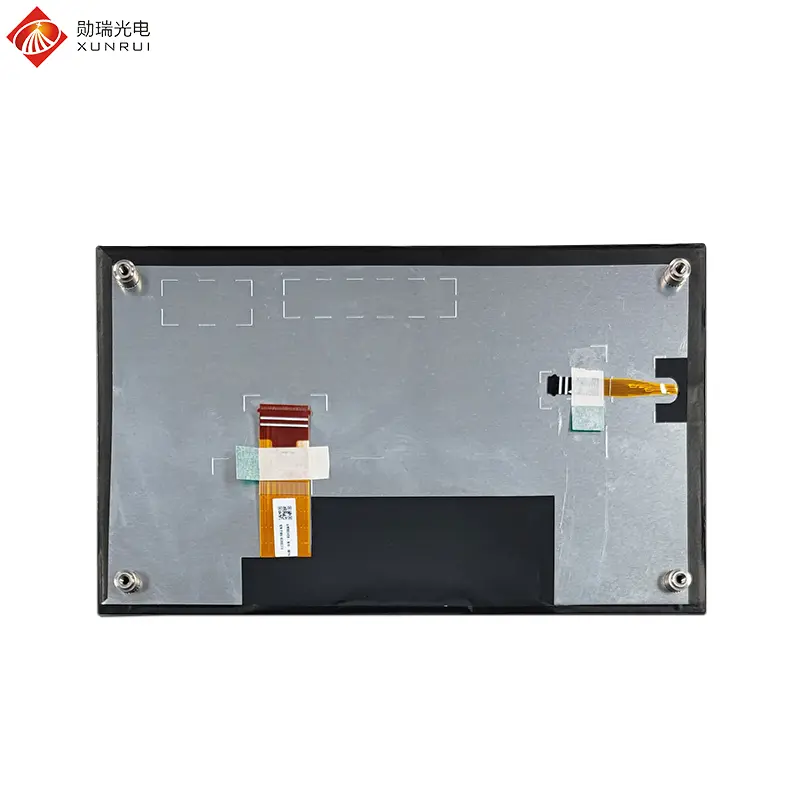

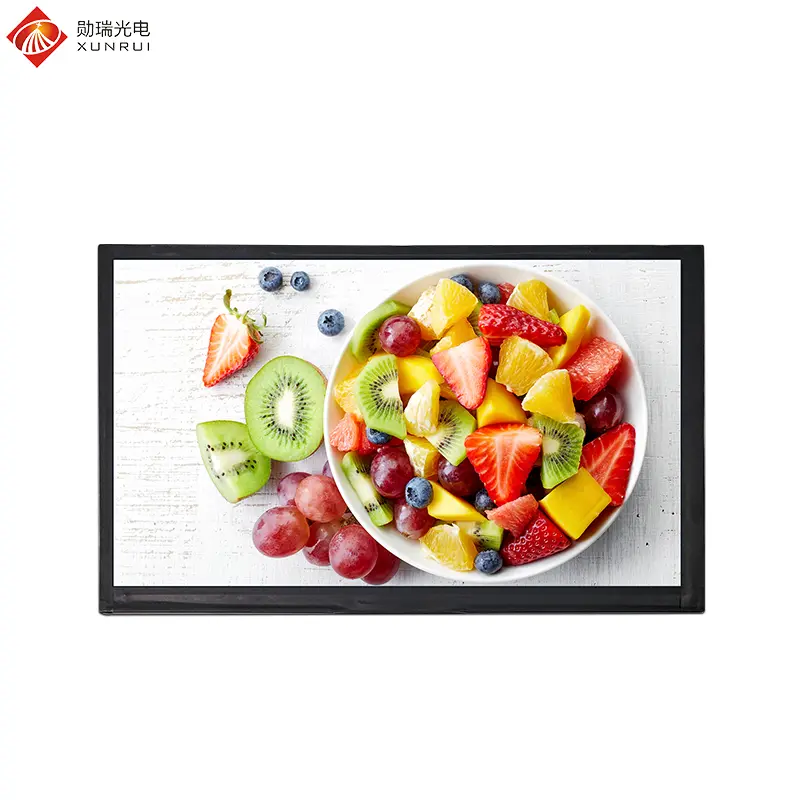

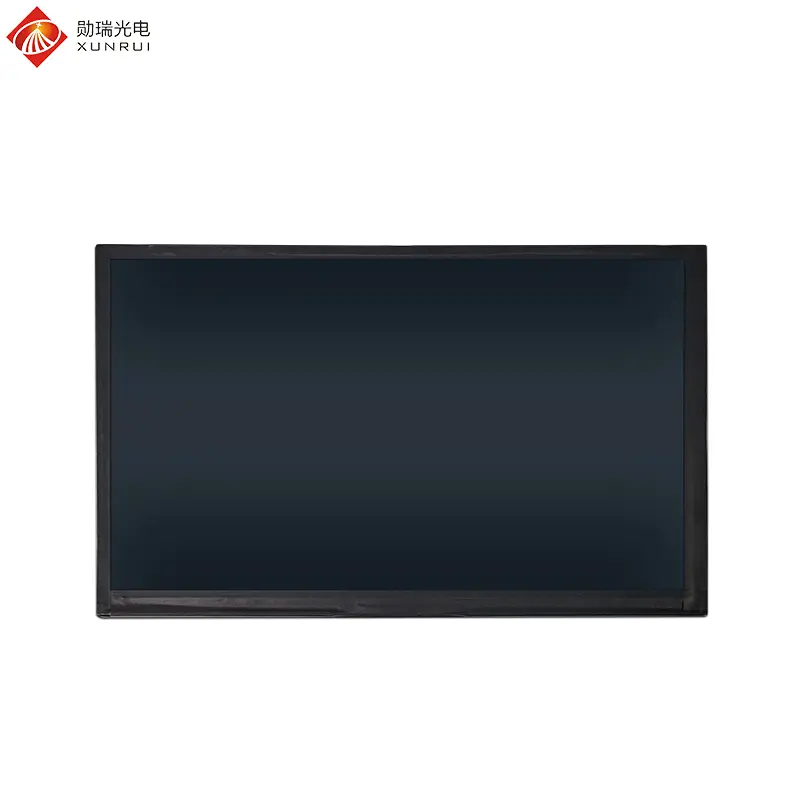

DXT080BHD30I1K035 is a high-performance 8-inch TFT LCD module featuring an IPS panel for a full 178° viewing angle. This ensures superior color consistency and clarity from almost any direction, making it ideal for multi-user viewing and varied installation angles.
Designed for demanding environments, its 1000-nit luminance provides exceptional readability even under direct sunlight. It supports optional capacitive or resistive touch screens and high-end full lamination (OCA/OCR) technology for enhanced optical performance and touch precision.
| Feature | Specification |
|---|---|
| Model Name | DXT080BHD30I1K035 |
| LCD Size | 8 inch |
| Display Format | 1280×720 (WXGA) |
| Interface | LVDS 30pin |
| Luminance | 1000 cd/m2 |
| Touch Screen | Optional (Capacitive/Resistive) |
| Viewing Direction | ALL (IPS) |
| Color Depth | 16.7M |

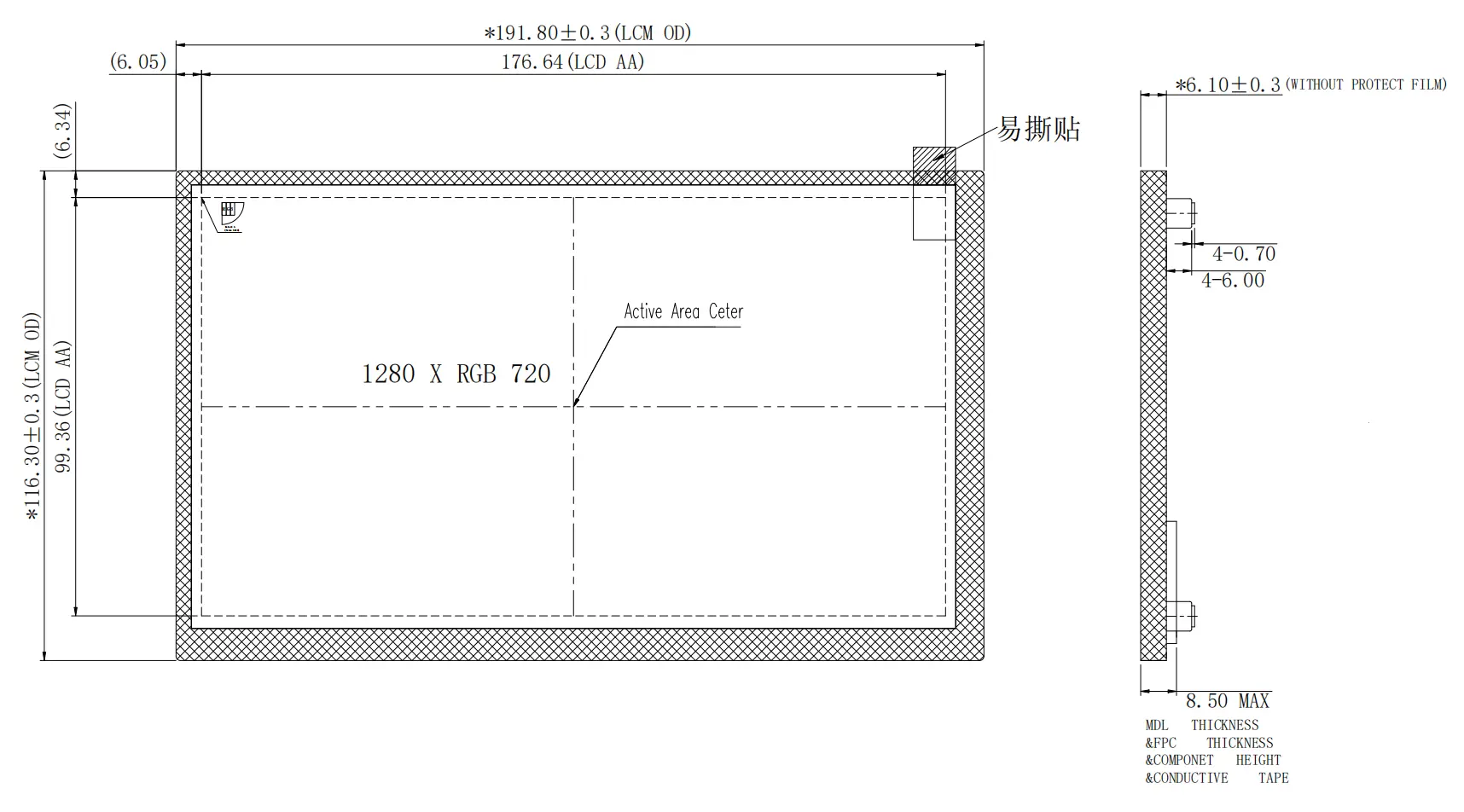

| LCM Dimensions | 192.8 * 116.9 * 6.1 mm |
| Active Area | 176.64 * 99.36 mm |
| Operating Temperature | -20°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C |
| PIN | SYMBOL | Description | Remark |
|---|---|---|---|
| 1 | NC | No connect | - |
| 2-3 | VDD | Power pin | 3.3V typ. |
| 4 | GND | Ground | - |
| 5 | RESET | Reset Pin | H: Normal, L: Reset |
| 6 | STBYB | Standby Pin | H: Normal, L: Standby |
| 15-16 | LV0N/P | LVDS Data channel 0 | - |
| 18-19 | LV1N/P | LVDS Data channel 1 | - |
| 21-22 | LV2N/P | LVDS Data channel 2 | - |
| 24-25 | CLKN/P | LVDS Clock | - |
| 27-28 | LV3N/P | LVDS Data channel 3 | - |
Yes. With a high brightness of 1000 nits, the display is specifically designed to be sunlight-readable, making it perfect for outdoor equipment and vehicle-mounted systems.
The standard module comes without touch, but we offer optional capacitive or resistive touch screens. High-end models also support full lamination technology.
The IPS panel provides a full 178° viewing angle and superior color consistency, allowing users to see clear images from any angle without color distortion.
It uses a mainstream LVDS 30-pin interface, which is the standard for most industrial control, medical, and vehicle-mounted equipment.
This module is built for durability, with an operating temperature range of -20°C to +80°C, ensuring stable performance in harsh factory or outdoor environments.
The display features a 16:9 width-to-height ratio, which is the standard widescreen format for modern digital content and interfaces.
